1.2 Ton 23 HP Mini Excavator W/ Hydraulic Thumb | MX20R
Original price was: $7,555.05.$4,759.99Current price is: $4,759.99.

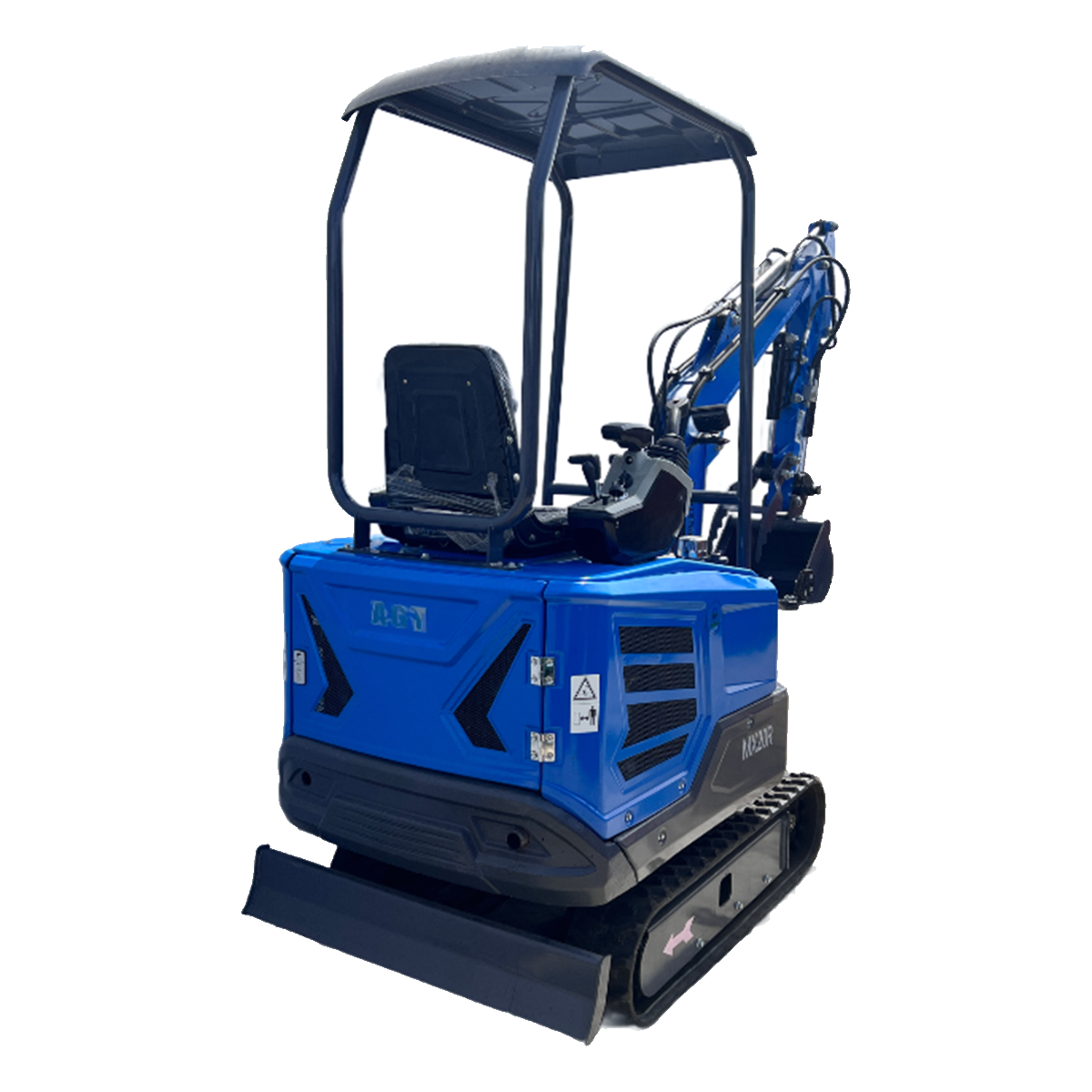

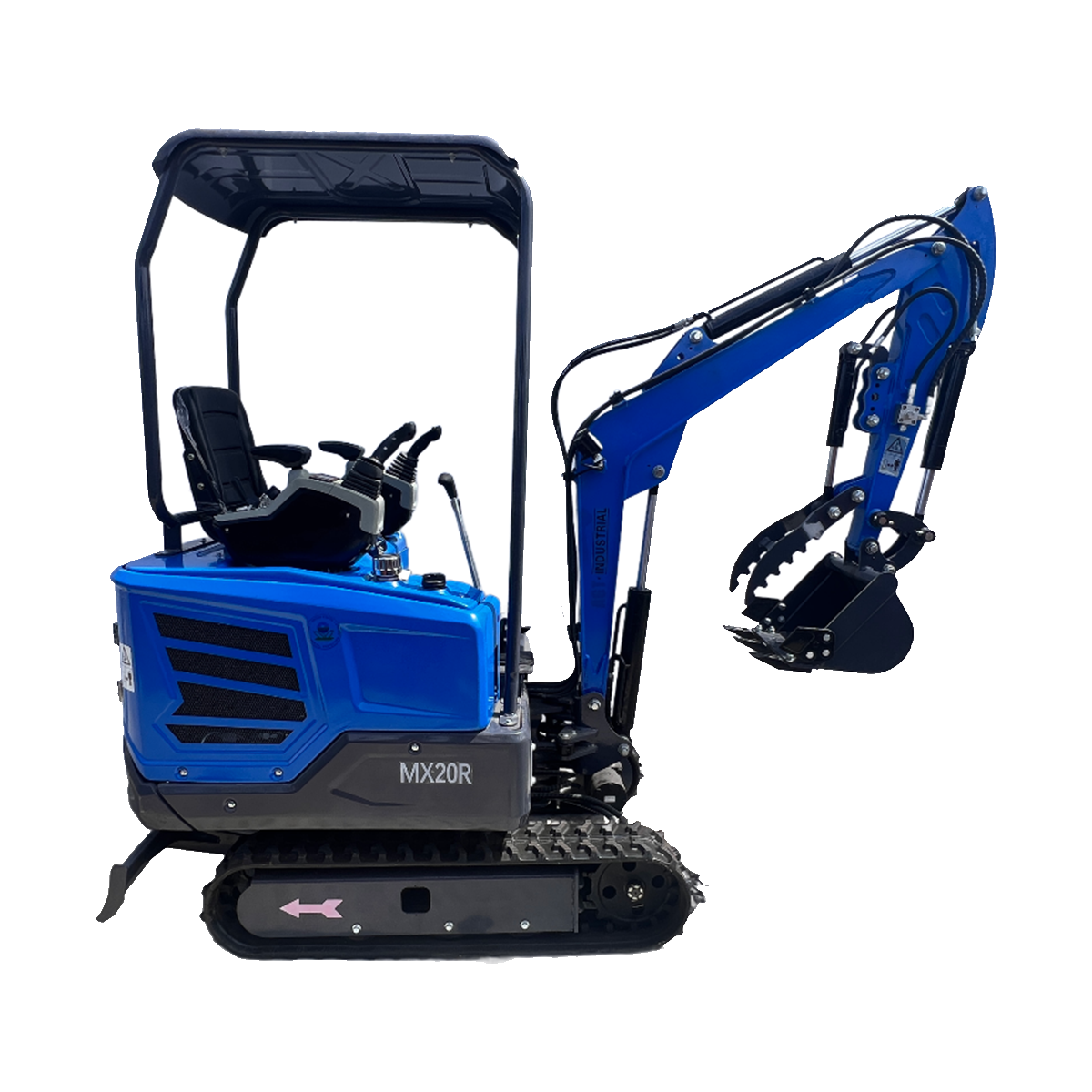

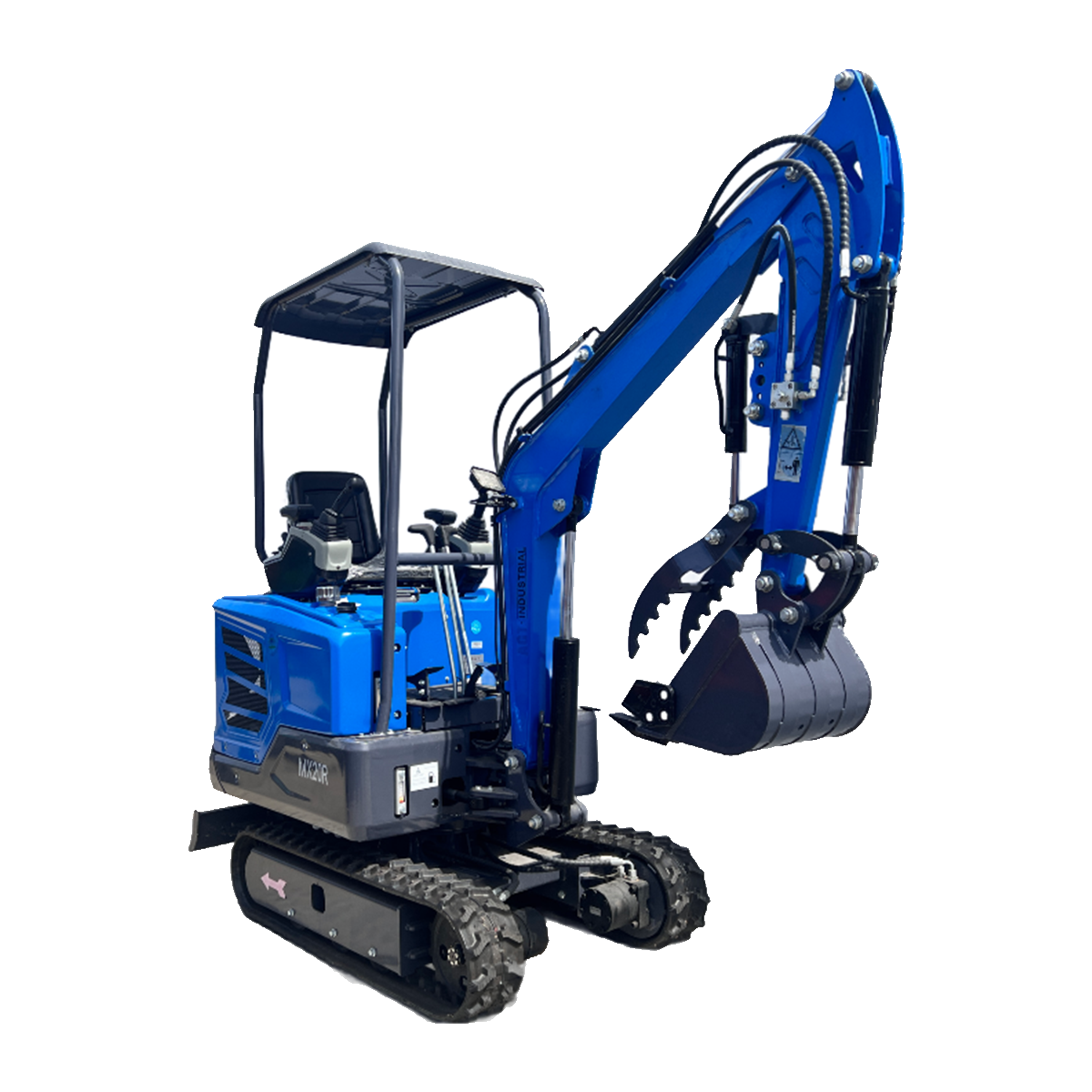

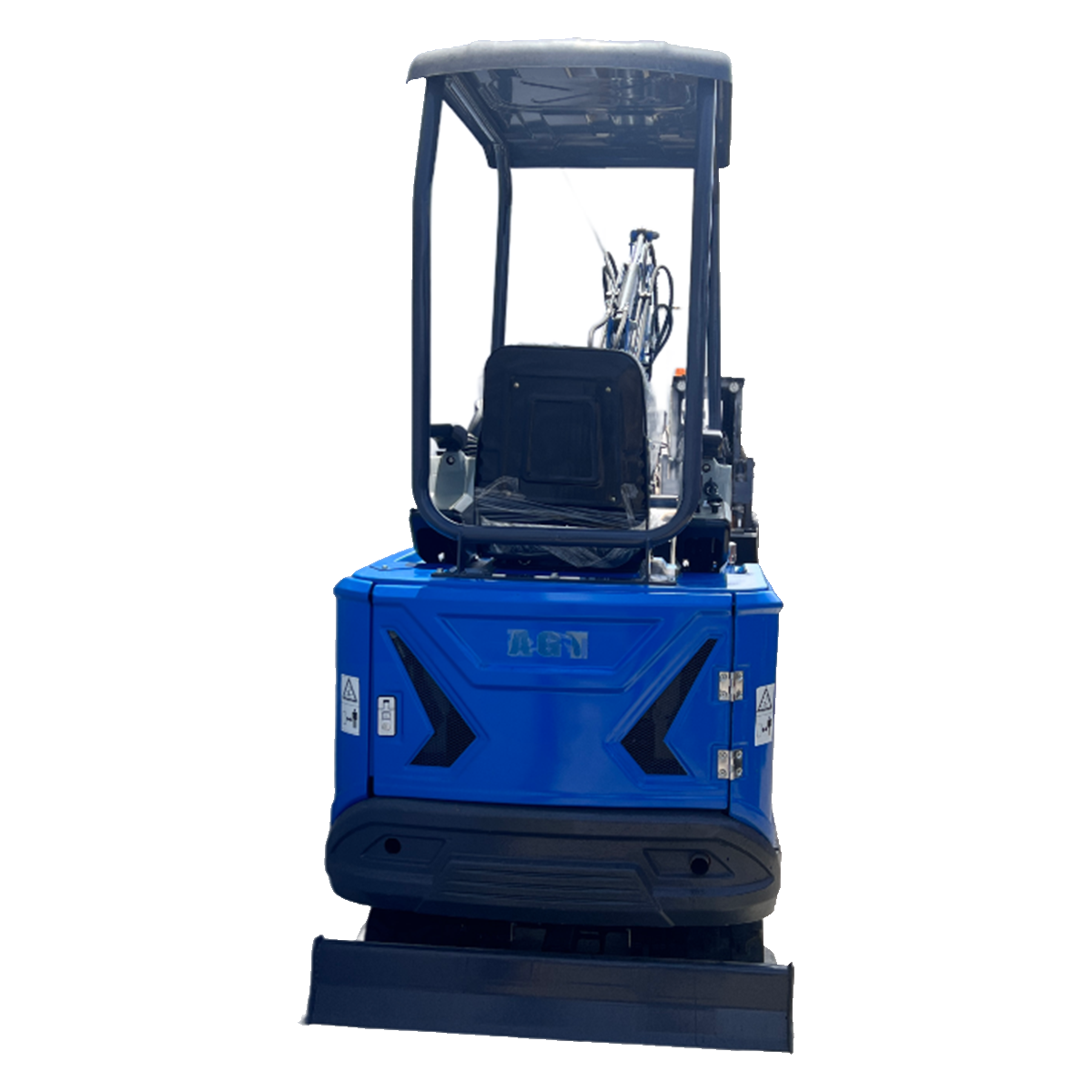

AGT MX20R 1.2-Ton Mini Excavator
A high-output 1.2-ton mini excavator pairing the powerful Rato R740D 740cc engine at 23 HP with a full feature set: side swing boom, hydraulic thumb, pilot controls, and LED work light. The MX20R digs to 89″ — the same depth as the DM20 — while running gasoline in a compact 37″ wide chassis with a compact 849mm minimum tail radius for easy maneuvering.
740cc Rato engine at 23 HP — significantly more power than the 13.5 HP engines common in this weight class. Faster cycle times and better performance on harder ground.
2,257mm (89″) maximum digging depth — exceptional reach for a sub-1.5-ton gasoline machine. Handles deep utilities, drainage, and foundation work beyond most compact excavators.

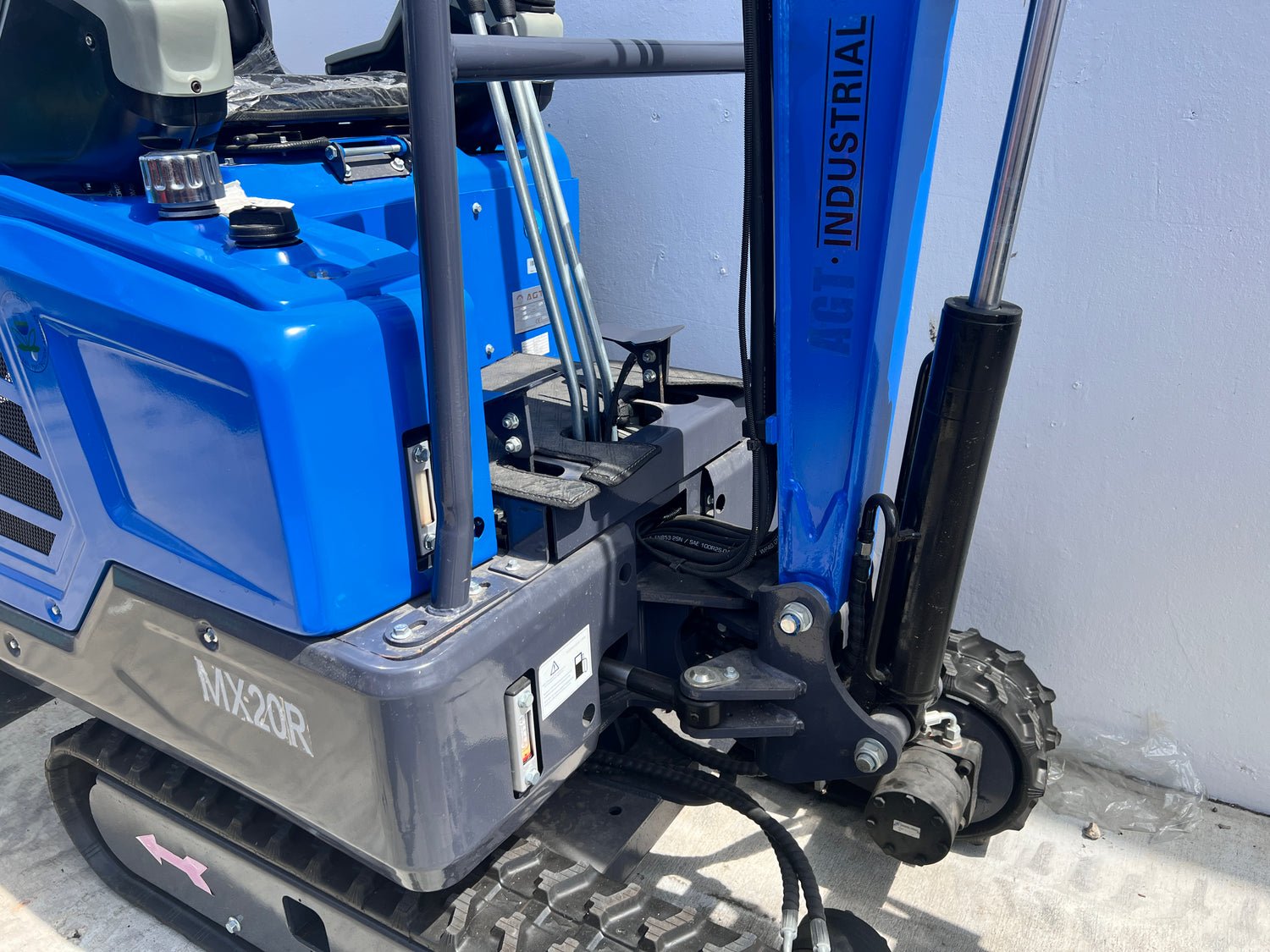

Factory side swing boom for working alongside walls, fences, and structures without repositioning — standard on every MX20R.
Compact 849mm minimum tail radius — tight rear swing clearance for working in confined sites where a larger machine’s counterweight would be obstructed.
| Engine Brand & Model | Rato R740D |
| Fuel Type | Gasoline |
| Rated Power | 23 HP (17 kW) |
| Displacement | 740 cc |
| Fuel Tank | 8.7 L / 2.3 gal |
| Hydraulic Tank | 14.2 L / 3.7 gal |
| Operating Weight | 1.2 Ton / 2,400 lbs |
| Max Digging Depth | 2,257 mm / 89 in |
| Max Digging Height | 2,890 mm / 114 in |
| Max Dumping Height | 1,958 mm / 77 in |
| Max Reach at Ground | 3,305 mm / 130 in |
| Min Tail Swing Radius | 849 mm / 33.4 in |
| Overall Length | 3,200 mm / 126 in |
| Overall Width | 936 mm / 37 in |
| Overall Height | 2,210 mm / 87 in |
| Track Size (W × Pitch × Links) | 180 × 72 × 41 |
| Blade Width | 1,000 mm / 39.5 in |
| Blade Height | 180 mm / 7 in |
| Max Lifting Height | 288 mm / 11 in |
| Max Drop Depth | 146 mm / 5.5 in |
Rato R740D 740cc 23 HP Engine

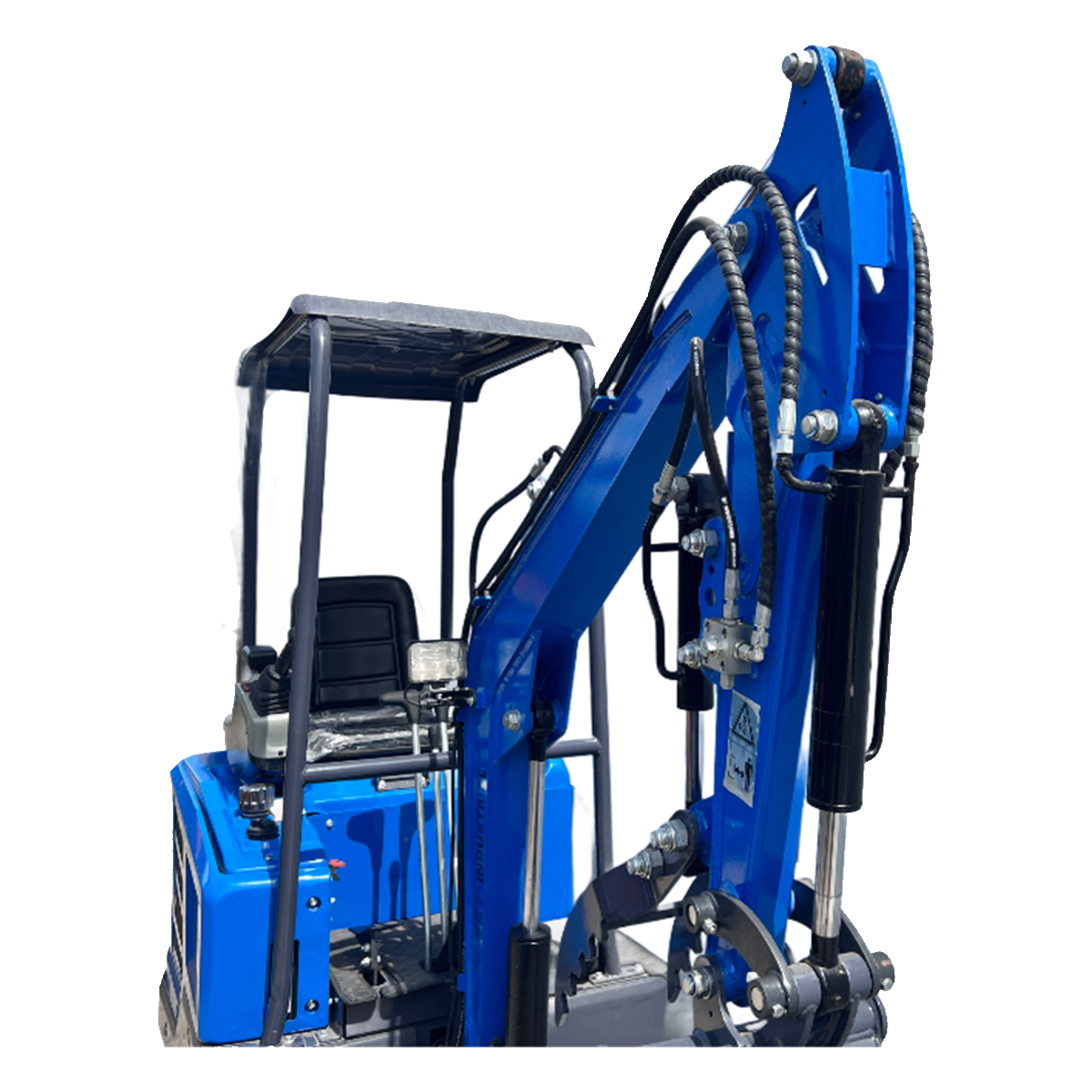

Side Swing Boom

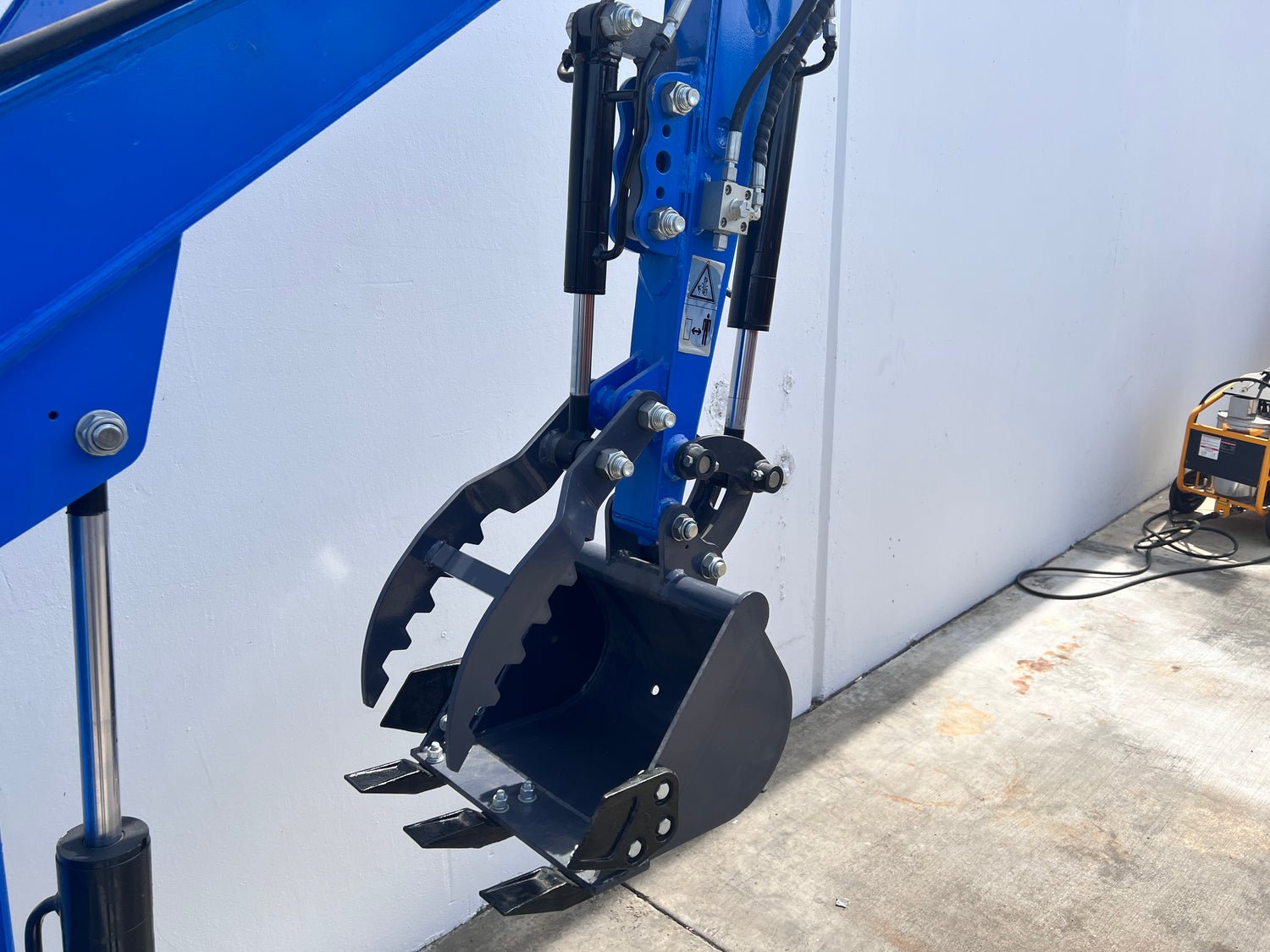

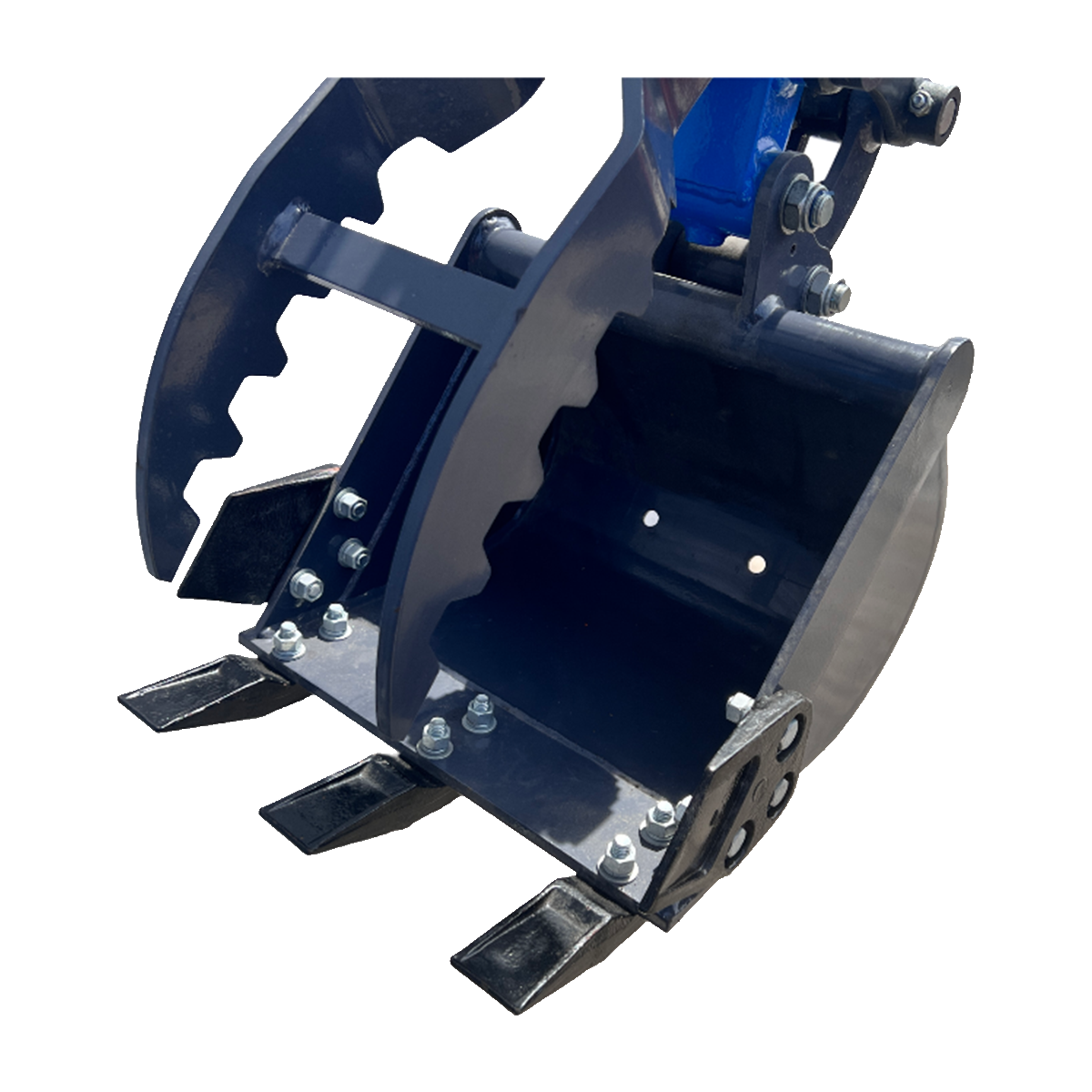

Hydraulic Thumb

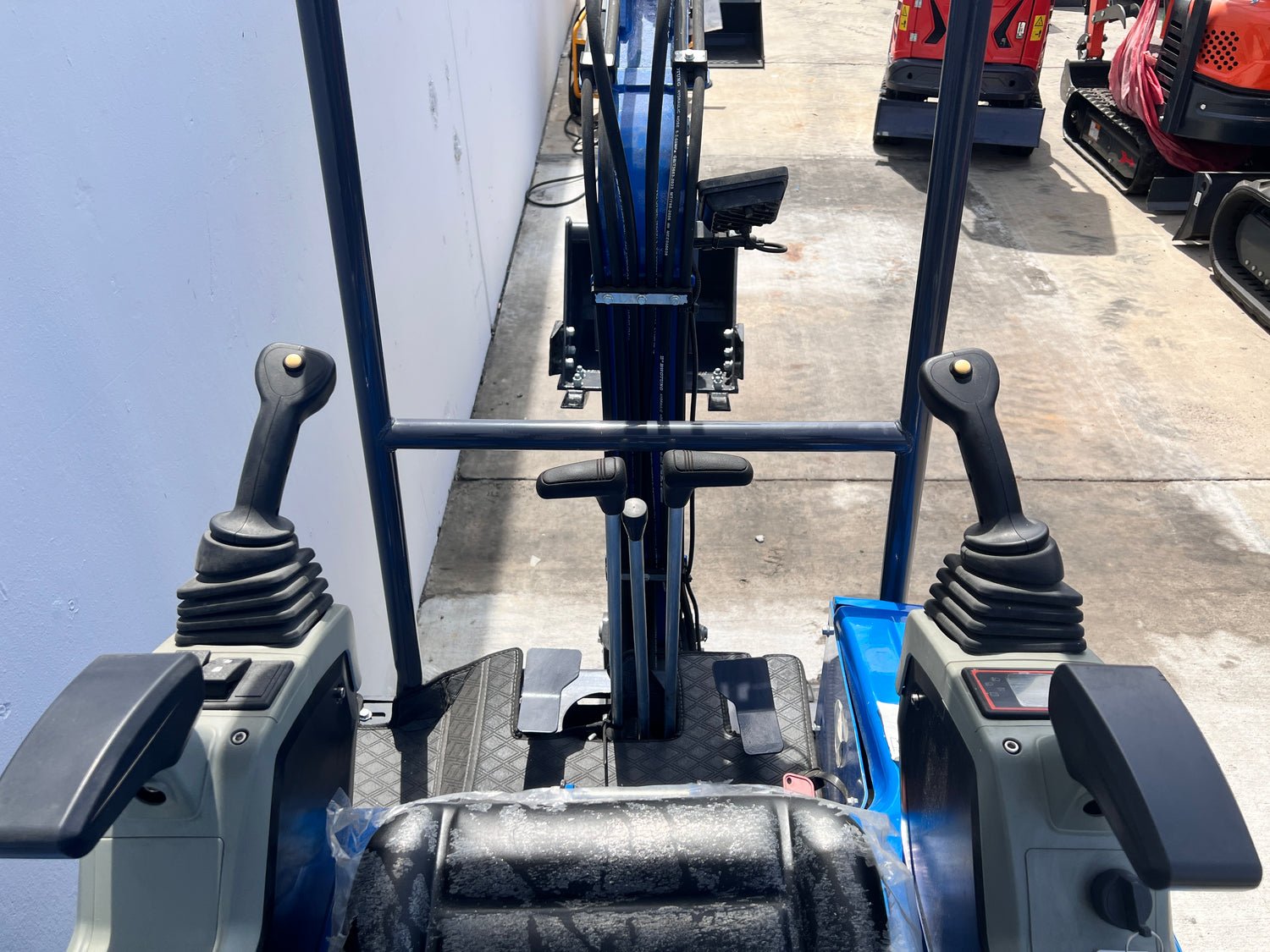

Pilot Controls

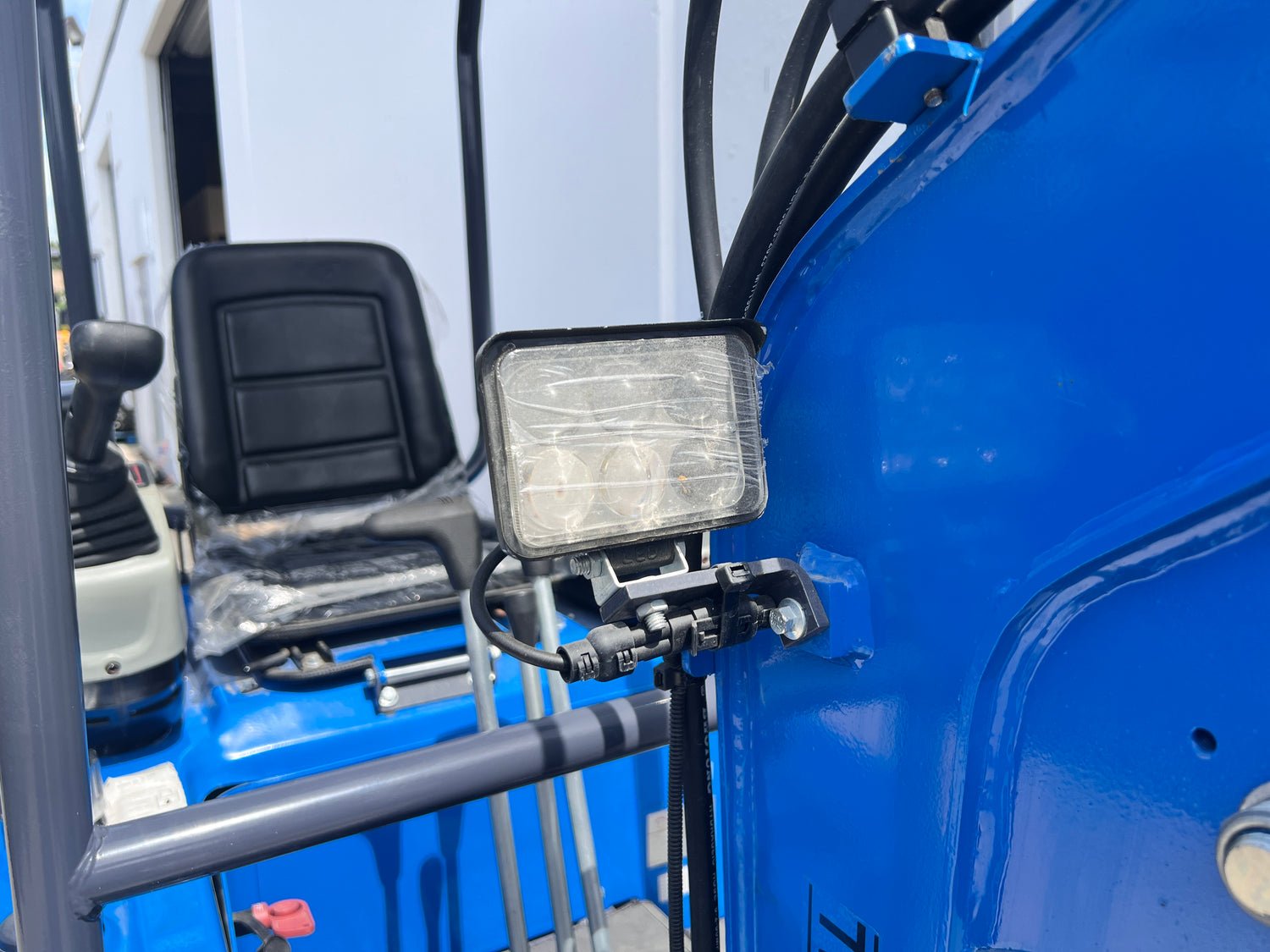

LED Work Light
Dozer Blade (39.5″ wide)
Rubber Tracks (180×72×41)
Bucket
ROPS Canopy
1-Year Warranty on Parts
Rato R740D 740cc 23 HP Gasoline
Pilot Controls
ROPS Canopy
LED Work Light
Rubber Tracks (180×72×41)
Dozer Blade (1,000mm / 39.5″)
Side Swing Boom
Hydraulic Thumb
Bucket
1-Year Warranty on Parts
