2.8 Ton, Yanmar Diesel Engine Mini Excavator w/ Hydraulic Thumb | CFG-STE35SR
Original price was: $26,891.24.$16,940.99Current price is: $16,940.99.

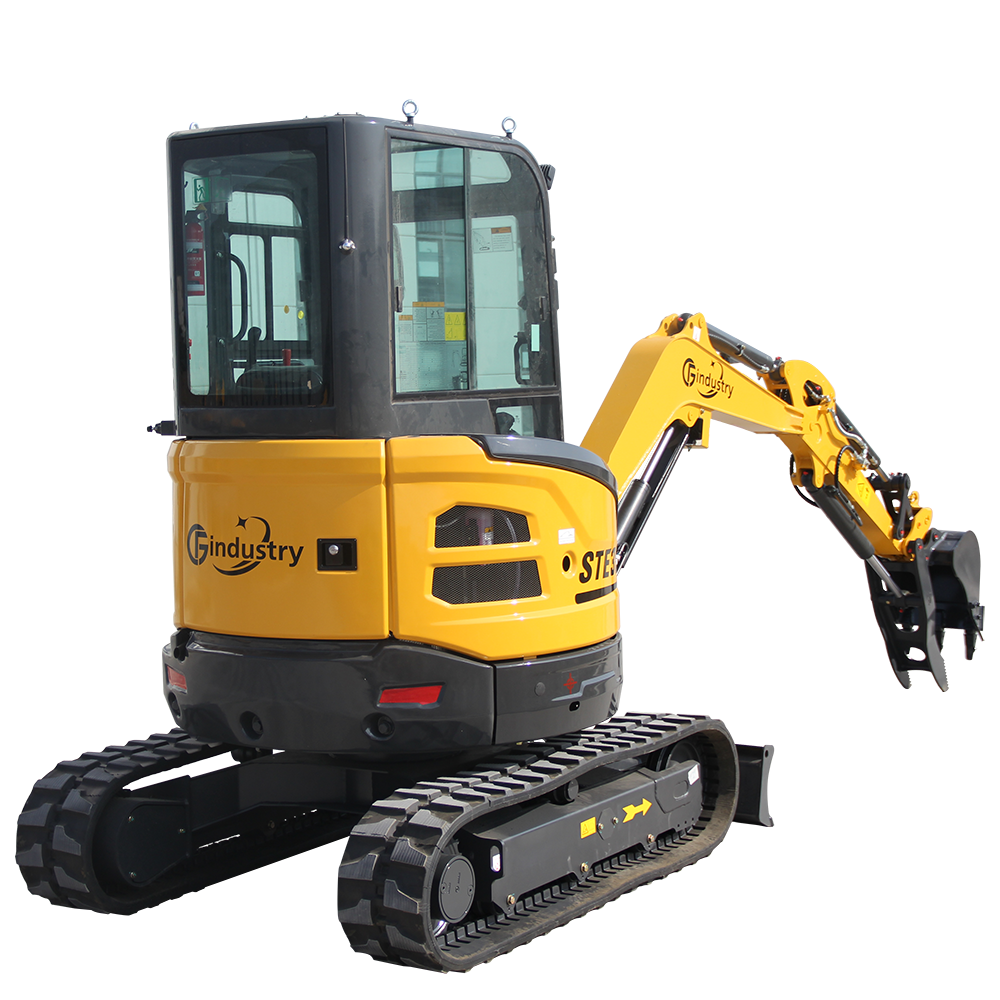

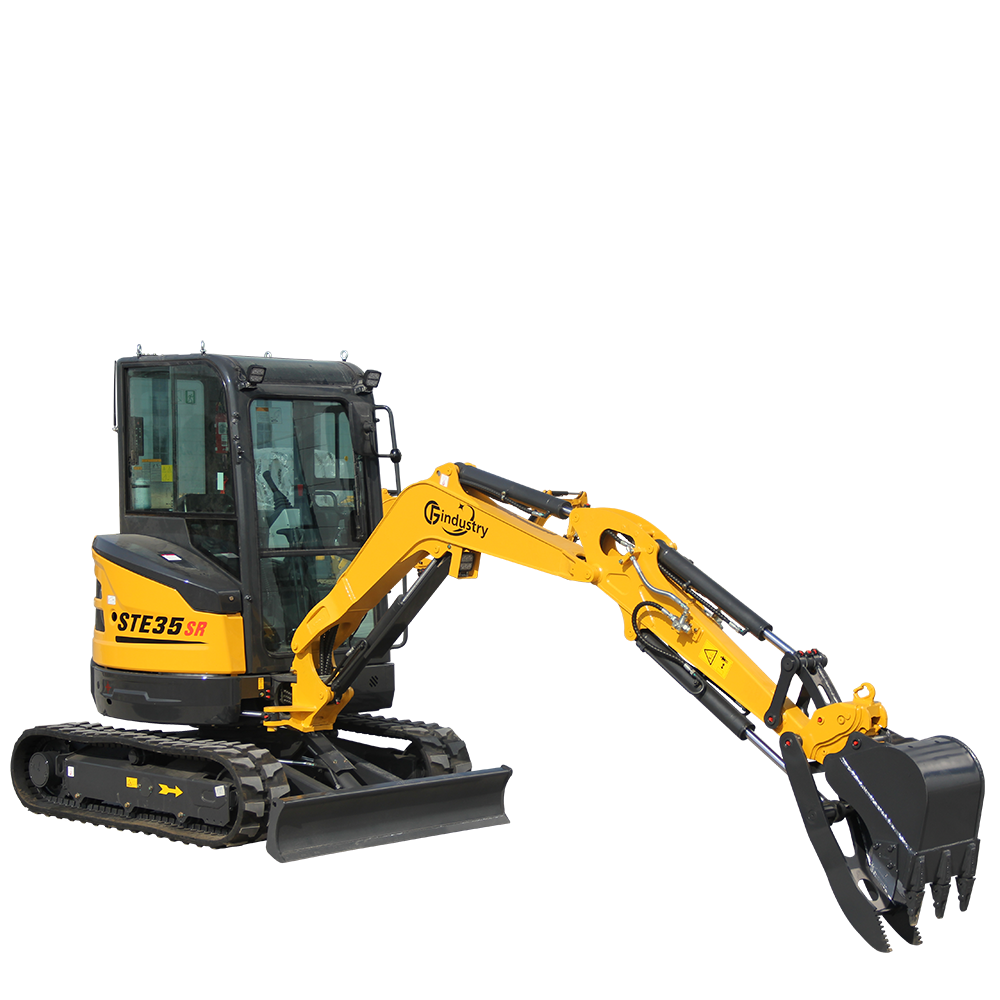

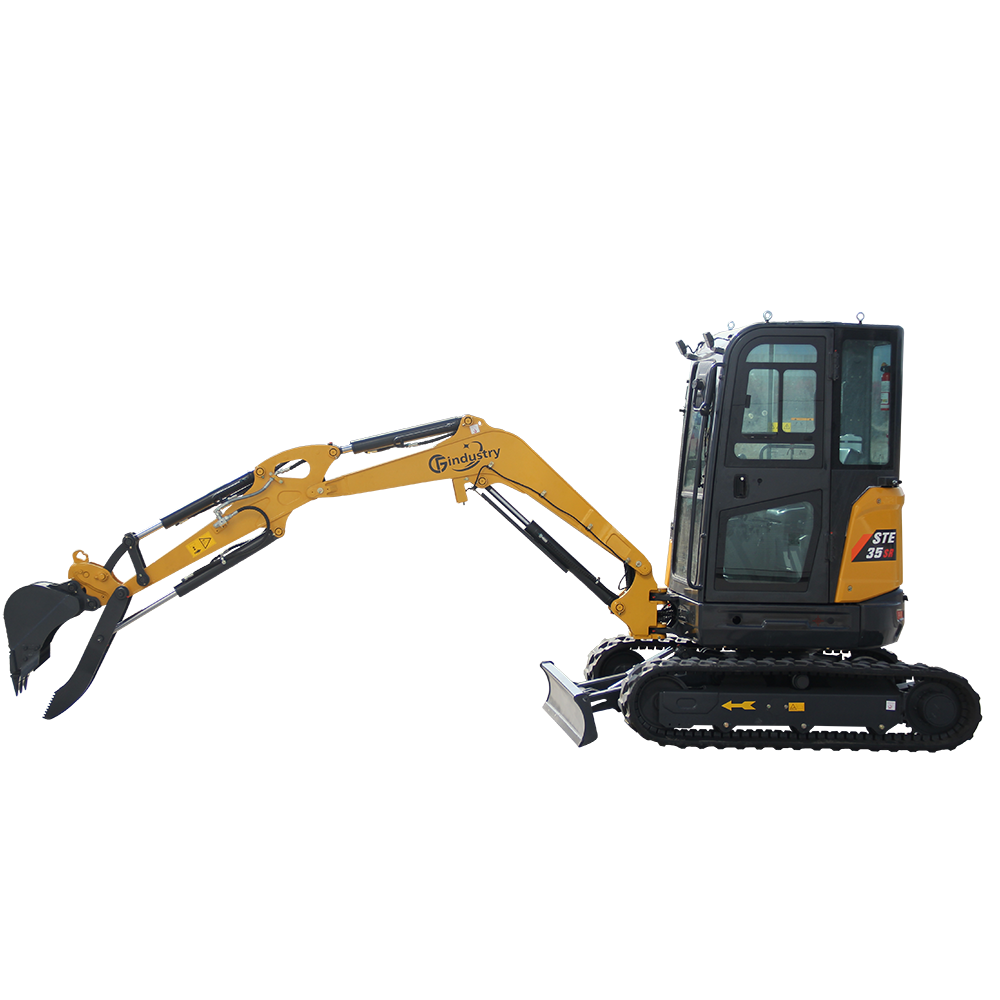

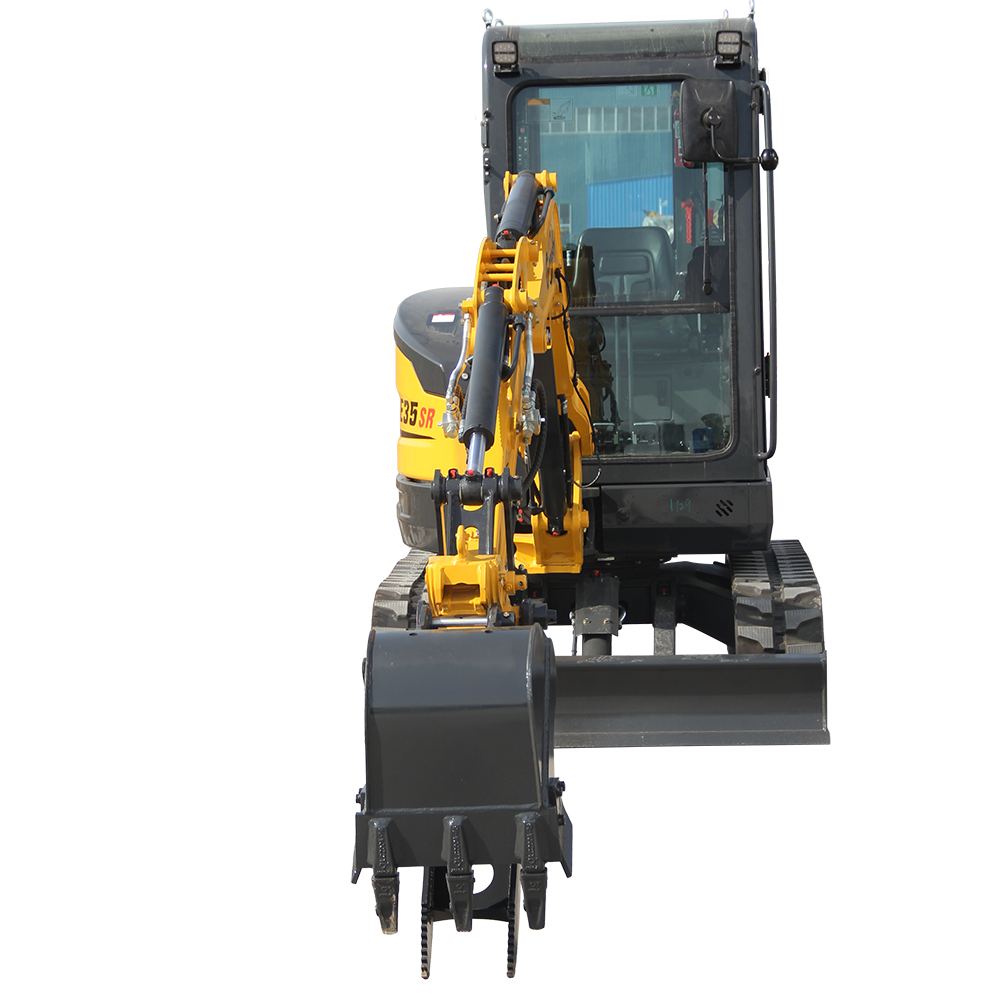

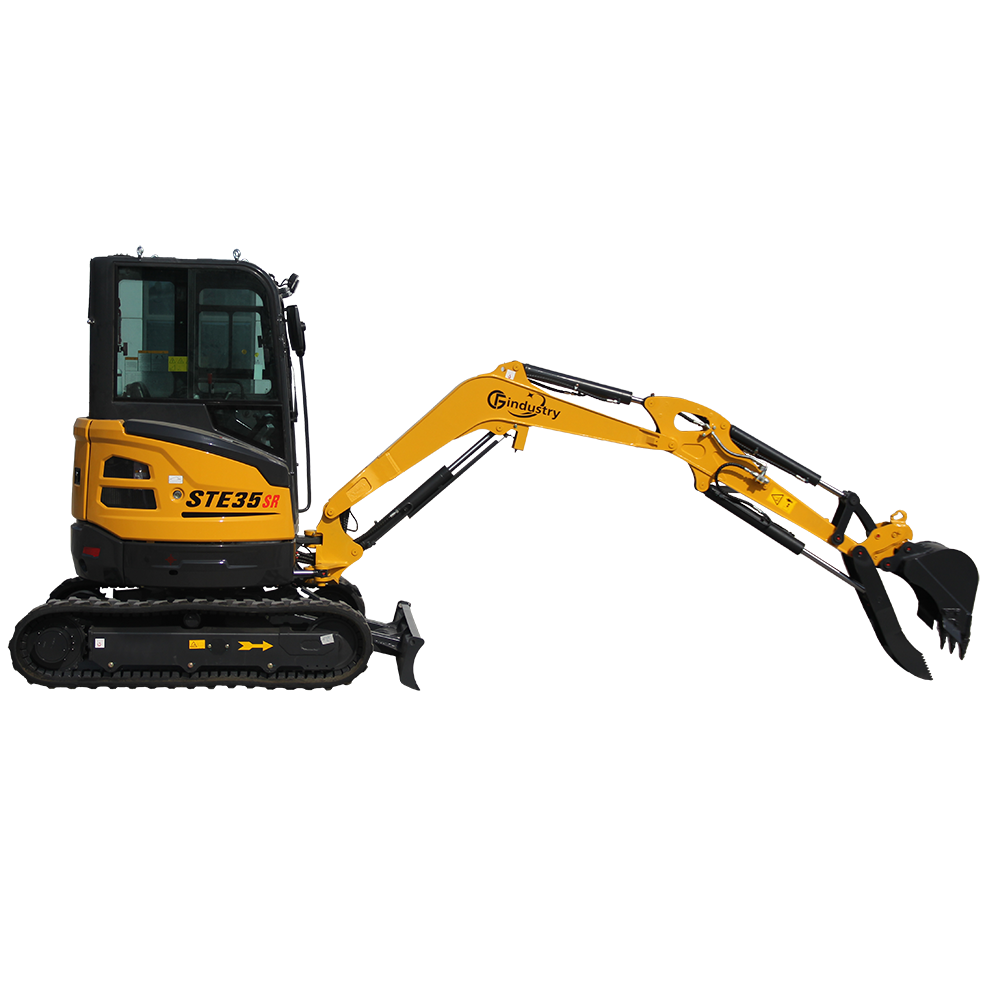

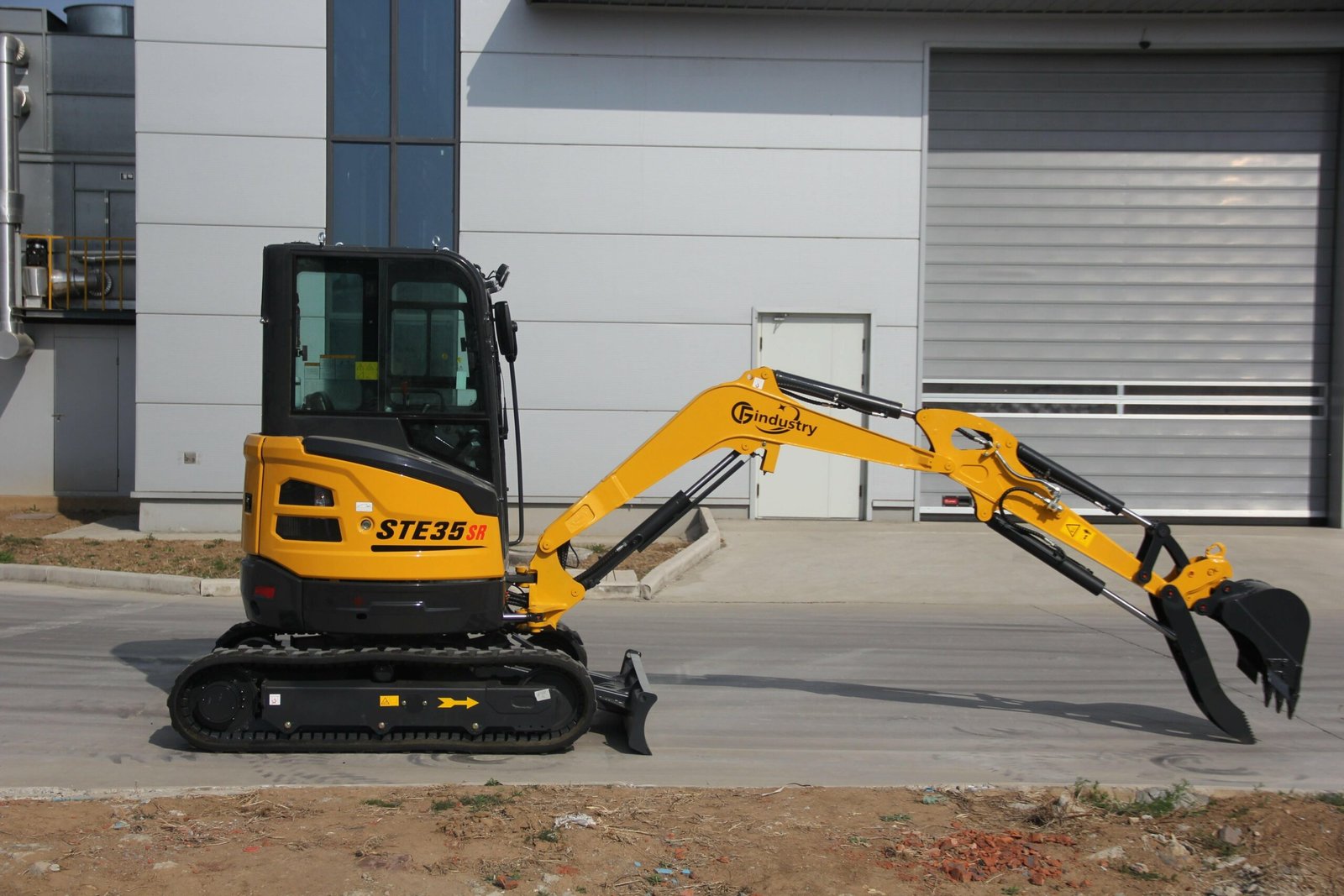

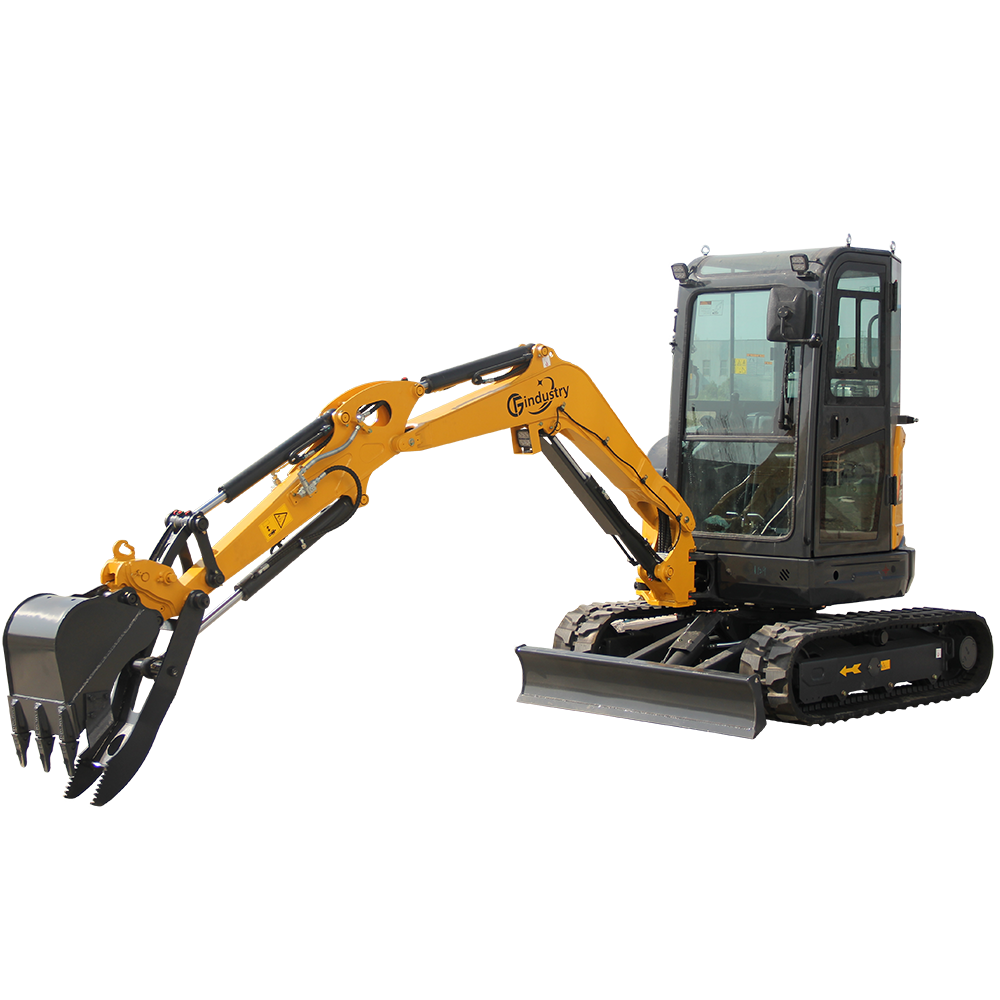

AGT CFG-STE35SR 2.8-Ton Mini Excavator
A professional 2.8-ton mini excavator built for demanding construction and excavation work. The CFG-STE35SR is powered by a Yanmar 3TNV80F Tier 4 Final / EU Stage V liquid-cooled diesel — delivering 25 HP and 5,400 lbf of bucket breakout force. Features enclosed cab, side swing boom, pilot controls, hydraulic thumb, LED lights, and rearview mirror, with full compatibility for augers, breakers, and grapples up to 25 GPM. Uses 35mm pin attachments.

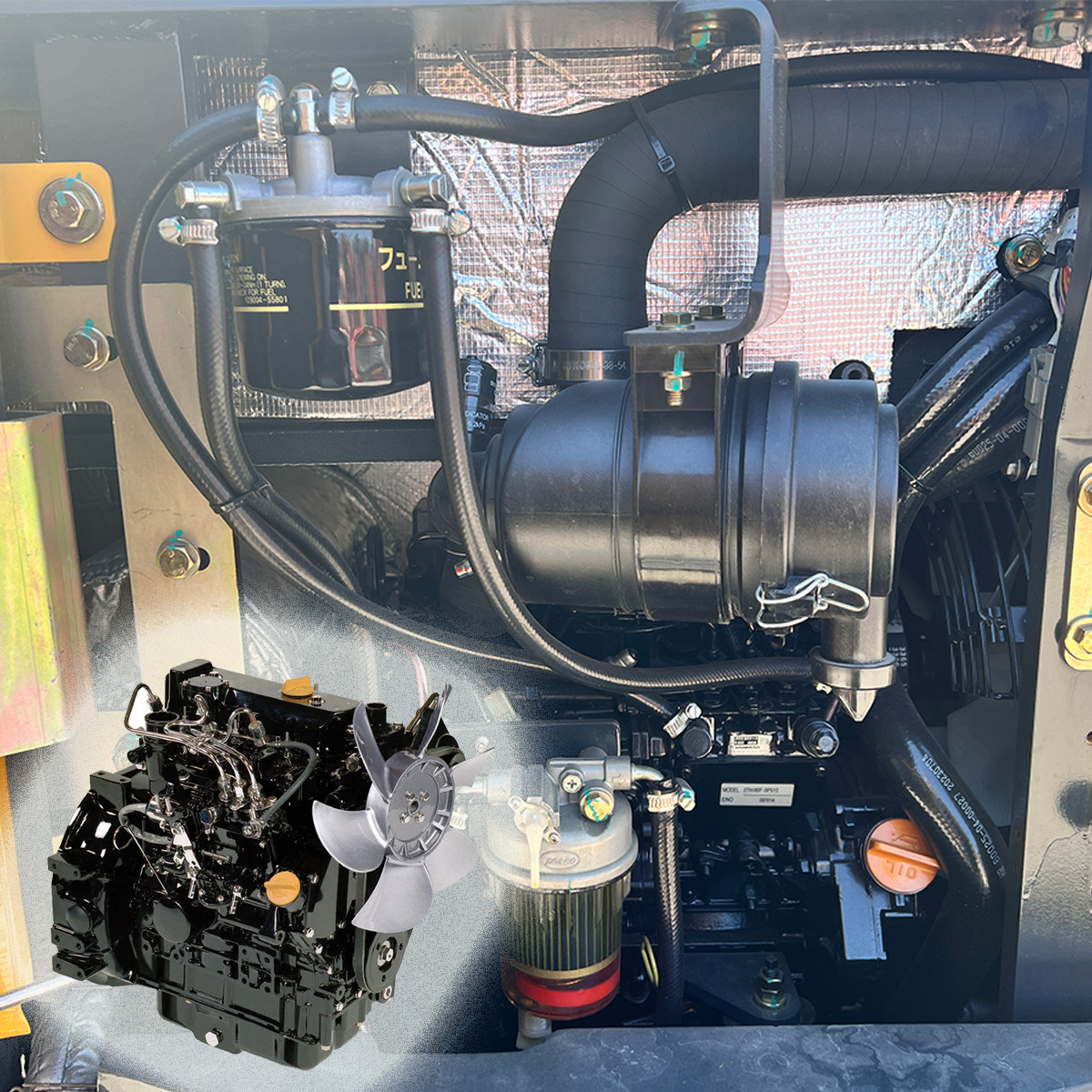

3TNV80F liquid-cooled diesel · 25 HP · 1,642cc · Tier 4 Final / EU Stage V · Max torque 77 Nm · 50 L fuel tank.

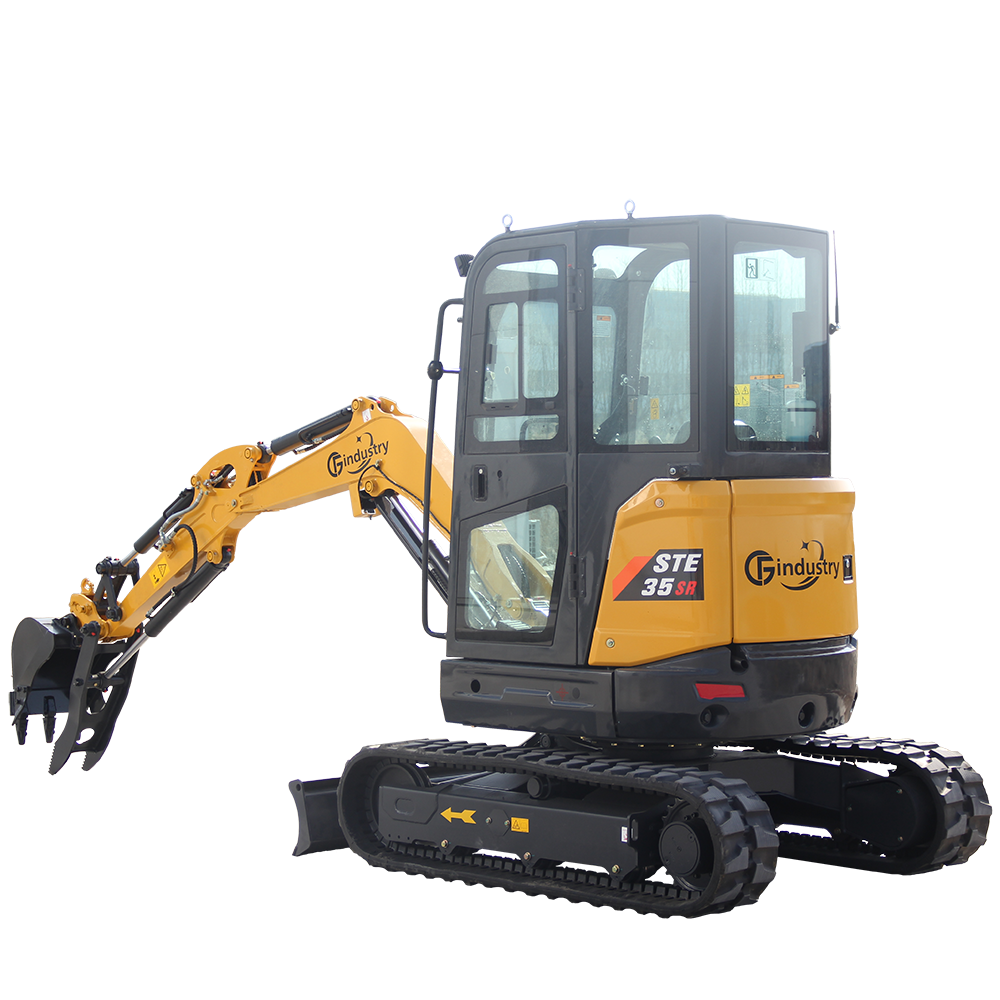

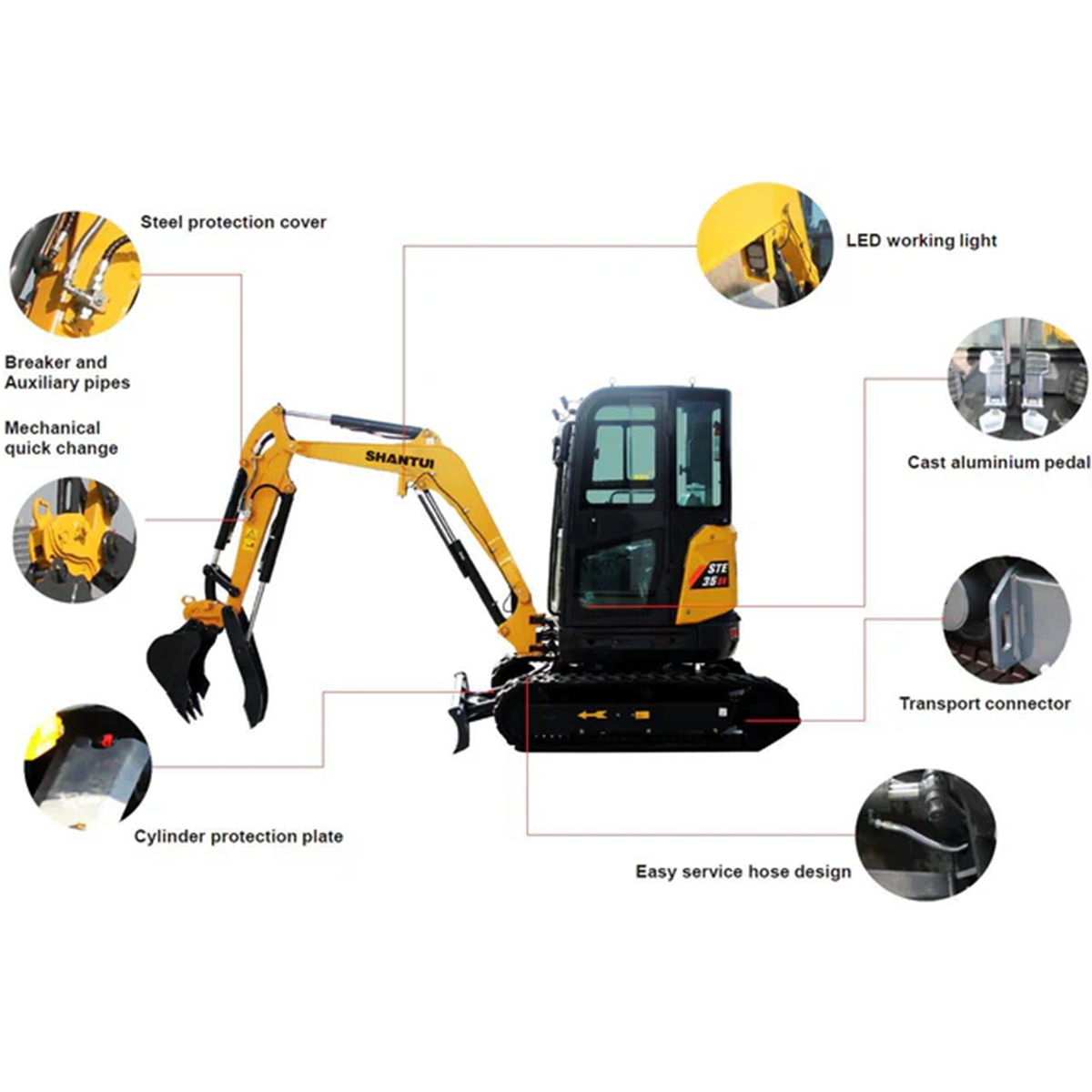

Fully enclosed operator cab with pilot controls, rearview mirror, and LED lights — full all-weather protection for professional daily operation.

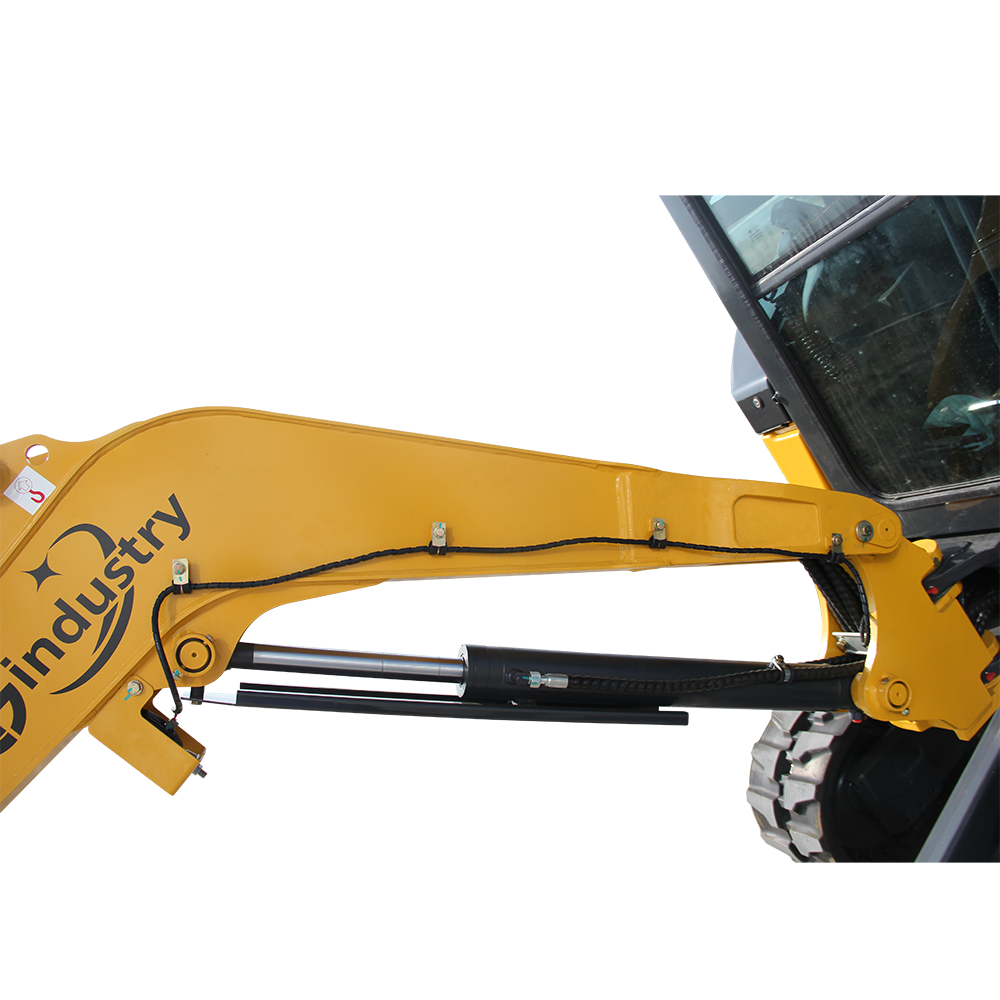

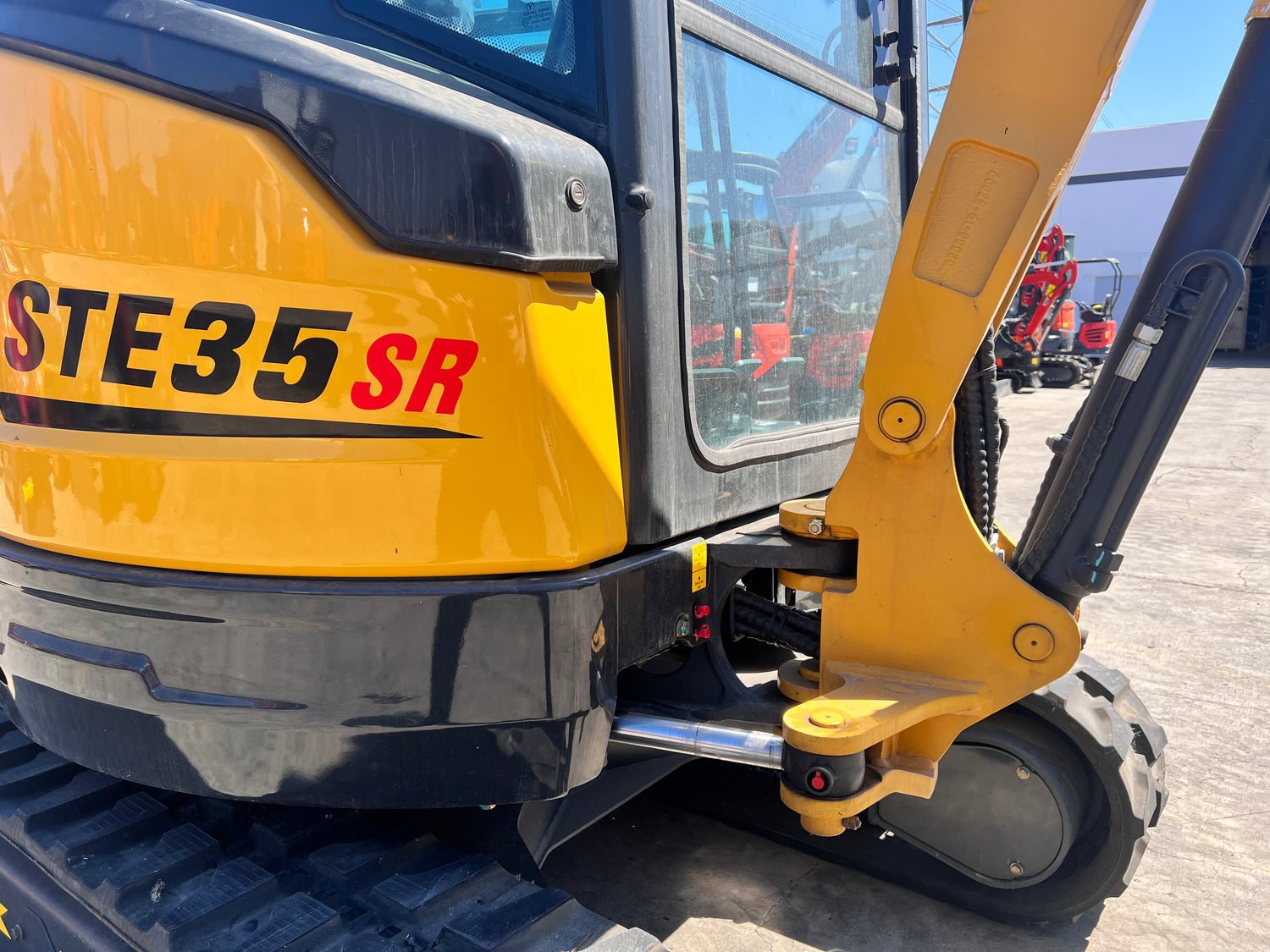

Factory side swing boom for working alongside walls, fences, and structures in confined spaces — without repositioning the machine.
Bucket breakout force of 24 kN (5,400 lbf) and arm digging force of 14.8 kN (3,330 lbf) — serious digging power for hard ground and compact soil.
| Engine Brand & Model | Yanmar 3TNV80F |
| Engine Type | 3-Cylinder, Water-Cooled Diesel |
| Rated Power | 25 HP (18.2 kW) |
| Displacement | 1,642 cc |
| Max Torque | ~77 Nm at 1,500 RPM |
| Emissions | Tier 4 Final / EU Stage V |
| Cooling | Liquid-Cooled Radiator |
| Fuel Tank | 50 L / 13.2 gal |
| Hydraulic Tank | 22 L / 5.8 gal |
| Operating Weight | 2.8 Ton / 6,173 lbs |
| Bucket Breakout Force | 24 kN / 5,400 lbf |
| Arm Digging Force | 14.8 kN / 3,330 lbf |
| Max Digging Depth | 2,800 mm / 110 in |
| Max Digging Height | 5,100 mm / 200 in |
| Max Dumping Height | 3,600 mm / 142 in |
| Max Reach at Ground Level | 4,680 mm / 184 in |
| Tail Swing Radius | 860 mm / 33.9 in |
| Attachment Pin | 35 mm |
| Overall Length | 4,880 mm / 192 in |
| Overall Width | 1,740 mm / 68.5 in |
| Overall Height | 2,550 mm / 100 in |
| Ground Clearance | 295 mm / 11.6 in |
| Undercarriage Length | 3,360 mm / 132 in |
| Track Gauge | ~1,350 mm / 53.1 in |
| Track Rollers Per Side | 4 |
| Track Size (Width × Pitch × Links) | 300 × 55 × 80 |
| Track Width | 300 mm / 11.8 in |
| Blade Width | 1,530 mm / 60 in |
| Blade Height | 300 mm / 12 in |
| Max Lifting Height | 300 mm / 12 in |
| Max Drop Depth | 320 mm / 12.5 in |
Yanmar 3TNV80F Tier 4 Diesel
Enclosed Cab
Pilot Controls
Side Swing Boom

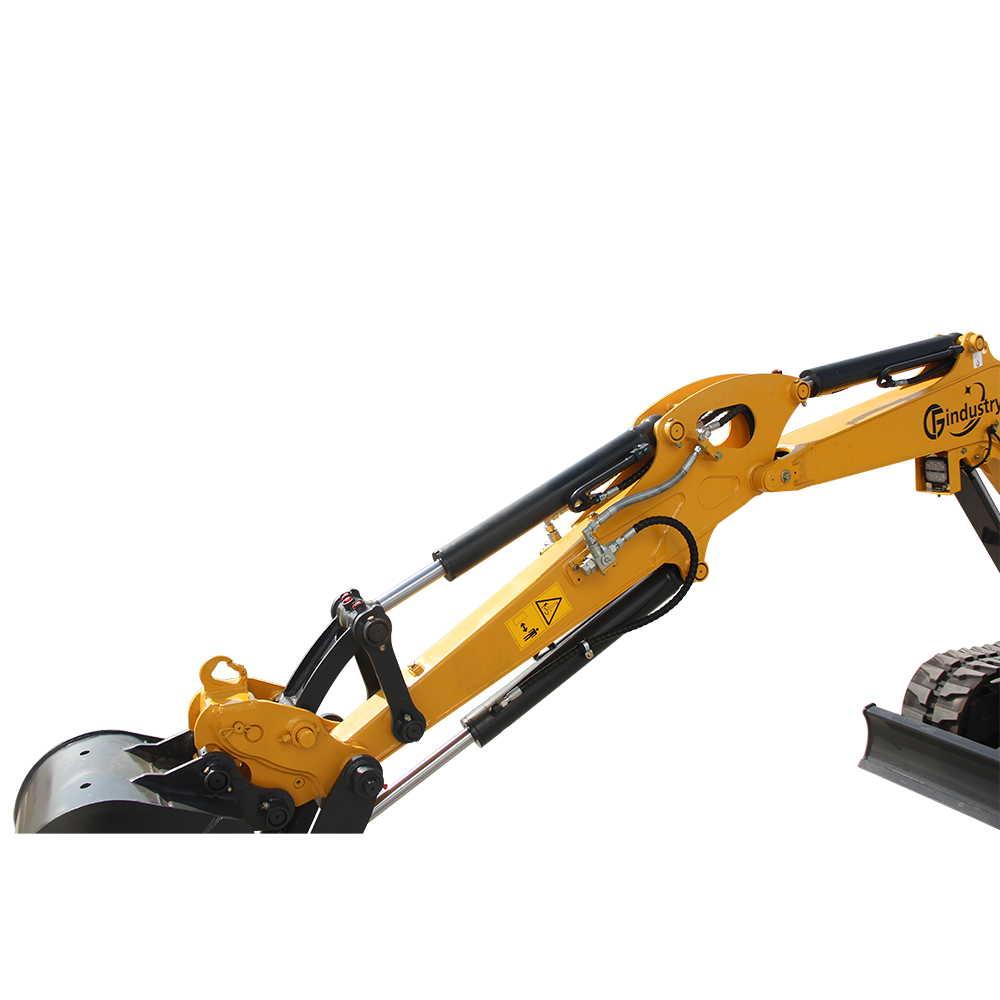

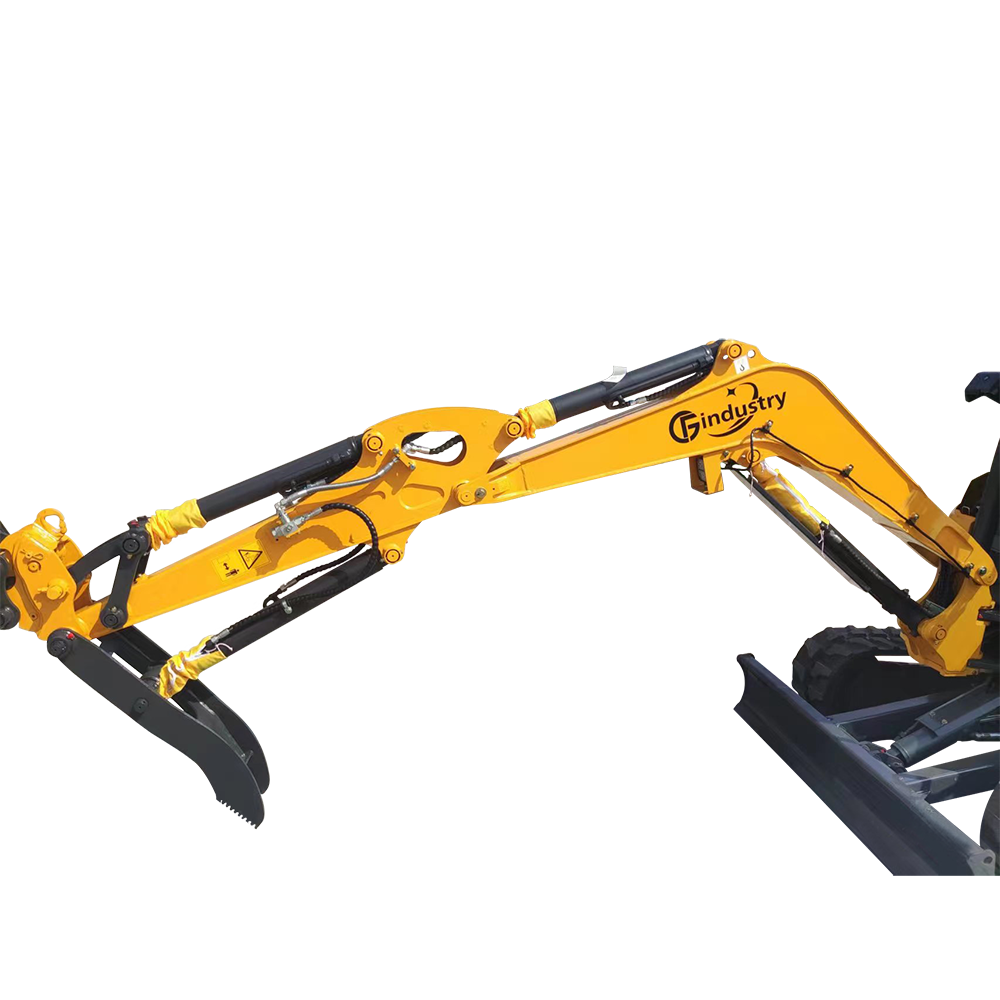

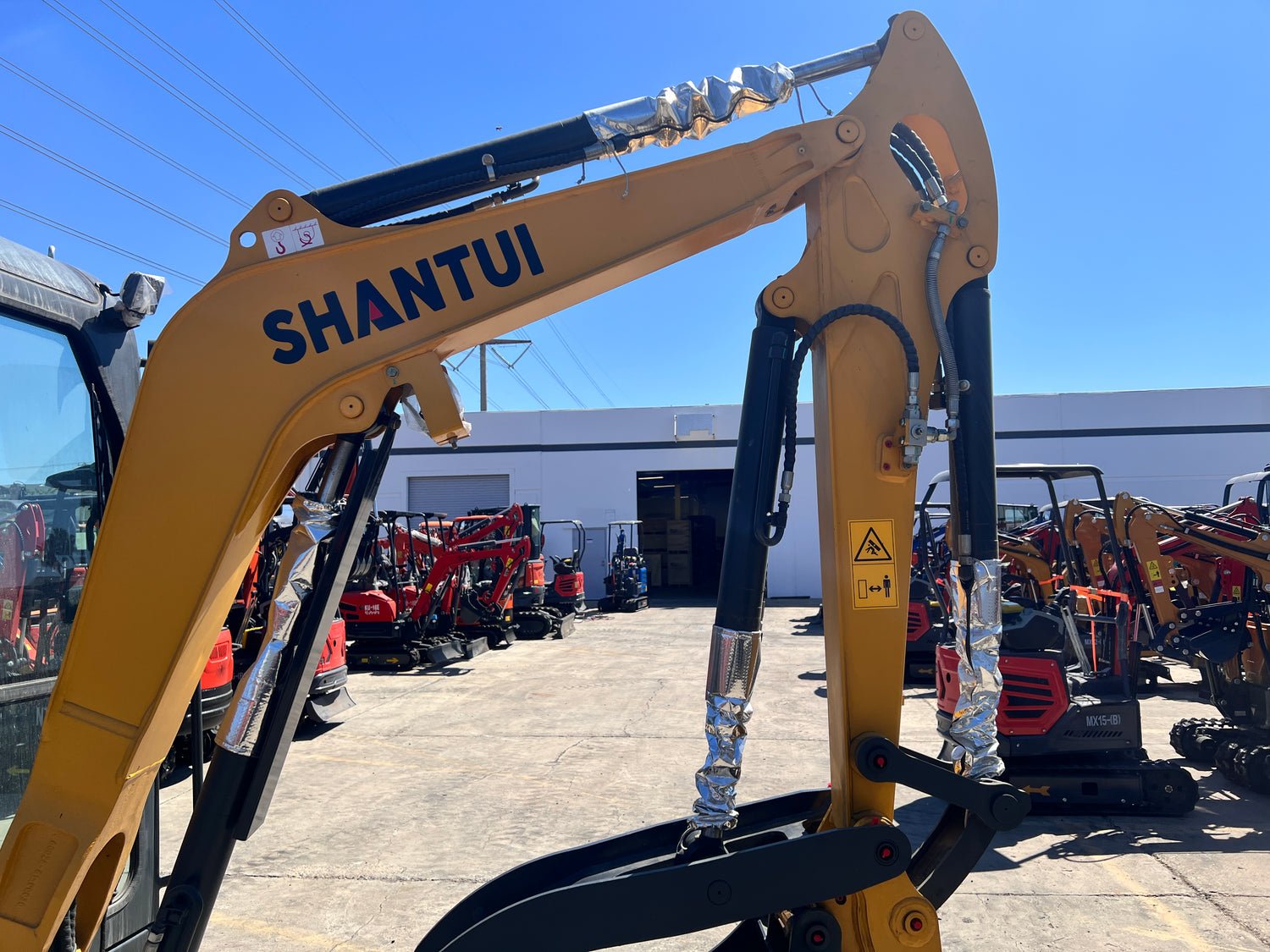

Hydraulic Thumb
LED Lights
Rearview Mirror
Dozer Blade (60″ wide)
35mm Pin Attachment System
Bucket (0.1–0.15 m³)
Auger-Ready (up to 25 GPM)
Breaker-Ready
Grapple-Ready
1-Year Warranty on Parts
Yanmar 3TNV80F Tier 4F Diesel
Pilot Controls
Enclosed Cab
LED Lights
Rearview Mirror
Rubber Tracks (300mm)
Dozer Blade (60″ wide)
Side Swing Boom
Hydraulic Thumb
Bucket (35mm pin)
Auger / Breaker / Grapple Ready
1-Year Warranty on Parts
