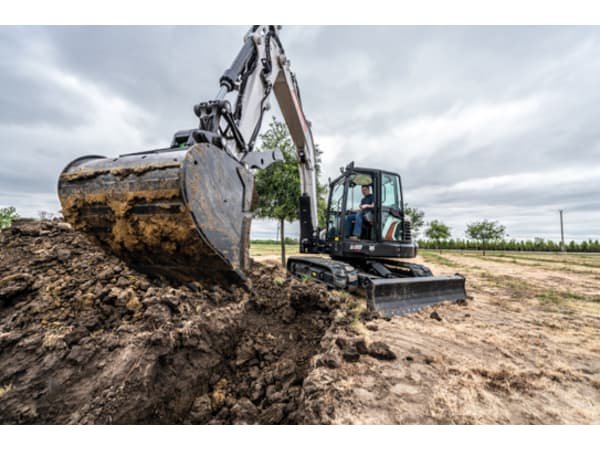

E88 Compact Excavator

Name: E88 Compact Excavator
SKU: 29089
Availability: InStock

Original price was: $141,406.00.Current price is: $89,085.99.

Large Orders: For large quantity orders, please contact us directly at infos@bidado00fficial.com

+1 (253) 270-1217 Sales Contact Number

infos@bidado00fficial.com Contact Email

Free Ground Shipping

No Sales Tax

Lifetime Tech Support

Bidadoo 100% Guarantee

Description

Description

Bobcat R2-Series · Compact Excavator · 8-Ton Class

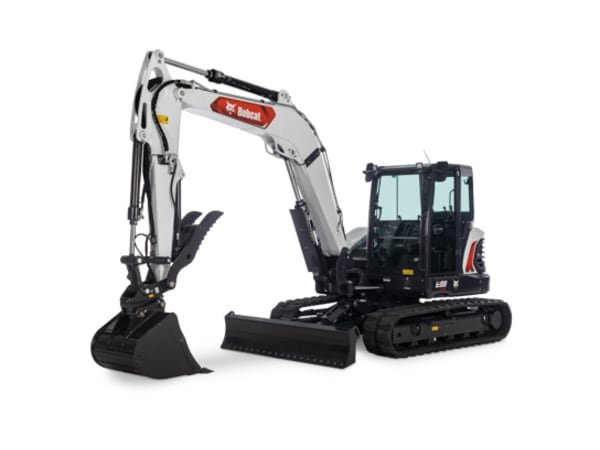

E88 Compact Excavator

The cruiserweight king among compact excavators. Commands its size class with industry-leading lift capacity and breakout force — backed by a standard long arm, premium cab comfort, and extended service intervals.

Optimized metering for smooth, yet precise controllability
Non-DPF, Tier 4 turbocharged engine
Standard long arm for maximum reach & depth
Depth-check ready

65.4 hp

Engine Power

19,600 lbs

Operating Weight

182″

Max Dig Depth

15,130 lbf

Bucket Digging Force

Overview

The E88 packs plenty of engine and hydraulic power into a compact footprint with a variety of features that maximize durability and simplify regular maintenance. Low-effort joysticks and an optimized hydraulic control valve put every machine movement in your control — delivering precise, predictable operation and fast cycle times for productive digging, level grading and more.

Features & Benefits

Performance

Dual-Flange Roller System

Dig with confidence over the side of the machine and experience greater slewing ability thanks to the dual flange track rollers. Smoother, more comfortable ride quality while moving across bumpy jobsites.

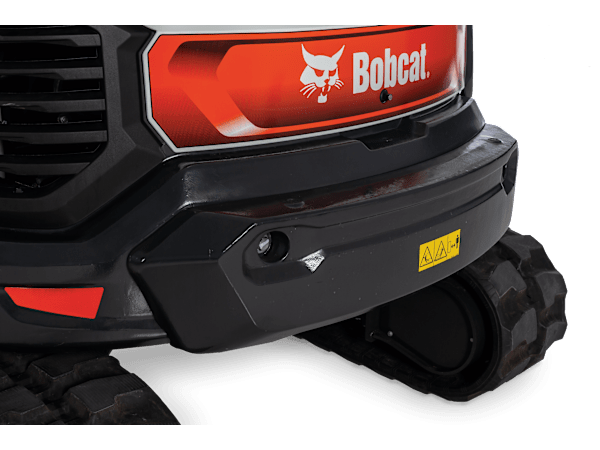

Integrated Rear Counterweight

The counterweight is integrated into the machine structure, improving lift-over-side capacity by up to 15% on select models. You’ll notice the difference when lifting a heavy load and slewing over the side.

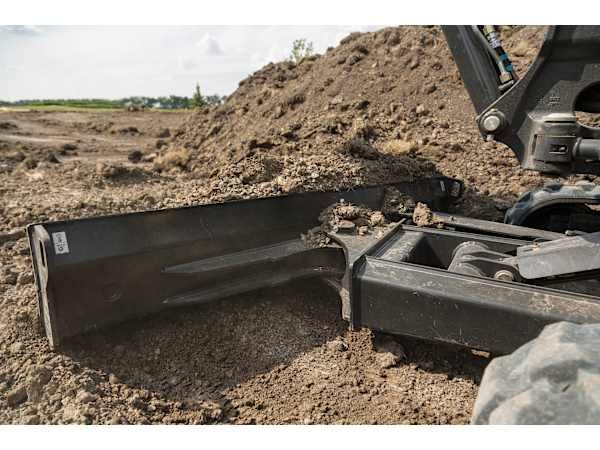

Angle Blade

Configure the blade up to 25 degrees left or right. Left and right adjustments help backfill and grade faster. Downward adjustments stabilize the excavator on uneven surfaces or when trenching at an angle.

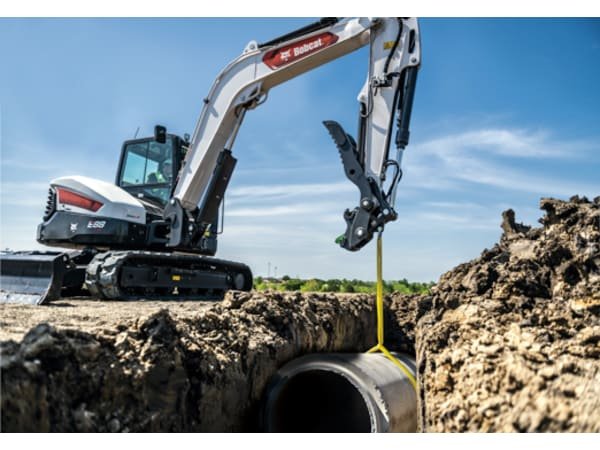

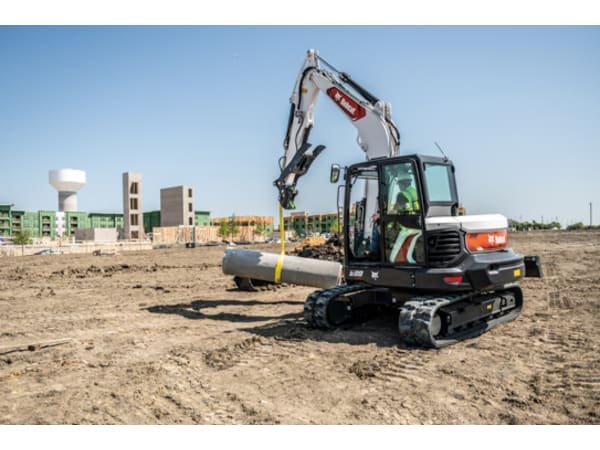

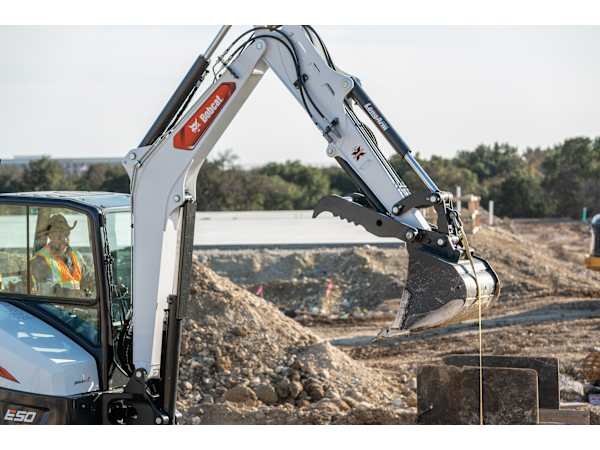

Integrated Lift Eye

Standard on R2-Series excavators. A convenient method for handling objects or moving items in and out of the trench without additional rigging equipment.

Redesigned Bobcat Engine

Redesigned for reduced and simplified routine maintenance. The innovative fuel system is more forgiving when fuel levels are low, and improved cold-weather operation keeps you productive year-round.

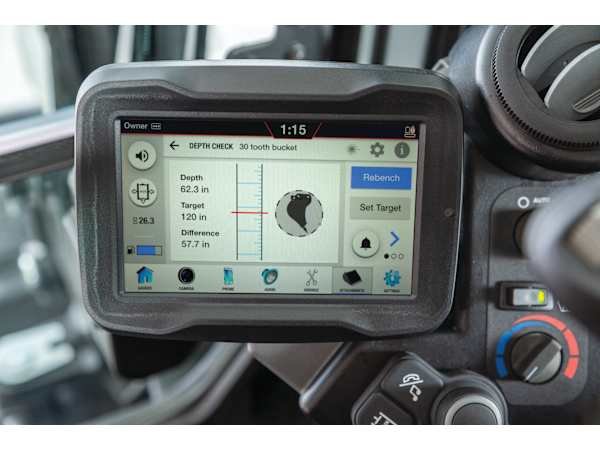

Depth Check System

Achieve an accurate grade every time without leaving your cab. Delivers accurate dig depth measurement — eliminating over-digging and the costs of backfilling and compacting fill material.

Add-On Counterweight

Maximize lift capacity and take on heavy-duty jobs. Included with every machine to give you maximum performance from day one.

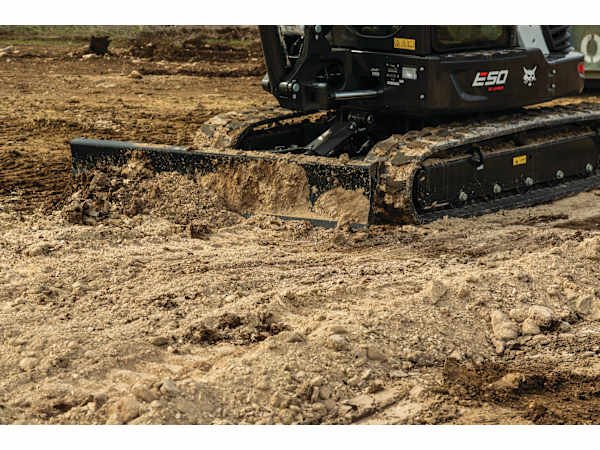

Blade Float

Simplify grading and leveling. Blade float exerts a minimal, consistent down-force on the blade with minimal operator input — making grading passes faster and more consistent.

Comfort

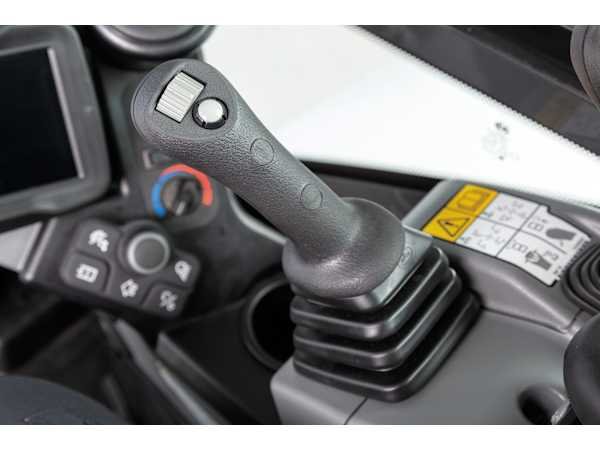

Low-Effort Joysticks

Respond easily to operator input, helping operators work longer with less fatigue. Equipped with fingertip boom swing and auxiliary control for quick, precise movement.

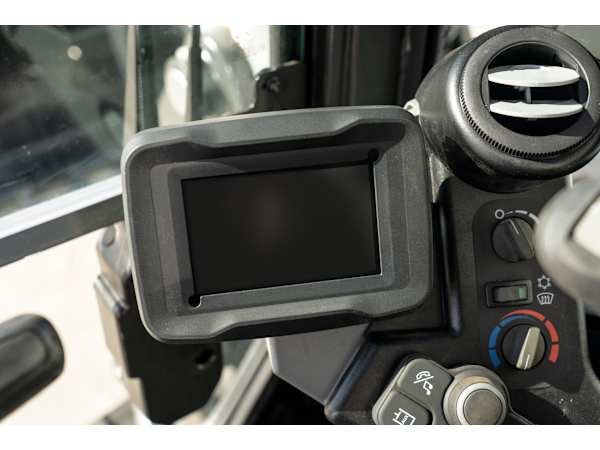

Standard Display

Full-featured machine interaction and monitoring from inside the cab. Provides access to diagnostic and operation information, allowing you to operate more efficiently and solve problems in the field.

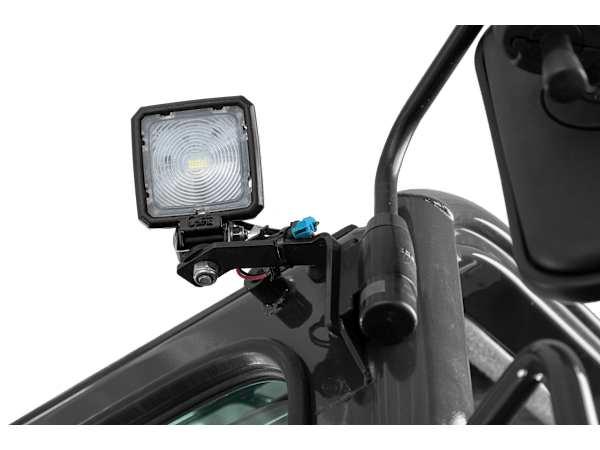

LED Lights

Illuminate poorly lit jobsites with bright, efficient and reliable LED lights. Your work doesn’t stop until the job is done.

Heated High-Back Seat with Headrest

Keeps you comfortable and supported during long hours on the job. In cold conditions, the heated seat connects to the machine’s automatic temperature control.

Uptime Protection

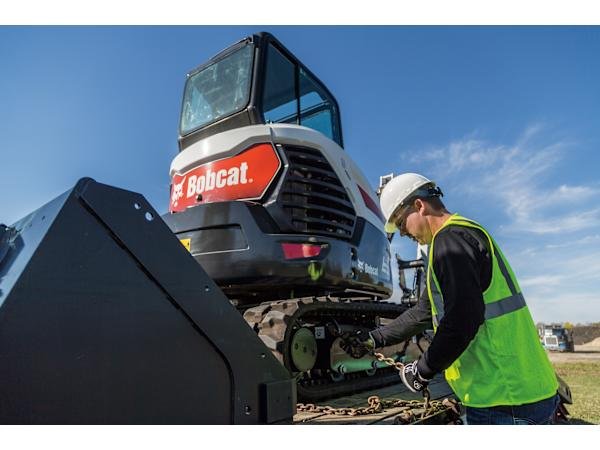

Simple Machine Tie-Down

Get on and off the jobsite faster. Secure your load quickly without searching for hard-to-reach tie-downs.

Rear Camera

Continuous rear view from the operator’s seat. Mounted high and out of the way to prevent contact with obstacles and debris. A protective structure ensures rear display reliability.

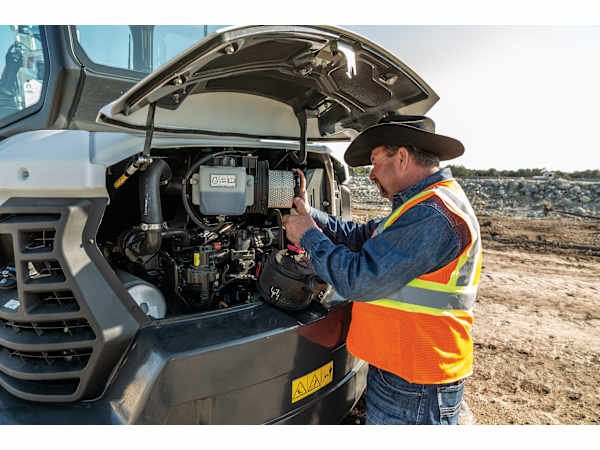

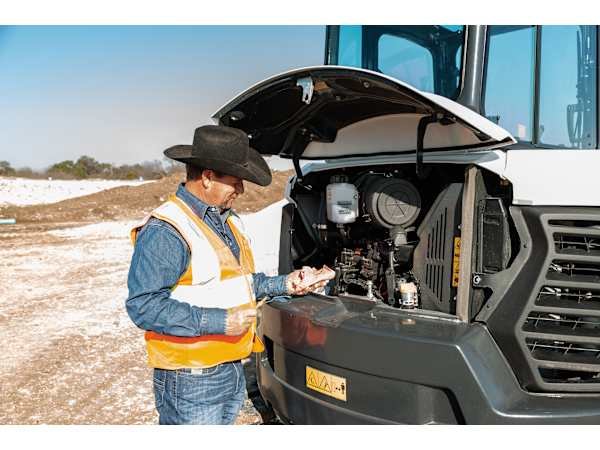

Serviceability

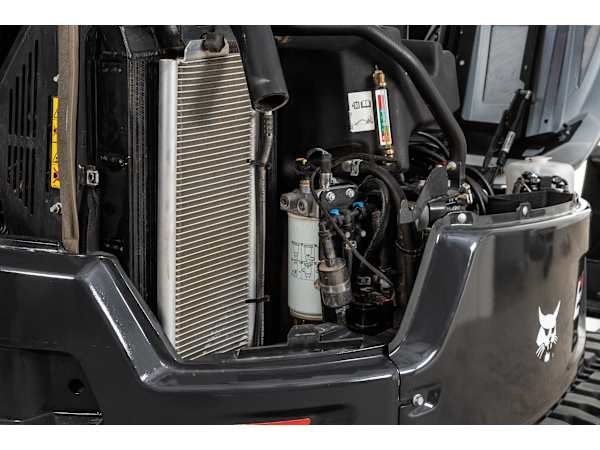

Longer-Life Fuel Filter

More than double the media surface area, capturing impurities longer. Includes a clear water bowl for easy monitoring and a sensor to notify you when draining is needed.

Increased Engine Oil Service Intervals

Engine oil service interval increased from 500 to 750 hours — significantly more uptime per oil change and a lower total cost of ownership.

Digital Connectivity

Machine IQ Telematics

Monitor your machine’s location, health, and security status via the Owner Portal and Machine IQ mobile app. Remote engine disable/enable, geofence and curfew alerts, proactive fault code notifications and maintenance reminders.

Full Specifications — E88 Long-Arm

Engine

Engine Type	Turbocharged, Non-DPF Tier 4
Horsepower	65.4 hp

Performance

Operating Weight	19,600 lbs
Weight Class	8 t
Bucket Digging Force	15,130 lbf
Arm Digging Force	8,620 lbf
Travel Speed — Maximum	2.7 mph
Travel Speed — Low	1.6 mph
Lift Radius	118 in
Boom Swing — Left	64°
Boom Swing — Right	61°
Dig Depth	182 in
Max Dump Height	16.5 ft
Reach at Ground Level	282.5 in

Capacities

Fuel Tank

30.6 gal

Hydraulic System

Auxiliary Pressure	3,045 psi
Auxiliary Hydraulics Flow	25.1 gpm

Dimensions

Transport Length	249.6 in
Width	86.6 in
Cab Height	100 in

Everything Included

✓

Cab Enclosure

✓

Heater & Air Conditioning

✓

Turbocharged Engine

✓

Automatic Engine Shutdown

✓

Auxiliary Hydraulics

✓

Selectable Auxiliary Hydraulic Flow

✓

Rubber Track

✓

Long Arm

✓

Depth-Check System

✓

Radio

✓

Quick Tach System

✓

Angle Blade

✓

Add-On Counterweight

✓

Rear Camera

✓

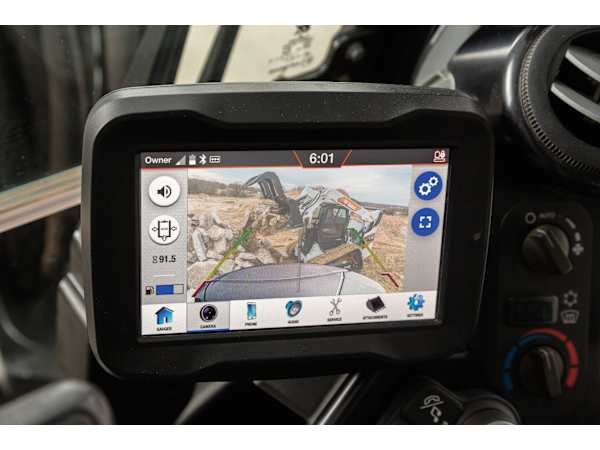

Advanced Touch Display

✓

Heated High-Back Seat with Headrest

✓

Machine IQ Telematics

✓

Plate Compactor

✓

Hydraulic Tilt Coupler

✓

Drum Mulcher

✓

Auger

✓

Nitrogen Breaker

✓

Buckets — Trenching & X-Change

✓

Buckets — Grading & X-Change

✓

Hydraulic Pin-Grabber Coupler

Included — By Category

Equipment & Cab

Cab Enclosure

Heater & Air Conditioning

Heated High-Back Seat with Headrest

Advanced Touch Display

Radio

Rear Camera

Machine IQ Telematics

LED Lights

Machine & Drivetrain

Turbocharged Non-DPF Tier 4 Engine

Automatic Engine Shutdown

Rubber Track

Long Arm

Angle Blade

Add-On Counterweight

Depth-Check System

Quick Tach System

Hydraulics

Auxiliary Hydraulics

Selectable Auxiliary Hydraulic Flow

Hydraulic Tilt Coupler

Hydraulic Pin-Grabber Coupler

Attachments

Plate Compactor

Drum Mulcher

Auger

Nitrogen Breaker

Buckets — Trenching & X-Change

Buckets — Grading & X-Change

Built For

Foundation Digging

Trench & Drainage

Slope Grading

Demolition Work

Utility Installation

Landscaping

Road & Site Prep

Municipal Projects

Construction Sites
