KYMRON® XH20D Pro Mini Excavator (w/ Yanmar Engine
Original price was: $16,900.00.$10,646.99Current price is: $10,646.99.

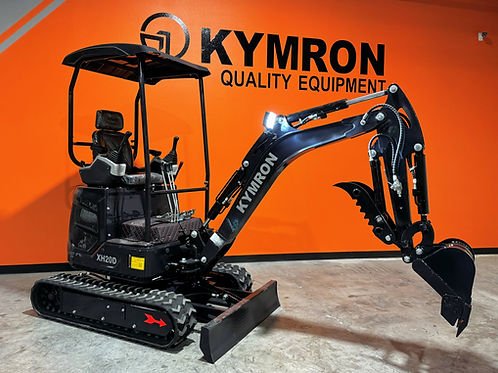

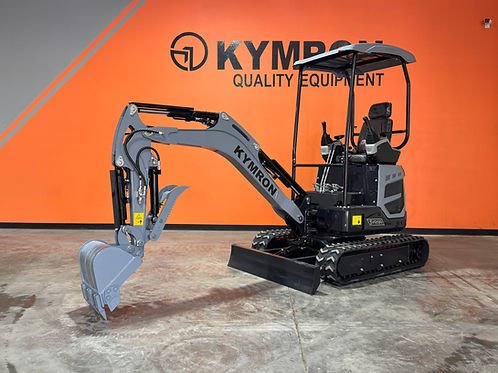

KYMRON XH20D Mini Track Excavator
A precision-engineered mini track excavator with a zero-swing radius, 22.5 HP Yanmar diesel, high-mounted smooth pilot hydraulics, and an Italian-manufactured directional spool valve block for the most comfortable operating experience in its class. Lifts up to 1,800 lbs close to the blade — exceptional capacity for a machine this size.

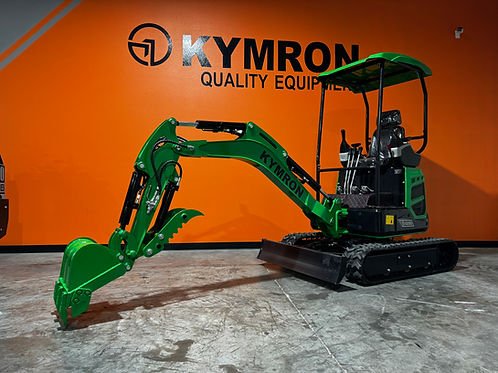

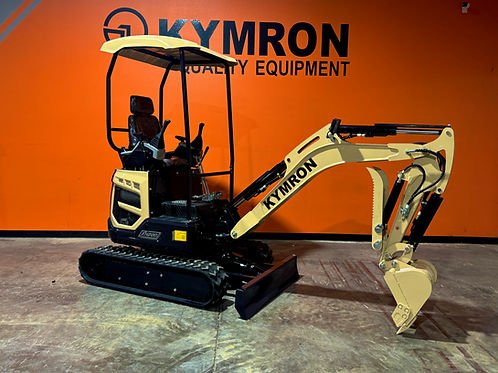

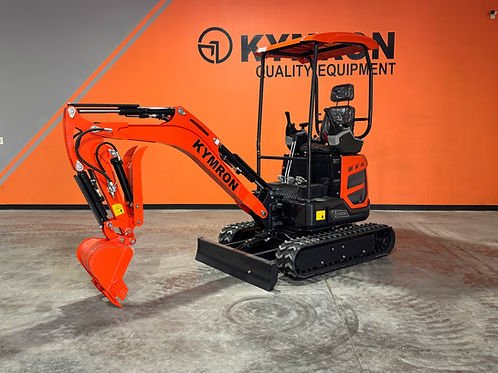

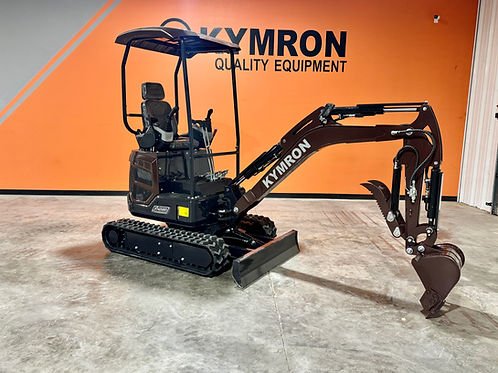

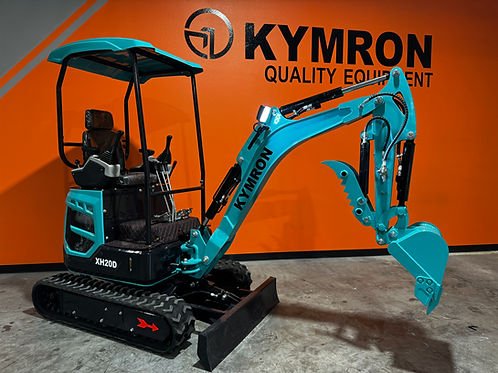

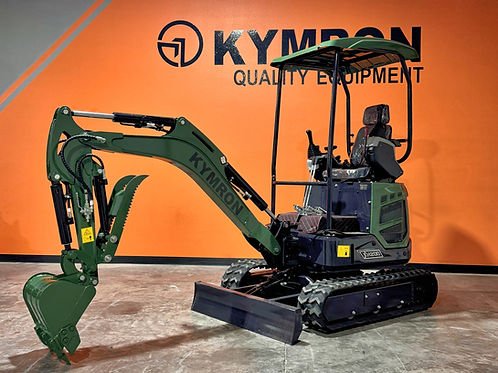

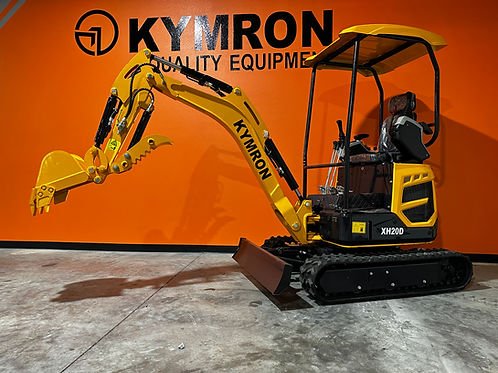

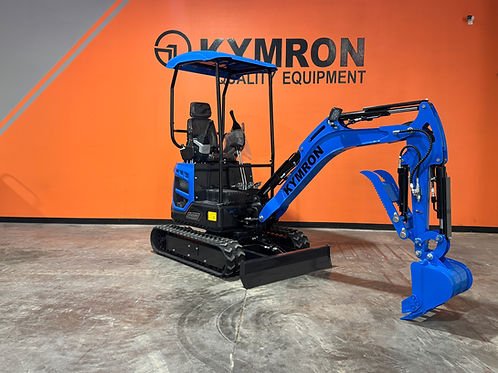

Available in multiple colour options. Contact us for current inventory.
Swing the boom left or right up to 45 degrees to dig parallel to walls, fences, and structures — without repositioning the machine. Included in the price as a standard factory feature.
Wide, long 9″ ultra-wide rubber tracks combined with a zero-swing radius design let you work in the tightest spaces with maximum stability — no tail swing to worry about.
The upgraded directional spool valve block is manufactured in Italy to the tightest of tolerances — delivering the smoothest, most precise hydraulic response available at this size class.
KYMRON machines are built around an exclusive design that accepts big-name brand hydraulic pumps, drives, and motors as direct replacements. The high-mounted pilot hydraulics are positioned for better operator comfort and reach. Foot pedal thumb operation adds convenience for precision attachment control without removing hands from the joysticks.
| Engine | Yanmar Diesel |
| Horsepower | 22.5 HP |
| Hydraulic Pump | Upgraded 9 GPM |
| Valve Block | Italian Directional Spool Valve |
| Fuel Tank | 2.4 gal |
| Operating Weight (with Rubber Tracks) | 3,500 lbs |
| Lift Capacity (close to blade) | 1,800 lbs |
| Max Digging Force | 2,123 lbf |

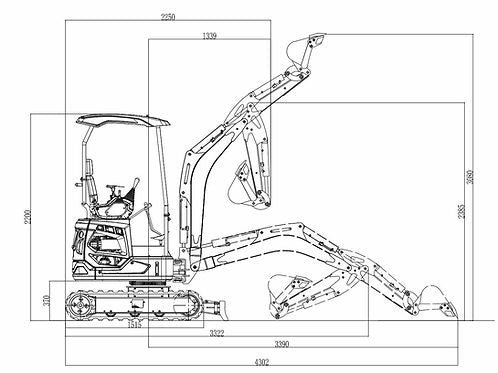

| Max Digging Depth | 6′ 9″ |
| Max Digging Radius | 12′ 4″ |
| Max Boom Reach | 10′ 7″ |
| Max Dumping Height | 7′ 7″ |
| Max Decline | 8° |
| Boom Swing | ±45° |
| Travel Speed | 2-Speed |
| Total Height | 7′ 3″ |
| Total Width | 46″ |
| Cab Width | 39″ |
| Track Width | 9″ |
| Track Length | 60.5″ |
| Track to Blade | 70.5″ |
| Bucket Width | 16″ |
2-Year Powertrain Warranty

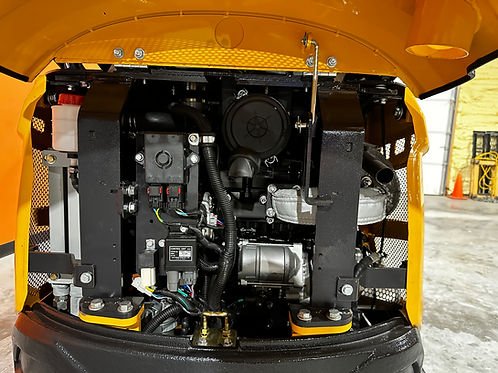

22.5 HP Yanmar Diesel Engine
Upgraded 9 GPM Hydraulic Pump
Italian Directional Spool Valve Block
High-Mounted Pilot Hydraulics
Upgraded Drive Motors
Recessed Planetary Drive Motors
Side Swing Boom (±45°)
Zero Swing Radius
9″ Ultra-Wide Rubber Tracks
2-Speed Travel
Auxiliary Hydraulics

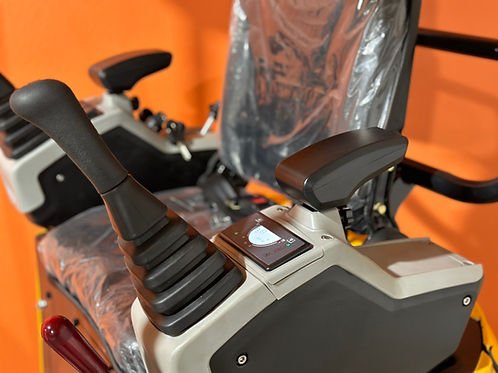

Hydraulic Joystick
Foot Pedal Thumb Operation
4-Post ROPS Canopy (UV-Rated)
LCD Display
Digital Hour Meter & Fuel Gauge
Glow Plug Cold-Start Feature
Push Blade
16″ Bucket w/ Side Skirts & Teeth
Hydraulic Thumb
Operator Manual

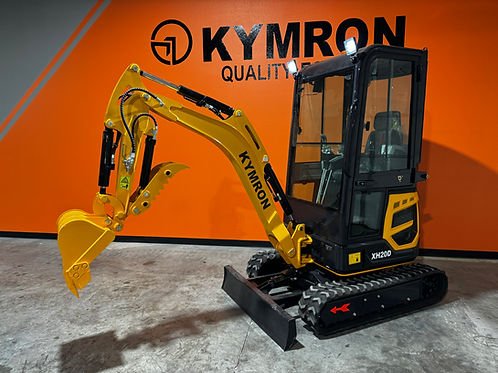

Cab w/ Radio & Heat
Metal Tracks
22.5 HP Yanmar Diesel Engine
Upgraded 9 GPM Hydraulic Pump
Italian Directional Spool Valve Block
High-Mounted Pilot Hydraulics
Auxiliary Hydraulics
Hydraulic Joystick
Foot Pedal Thumb Operation
Glow Plug Cold-Start Feature
Cab w/ Radio & Heat
4-Post ROPS Canopy (UV-Rated)
LCD Display
Digital Hour Meter & Fuel Gauge
Operator Manual
9″ Ultra-Wide Rubber Tracks
Metal Tracks
Recessed Planetary Drive Motors
Upgraded Drive Motors
2-Speed Travel
Push Blade
Side Swing Boom (±45°)
Zero Swing Radius
16″ Bucket w/ Side Skirts & Teeth
Hydraulic Thumb
2-Year Powertrain Warranty
