Mini Excavator with Pilot Controls & Cab | 13.5 hp B&S Engine | HUAYEE HY12F
Original price was: $7,499.00.$4,723.99Current price is: $4,723.99.

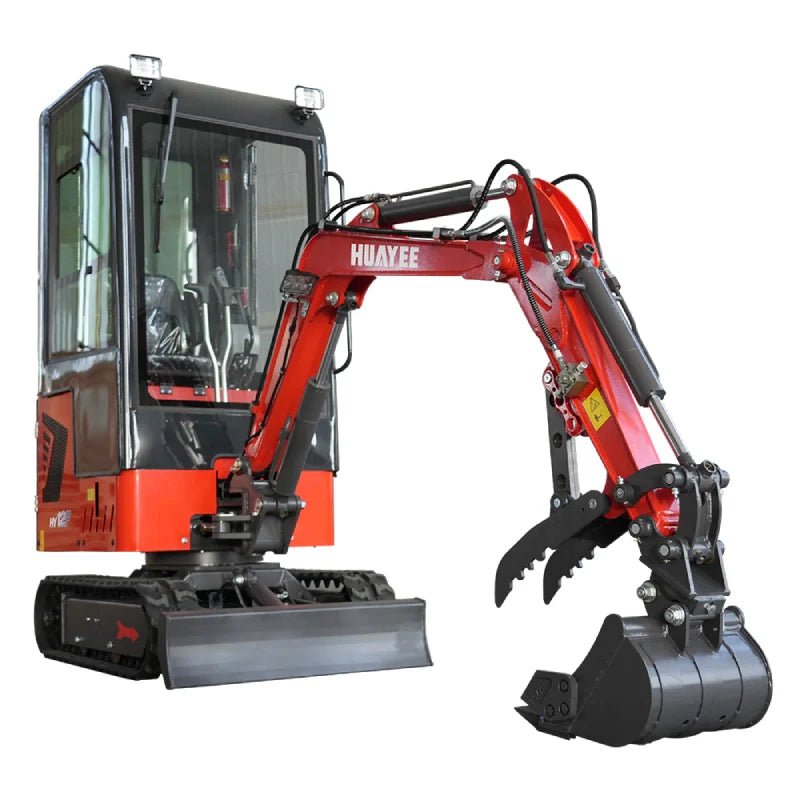

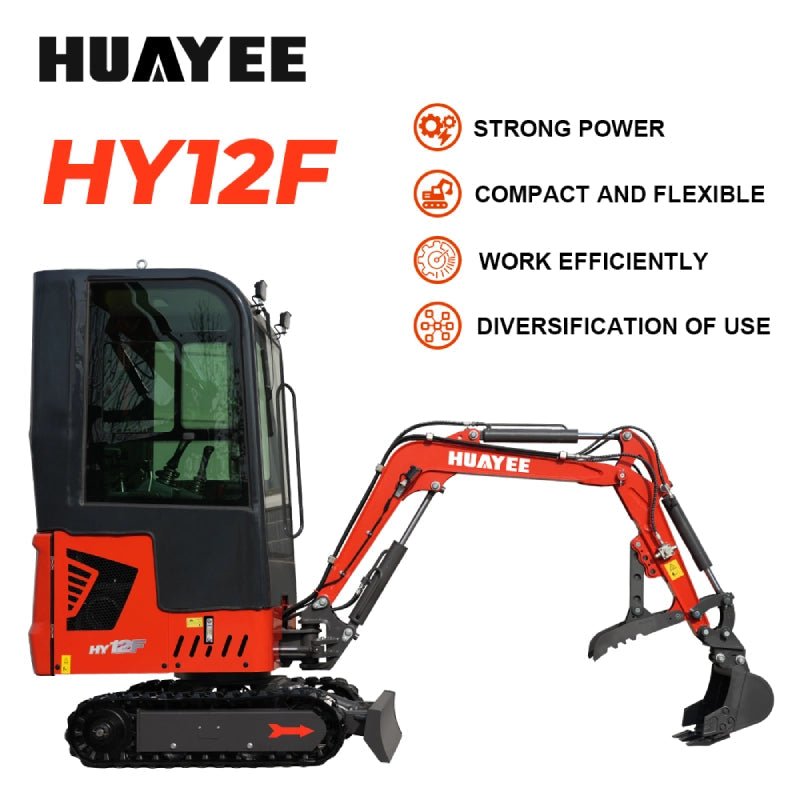

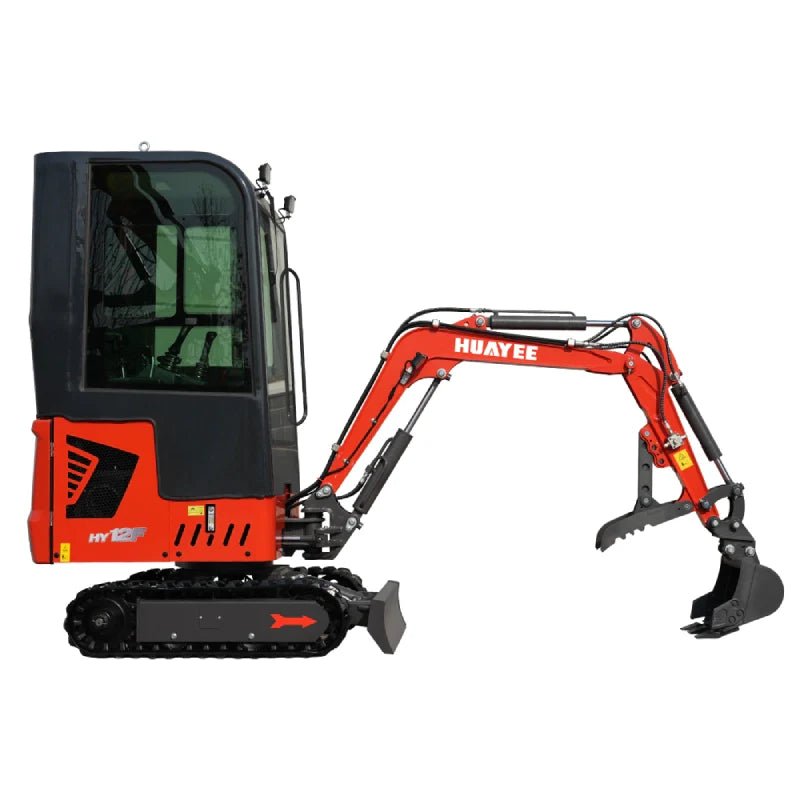

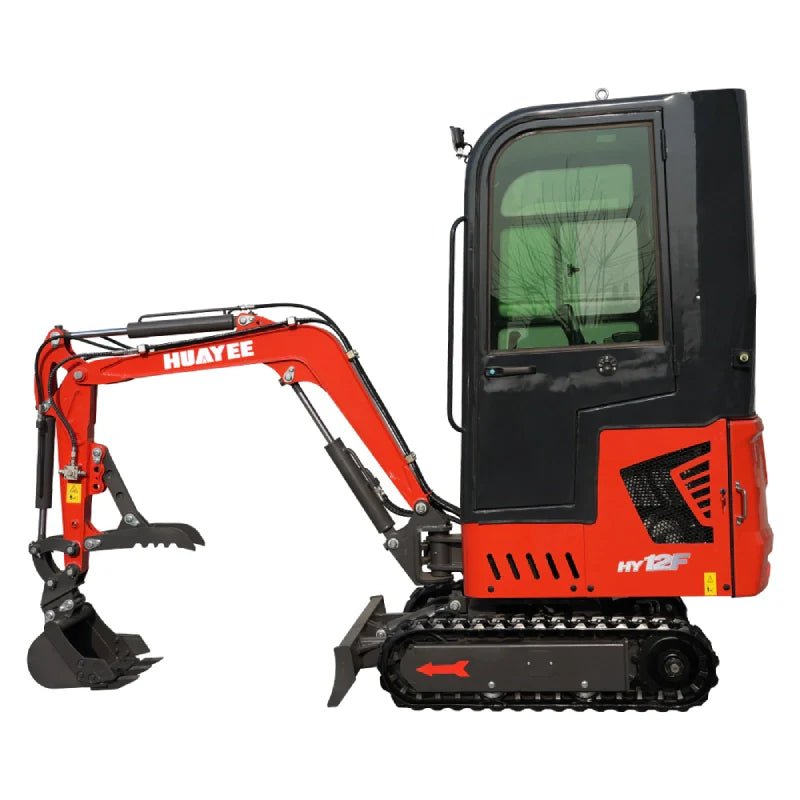

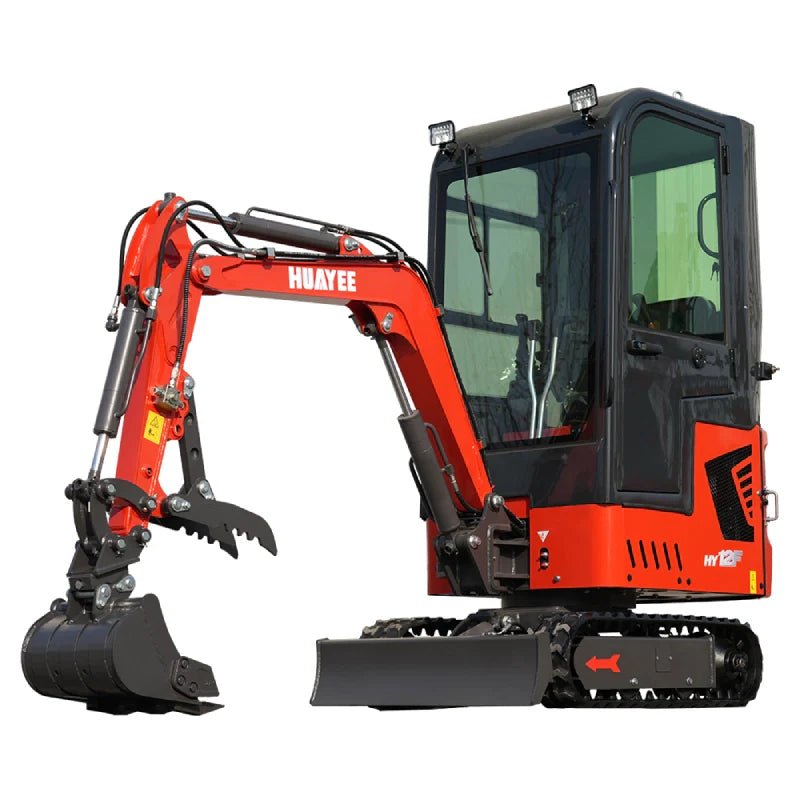

HUAYEE HY12F Mini Excavator
The HY12F adds an enclosed cab and pilot controls to the 1.2-ton HUAYEE platform — operator comfort and precision operation in a 93×37×92” compact footprint. Powered by a B&S XR2100 13.5 HP engine with 16 MPa hydraulics, 18L/min flow, 9 RPM slewing speed, and 1.2 km/h travel. At 37” wide it fits through standard residential gates.

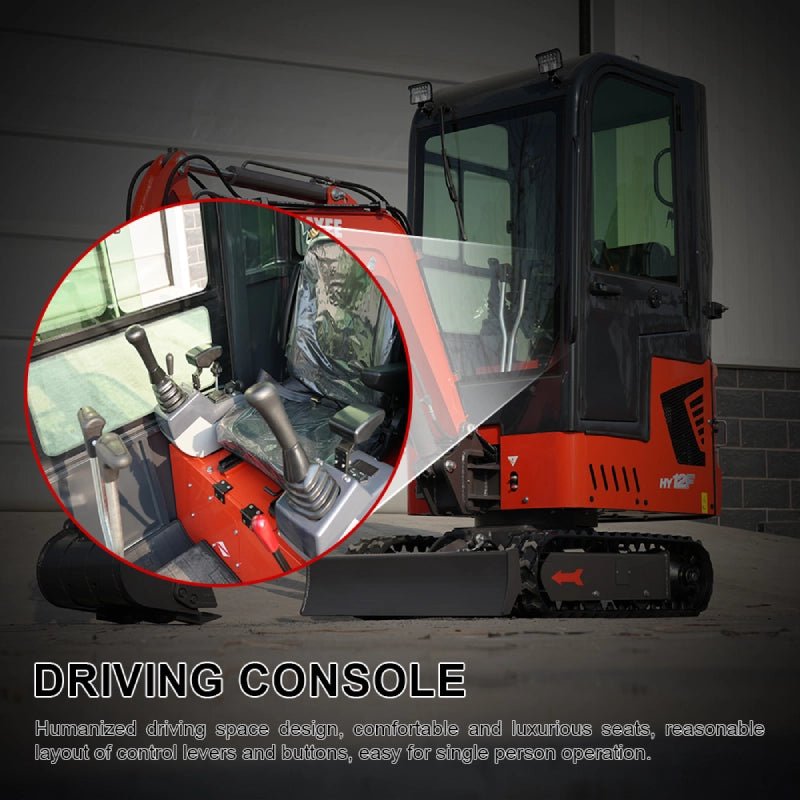

Full enclosed cab with pilot controls — operator comfort and precision for all-weather extended operation.
Residential and light commercial depth for utility trenches, foundations, and drainage.

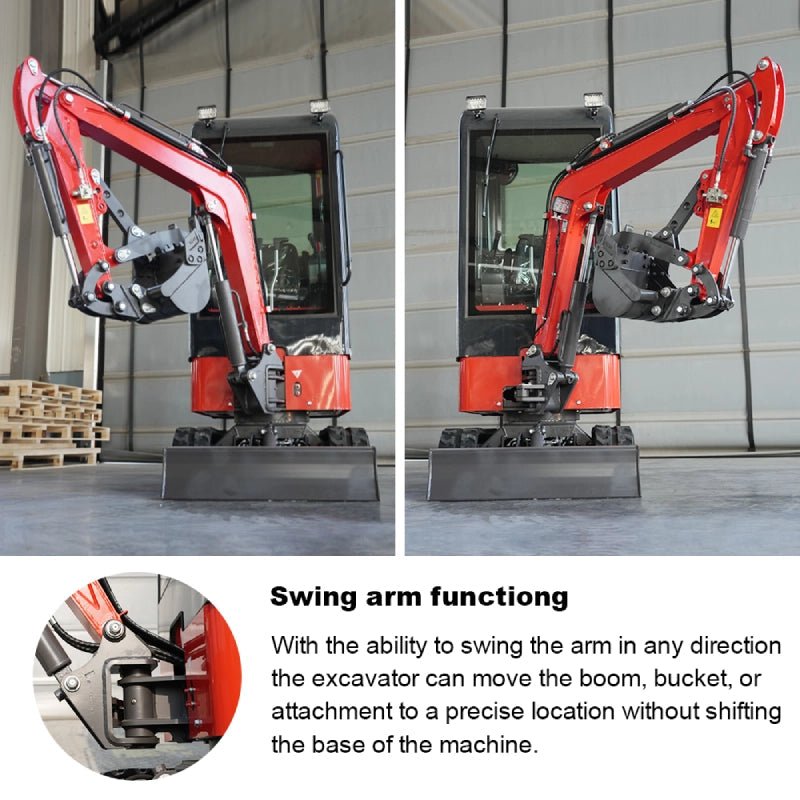

9 RPM slewing speed for efficient material placement and fast dig-cycle turnaround.
93×37×92” dimensions — compact enough for residential gate access with enclosed cab protection.

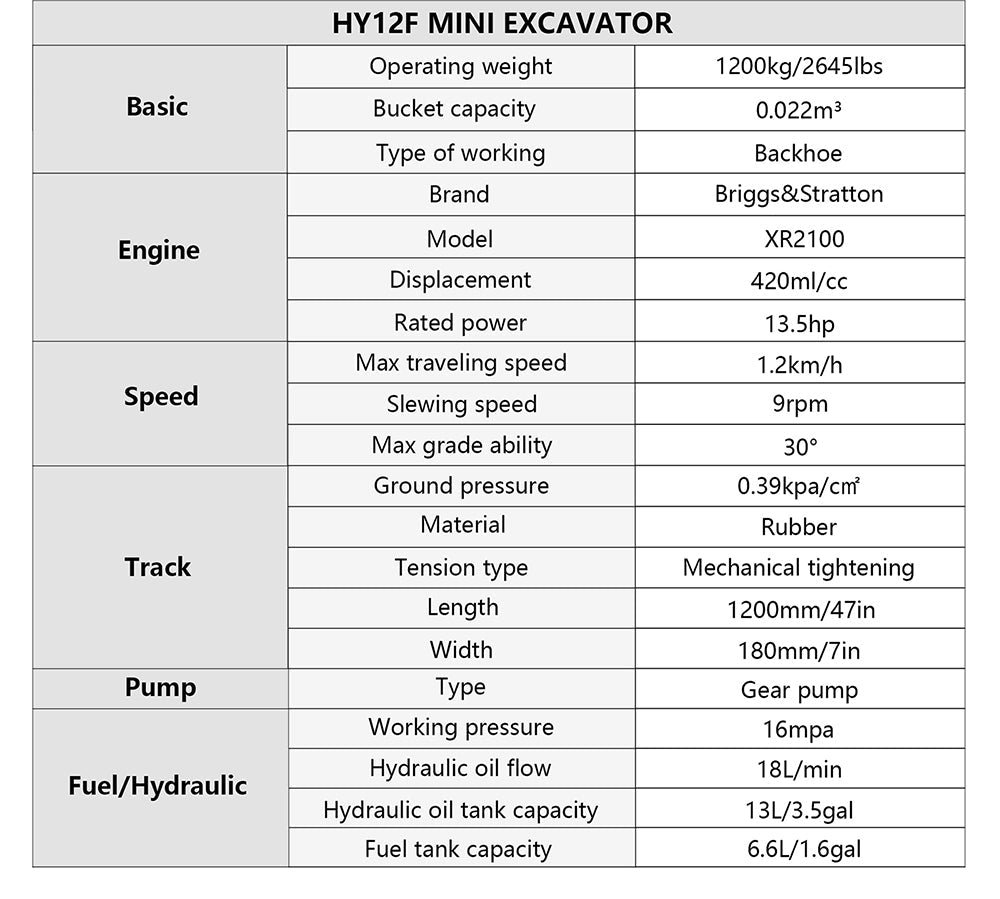

| Engine Brand & Model | Briggs & Stratton XR2100 |
| Rated Power | 13.5 HP |
| Fuel Type | Gasoline |
| Fuel Tank | 6.6 L / 1.6 gal |
| Working Pressure | 16 MPa |
| Hydraulic Oil Flow | 18 L/min |
| Hydraulic Tank | 13 L / 3.5 gal |
| Bucket Capacity | 0.022 m³ |
| Operating Weight | ~950 kg / 2,095 lbs |

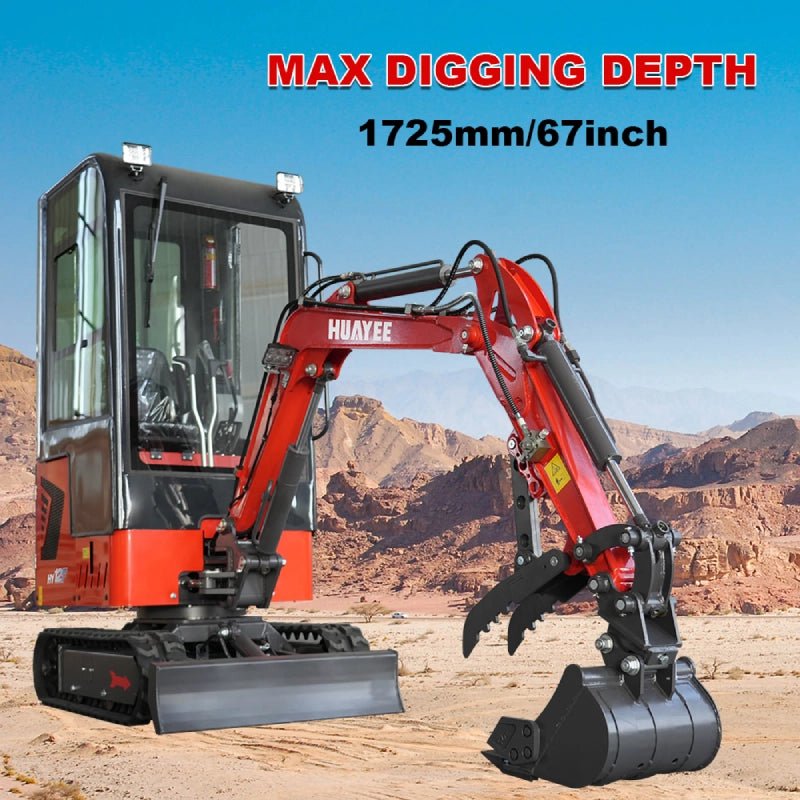

| Max Digging Depth | 1,725 mm / 67 in / 5.6 ft |
| Max Digging Radius | 3,050 mm / 120 in |
| Slewing Speed | 9 RPM |
| Travel Speed | 1.2 km/h |
| Min Slewing Radius | ~1,475 mm / 58 in |
| Max Grade | 30° |
| Overall Size (L×W×H) | 93×37×92 in (2,362×940×2,337 mm) |
| Cab Type | Enclosed |
| Controls | Pilot |
| Warranty | 1 Year — Free Shipping Lower 48 |

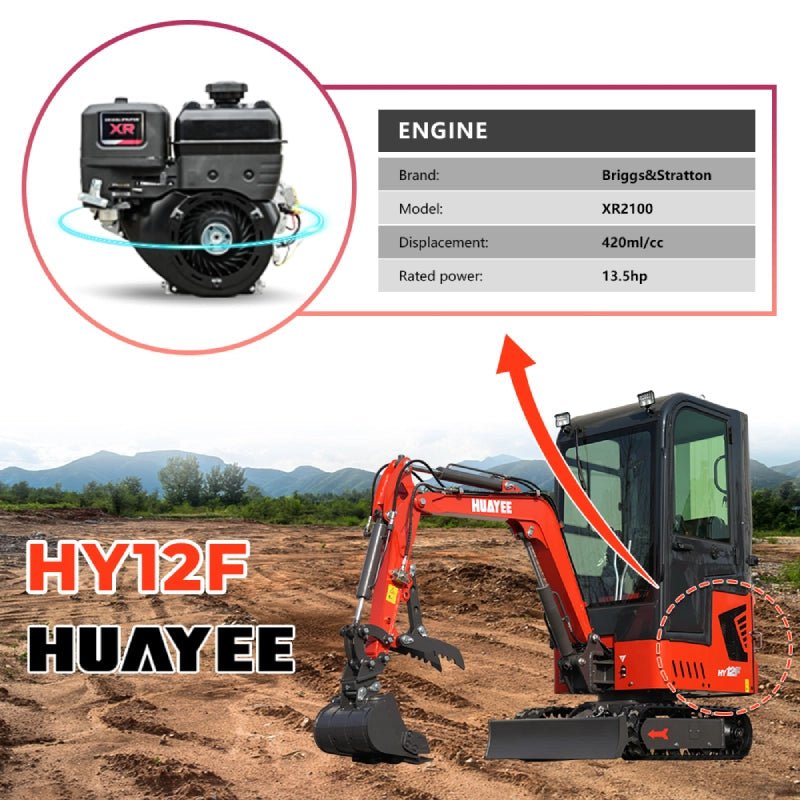

B&S XR2100 13.5 HP Engine
Enclosed Cab
Pilot Controls
16 MPa Hydraulic System
Rubber Tracks
Dozer Blade
Digging Bucket (0.022 m³)
1-Year Warranty
Free Shipping (Lower 48)
B&S XR2100 13.5 HP Gasoline
16 MPa Hydraulic System
18 L/min Hydraulic Flow
Pilot Controls
Enclosed Cab
Rubber Tracks
Dozer Blade
Digging Bucket (0.022 m³)
1-Year Warranty
Free Shipping (Lower 48)

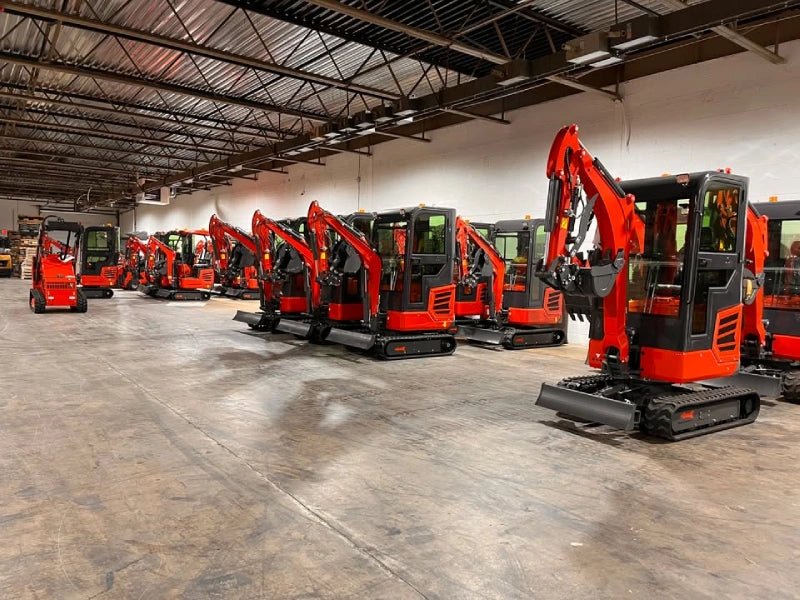

LA & NJ Warehouse Stock
Technical Support Access
