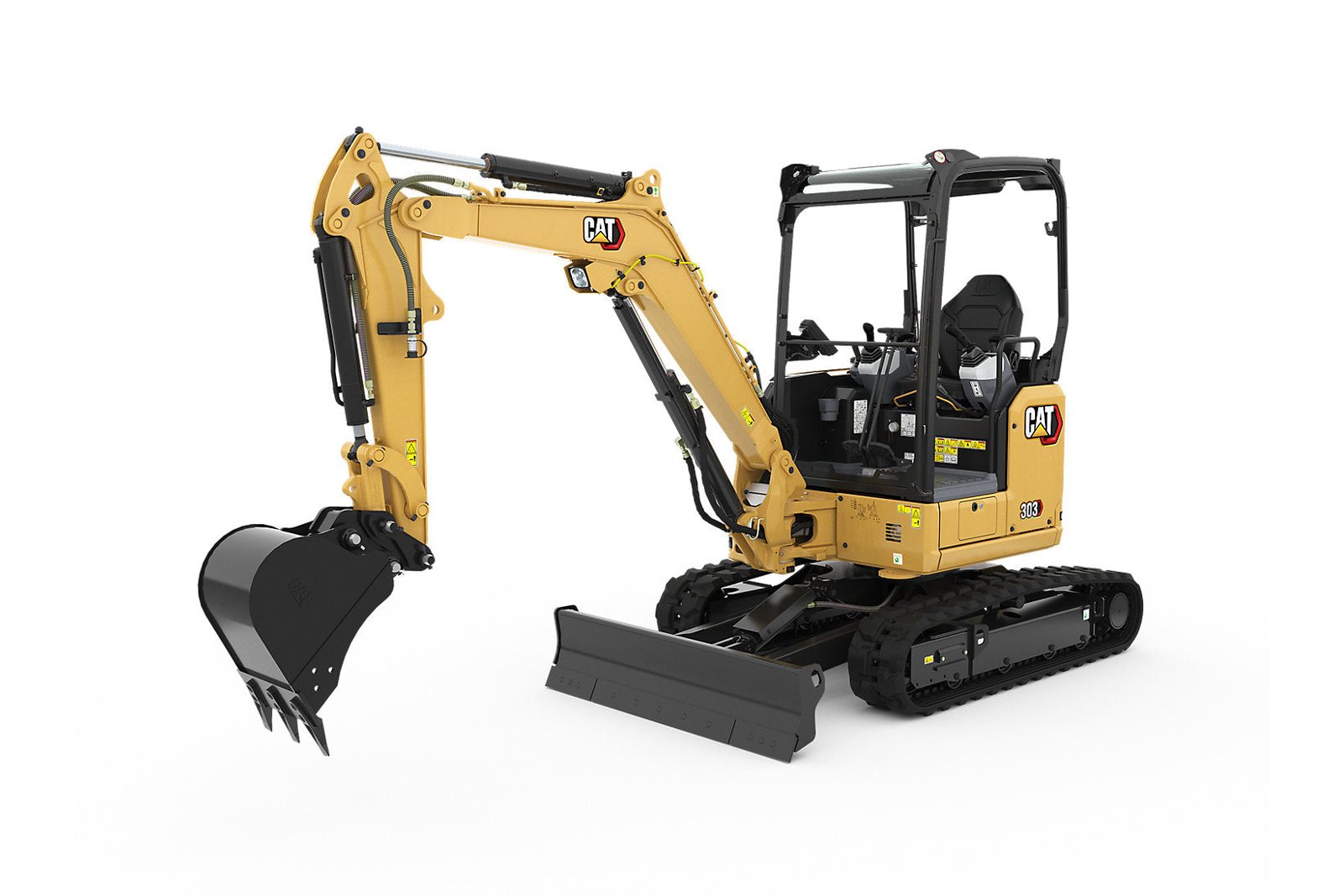

Mini Excavators 303 CR
Original price was: $56,335.00.$35,490.99Current price is: $35,490.99.
- Cat C1.1 Turbo engine — Tier 4 Final / EU Stage V
- Load-sensing hydraulics with variable-displacement piston pump
- Canopy with ROPS (ISO 12117-2:2008) & TOPS (ISO 12117:1997)
- Top Guard (ISO 10262:1998 Level I)
- Dual auxiliary hydraulic circuits (primary 17 gpm + secondary 7 gpm)
- Compact radius (CR) undercarriage design
- Standard stick (49.6″ arm) fitted as standard
- Dozer blade (61″ wide × 13.8″ high)
- Rubber track belt — 11.8″ shoe width
- 2-speed travel (2.8 mph high / 1.6 mph low)
- Boom swing: 75° left / 50° right
- Programmable operator performance settings
- Faster cycle times over previous generation
- Tilt-up cab design (lower repair & service costs)
- More common parts shared across Cat line
- Digital gauges & operator display
- 11.9-gal fuel tank
- 4.8-gal hydraulic tank / 9.2-gal system capacity
- 95% recyclability rating
- 30° maximum gradeability
| Engine Model | Cat C1.1 Turbo |
| Net Power (ISO 9249 / 2,400 rpm) | 23.6 hp |
| Net Power (ISO 9249 gross) | 24.7 hp |
| Bore × Stroke | 3.0″ × 3.2″ |
| Displacement | 69 in³ |
| Emissions Standard | U.S. EPA Tier 4 Final & EU Stage V |
| System Type | Load-Sensing, Variable Displacement Piston Pump |
| Pump Flow (2,400 rpm) | 26 gpm |
| Equipment & Travel Pressure | 3,553 psi |
| Swing Pressure | 2,553 psi |
| Auxiliary Primary — Flow / Pressure | 17 gpm / 3,553 psi |
| Auxiliary Secondary — Flow / Pressure | 7 gpm / 3,553 psi |
| Bucket Digging Force | 6,385 lbf |
| Stick Digging Force — Standard | 3,732 lbf |
| Stick Digging Force — Long Stick | 3,327 lbf |
| Travel Speed High / Low | 2.8 mph / 1.6 mph |
| Max Traction Force — High Speed | 3,305 lbf |
| Max Traction Force — Low Speed | 7,059 lbf |
| Ground Pressure — Min Weight | 4.0 psi |
| Ground Pressure — Max Weight | 4.7 psi |
| Max Gradeability | 30° |
| Track Belt Width | 11.8″ |
| Track Width | 61″ |
| Machine Swing Speed | 9 rpm |
| Boom Swing Left / Right | 75° / 50° |
| Blade Width | 61″ |
| Blade Height | 13.8″ |
| Maximum Blade Depth (below grade) | 21.1″ |
| Maximum Blade Height | 15.2″ |
| Canopy — ROPS Certification | ISO 12117-2:2008 |
| Canopy — TOPS Certification | ISO 12117:1997 |
| Top Guard Level | ISO 10262:1998 Level I |
| Operator Sound Pressure (cab) | 78 dB(A) — ISO 6396:2008 |
| Exterior Sound Pressure | 94 dB(A) — ISO 6395:2008 |
| Air Conditioning (optional) | Sealed, pressurised cab available; refrigerant R134a / R1234yf (EU) |
| Programmable Operator Settings | Included |
| Suspension Seat | Optional upgrade |
| Adjustable Wrist Rests | Included with cab |
| Tilt-Up Cab | Included — reduces service time & ownership cost |
| Cooling System | 1.1 gal (US) |
| Engine Oil | 1.1 gal (US) |
| Fuel Tank | 11.9 gal (US) |
| Hydraulic Tank | 4.8 gal (US) |
| Hydraulic System Total | 9.2 gal (US) |
| Recyclability Rating | 95% |
| EU Directive Compliance | 2000/14/EC |
Standard Stick — 49.6″
| Dig Depth | 104.3″ |
| Vertical Wall Depth | 71.7″ |
| Max Reach — Ground Level | 190.2″ |
| Max Reach | 196.1″ |
| Max Dig Height | 177.6″ |
| Max Dump Clearance | 124.8″ |
| Boom In Reach | 68.9″ |
| Tail Swing (no counterweight) | 30.5″ |
| Tail Swing (extra counterweight) | 35.0″ |
| O/A Shipping Length | 177.6″ |
| O/A Shipping Height | 97.6″ |
| Undercarriage Length | 81.5″ |
| Min Ground Clearance | 12.2″ |
| Boom Height (ship position) | 63.0″ |
Long Stick — 61.4″
| Dig Depth | 116.1″ |
| Vertical Wall Depth | 81.5″ |
| Max Reach — Ground Level | 201.2″ |
| Max Reach | 206.3″ |
| Max Dig Height | 183.1″ |
| Max Dump Clearance | 130.3″ |
| Boom In Reach | 74.2″ |
| Tail Swing (no counterweight) | 30.5″ |
| Tail Swing (extra counterweight) | 35.0″ |
| O/A Shipping Length | 179.5″ |
| O/A Shipping Height | 97.6″ |
| Undercarriage Length | 81.5″ |
| Min Ground Clearance | 12.2″ |
| Boom Height (ship position) | 75.6″ |
| Minimum Operating Weight (canopy)* | 6,670 lb |
| Maximum Operating Weight (canopy)** | 7,552 lb |
| EU CE Plate Weight (canopy)*** | 6,791 lb |
| Minimum Operating Weight (cab)* | 6,924 lb |
| Maximum Operating Weight (cab)** | 7,817 lb |
| EU CE Plate Weight (cab)*** | 7,012 lb |
| Cab vs Canopy | +254 lb |
| Counterweight | +221 lb |
| Extra Counterweight | +551 lb |
| Long Stick | +55 lb |
| Steel Tracks (vs rubber) | +276 lb |
* Minimum: fixed rubber tracks, operator, full fuel, standard stick, blade, no bucket, no extra counterweight.
** Maximum: steel tracks, operator, full fuel, long stick, blade, no bucket, extra counterweight.
*** EU CE Plate: most common EU config, 165 lb operator, full fuel, bucket excluded.
