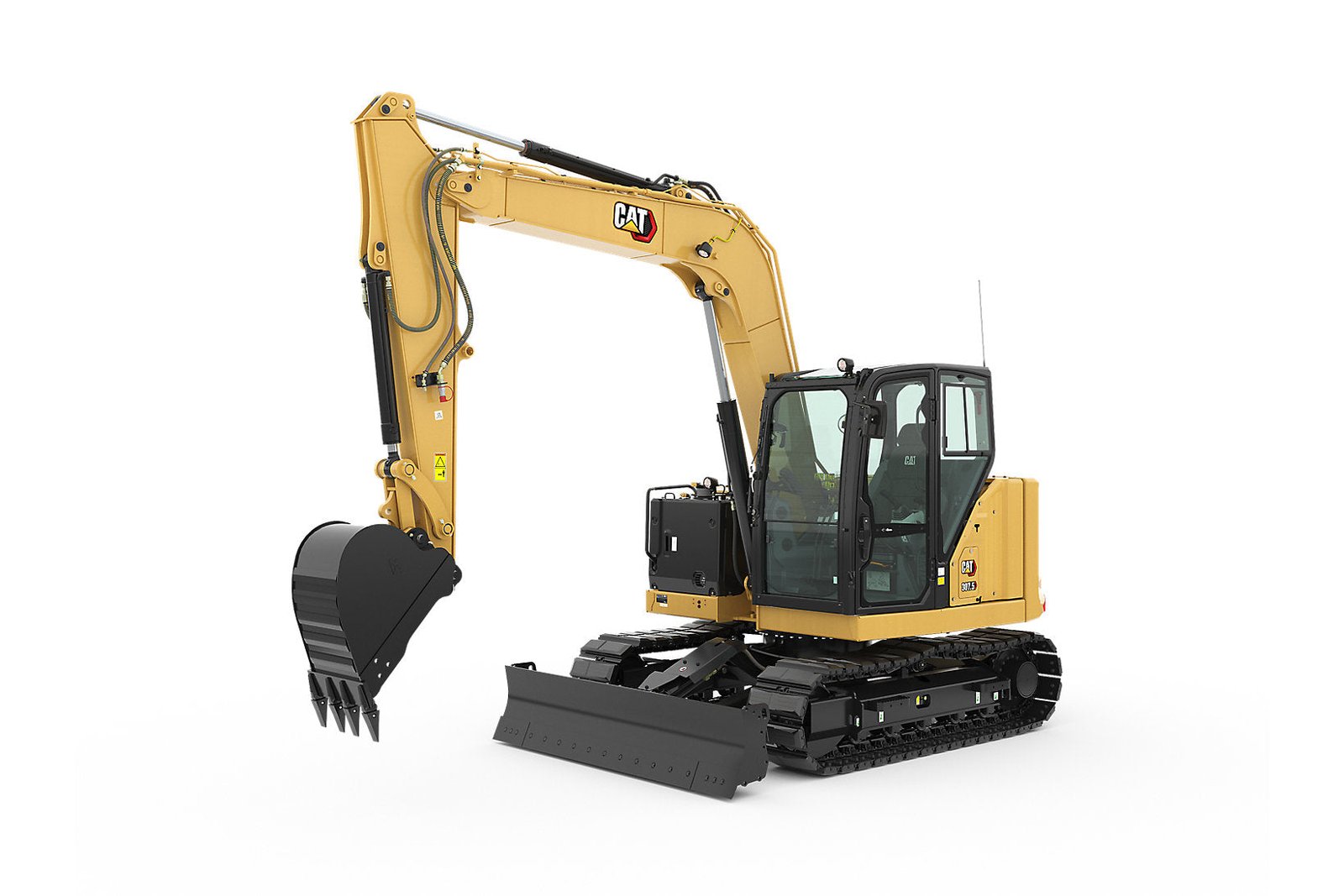

Mini Excavators 307.5 – Tier 4 / Stage V
Original price was: $126,667.00.$79,799.99Current price is: $79,799.99.
All Day Comfort — Cab Standard
A sealed, pressurised cab with improved air conditioning system, adjustable wrist rests and a suspension seat comes standard on the 307.5 — no canopy option. Built for operators who need full-day protection in any conditions.
Highest System Pressure in the Cat Mini Range
4,134 psi equipment and travel pressure — the highest in the Cat next generation compact mini line — delivers maximum force for the most demanding excavation, lifting and attachment work.
Customisable Operator Settings
Programmable performance settings let operators tailor machine response across lift, swing, travel and multi-function tasks — delivering up to 20% more performance over previous generation.
Widest Dozer Blade in the Range
90″ wide blade — 12″ wider than the 306 CR — moves more material per pass, speeds up backfilling and delivers cleaner site preparation on wider cut areas.
Big Reach — 267.9″ Maximum
182.8″ dig depth and 267.9″ maximum reach with the long stick put the 307.5 in a different league for deep utility trenching, drainage works and large-scale landscaping.
Safety on the Job Site
ROPS (ISO 12117-2:2008), TOPS (ISO 12117:1997) and Top Guard Level I certification — plus courtesy work lights and fluorescent retractable seat belt — standard on every machine.
Lower Owning & Operating Costs
Improved fuel efficiency, longer service intervals, and load-sensing variable displacement hydraulics all reduce daily running costs. Ground-level service access through side doors keeps planned maintenance fast.
Large Fuel Capacity
38-gallon tank — the largest in the Cat compact mini range — minimises refuelling interruptions on full-day and multi-shift operations.
- Cat C2.4 Turbo engine — 54.8 hp / Tier 4 Final & EU Stage V
- Load-sensing hydraulics — variable displacement piston pump, 44 gpm
- 4,134 psi equipment & travel operating pressure (highest in Cat mini range)
- 3,626 psi swing operating pressure
- Dual auxiliary circuits (35 gpm primary + 9 gpm secondary)
- One-way, two-way and continuous auxiliary flow modes
- Automatic engine idle & automatic engine shutdown
- Automatic two-speed travel
- Travel cruise control
- Stick Steer travel mode (Cat exclusive)
- Sealed, pressurised cab — standard (no canopy option)
- Improved air conditioning system (R134a, 0.90 kg)
- Adjustable wrist rests
- Suspension seat
- ROPS (ISO 12117-2:2008) certified
- TOPS (ISO 12117:1997) certified
- Top Guard ISO 10262:1998 Level I
- Dozer blade — 90″ wide (widest in Cat compact mini range)
- Steel tracks — standard configuration (rubber pads option)
- Steel tracks with rubber pads option (+628 lb)
- Counterweight option (+552 lb)
- Machine swing speed: 10 rpm
- 38-gallon fuel tank
- Customisable operator performance settings
- Next Generation LCD monitor (standard)
- Advanced touchscreen monitor (optional)
- ISO or SAE control pattern — switchable
- Courtesy work lights
- Fluorescent retractable seat belt
- Ground-level side-door service access
- VisionLink® telematics ready
- 96% recyclability rating
| Engine Model | Cat C2.4 Turbo |
| Net Power @ 2,400 rpm (ISO 9249 / EEC 80/1269) | 54.8 hp |
| Gross Power (SAE J1995:2014) | 57.9 hp |
| Bore × Stroke | 3.4″ × 4.0″ |
| Displacement | 148 in³ |
| Emissions Standard | U.S. EPA Tier 4 Final & EU Stage V |
| System Type | Load-Sensing, Variable Displacement Piston Pump |
| Pump Flow @ 2,400 rpm | 44 gpm |
| Operating Pressure — Equipment | 4,134 psi |
| Operating Pressure — Travel | 4,134 psi |
| Operating Pressure — Swing | 3,626 psi |
| Auxiliary Circuit Primary — Max Flow / Pressure | 35 gpm / 4,134 psi |
| Auxiliary Circuit Secondary — Max Flow / Pressure | 9 gpm / 4,134 psi |
| Bucket Digging Force | 12,272 lbf |
| Stick Digging Force — Standard Stick | 8,504 lbf |
| Stick Digging Force — Long Stick | 7,579 lbf |
| Travel Speed — High | 3.1 mph |
| Travel Speed — Low | 1.9 mph |
| Max Traction Force — High Speed | 5,856 lbf |
| Max Traction Force — Low Speed | 14,035 lbf |
| Ground Pressure — Minimum Weight | 5.1 psi |
| Ground Pressure — Maximum Weight | 5.5 psi |
| Max Gradeability | 30° |
| Track Belt / Shoe Width | 17.7″ |
| Track Width | 86.6″ |
| Machine Swing Speed | 10 rpm |
| Boom Swing | Data not published on official spec page |
| Blade Width | 90″ |
| Blade Height | 17″ |
| Max Blade Height (above grade) | 14.6″ |
| Max Blade Depth (below grade) | 16″ |
| Cab Type | Sealed & pressurised — standard (no canopy option) |
| ROPS Certification | ISO 12117-2:2008 |
| TOPS Certification | ISO 12117:1997 |
| Top Guard Level | ISO 10262:1998 Level I |
| Operator Sound Pressure (ISO 6396:2008) | 72 dB(A) |
| Exterior Sound Power (ISO 6395:2008) | 98 dB(A) |
| EU Noise Directive | 2000/14/EC |
| A/C Refrigerant | R134a (GWP 1,430) |
| Refrigerant Charge | 0.90 kg |
| CO₂ Equivalent | 1.287 metric tonnes |
| Adjustable Wrist Rests | Included |
| Suspension Seat | Included |
| Stick Steer Mode | Included (Cat exclusive) |
| Travel Cruise Control | Included |
| Customisable Operator Settings | Included |
| Next Generation LCD Monitor | Standard |
| Advanced Touchscreen Monitor | Optional upgrade |
| Courtesy Work Lights | Included |
| Fluorescent Retractable Seat Belt | Included |
| Cooling System | 2.6 gal (US) |
| Engine Oil | 2.5 gal (US) |
| Fuel Tank | 38.0 gal (US) |
| Hydraulic Tank | 14.0 gal (US) |
| Hydraulic System Total | 29.0 gal (US) |
| Recyclability Rating | 96% |
| EU Directive Compliance | 2000/14/EC |
Standard Stick — 65.6″
| Dig Depth | 161.4″ |
| Vertical Wall Depth | 141.6″ |
| Max Reach — Ground Level | 242.1″ |
| Maximum Reach | 247.9″ |
| Max Dig Height | 289.3″ |
| Max Dump Clearance | 208.6″ |
| Boom in Reach | 66.2″ |
| Tail Swing (no c/wt) | 70.9″ |
| Tail Swing (with c/wt) | 76.0″ |
| Max Blade Height | 14.6″ |
| Max Blade Depth | 16.0″ |
| Transport Height (no tools) | 101.2″ |
| Boom Working Height (with tools) | 107.5″ |
| Cab Height | 100″ |
| O/A Shipping Length (no c/wt) | 240.2″ |
| O/A Shipping Length (with c/wt) | 245.3″ |
| Undercarriage Length | 108.7″ |
| Track Width | 86.6″ |
| Width over Upper House | 88.6″ |
| Track Shoe Width | 17.7″ |
| Swing Bearing Height | 29.7″ |
| Ground Clearance | 14.6″ |
Long Stick — 86.9″
| Dig Depth | 182.8″ |
| Vertical Wall Depth | 161.9″ |
| Max Reach — Ground Level | 262.6″ |
| Maximum Reach | 267.9″ |
| Max Dig Height | 305.7″ |
| Max Dump Clearance | 225.1″ |
| Boom in Reach | 88.6″ |
| Tail Swing (no c/wt) | 70.9″ |
| Tail Swing (with c/wt) | 76.0″ |
| Max Blade Height | 14.6″ |
| Max Blade Depth | 16.0″ |
| Transport Height (no tools) | 100.4″ |
| Boom Working Height (with tools) | 124.0″ |
| Cab Height | 100″ |
| O/A Shipping Length (no c/wt) | 240.9″ |
| O/A Shipping Length (with c/wt) | 246.1″ |
| Undercarriage Length | 108.7″ |
| Track Width | 86.6″ |
| Width over Upper House | 88.6″ |
| Track Shoe Width | 17.7″ |
| Swing Bearing Height | 29.7″ |
| Ground Clearance | 14.6″ |
Transport Height = boom pinned in transport position, no attachments. Boom Working Height = boom pinned in working position with attachments. Shipping length varies with counterweight fitment — both values shown.
| Minimum Operating Weight (cab)* | 16,549 lb |
| Maximum Operating Weight (cab)** | 17,905 lb |
| Counterweight | 552 lb |
| Long Stick | 181 lb |
| Steel Tracks with Rubber Pads (vs plain steel) | 628 lb |
* Minimum: steel tracks (no counterweight), operator, full fuel, standard stick, blade, no bucket.
** Maximum: steel tracks with rubber pads, counterweight, operator, full fuel, long stick, blade, no bucket.
Note: Unlike smaller Cat minis, the 307.5 baselines on steel tracks — not rubber tracks.
| Feature / Item | Standard | Optional |
|---|---|---|
| Engine | ||
| Cat C2.4 Turbo — Tier 4 Final / EU Stage V | ● | — |
| Automatic Engine Idle | ● | — |
| Automatic Engine Shutdown | ● | — |
| Automatic Two-Speed Travel | ● | — |
| Variable Displacement Piston Pump | ● | — |
| Load Sensing / Flow Sharing Hydraulics | ● | — |
| Hydraulics | ||
| Dual Auxiliary Circuits (35 gpm primary + 9 gpm secondary) | ● | — |
| One-Way, Two-Way & Continuous Auxiliary Flow | ● | — |
| Auxiliary Line Quick Disconnects | ● | — |
| Automatic Swing Brake | ● | — |
| Operator Environment | ||
| Sealed Pressurised Cab with Improved A/C (standard — no canopy option) | ● | — |
| ROPS / TOPS / Top Guard Level I | ● | — |
| Stick Steer Mode | ● | — |
| Travel Cruise Control | ● | — |
| Customisable Operator Performance Settings | ● | — |
| Next Generation LCD Monitor | ● | — |
| Advanced Touchscreen Monitor | — | ○ |
| Adjustable Wrist Rests | ● | — |
| Suspension Seat | ● | — |
| Control Pattern Changer (ISO/SAE) | — | ○ |
| Courtesy Work Lights | ● | — |
| Fluorescent Retractable Seat Belt | ● | — |
| Undercarriage & Blade | ||
| Steel Tracks (standard) | ● | — |
| Steel Tracks with Rubber Pads | — | ○ |
| Dozer Blade — 90″ wide | ● | — |
| Counterweight | — | ○ |
| Long Stick (86.9″) | — | ○ |
| Telematics & Connectivity | ||
| VisionLink® Fleet Management Ready | ● | — |
| Cat Product Link (cellular/satellite) | — | ○ |
● Standard ○ Optional Standard and optional equipment may vary by region. Consult your Cat dealer for details.
