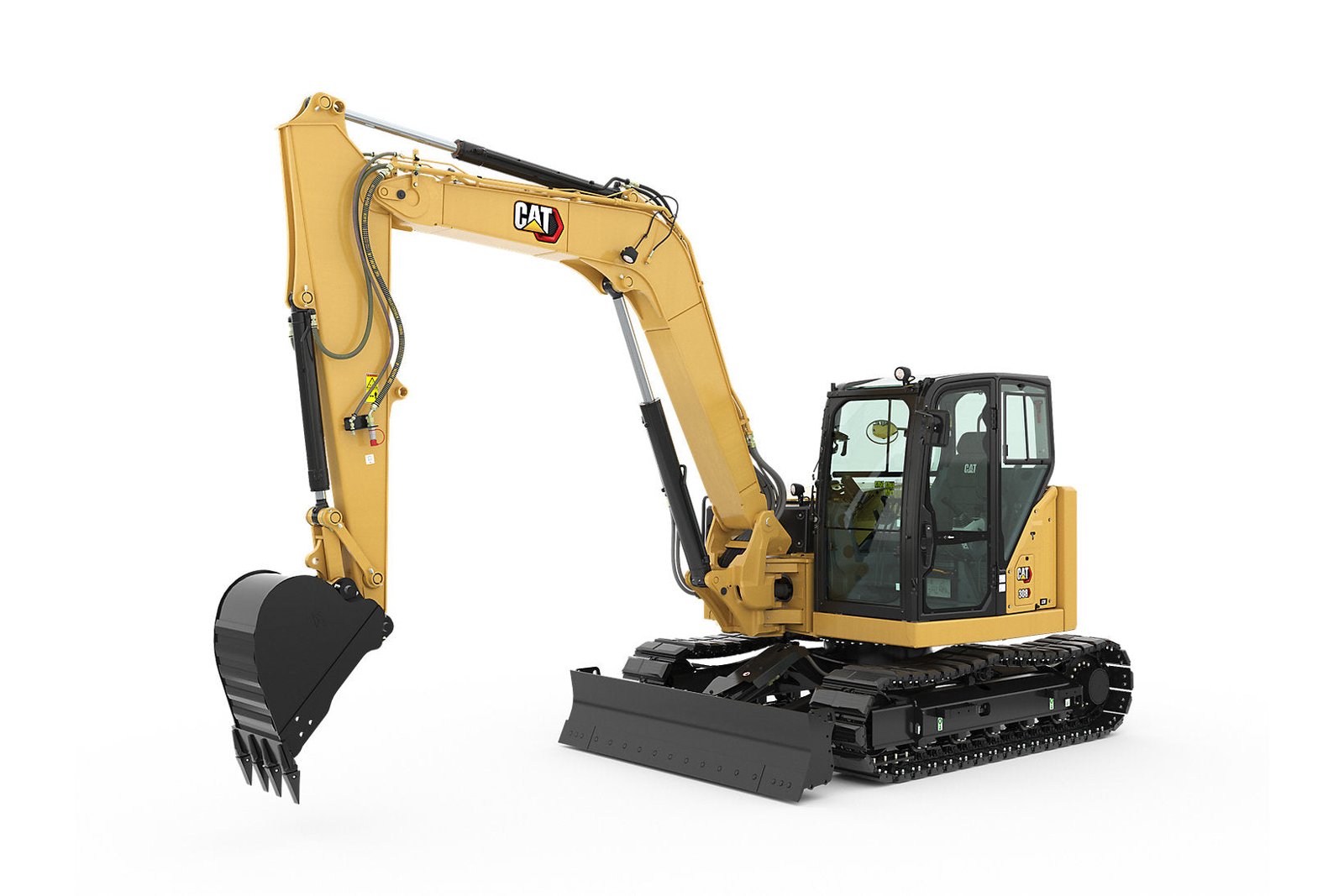

Mini Excavators 308 CR
Original price was: $152,777.00.$96,249.99Current price is: $96,249.99.
All Day Comfort — Cab Standard
A sealed, pressurised cab with improved air conditioning, adjustable wrist rests and suspension seat comes standard. No canopy option — the 308 CR is built for operators who need full-time enclosed protection.
C3.3B Engine — Most Powerful Cat Mini
The Cat C3.3B Turbo delivers 69.5 hp from 203 in³ displacement — the largest and most powerful engine in the Cat next generation compact mini range. Rated at 2,200 rpm for optimal torque delivery.
First Cat Mini to Break 300″ Reach
With the long stick, the 308 CR achieves 300.7″ maximum reach — over 25 feet — opening up applications like deep utility trenching, large drainage schemes and long-reach dredging work.
Highest Bucket Force in the Cat Mini Range
13,946 lbf bucket digging force and 9,509 lbf standard stick force — both the highest in the Cat compact mini excavator lineup — for the most demanding rock, frozen ground and hard clay applications.
Wide Blade Option — 96.5″
Standard 90.6″ blade covers more ground per pass. The optional 96.5″ wide blade is the widest available in the Cat mini range for maximum site preparation and backfill efficiency.
Customisable Operator Settings
Programmable performance modes allow operators to tune machine response across all functions — delivering up to 20% more performance in lift, swing, travel and multi-function tasks.
Safety on the Job Site
ROPS (ISO 12117-2:2008) and Top Guard Level I certification protect the operator. Courtesy work lights and fluorescent retractable seat belt are included as standard on every machine.
Lower Owning & Operating Costs
Improved fuel efficiency, longer service intervals, load-sensing variable displacement hydraulics and ground-level side-door maintenance access all reduce daily running costs versus the previous generation.
- Cat C3.3B Turbo engine — 69.5 hp / Tier 4 Final & EU Stage V
- Load-sensing hydraulics — variable displacement piston pump, 44 gpm
- 4,134 psi equipment & travel operating pressure
- 3,626 psi swing operating pressure
- Dual auxiliary circuits (35 gpm primary + 9 gpm secondary)
- One-way, two-way and continuous auxiliary flow modes
- Auxiliary line quick disconnects
- Automatic engine idle & automatic engine shutdown
- Automatic two-speed travel
- Travel cruise control
- Stick Steer travel mode (Cat exclusive)
- Sealed, pressurised cab — standard (no canopy option)
- Improved air conditioning system (R134a, 1.0 kg)
- Adjustable wrist rests
- Suspension seat
- ROPS (ISO 12117-2:2008) certified
- Top Guard ISO 10262:1998 Level I
- Dozer blade — 90.6″ standard width
- Wide dozer blade option — 96.5″
- Rubber tracks — standard configuration (17.7″ shoe)
- Steel tracks with rubber pads option (+752 lb)
- Counterweight option (+552 lb)
- Machine swing speed: 10.6 rpm
- Boom swing: 60° left / 50° right
- 39-gallon fuel tank
- Customisable operator performance settings
- Next Generation LCD monitor (standard)
- Advanced touchscreen monitor (optional)
- ISO or SAE control pattern — switchable
- Courtesy work lights
- Fluorescent retractable seat belt
- Ground-level side-door service access
- VisionLink® telematics ready
- 96% recyclability rating
| Engine Model | Cat C3.3B Turbo |
| Net Power @ 2,200 rpm (ISO 9249 / EEC 80/1269) | 69.5 hp |
| Gross Power (SAE J1995:2014) | 74.3 hp |
| Bore × Stroke | 3.7″ × 4.7″ |
| Displacement | 203 in³ |
| Emissions Standard | U.S. EPA Tier 4 Final & EU Stage V |
| System Type | Load-Sensing, Variable Displacement Piston Pump |
| Pump Flow @ 2,400 rpm | 44 gpm |
| Operating Pressure — Equipment | 4,134 psi |
| Operating Pressure — Travel | 4,134 psi |
| Operating Pressure — Swing | 3,626 psi |
| Auxiliary Circuit Primary — Max Flow / Pressure | 35 gpm / 4,134 psi |
| Auxiliary Circuit Secondary — Max Flow / Pressure | 9 gpm / 4,134 psi |
| Bucket Digging Force | 13,946 lbf |
| Stick Digging Force — Standard Stick | 9,509 lbf |
| Stick Digging Force — Long Stick | 8,032 lbf |
| Travel Speed — High | 3.2 mph |
| Travel Speed — Low | 1.9 mph |
| Max Traction Force — High Speed | 6,250 lbf |
| Max Traction Force — Low Speed | 15,175 lbf |
| Ground Pressure — Minimum Weight | 4.9 psi |
| Ground Pressure — Maximum Weight | 5.5 psi |
| Max Gradeability | 30° |
| Track Belt / Shoe Width | 17.7″ |
| Track Width | 90.6″ |
| Machine Swing Speed | 10.6 rpm |
| Boom Swing — Left | 60° (23.8″ lateral offset) |
| Boom Swing — Right | 50° (36.8″ lateral offset) |
| Blade Width — Standard | 90.6″ |
| Blade Width — Wide Option | 96.5″ |
| Blade Height | 17″ |
| Max Blade Height (above grade) | 14.6″ |
| Max Blade Depth (below grade) | 16″ |
| Cab Type | Sealed & pressurised — standard (no canopy option) |
| ROPS Certification | ISO 12117-2:2008 |
| TOPS Certification | Not listed for 308 CR |
| Top Guard Level | ISO 10262:1998 Level I |
| Operator Sound Pressure (ISO 6396:2008) | 72 dB(A) |
| Exterior Sound Power (ISO 6395:2008) | 99 dB(A) |
| EU Noise Directive | 2000/14/EC |
| A/C Refrigerant | R134a (GWP 1,430) |
| Refrigerant Charge | 1.0 kg |
| CO₂ Equivalent | 1.430 metric tonnes |
| Adjustable Wrist Rests | Included |
| Suspension Seat | Included |
| Stick Steer Mode | Included (Cat exclusive) |
| Travel Cruise Control | Included |
| Customisable Operator Settings | Included |
| Next Generation LCD Monitor | Standard |
| Advanced Touchscreen Monitor | Optional upgrade |
| Courtesy Work Lights | Included |
| Fluorescent Retractable Seat Belt | Included |
| Cooling System | 2.6 gal (US) |
| Engine Oil | 3.0 gal (US) |
| Fuel Tank | 39.0 gal (US) |
| Hydraulic Tank | 14.0 gal (US) |
| Hydraulic System Total | 29.0 gal (US) |
| Recyclability Rating | 96% |
| EU Directive Compliance | 2000/14/EC |
Standard Stick — 71.7″
| Dig Depth | 161.7″ |
| Vertical Wall Depth | 117.8″ |
| Max Reach — Ground Level | 273.6″ |
| Maximum Reach | 281.1″ |
| Max Dig Height | 265.2″ |
| Max Dump Clearance | 187.4″ |
| Boom in Reach | 120.4″ |
| Tail Swing (no c/wt) | 57.1″ |
| Tail Swing (with c/wt) | 62.4″ |
| Max Blade Height | 14.6″ |
| Max Blade Depth | 16.0″ |
| Transport Height (no tools) | 95.7″ |
| Boom Working Height (with tools) | 104.7″ |
| Cab Height | 100″ |
| O/A Shipping Length (no c/wt)† | 258.8″ |
| O/A Shipping Length (with c/wt)† | 264.0″ |
| Undercarriage Length | 113.4″ |
| Track Width | 90.6″ |
| Track Shoe Width | 17.7″ |
| Swing Bearing Height | 29.7″ |
| Ground Clearance | 13.8″ |
| Boom Swing Left / Right (offset) | 23.8″ / 36.8″ |
Long Stick — 92.8″
| Dig Depth | 182.8″ |
| Vertical Wall Depth | 134.0″ |
| Max Reach — Ground Level | 293.7″ |
| Maximum Reach | 300.7″ |
| Max Dig Height | 277.1″ |
| Max Dump Clearance | 199.7″ |
| Boom in Reach | 126.6″ |
| Tail Swing (no c/wt) | 57.1″ |
| Tail Swing (with c/wt) | 62.4″ |
| Max Blade Height | 14.6″ |
| Max Blade Depth | 16.0″ |
| Transport Height (no tools) | 89.0″ |
| Boom Working Height (with tools) | 120.1″ |
| Cab Height | 100″ |
| O/A Shipping Length (blade rear)† | 270.6″ (6,872 mm) |
| Undercarriage Length | 113.4″ |
| Track Width | 90.6″ |
| Track Shoe Width | 17.7″ |
| Swing Bearing Height | 29.7″ |
| Ground Clearance | 13.8″ |
| Boom Swing Left / Right (offset) | 23.8″ / 36.8″ |
† Standard Stick: two shipping lengths (with/without counterweight). Long Stick: single shipping length value measured with blade at rear of machine. Transport Height = boom in transport position, no tools. Working Height = boom in working position, with tools.
| Minimum Operating Weight (cab)* | 16,542 lb |
| Maximum Operating Weight (cab)** | 18,493 lb |
| Steel Tracks with Rubber Pads (vs rubber tracks) | 752 lb |
| Counterweight | 552 lb |
| Long Stick | 146 lb |
* Minimum: rubber tracks, no counterweight, operator, full fuel, standard stick, blade, no bucket.
** Maximum: steel tracks with rubber pads, counterweight, operator, full fuel, long stick, blade, no bucket.
| Feature / Item | Standard | Optional |
|---|---|---|
| Engine | ||
| Cat C3.3B Turbo — Tier 4 Final / EU Stage V | ● | — |
| Automatic Engine Idle | ● | — |
| Automatic Engine Shutdown | ● | — |
| Automatic Two-Speed Travel | ● | — |
| Variable Displacement Piston Pump | ● | — |
| Load Sensing / Flow Sharing Hydraulics | ● | — |
| Hydraulics | ||
| Dual Auxiliary Circuits (35 gpm primary + 9 gpm secondary) | ● | — |
| One-Way, Two-Way & Continuous Auxiliary Flow | ● | — |
| Auxiliary Line Quick Disconnects | ● | — |
| Automatic Swing Brake | ● | — |
| Operator Environment | ||
| Sealed Pressurised Cab with Improved A/C (standard — no canopy option) | ● | — |
| ROPS / Top Guard Level I | ● | — |
| Stick Steer Mode | ● | — |
| Travel Cruise Control | ● | — |
| Customisable Operator Performance Settings | ● | — |
| Next Generation LCD Monitor | ● | — |
| Advanced Touchscreen Monitor | — | ○ |
| Adjustable Wrist Rests | ● | — |
| Suspension Seat | ● | — |
| Control Pattern Changer (ISO/SAE) | — | ○ |
| Courtesy Work Lights | ● | — |
| Fluorescent Retractable Seat Belt | ● | — |
| Undercarriage & Blade | ||
| Rubber Tracks — 17.7″ shoe width (standard) | ● | — |
| Steel Tracks with Rubber Pads | — | ○ |
| Dozer Blade — 90.6″ standard width | ● | — |
| Wide Dozer Blade — 96.5″ | — | ○ |
| Counterweight | — | ○ |
| Long Stick (92.8″) | — | ○ |
| Telematics & Connectivity | ||
| VisionLink® Fleet Management Ready | ● | — |
| Cat Product Link (cellular/satellite) | — | ○ |
● Standard ○ Optional Standard and optional equipment may vary by region. Consult your Cat dealer for details.
