NW-12 | 13.5HP Mini Excavator B&S Engine with 6 Attachments
Original price was: $8,699.99.$5,480.99Current price is: $5,480.99.

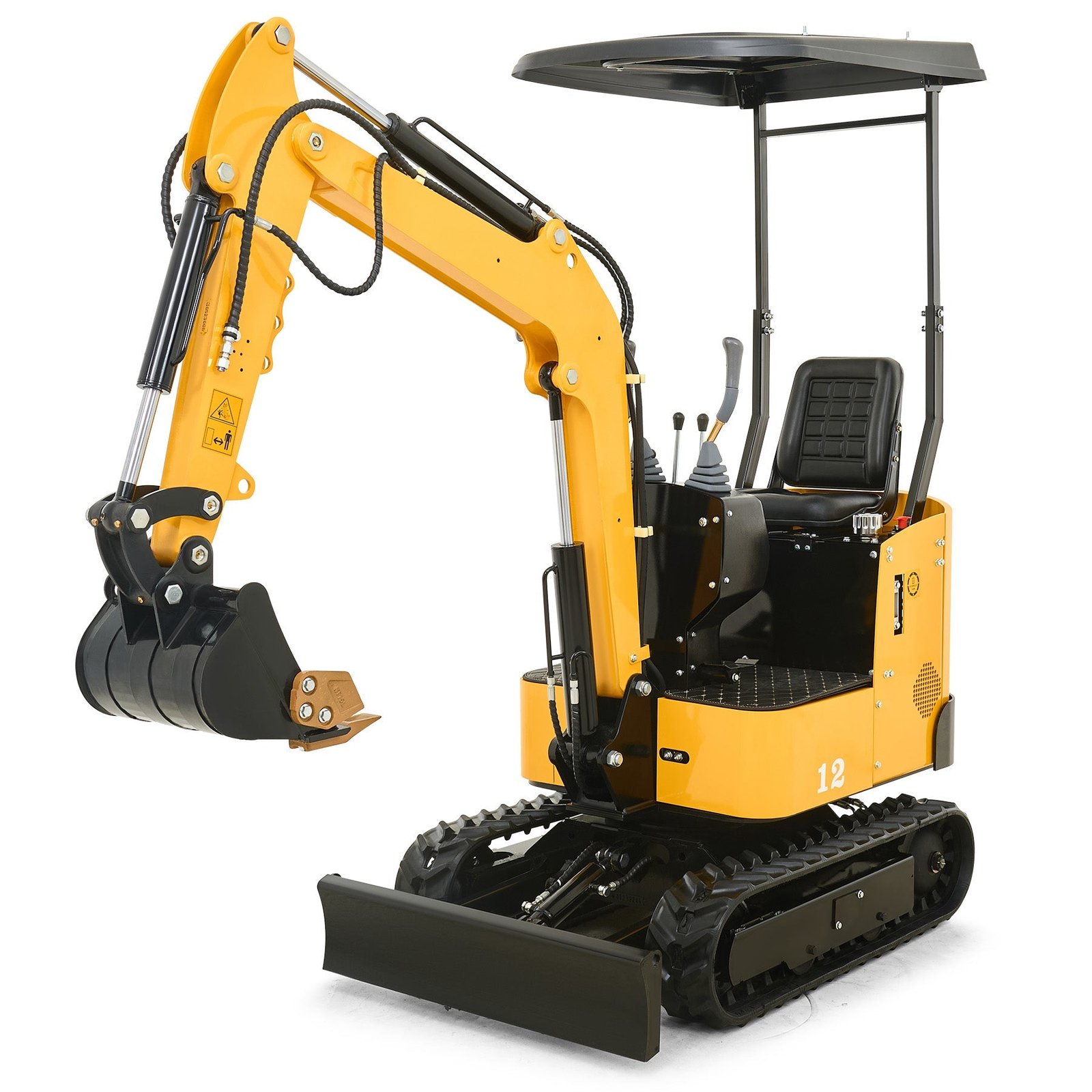

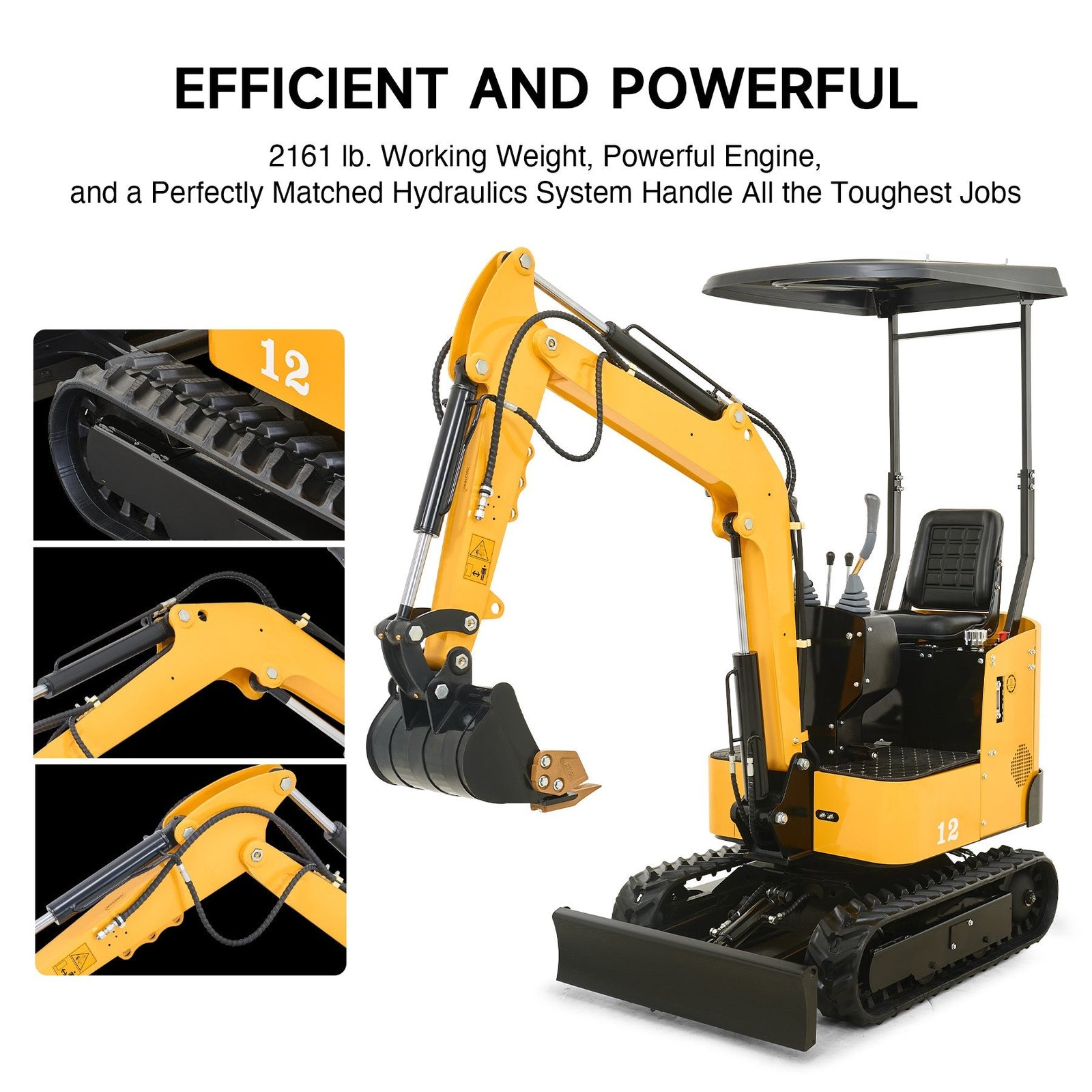

AHM NW-12 Mini Excavator
A complete excavation system — not just a machine. The NW-12 includes six work-ready attachments: log grapple, auger, narrow bucket, hammer, rake, and quick hitch. Add a 13.5 HP Briggs & Stratton engine, integrated electronic display with hour meter and voltage monitoring, rear counterweight for stability, and widened dozer blade — all in a 2,161 lb compact chassis.

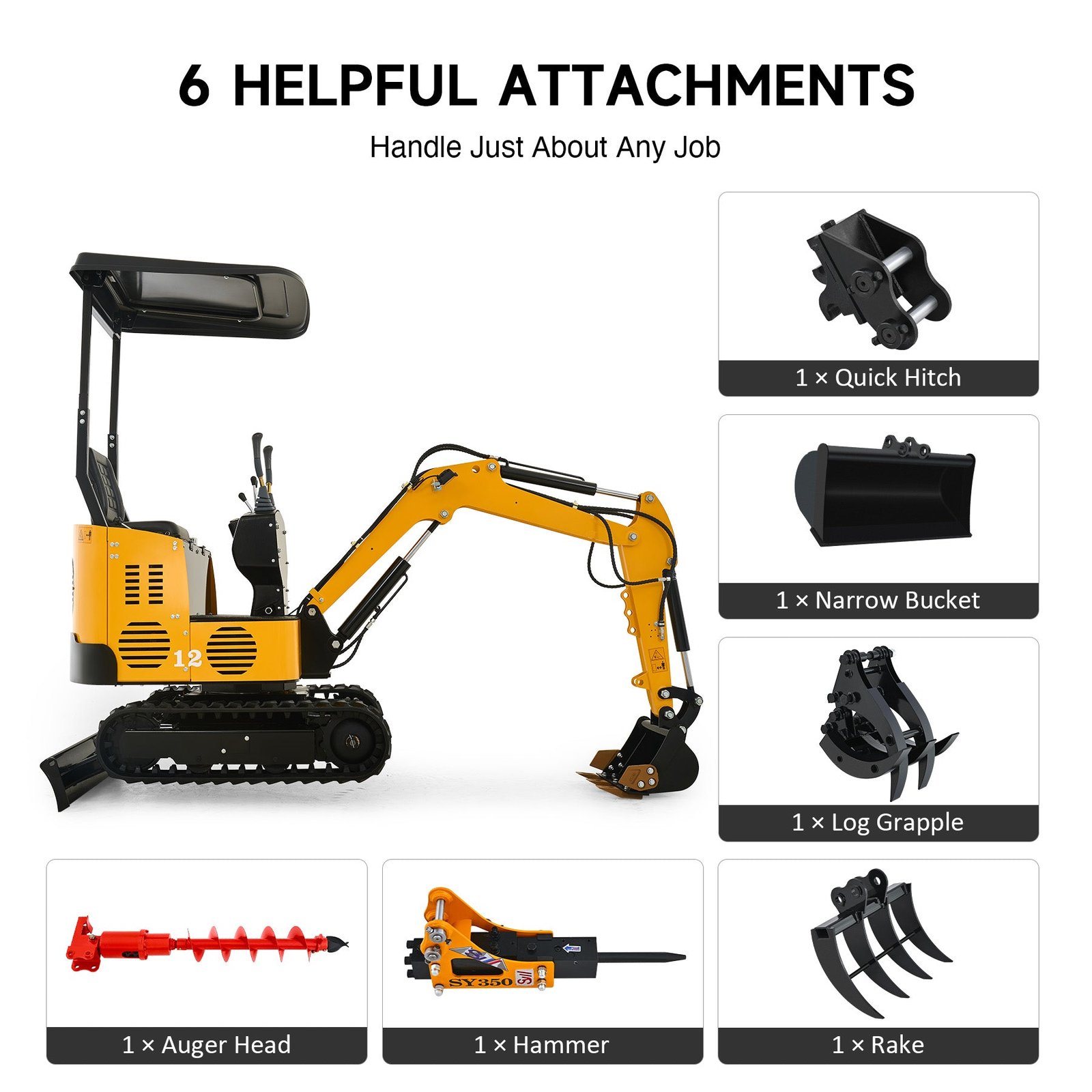

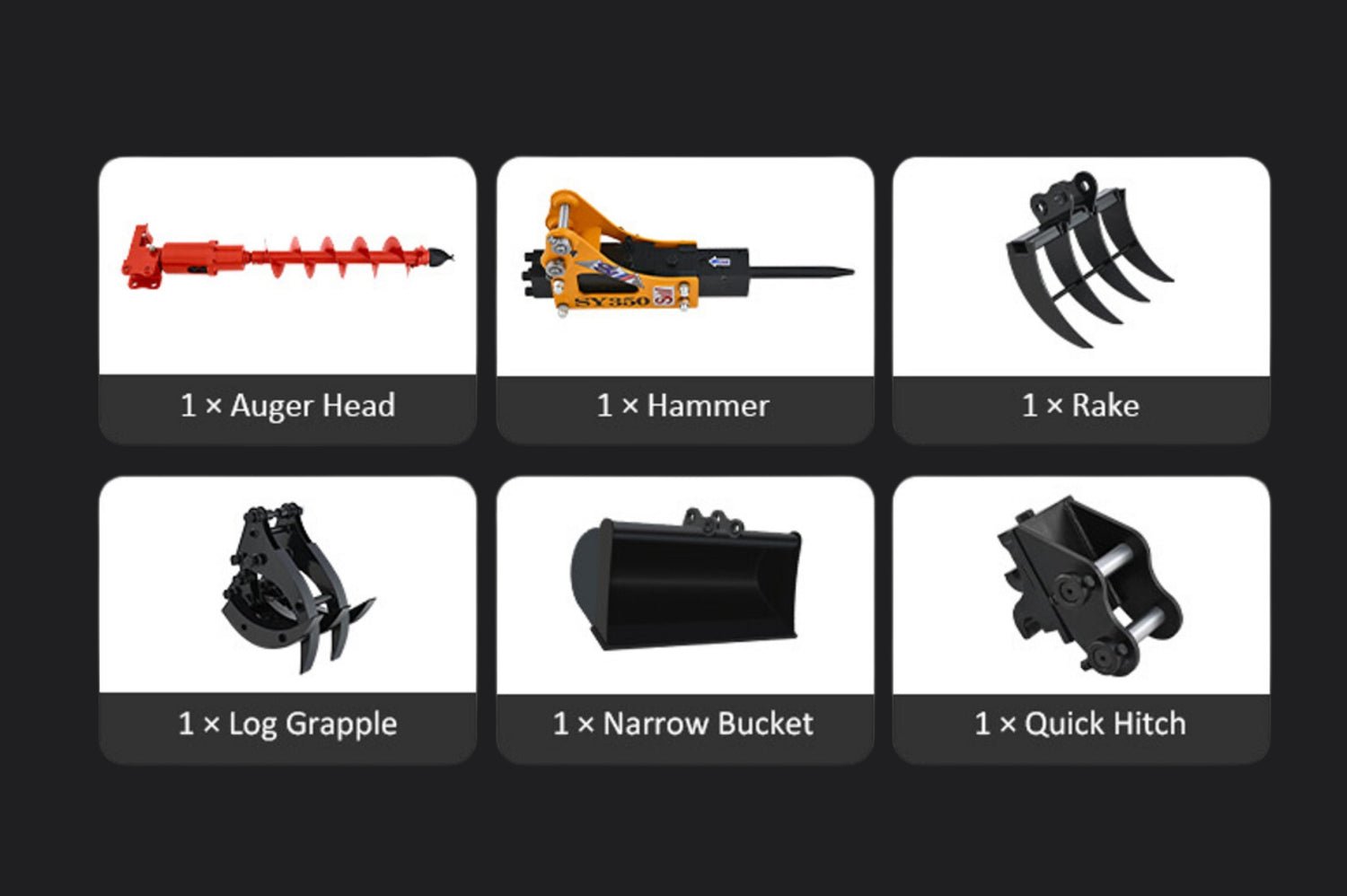

Grapple, auger, narrow bucket, hammer, rake & quick hitch — all included.
Sufficient for foundations, utility lines, downspout burial, and more.

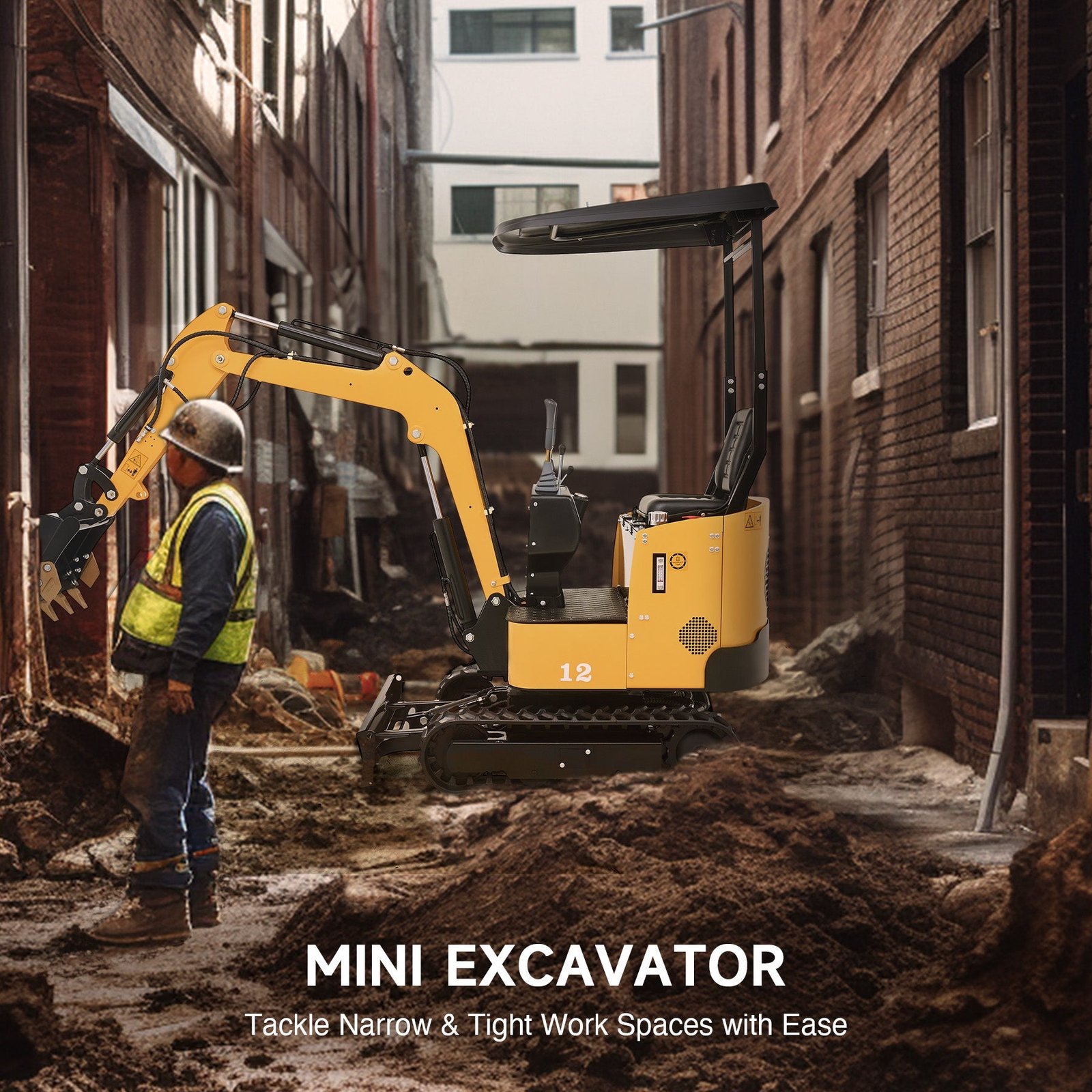

Compact and light for tight-space maneuverability on varied terrain.

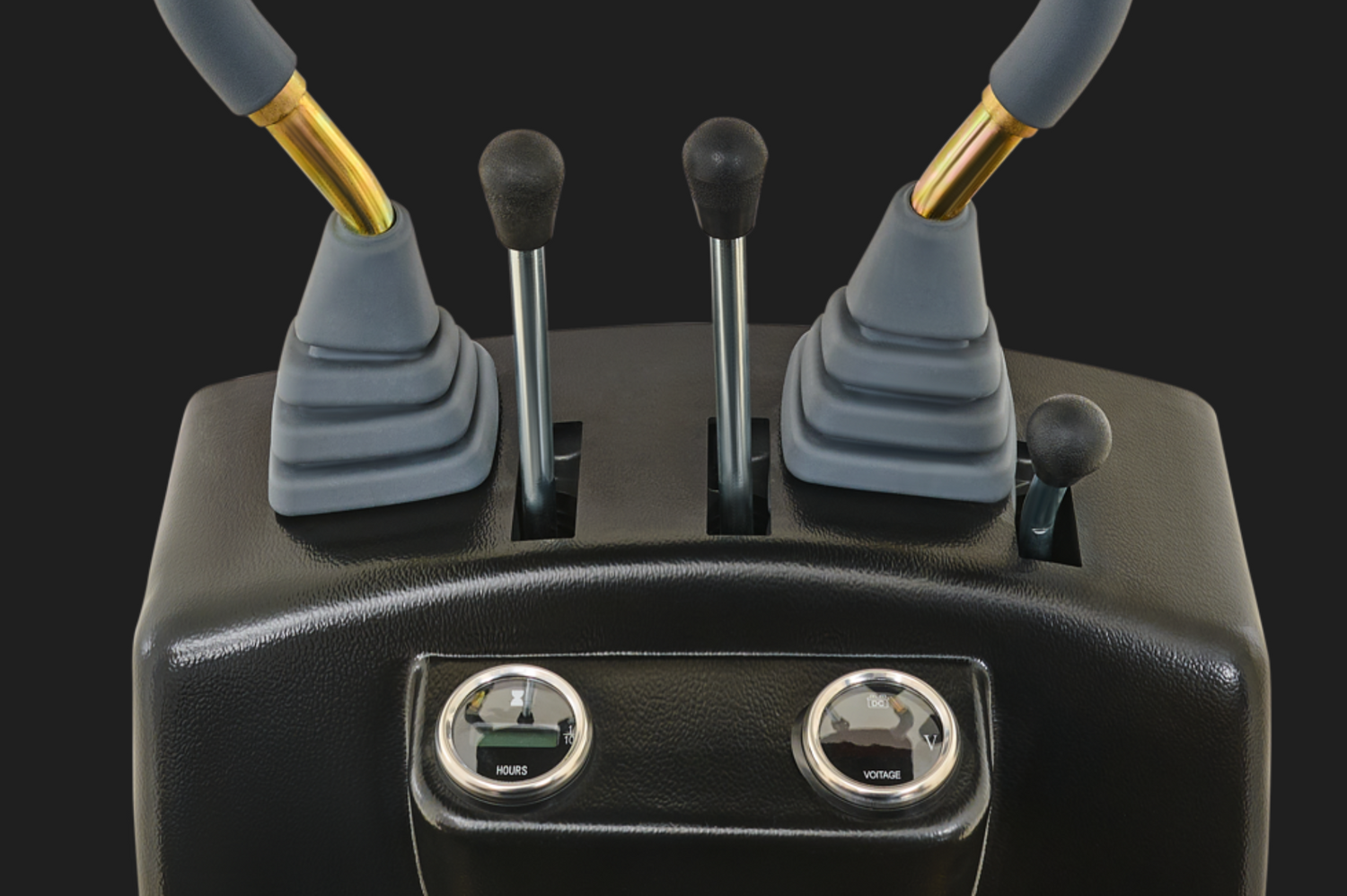

Real-time hour tracking and voltage monitoring from the operator seat.

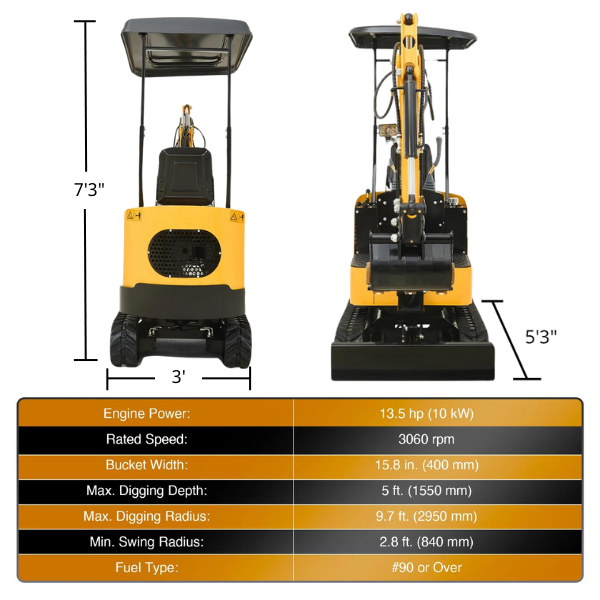

| Engine Brand | Briggs & Stratton |
| Rated Power | 13.5 HP |
| Rated Torque | 21 lb-ft at 3,060 RPM |
| Fuel Type | Gasoline |
| Fuel Tank | 6.6 L / 1.7 gal |
| Fuel Consumption | ~1 L/hr (0.3 gal/hr) |

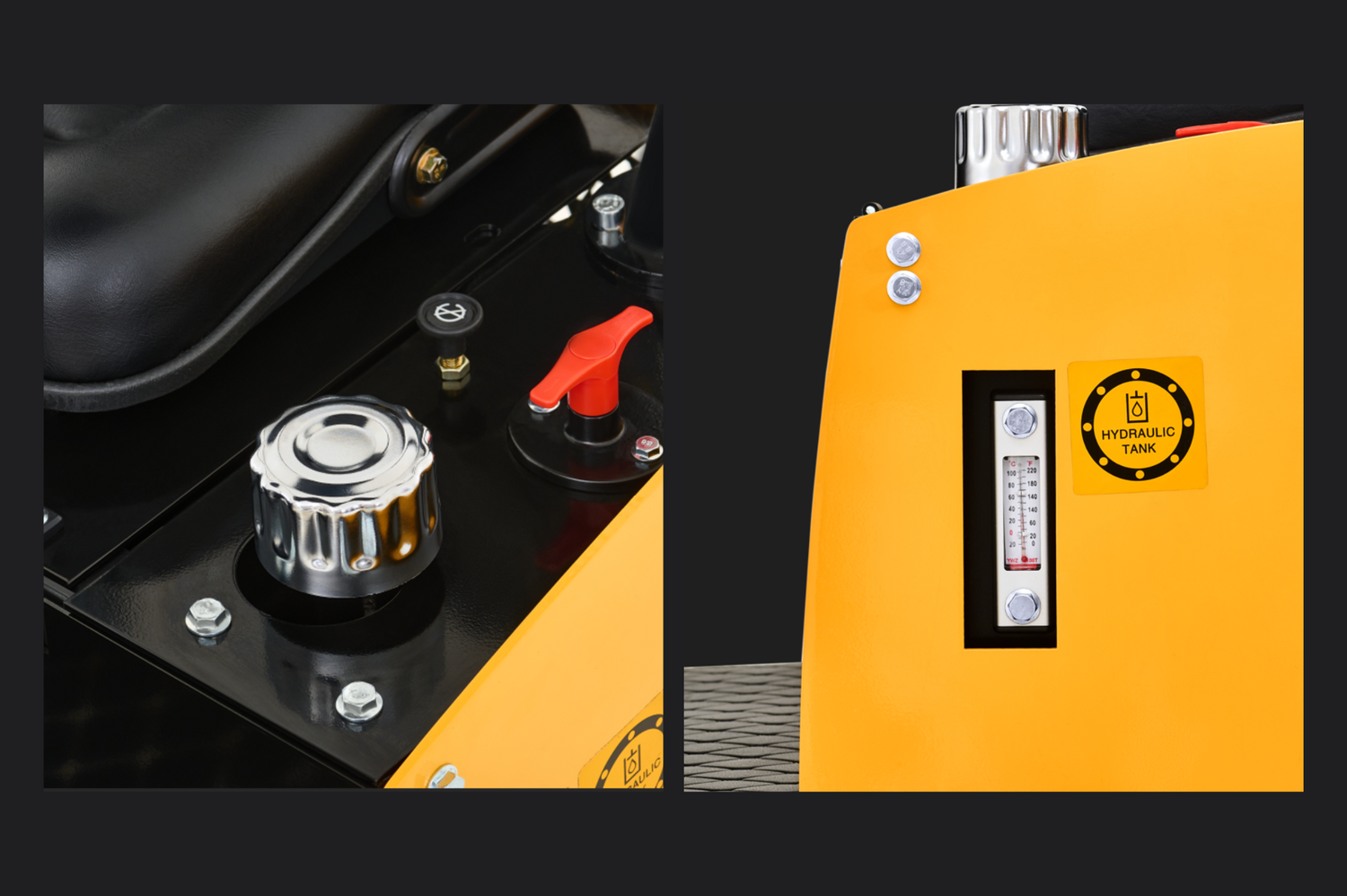

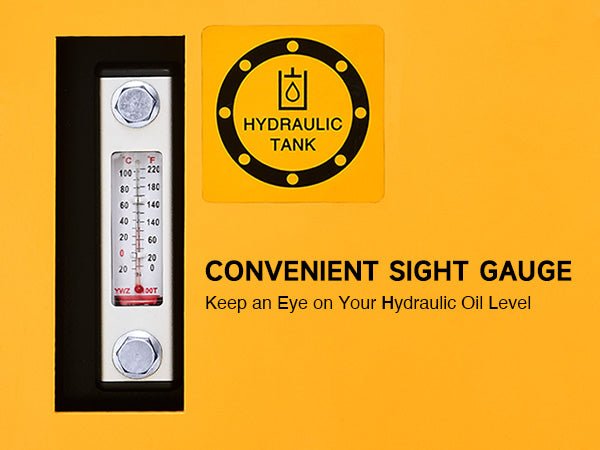

| Hydraulic Tank | 14.7 L / 3.9 gal |
| Load Capacity / Operating Weight | 2,161 lbs (980 kg) |
| Max Digging Depth | 1,550 mm / 61 in / 5 ft |
| Max Dumping Height | 2,490 mm / 98 in (8.2 ft) |

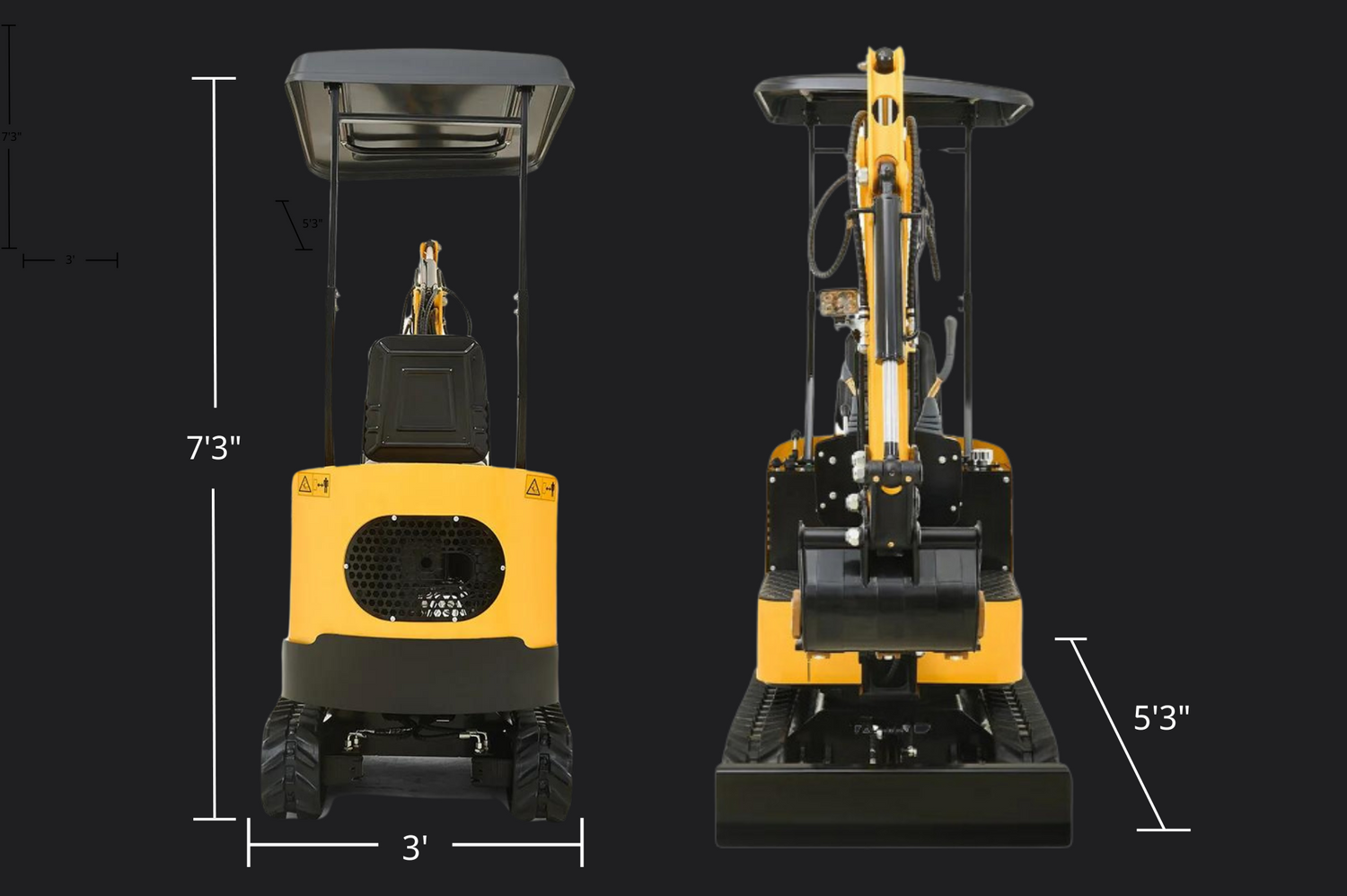

| Overall Height | 2,200 mm / 86.6 in (7.2 ft) |
| Max Slope Grade | 30° |
| Platform Ground Clearance | 440 mm / 17.3 in |
| Overall Track Length | 920 mm / 36.2 in (4 ft) |
| Bucket Width | 400 mm / 15.8 in |
| Bucket Volume | 0.03 m³ / 0.9 ft³ |
| Dozer Elevation | 140 mm / 5.5 in |
| Dozer Drop Depth | 250 mm / 9.8 in |
| Frame Material | Steel |
| Track Material | Cut & Wear Resistant Rubber |
| Color | Black / Yellow |
| Warranty | 1 Year |

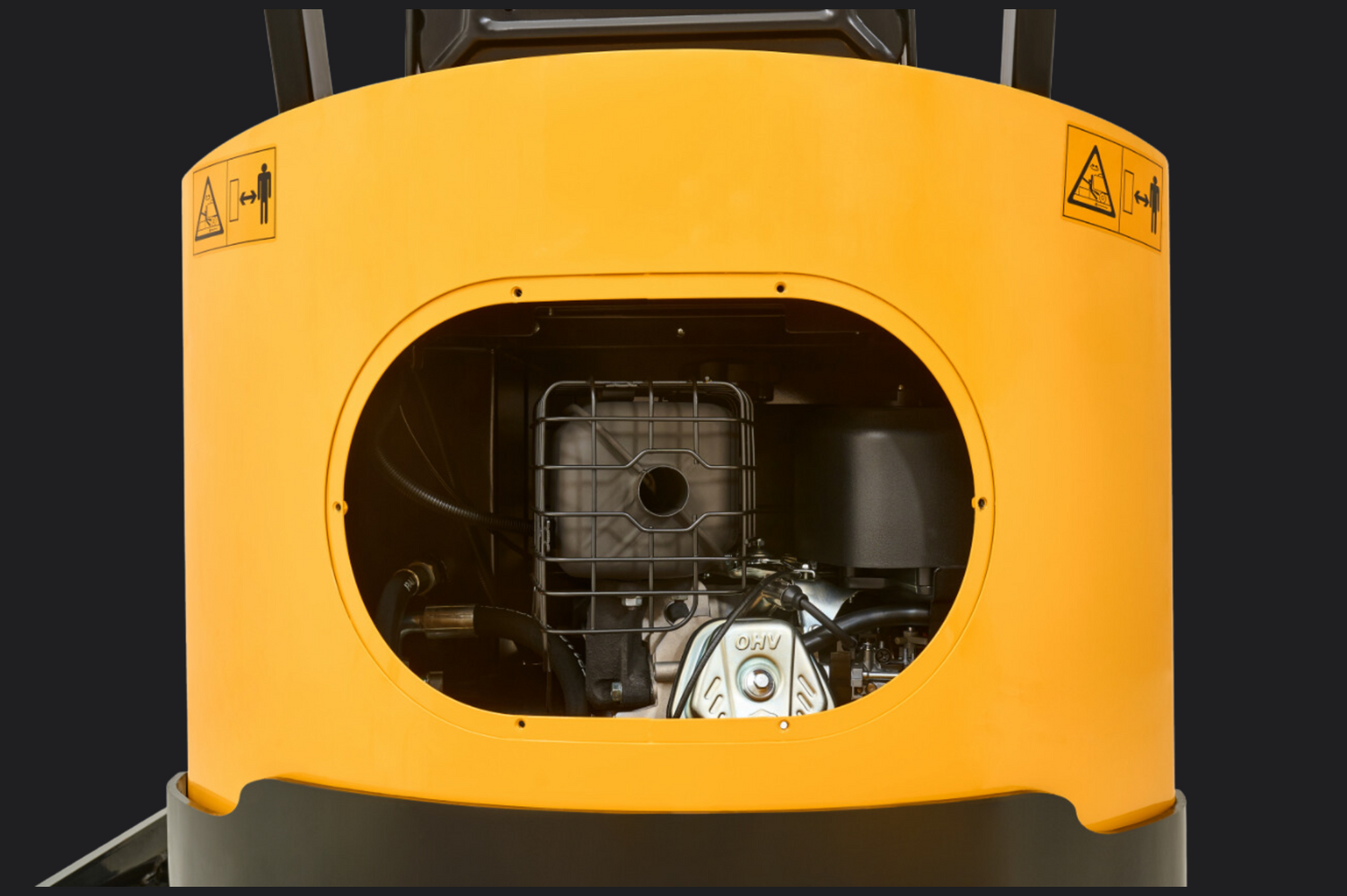

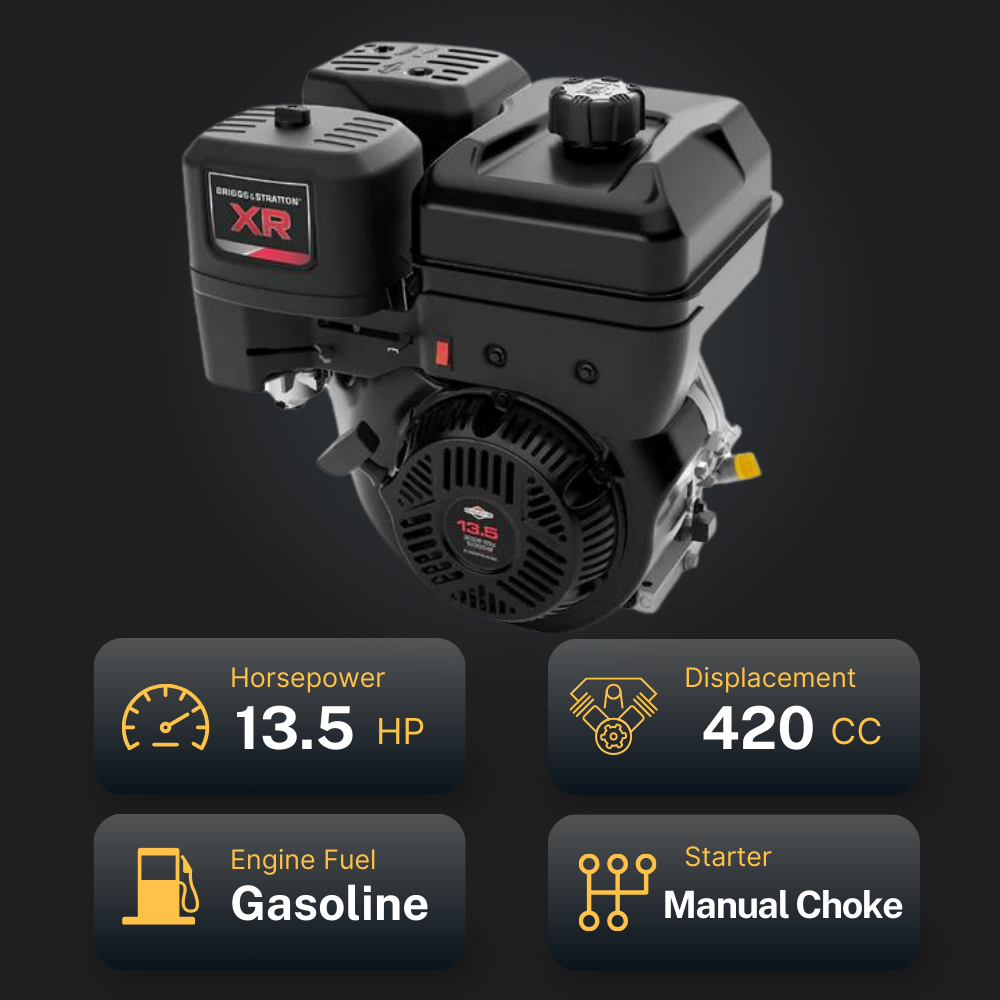

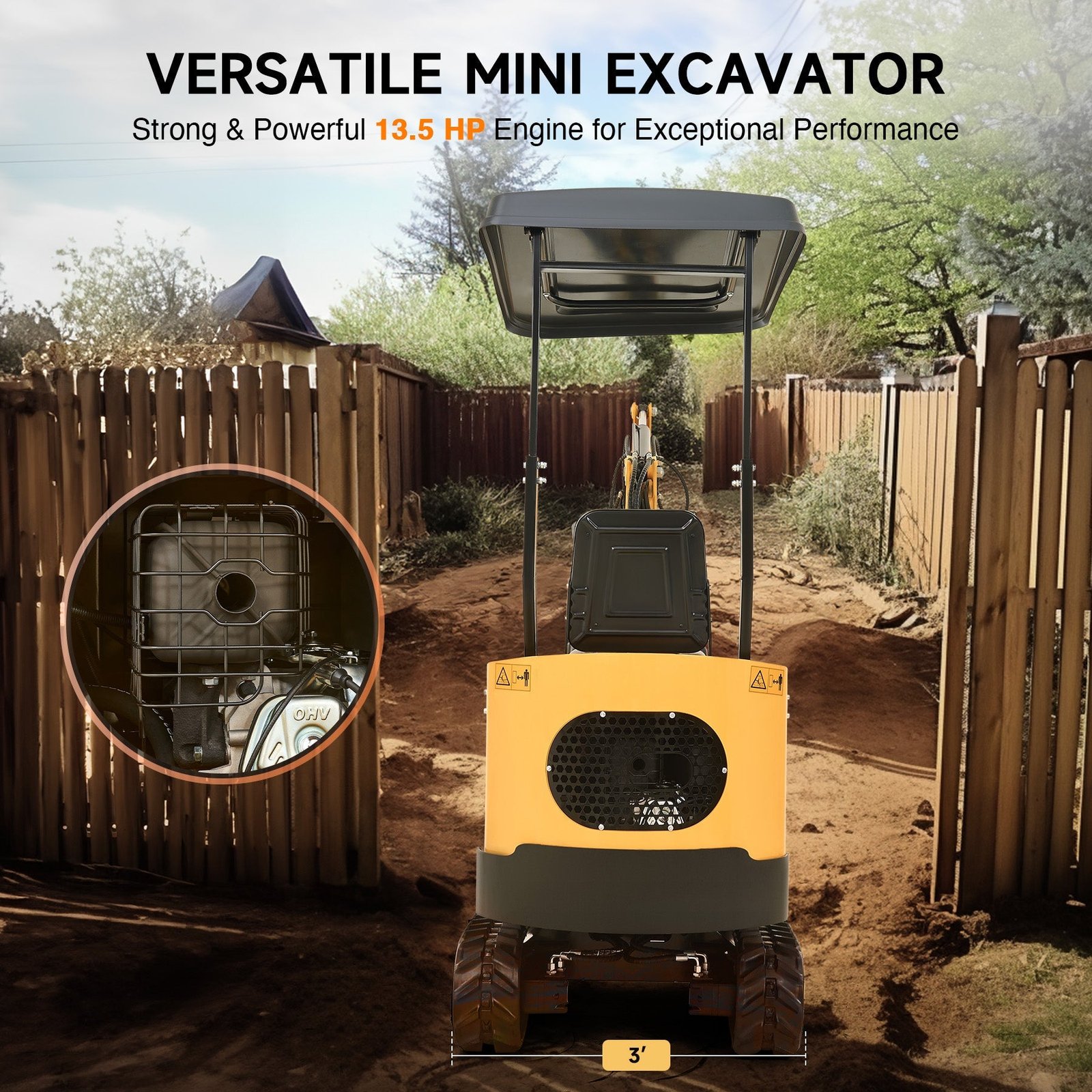

B&S 13.5 HP Gasoline Engine
Electronic Display (Hour Meter + Voltage)
Rear Counterweight
Widened Dozer Blade

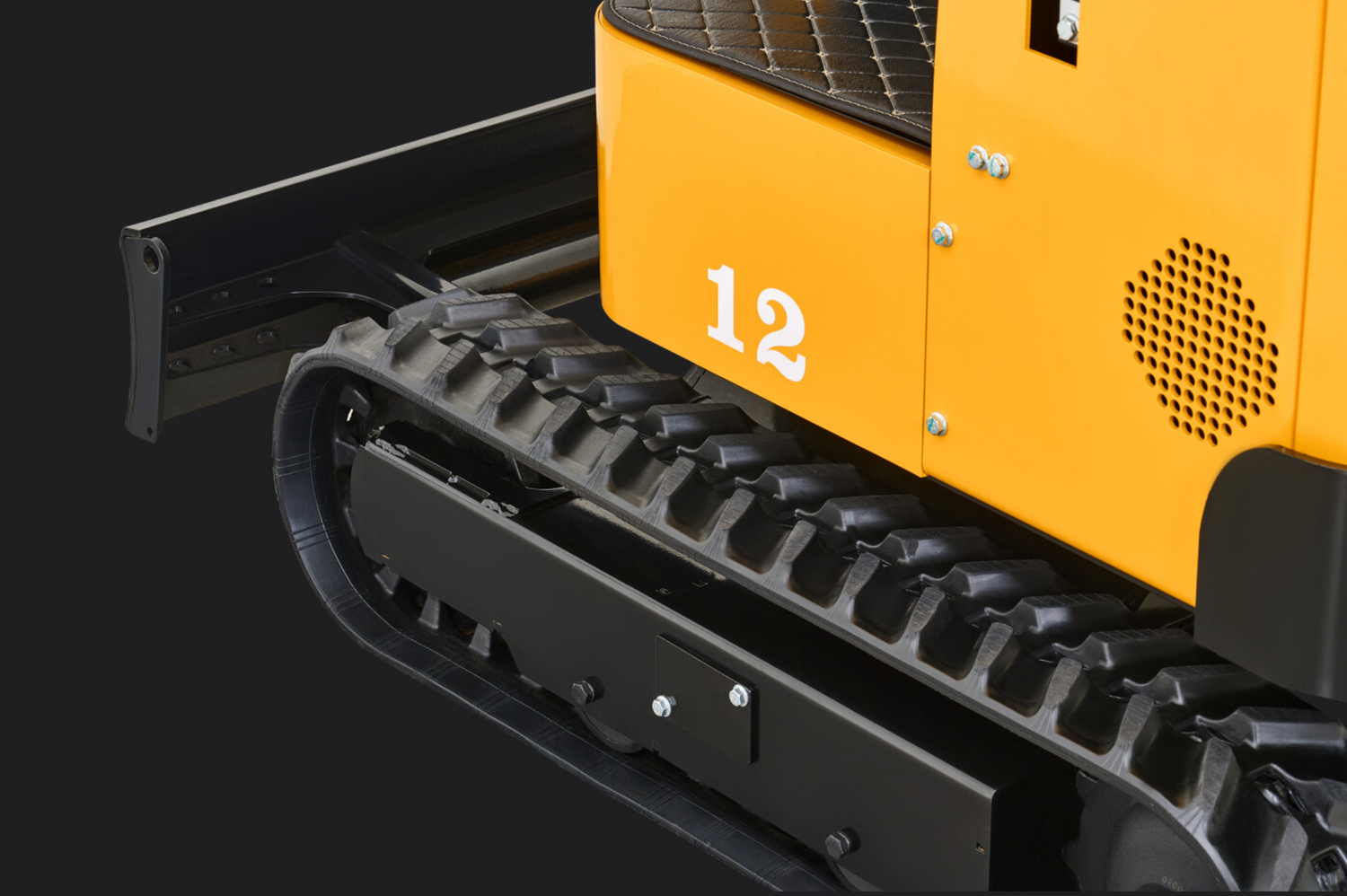

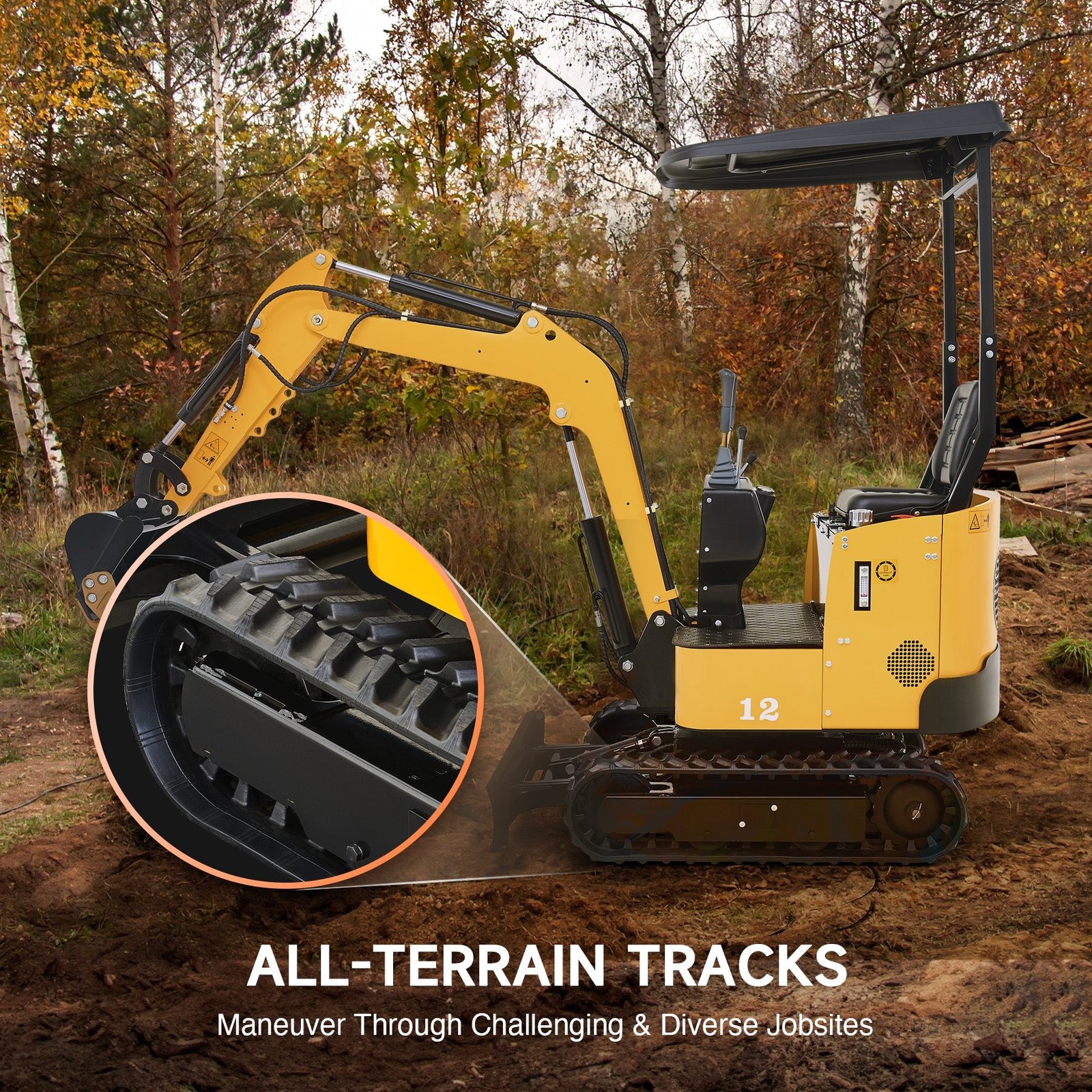

Cut & Wear Resistant Rubber Tracks
Quick Hitch
Log Grapple
Auger
Narrow Bucket
Hammer
Rake
Tool Box & Instruction Manuals
1-Year Warranty
Mini Excavator (1x)
Quick Hitch (1x)
Log Grapple (1x)
Auger (1x)
Narrow Bucket (1x)
Hammer (1x)
Rake (1x)
Tool Box (1x)
Instruction Manuals (2x)
B&S 13.5 HP Gasoline Engine
Electronic Display (Hours + Voltage)
Rear Counterweight
Widened Dozer Blade
Cut & Wear Resistant Rubber Tracks
Quick Hitch
Log Grapple
Auger
Narrow Bucket
Hammer
Rake
Tool Box
Instruction Manuals (2x)
1-Year Warranty
