Name: AX-15 | 13.8 HP Kubota Engine Mini Excavator
SKU: EXC-1501-A1&SER-FKLT-US-[gslily]1+1
Availability: InStock

Original price was: $7,199.99.Current price is: $4,535.99.

Large Orders: For large quantity orders, please contact us directly at infos@bidado00fficial.com

+1 (253) 270-1217 Sales Contact Number

infos@bidado00fficial.com Contact Email

Free Ground Shipping

No Sales Tax

Lifetime Tech Support

Bidadoo 100% Guarantee

Description

Description

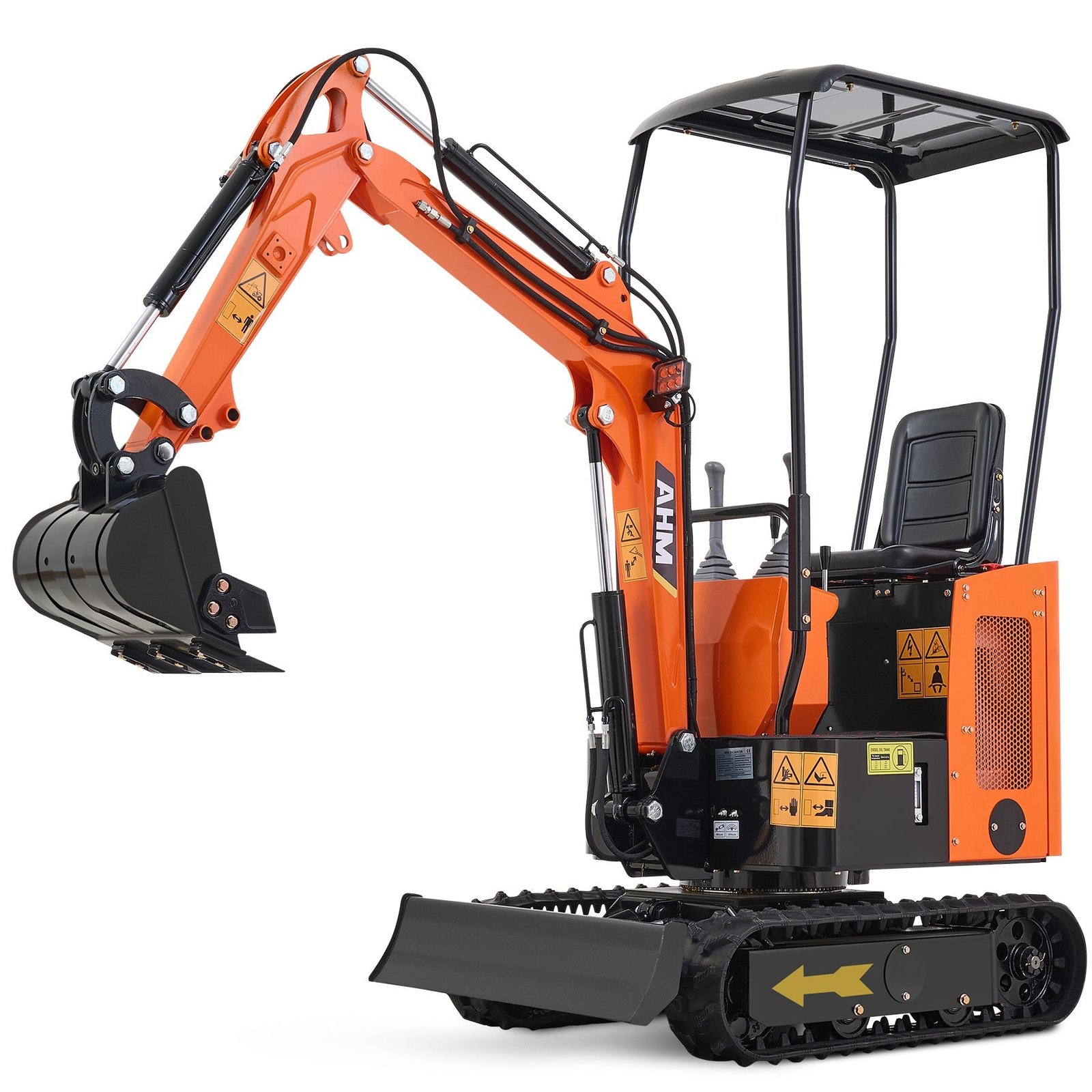

AHM Corp · AX-15 · 1.1-Ton Kubota Engine Mini Excavator

Only AHM Model with Kubota Engine · 2,698 lbf · External Hose Access

AHM AX-15 Mini Excavator

Kubota D722 — 13.8 HP — 33.2 lb-ft Torque — 9.7 L Fuel Tank — 2,698 lbf Force

The only AHM compact excavator with a Kubota engine. The AX-15 runs a Kubota D722 diesel at 13.8 HP — delivering 33.2 lb-ft of torque at just 2,600 RPM for smooth, low-vibration operation and long service life. A larger 9.7 L fuel tank, 2,698 lbf of bucket digging force, external hydraulic hoses for easy maintenance, and enhanced hydraulics supporting high-flow attachments.

Kubota D722

Diesel

Only AHM Model

The only Kubota-powered machine in the AHM range — diesel reliability, low vibration, long service life.

Digging Force

2,698

lbf (12 kN)

More digging force than the AX-12C (2,023 lbf) on Kubota diesel power.

Low-RPM Torque

33.2

lb-ft @ 2,600 RPM

More torque at lower RPM than B&S gasoline alternatives — smoother, quieter, less vibration.

Fuel Tank

9.7 L

2.6 gal — Largest in Range

Largest fuel tank in the AHM compact lineup — supports extended daily operation.

Kubota D722 — 13.8 HP · 33.2 lb-ft @ 2,600 RPM · Diesel · 2,698 lbf (12 kN) digging force · External hydraulic hoses · Enhanced high-flow hydraulics · 9.7 L fuel tank · ~1 L/hr consumption · 12.7 L hydraulic tank. The D722 is Kubota’s proven 3-cylinder compact diesel — low noise, low vibration, and globally serviced.

13.8 HP

Kubota D722

880 kg

Net Weight

68.9″

Max Dig Depth

120″

Max Ground Reach

AHM Compact Range — Where the AX-15 Sits

AX-12B

B&S 13.5 HP · 2,585 lbf

AX-12

B&S 13.5 HP · 2,586 lbf

AX-12C

B&S 13.5 HP · Enclosed cab

AX-15 ▲ Kubota

Kubota D722 · 2,698 lbf · Diesel

AX-16

B&S 23 HP · 3,262 lbf

Key Features

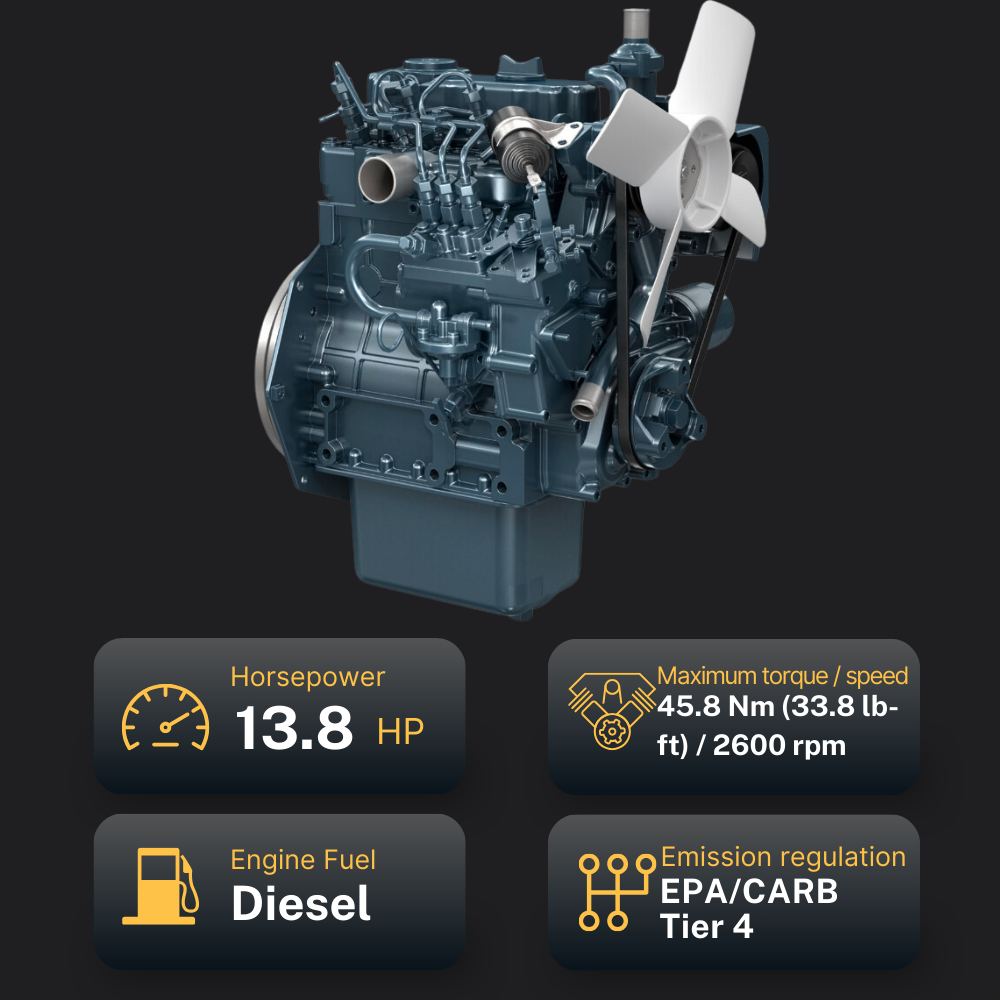

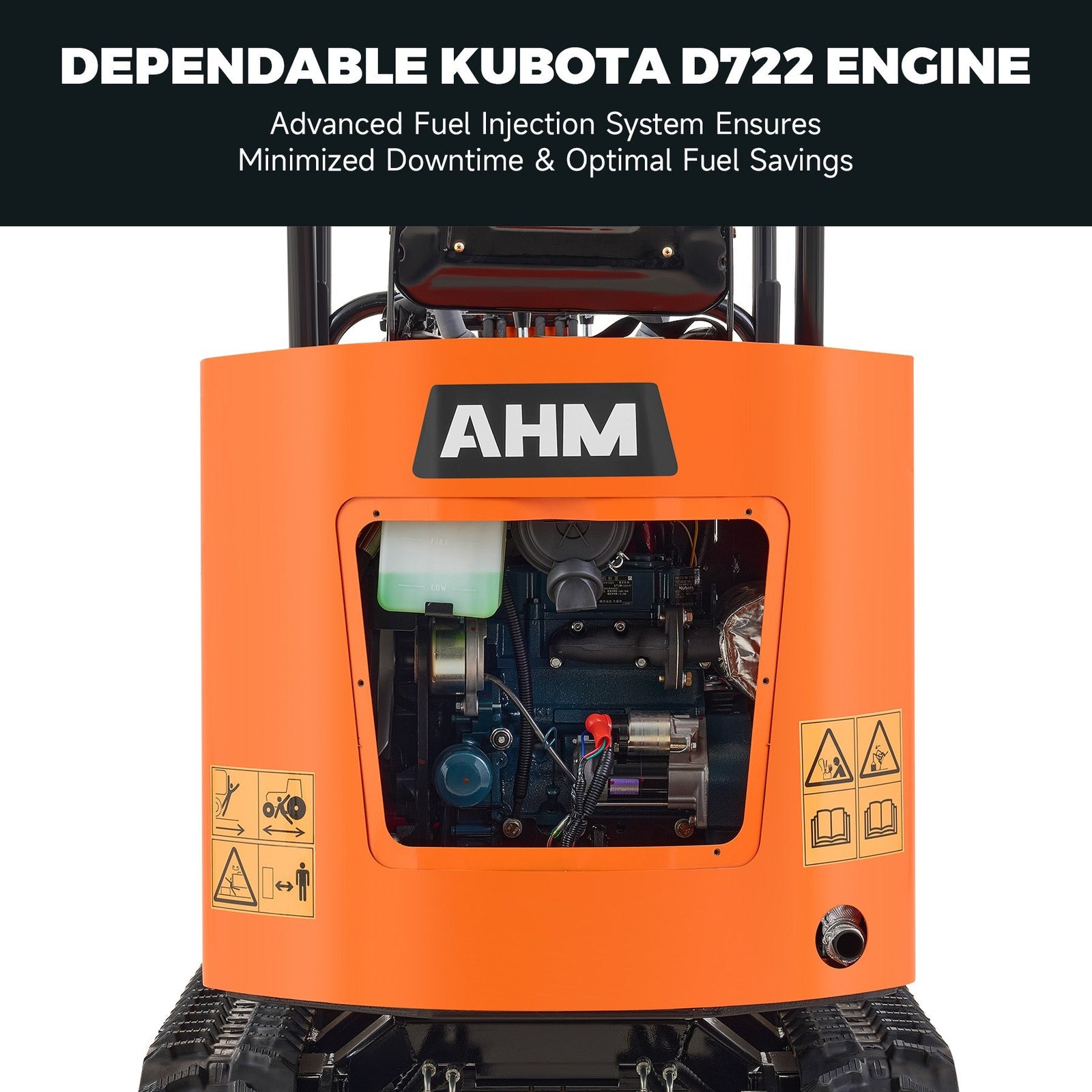

Kubota D722 — The Only Diesel in the AHM Range

The AX-15 is the only AHM compact excavator running a Kubota engine. The D722 is a proven 3-cylinder diesel delivering 13.8 HP with low noise, low vibration, and global parts availability. Diesel power means better fuel economy per unit of work, longer service intervals, and more consistent torque across the full operating range.

33.2 lb-ft Torque at Low RPM

33.2 lb-ft of torque at just 2,600 RPM — notably more low-end torque than the B&S gasoline engines in the rest of the AHM range. More torque at lower revs means smoother digging in hard ground, less vibration for the operator, and a quieter working environment throughout the day.

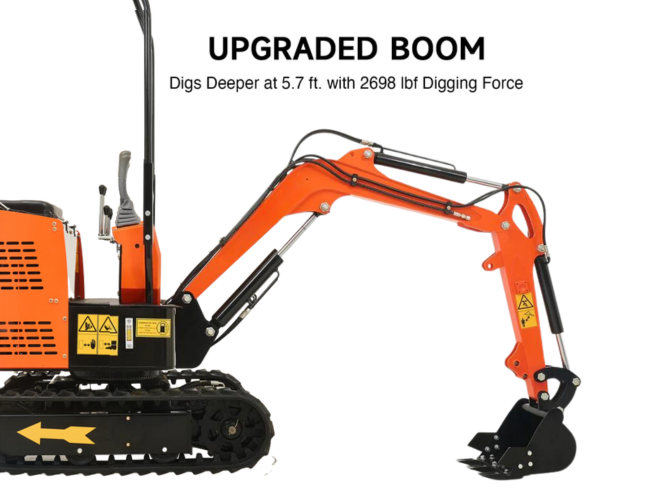

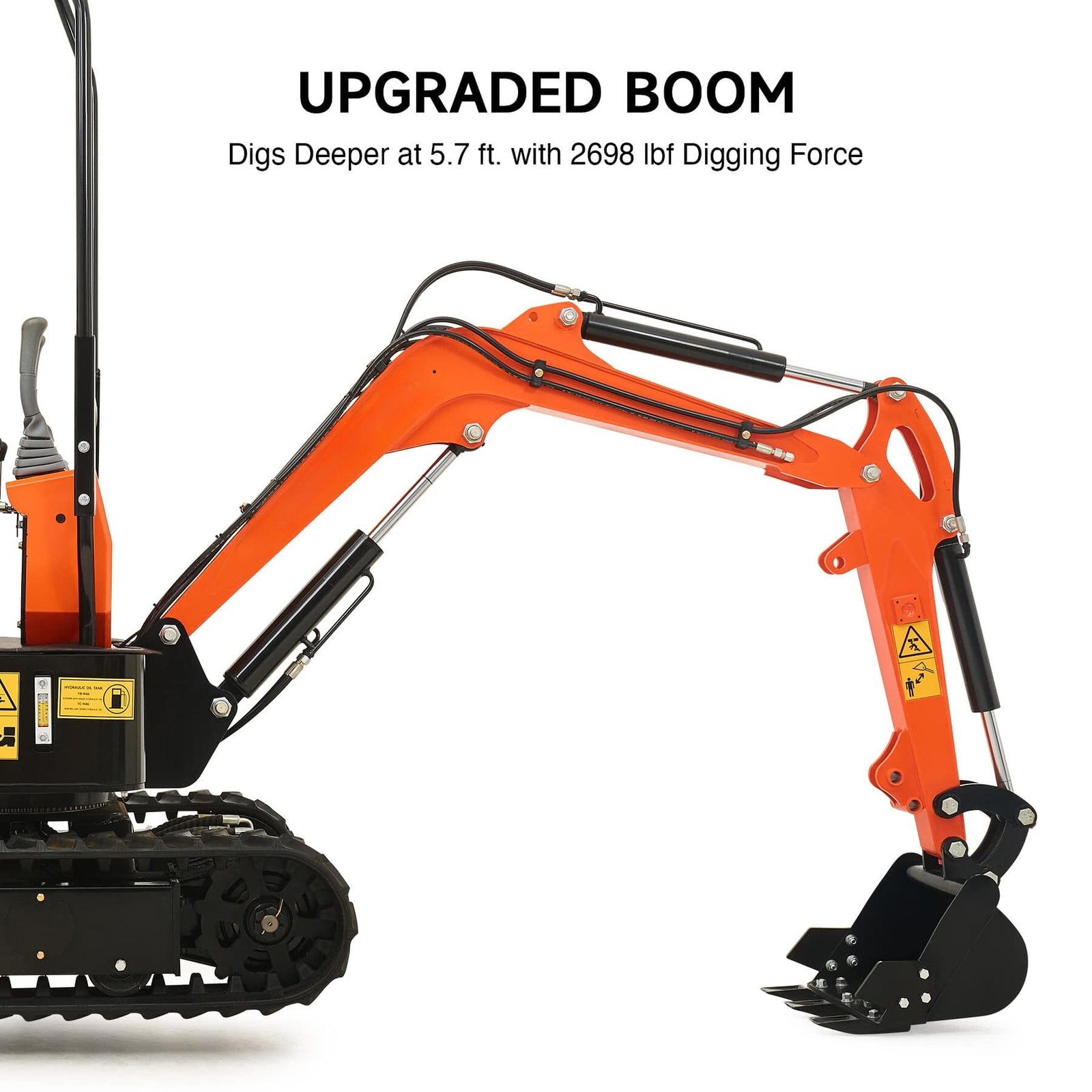

2,698 lbf Bucket Digging Force

12 kN (2,698 lbf) of maximum bucket digging force — more than the AX-12B (2,585 lbf) and AX-12C (2,023 lbf). Handles compact soil, clay, and medium-hardground conditions with precision and authority.

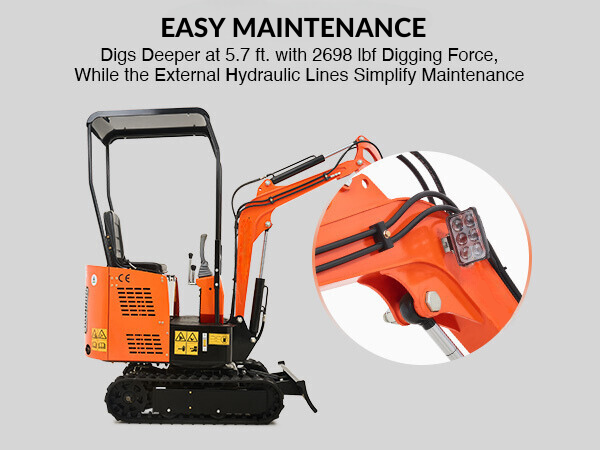

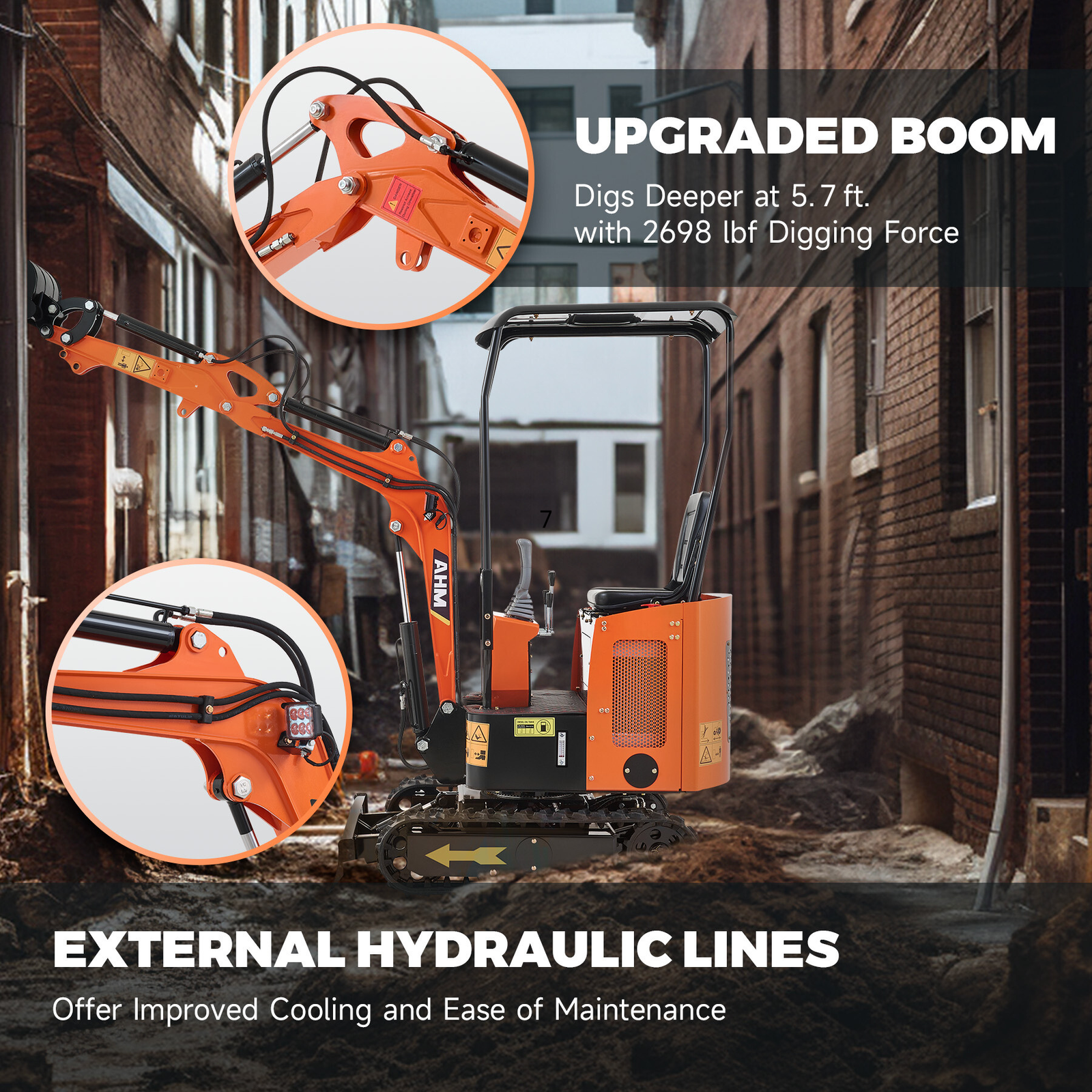

External Hydraulic Hoses — Easy Maintenance

External hydraulic hose routing provides fast access for routine checks without disassembling body panels. Easily accessible component compartment keeps the machine at peak operational performance and reduces maintenance downtime on busy job sites.

9.7 L Fuel Tank — Largest in Range

9.7 L (2.6 gal) fuel tank — the largest in the AHM compact lineup. At ~1 L/hr consumption, this supports approximately 9–10 hours of operation on a single fill, reducing mid-shift refuelling stops on full-day jobs.

Enhanced Hydraulics — High-Flow Attachment Ready

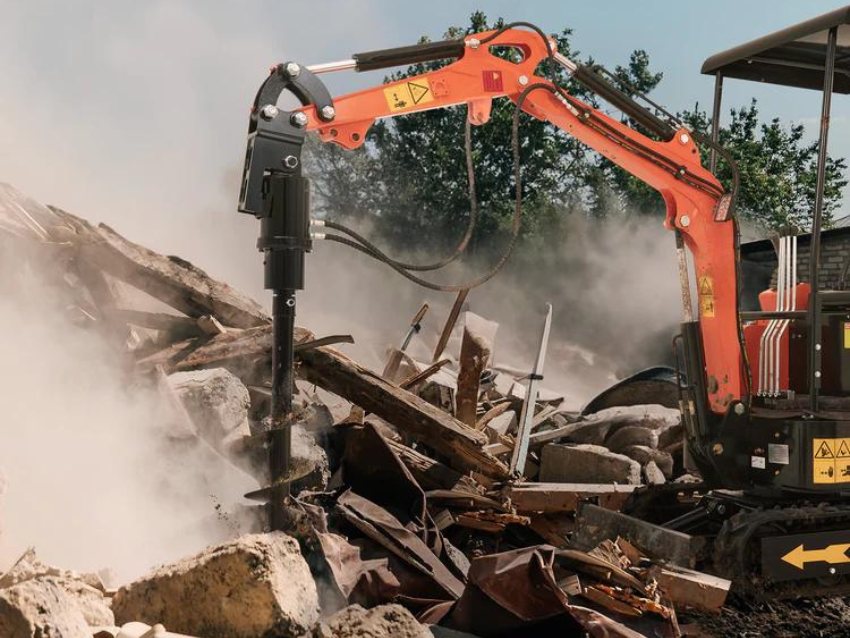

Enhanced hydraulic system supporting high-flow attachments including augers, rippers, and mulcher heads (not included). The Kubota diesel backing the hydraulic system provides more consistent pressure under sustained attachment load than gasoline alternatives.

Full Specifications

Engine

Engine Brand & Model	Kubota D722
Fuel Type	Diesel
Rated Power	13.8 HP
Rated Torque	33.2 lb-ft at 2,600 RPM
Fuel Tank	9.7 L / 2.6 gal
Fuel Consumption	~1 L/hr (0.3 gal/hr)
Hydraulic Tank	12.7 L / 3.4 gal
Hydraulic Hose Routing	External (Easy Maintenance)

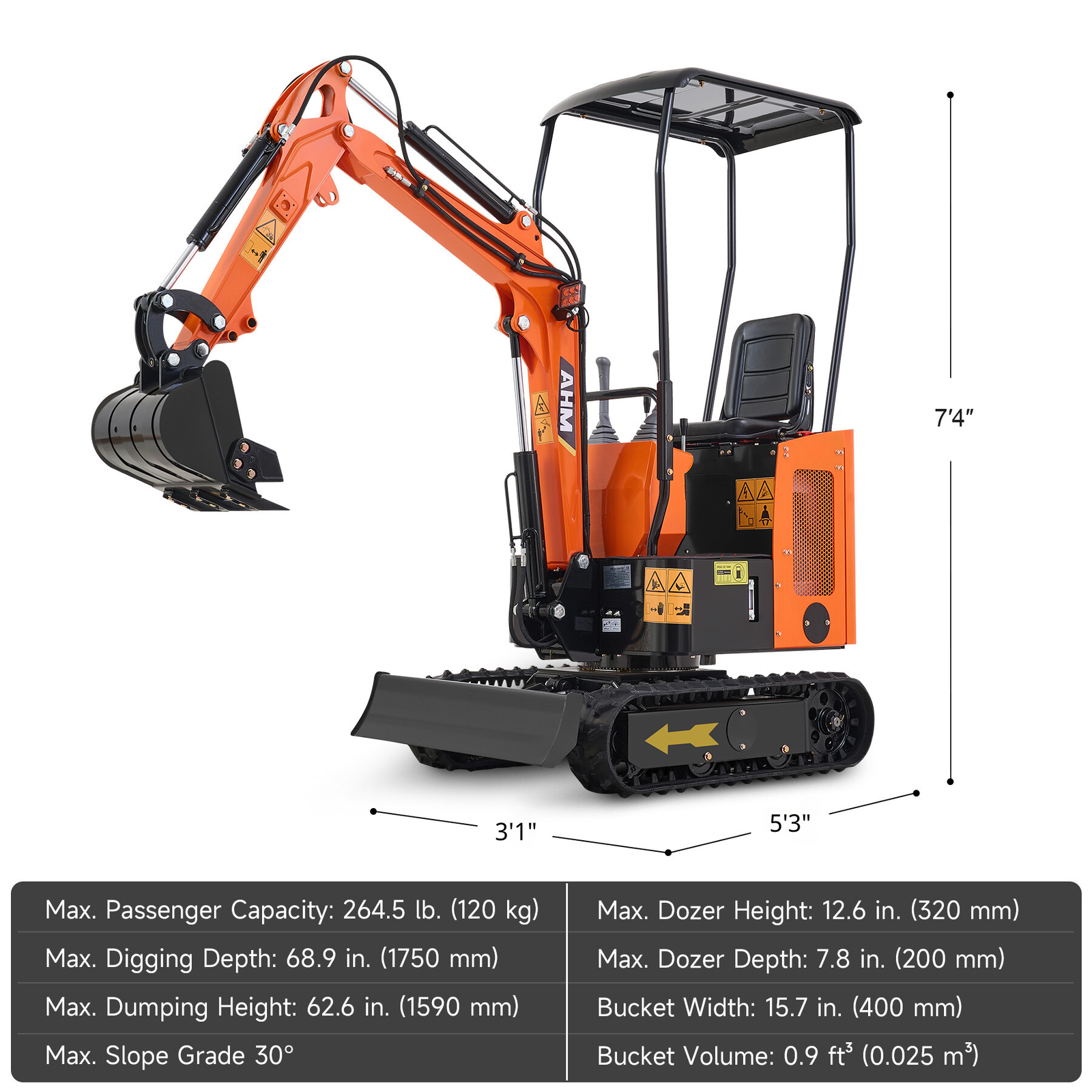

Performance

Net Weight	880 kg / 1,940 lbs (1.1 Ton)
Max Bucket Digging Force	2,698 lbf (12 kN)
Max Digging Depth	1,750 mm / 68.9 in / 5.7 ft
Max Dumping Height	1,590 mm / 62.6 in
Max Digging Radius	3,050 mm / 120 in / 10 ft
Overall Height	2,240 mm / 88.2 in / 7.4 ft
Max Slope Grade	30°
Platform Ground Clearance	410 mm / 16.2 in
Overall Track Length	1,230 mm / 48.5 in

Bucket & Blade

Bucket Width	400 mm / 15.7 in
Bucket Volume	0.03 m³ / 0.9 ft³
Dozer Lift Height	320 mm / 12.6 in
Dozer Drop Depth	200 mm / 7.8 in

Construction & Warranty

Frame Material	Steel
Track Material	All-Terrain Rubber
Color	Black / Yellow
Warranty	1 Year

Everything Included

✓

Kubota D722 Diesel Engine

✓

Enhanced High-Flow Hydraulics

✓

External Hydraulic Hose Routing

✓

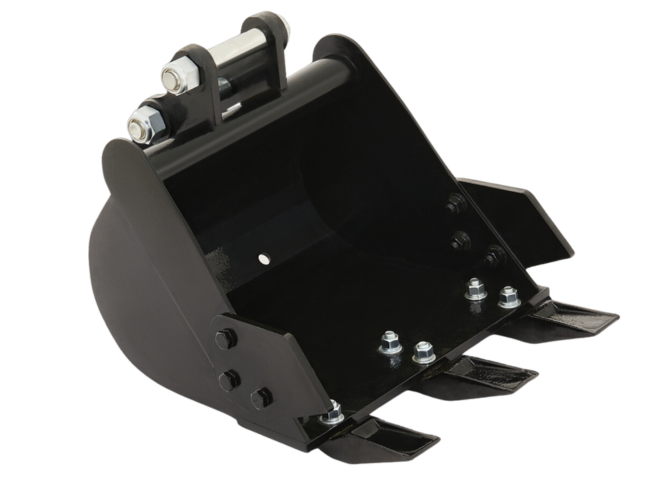

15.7″ Grading Bucket

✓

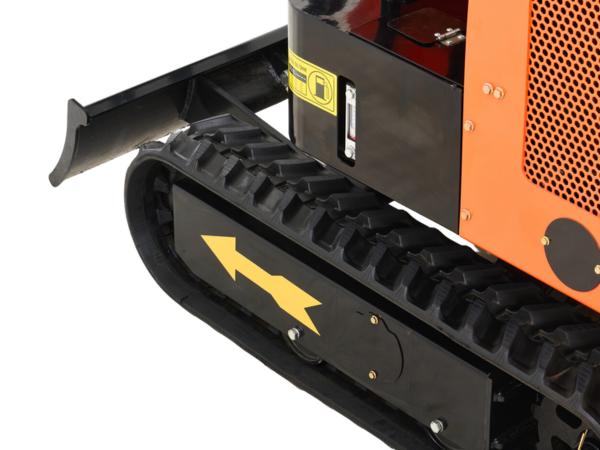

Dozer Blade

✓

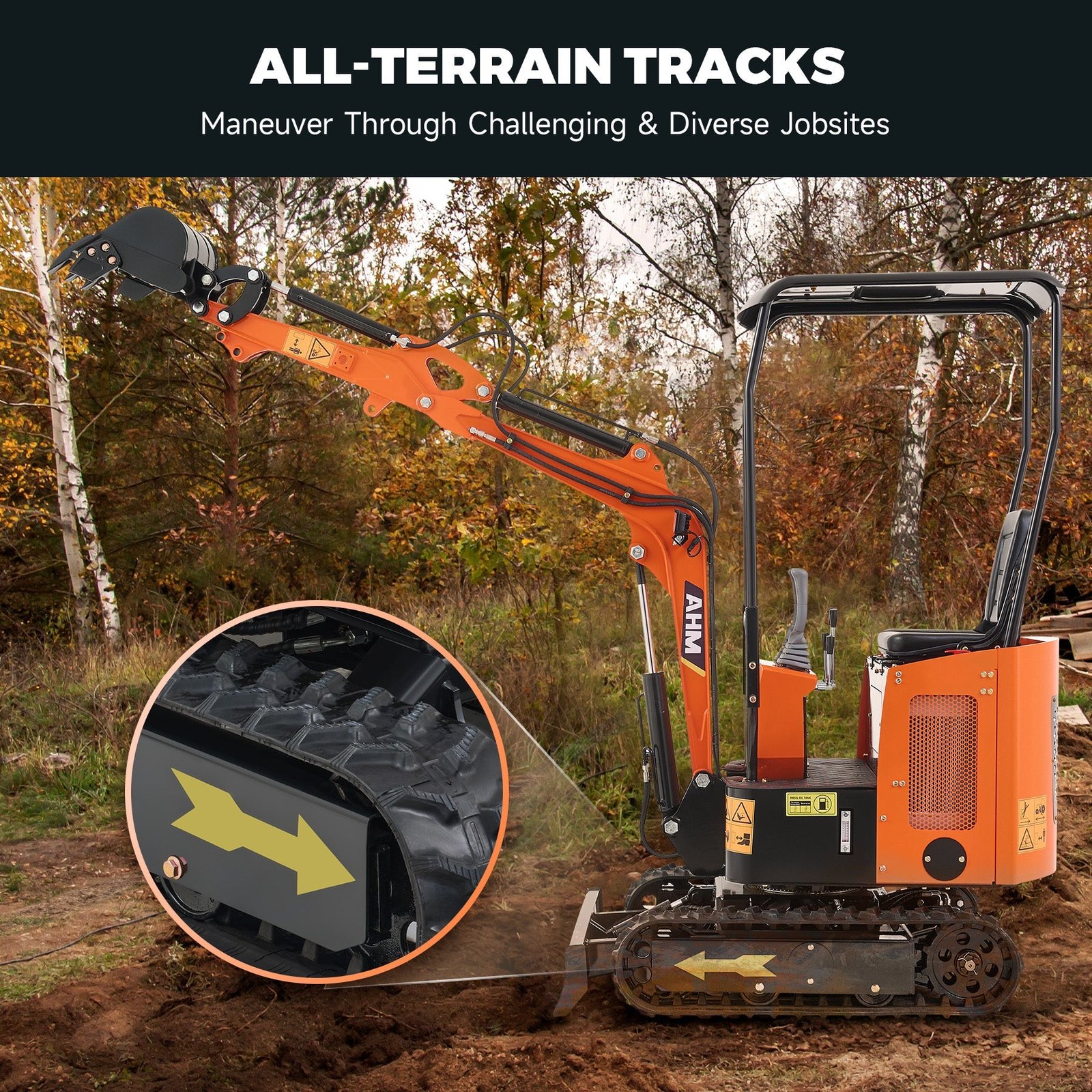

All-Terrain Rubber Tracks

✓

Tool Box

✓

Instruction Manuals (2x)

✓

1-Year Warranty

Full Package List

Mini Excavator (1x)

Tool Box (1x)

Instruction Manuals (2x)

Included — By Category

Engine & Hydraulics

Kubota D722 Diesel Engine

Enhanced High-Flow Hydraulic System

External Hydraulic Hose Routing

Structure & Undercarriage

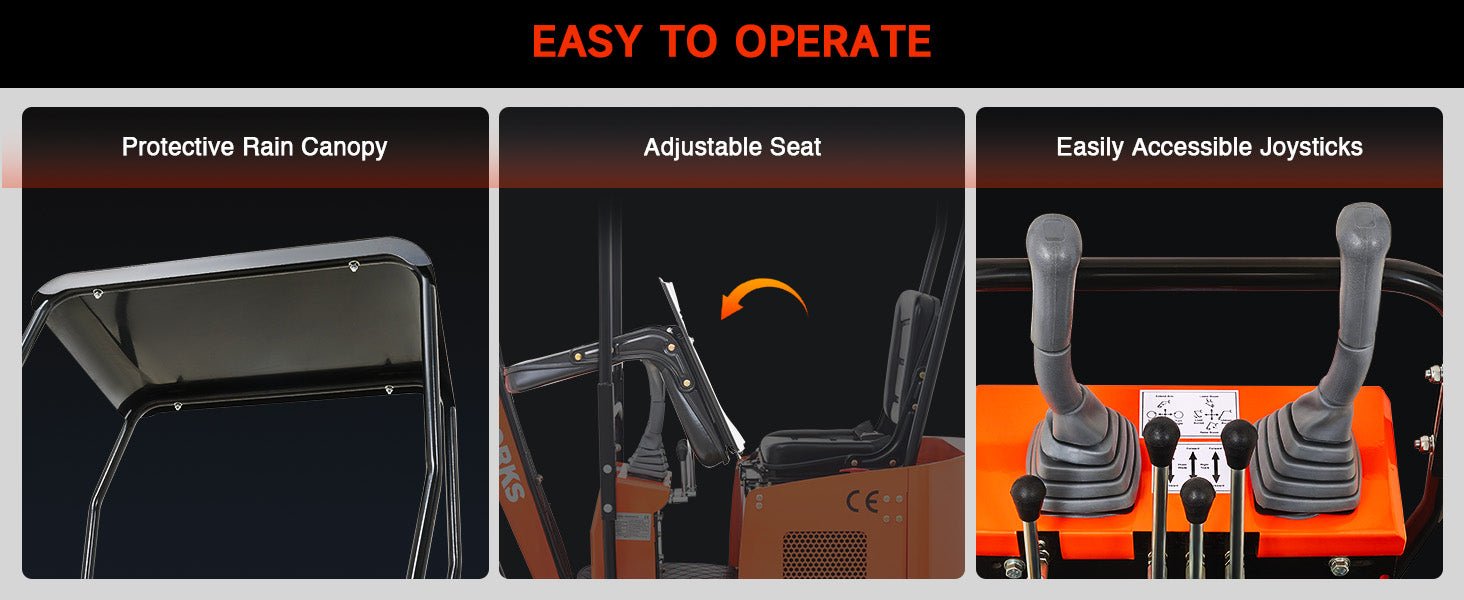

ROPS Canopy

All-Terrain Rubber Tracks

Dozer Blade

Attachments

15.7″ Grading Bucket

Accessories & Warranty

Tool Box

Instruction Manuals (2x)

1-Year Warranty

Built For

Extended Daily Operation

Hard Ground Excavation

Foundation Digging

Low-Vibration Sites

High-Flow Attachments

Trenching

Backyard & Garden Work

Utility Installation

Operators Who Want Kubota
