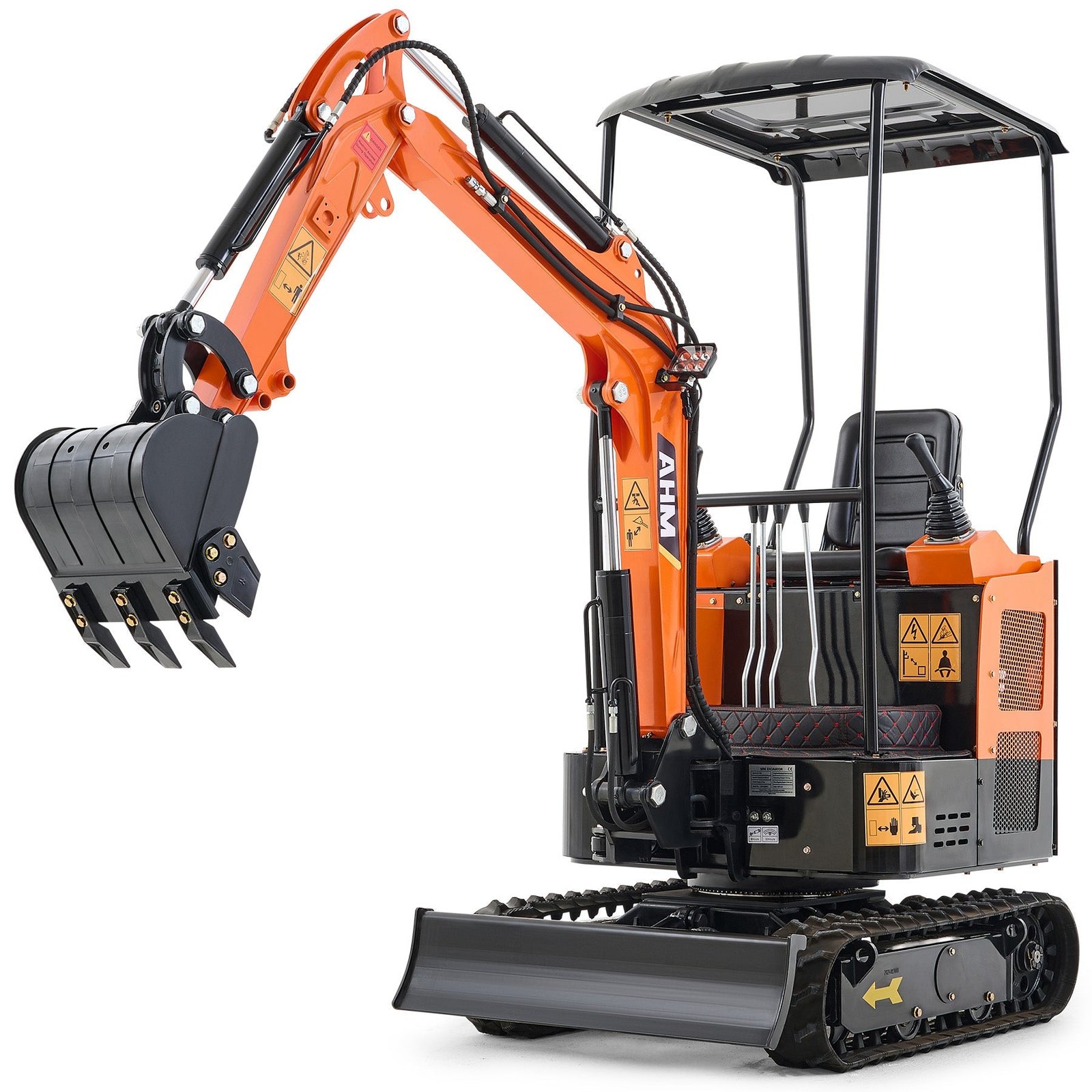

AX-16C | 23 HP B&S Engine Mini Excavator with Swing Boom

Original price was: $7,699.99.Current price is: $4,850.99.

Large Orders: For large quantity orders, please contact us directly at info@bidado00fficial.com
+1 (253) 270-1217 Sales Contact Number
info@bidado00fficial.com Contact Email
Free Ground Shipping
No Sales Tax
Lifetime Tech Support
Bidadoo 100% Guarantee
Description
AHM Corp  ·  AX-16C  ·  23 HP B&S Engine Mini Excavator with Swing Boom
Swing Boom 48°L / 52°R  ·  23 HP Dual Cylinder  ·  3,260 lbf  ·  Pilot Lock Switch

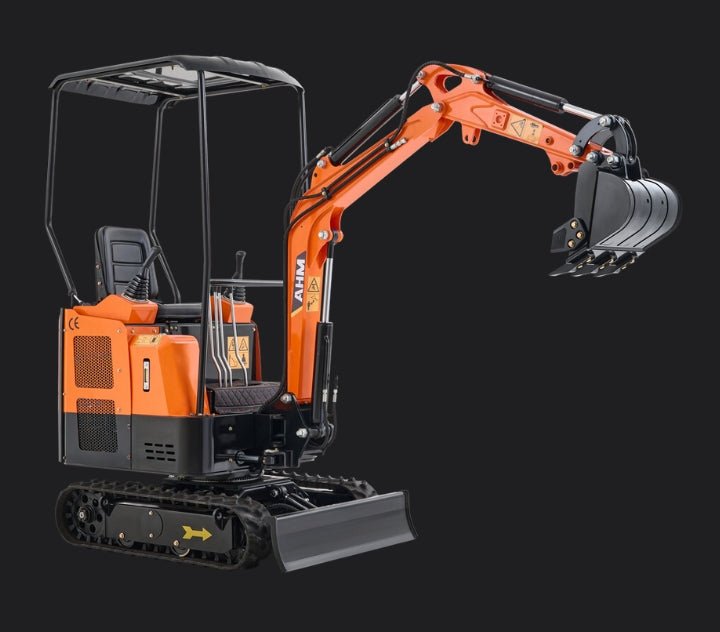

AHM AX-16C Mini Excavator

23 HP B&S Dual Cylinder — Swing Boom 48°L / 52°R — 3,260 lbf — Hydraulic Pilot Lock

The AX-16C combines 23 HP with a swing boom — bringing confined-space access and 3,260 lbf of digging force together. The upgraded swing boom provides 48° left and 52° right movement, maintaining vertical alignment for working alongside walls and obstacles without repositioning the machine. Hydraulic pilot lock switch, joystick controls, and high-flow attachment compatibility as standard.

Swing Boom
48°L / 52°R
Wider Left Arc

More left swing than the AX-17 series (45°) — asymmetric range optimised for confined site access.

Digging Force
3,260
lbf (14.5 kN)

23 HP B&S Dual Cylinder 3864 delivering full digging authority for hard ground and demanding tasks.

Pilot Lock Switch
Safety
Hydraulic Lock

Locks the hydraulic system when not in use — prevents accidental control activation or bucket drop.

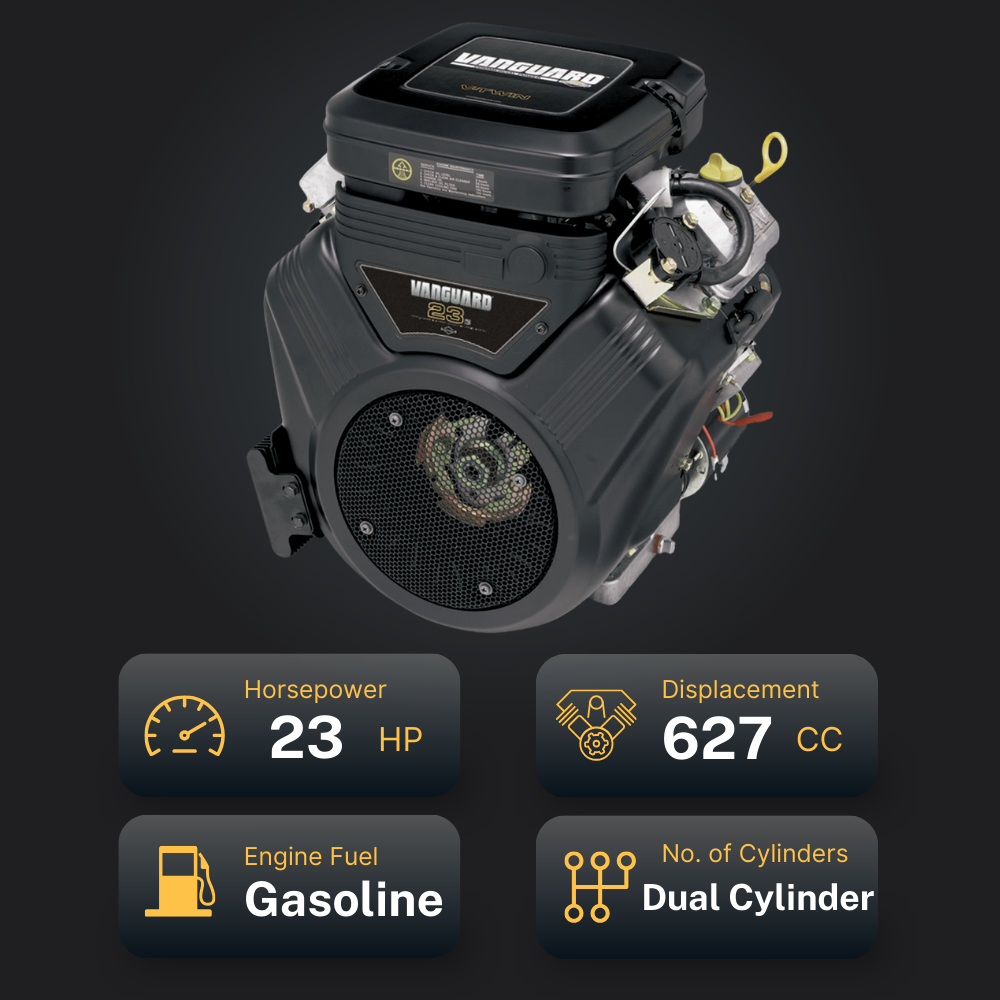

Engine
Dual Cyl
B&S 3864 — Air-Cooled

Briggs & Stratton Dual Cylinder 3864 — more cylinders than single-cylinder AX-12 engines.

B&S Dual Cylinder
Briggs & Stratton Dual Cylinder 3864 — 23 HP (17.2 kW) — Air-Cooled — Gasoline · 3,260 lbf (14.5 kN) digging force · Swing boom 48°L / 52°R · Hydraulic pilot lock switch · 7 L fuel tank · 1.5 L/hr · Travel speed 3 km/hr

23 HP
B&S Dual Cyl

3,260 lbf
Digging Force

70.7″
Max Dig Depth

890 kg
Net Weight

48° 52°
Swing Boom Arc

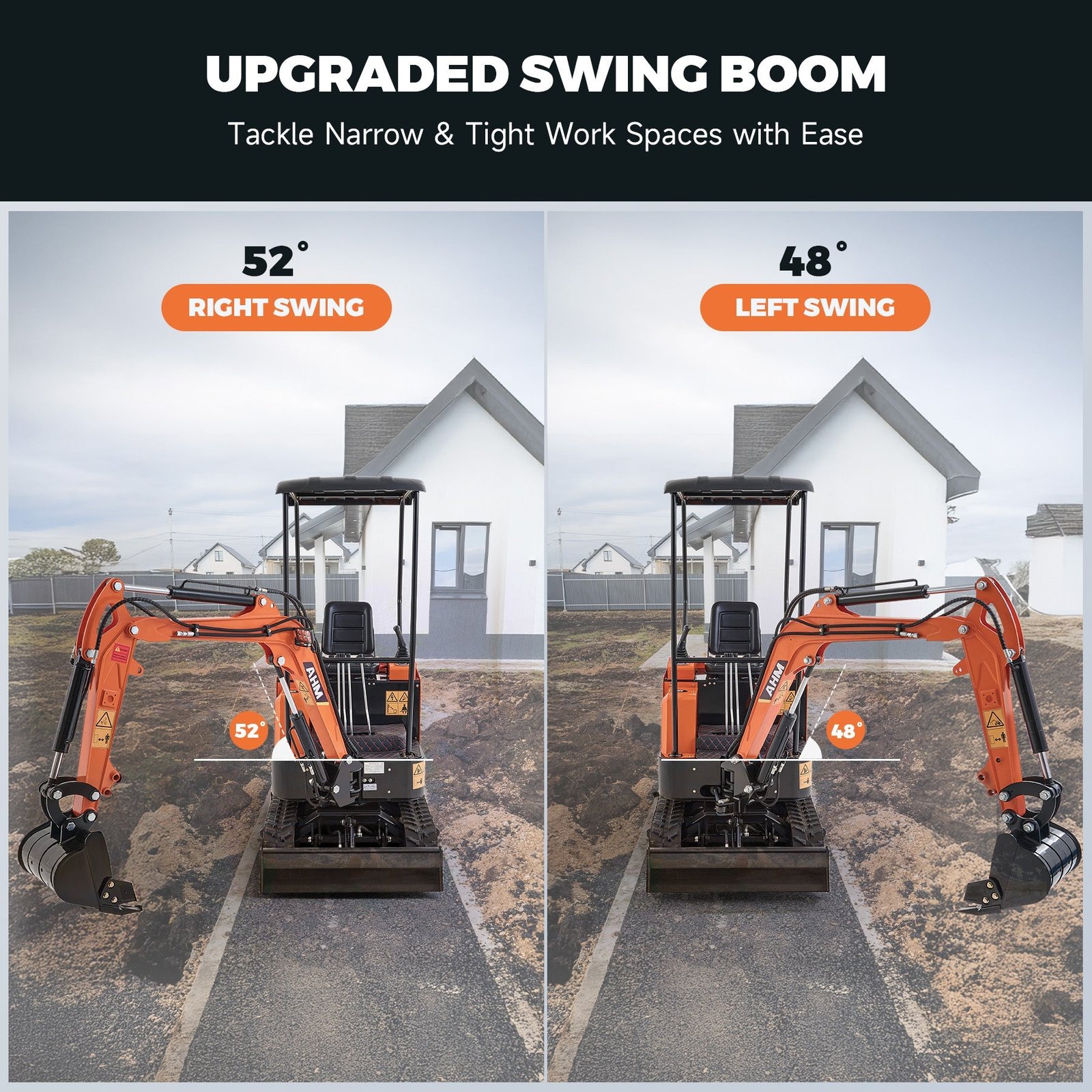

Upgraded Swing Boom — 48° Left / 52° Right
48°
Left

52°
Right

3° more left swing than the AX-17 series (45°) — and the boom maintains vertical alignment throughout the arc. Work alongside walls and obstacles on both sides without repositioning the machine.

AX-16C vs AX-16S vs AX-16 — Choose Your Configuration
AX-16C  ▲ This Model
AX-16S  /  AX-16
Key Feature
Swing boom 48°L / 52°R
Retractable tracks / Fixed tracks
Engine
B&S Dual Cyl 3864 — 23 HP
B&S 23 HP
Digging Force
3,260 lbf
3,260 lbf
Net Weight
890 kg (lightest)
948 kg / varies
Best For
Work along walls & obstacles
Tight access / straight digging

Key Features
Swing Boom — 48° Left / 52° Right
Upgraded swing boom with 48° left and 52° right movement — 3° more left swing than the AX-17 series. The boom maintains vertical alignment throughout the full arc, allowing you to dig alongside walls, fences, and kerbs on either side without repositioning the machine. Essential for confined residential and commercial sites.

B&S Dual Cylinder 3864 — 23 HP
Briggs & Stratton Dual Cylinder 3864 air-cooled gasoline engine at 23 HP (17.2 kW) — a twin-cylinder setup delivering smoother power delivery and lower vibration than single-cylinder alternatives. 3,260 lbf (14.5 kN) of maximum bucket digging force for hard ground and demanding excavation.

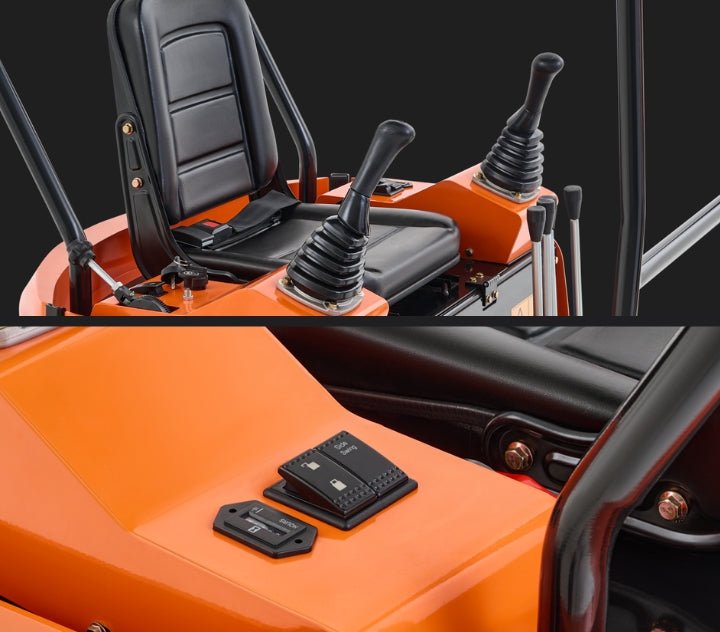

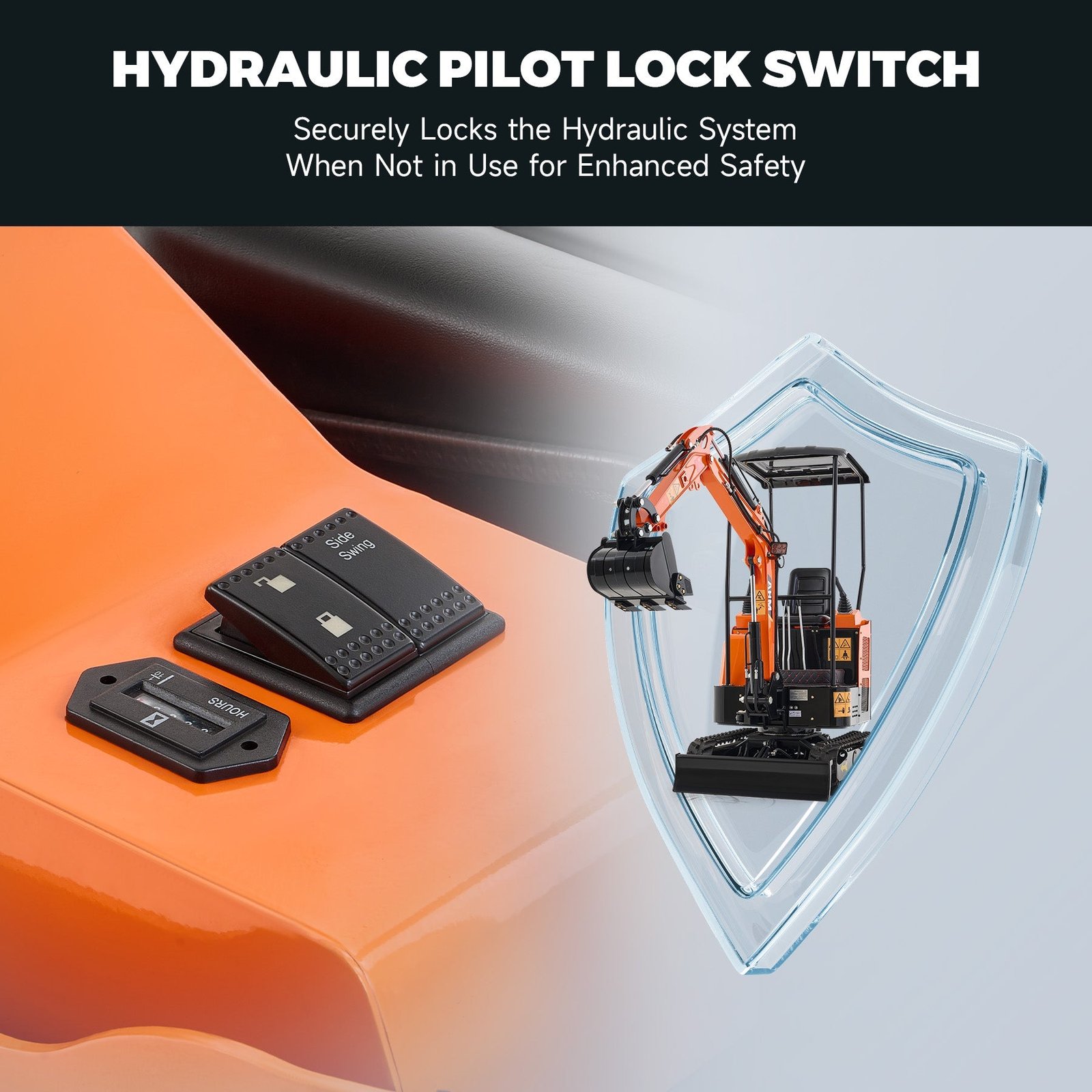

Hydraulic Pilot Lock Switch
Hardware hydraulic pilot lock switch that physically locks the entire hydraulic system when not in use — preventing accidental boom, bucket, or swing movement when the operator exits the cab or pauses operation. A safety-first feature particularly valuable for less experienced operators.

Vertical Alignment Maintained
The AX-16C’s swing boom maintains vertical bucket alignment throughout the full 48°–52° arc — meaning the bucket stays perpendicular to the ground as you swing sideways. This is critical for straight-wall trenching alongside structures without the trench wall shifting.

3,260 lbf — 70.7″ Dig Depth
3,260 lbf of maximum bucket digging force and 1,795mm (70.7 in) of maximum dig depth — with 62.8 in of vertical digging depth for straight-wall trench work. 114.2 in (2,900mm) of ground reach. Travel speed of 3 km/hr for efficient repositioning on site.

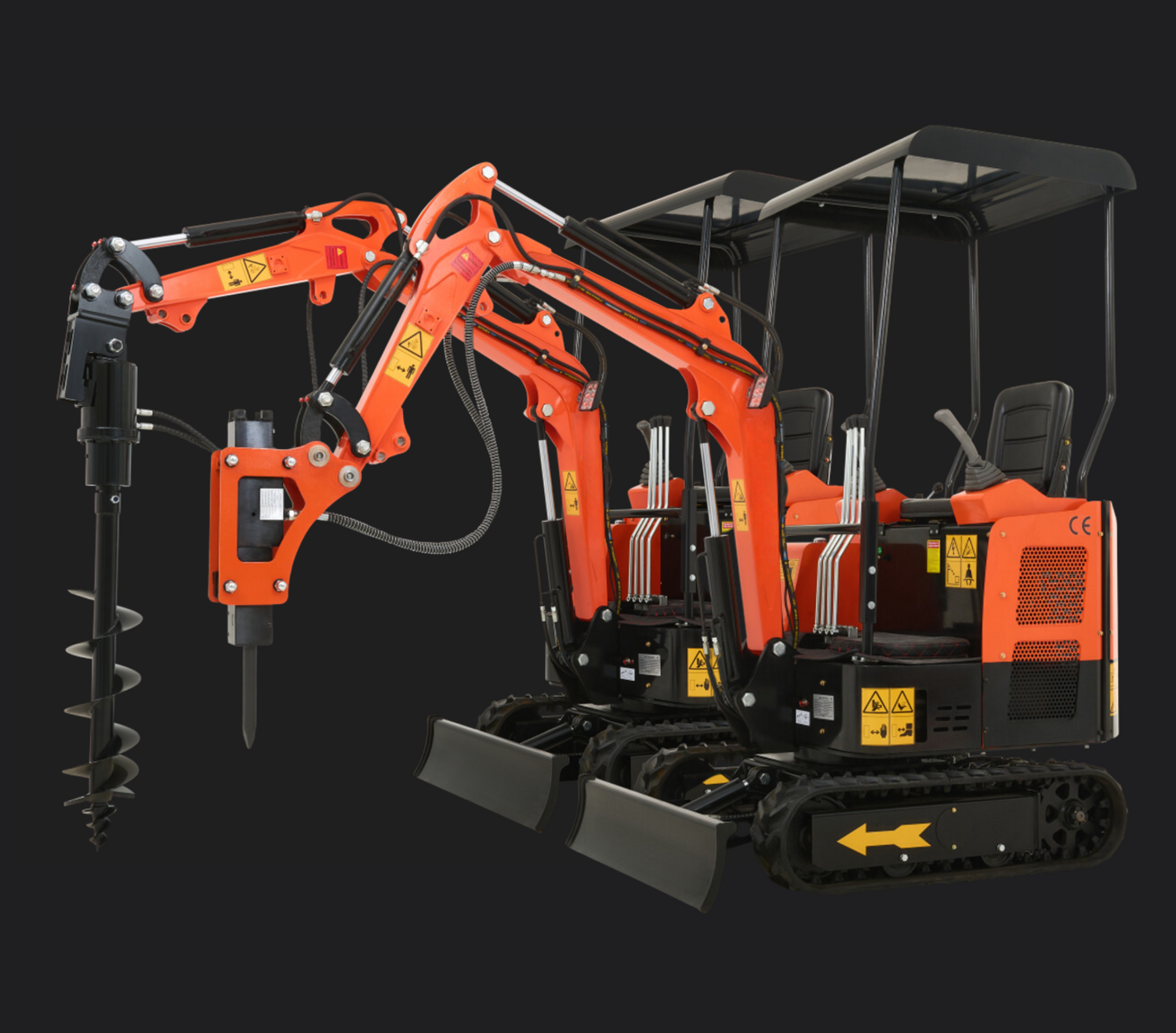

High-Flow Attachment Ready
Enhanced hydraulic system supporting high-flow attachments — augers, rippers, and mulcher heads (not included). 23 HP provides sufficient power for sustained attachment operation without performance degradation under load.

Full Specifications
Engine
Engine Brand & Model B&S Dual Cylinder 3864
Cooling Method Air-Cooled
Rated Power 23 HP (17.2 kW)
Fuel Type Gasoline
Fuel Tank 7 L / 1.8 gal
Fuel Consumption 1.5 L/hr (0.4 gal/hr)
Fuel Port Location Bottom of Seat
Travel Speed 3 km/hr
Swing Boom & Safety
Swing Boom — Left 48°
Swing Boom — Right 52°
Vertical Alignment Maintained Throughout Arc
Safety System Hydraulic Pilot Lock Switch

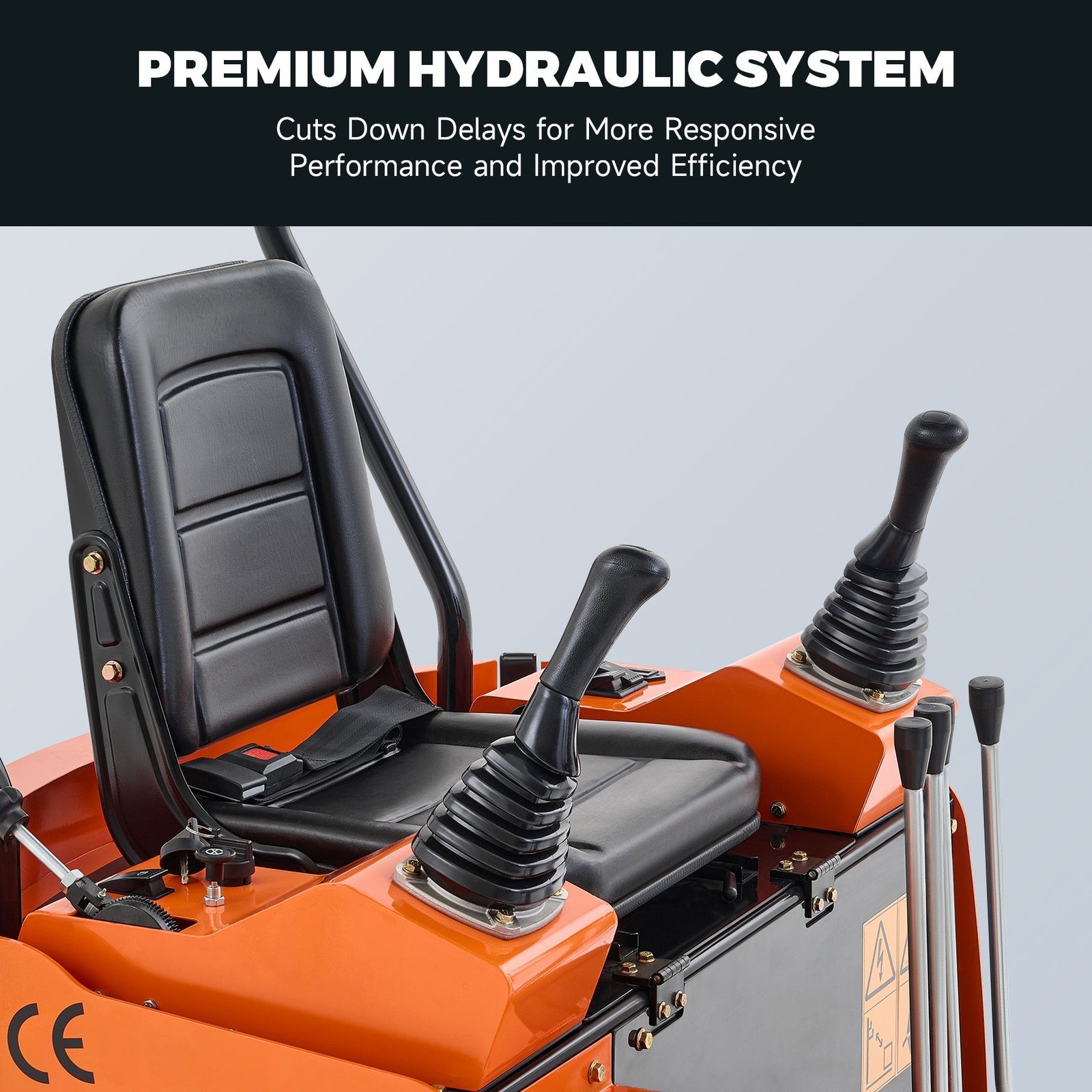

Controls Hydraulic Joysticks
Performance
Net Weight 890 kg / 1,962 lbs
Max Load Capacity 264.5 lbs (120 kg)
Max Digging Force 3,260 lbf (14.5 kN)
Max Digging Depth 1,795 mm / 70.7 in / 5.9 ft
Max Vertical Digging Depth 1,595 mm / 62.8 in
Max Dumping Height 1,505 mm / 59.3 in
Max Digging Radius 2,900 mm / 114.2 in
Max Slope Grade 30°
Bucket, Blade & Construction
Bucket Width 400 mm / 15.7 in
Bucket Volume 0.025 m³ / 0.9 ft³
Max Dozer Lift 310 mm / 12.2 in
Max Dozer Depth 270 mm / 10.6 in
Frame Material Steel

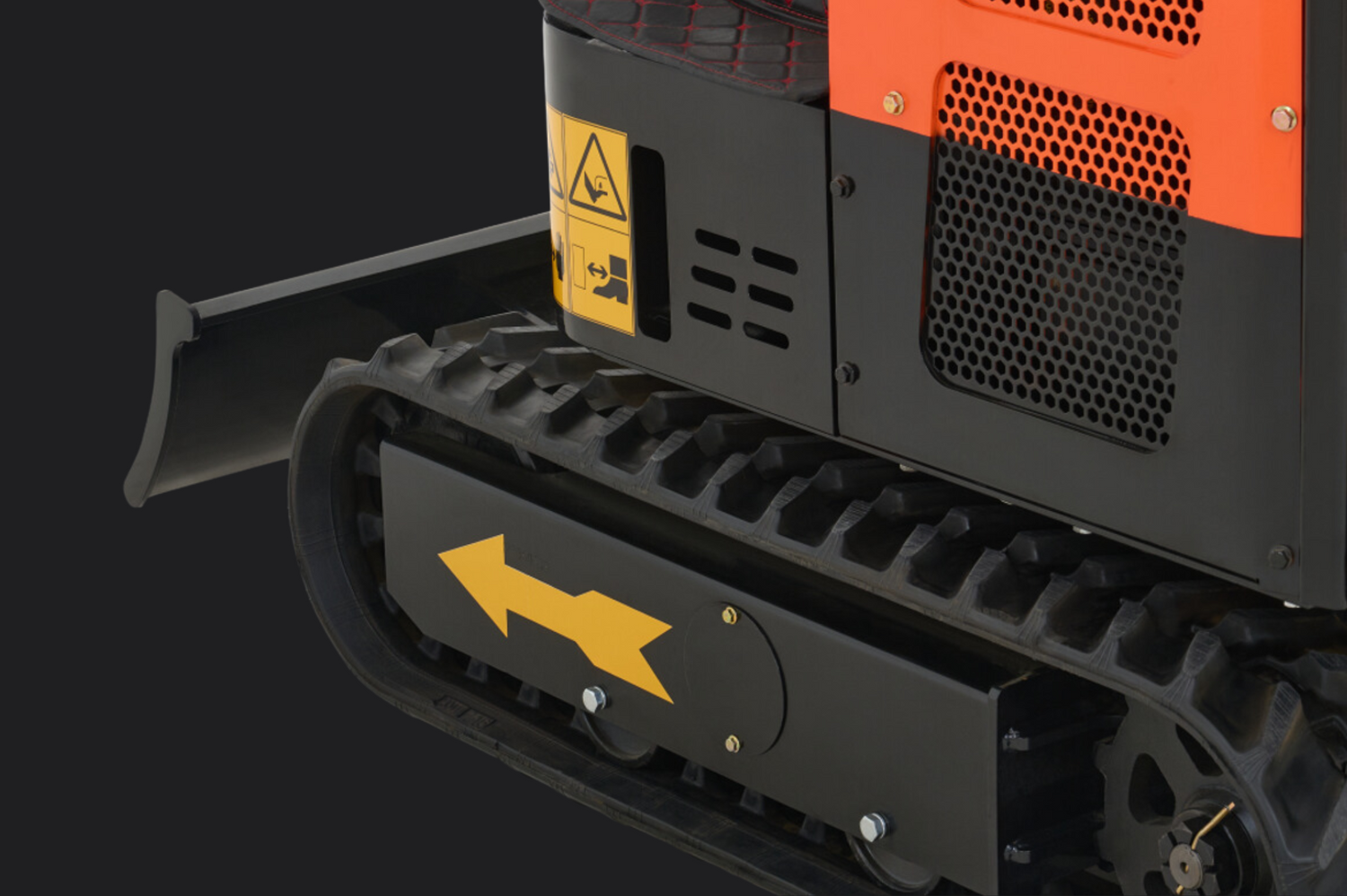

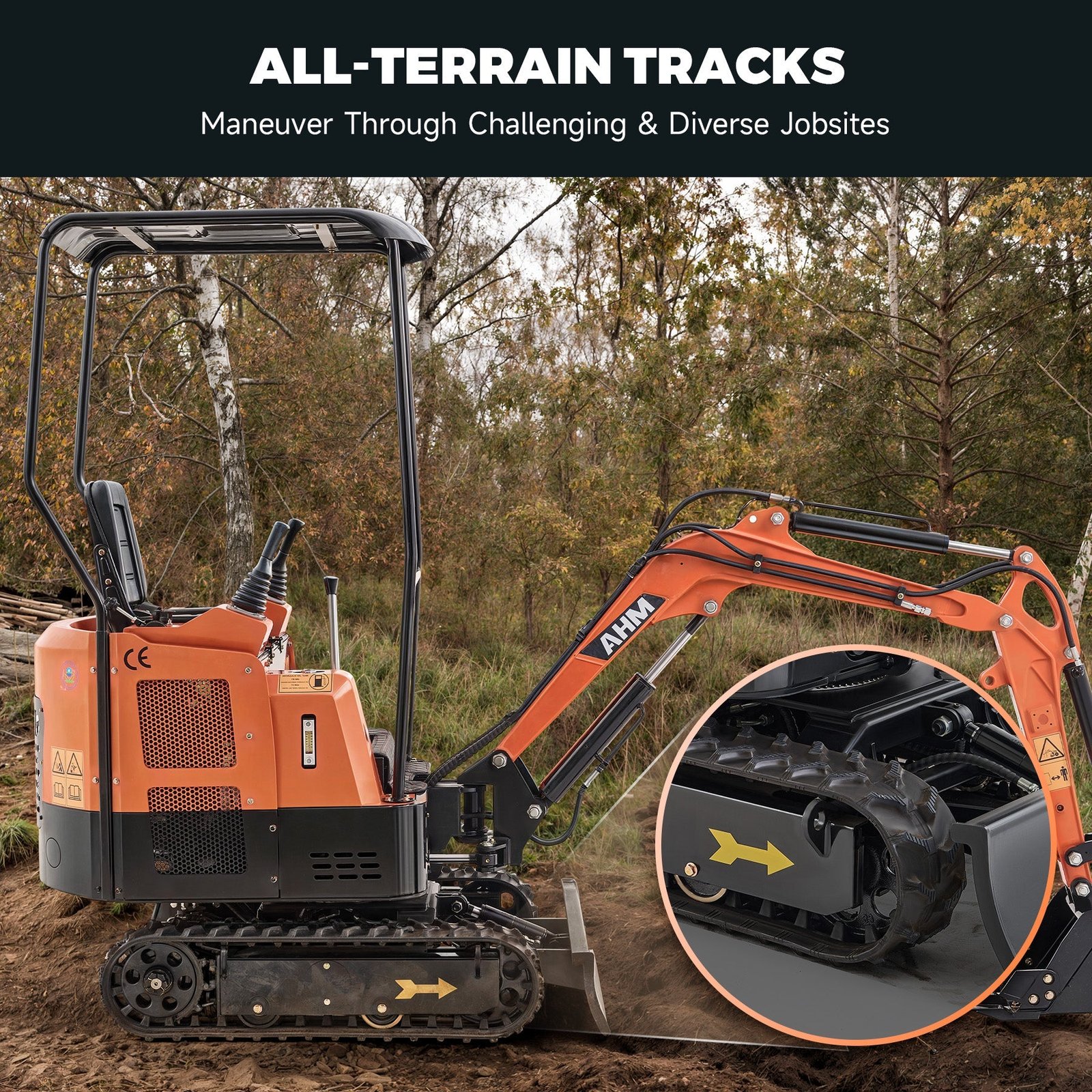

Track Material All-Terrain Rubber
Warranty 1 Year

Everything Included
Everything listed below comes included with every machine — ready to work from delivery.
All equipment and accessories bundled as standard.

✓

B&S Dual Cylinder 3864 — 23 HP

✓

Swing Boom (48°L / 52°R)

✓

Hydraulic Pilot Lock Switch

✓

Hydraulic Joystick Controls

✓

High-Flow Hydraulic System

✓

15.7″ Grading Bucket

✓

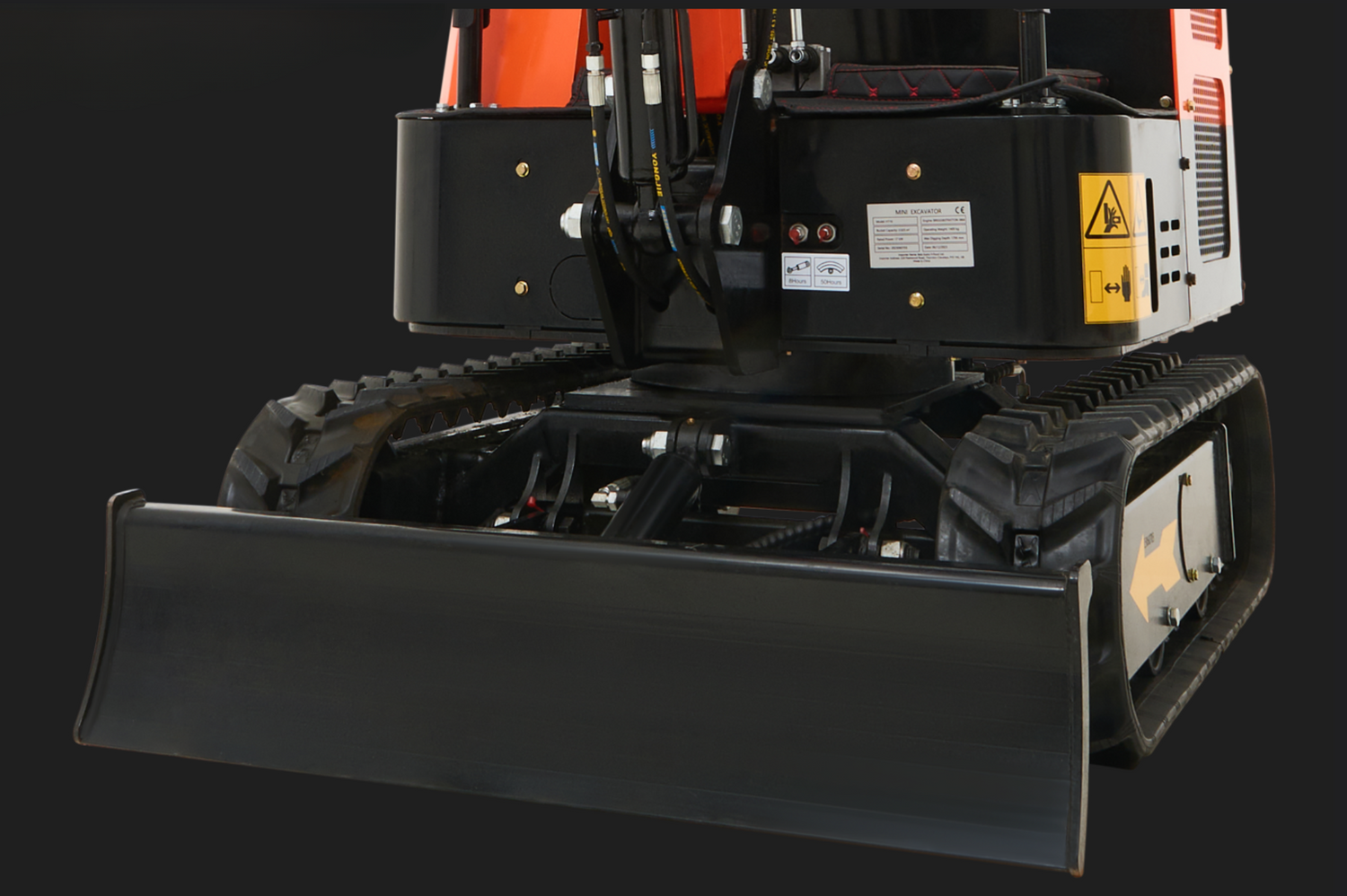

Dozer Blade

✓

All-Terrain Rubber Tracks

✓

Hydraulic Oil Filter

✓

Grease Gun + Nozzles

✓

Full Wrench & Hardware Set

✓

1-Year Warranty

Full Package List

Mini Excavator (1x)

Hydraulic Oil Filter (1x)

Pipe Clamps (4x)

Grease Fittings (4x)

Grease Gun (1x)

Hard Pipe Nozzle (1x)

Flexible Pipe Nozzle (1x)

Adjustable Wrench (1x)

L-Shaped Wrench (1x)

Grease (1x)

Wrench Set (1x)

Hardware Package (1x)

Instruction Manual (1x)

Included — By Category
Engine & Hydraulics

B&S Dual Cylinder 3864 — 23 HP

High-Flow Hydraulic System

Hydraulic Joystick Controls

Hydraulic Pilot Lock Switch

Boom & Undercarriage

Swing Boom (48°L / 52°R)

All-Terrain Rubber Tracks

Dozer Blade

Attachments

15.7″ Grading Bucket

Accessories & Warranty

Hydraulic Oil Filter

Grease Gun + Nozzles

Full Wrench & Hardware Set

1-Year Warranty

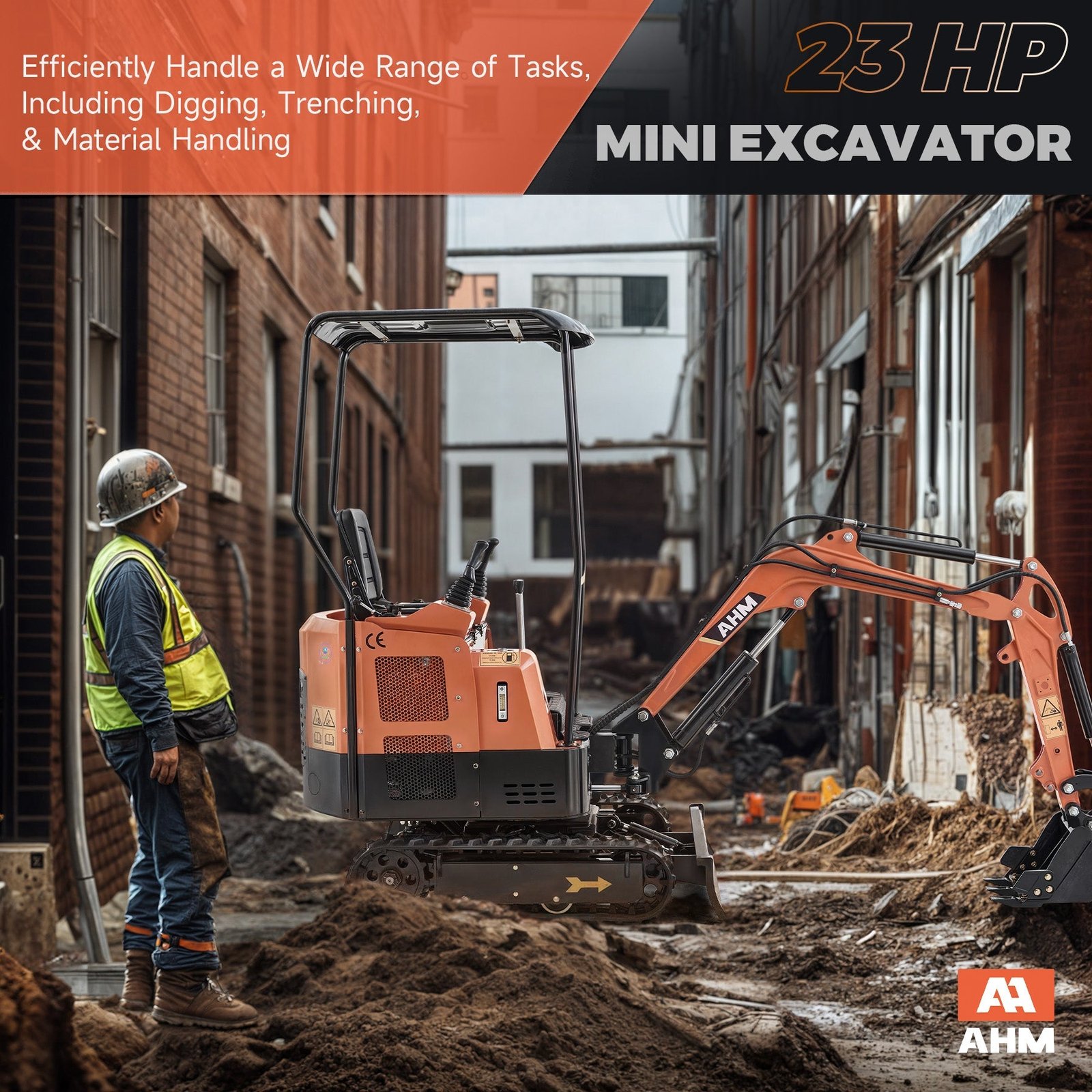

Built For
Work Along Walls & Fences
Tight Residential Sites
Backyard Excavation
Straight-Wall Trenching
Foundation Digging
Utility Installation
Attachment Use
Hard Ground Work
Urban Construction
