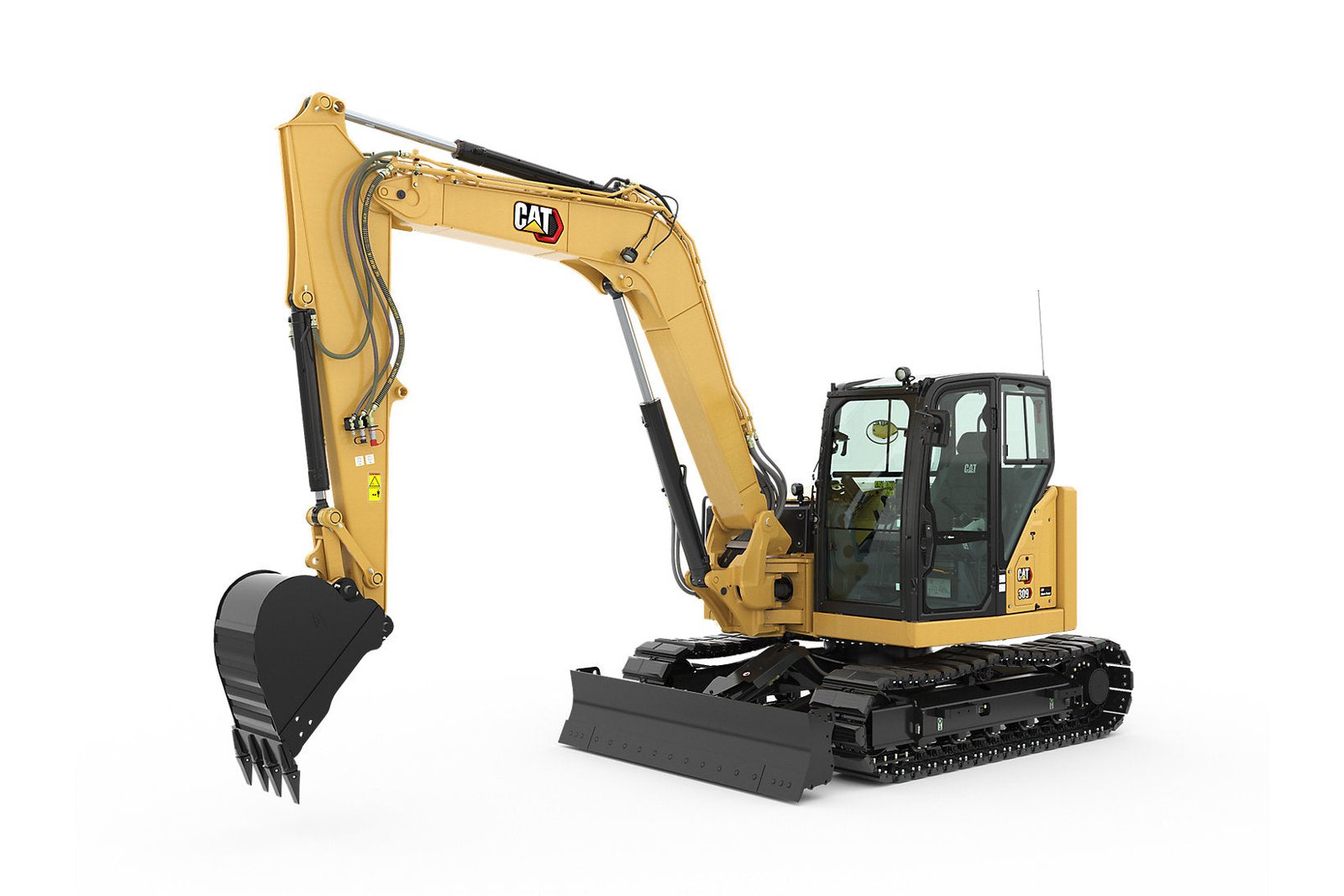

Mini Excavators 309 CR
Original price was: $168,043.00.$105,866.99Current price is: $105,866.99.
⚡ High Flow Hydraulics — Category Exclusive
The 309 CR is the only Cat next generation compact mini with a dedicated high flow hydraulic circuit — 37 gpm at 4,134 psi. Combined with the standard dual auxiliary circuits, total pump flow reaches 62 gpm, enabling mulchers, brushcutters, cold planers and other high-demand attachments to run at full rated performance.
All Day Comfort — Cab Standard
Sealed, pressurised cab with improved air conditioning, adjustable wrist rests and suspension seat comes standard on the 309 CR. No canopy option — designed for full-time enclosed protection in all operating environments.
Long Undercarriage for Maximum Stability
The 309 CR is built on a long (L) undercarriage — 126″ length and 97.2″ track width — delivering exceptional stability for heavy lifting, steep gradient work and high-traction pulling applications.
Widest Blade in the Cat Mini Range
97″ standard blade and 104″ wide option — the widest available across the Cat next generation compact mini line — maximise grading, backfill and site preparation efficiency.
300.7″ Maximum Reach
Matching the 308 CR’s reach envelope with the long stick — over 25 feet — for deep utility trenching, drainage works and long-reach dredging applications.
Full Safety Certification Suite
ROPS (ISO 12117-2:2008), TOPS (ISO 12117:1997) and Top Guard Level I — the complete trio. TOPS certification returns on the 309 CR after being absent on the 308 CR.
Customisable Operator Settings
Programmable performance modes tune machine response across lift, swing, travel and multi-function — delivering up to 20% more performance versus previous generation models.
Lower Owning & Operating Costs
Improved fuel efficiency, extended service intervals, load-sensing variable displacement hydraulics and ground-level side-door service access reduce total cost of ownership by up to 10%.
- Cat C3.3B Turbo engine — 69.5 hp / Tier 4 Final & EU Stage V
- Load-sensing hydraulics — variable displacement piston pump
- Total pump flow: 62 gpm (highest in Cat compact mini range)
- 4,134 psi equipment & travel operating pressure
- 3,626 psi swing operating pressure
- Auxiliary Primary circuit — 35 gpm @ 4,134 psi
- Auxiliary Secondary circuit — 9 gpm @ 4,134 psi
- High Flow auxiliary circuit — 37 gpm @ 4,134 psi (mulchers, brushcutters)
- One-way, two-way and continuous auxiliary flow modes
- Auxiliary line quick disconnects
- Automatic engine idle & automatic engine shutdown
- Automatic two-speed travel
- Travel cruise control
- Stick Steer travel mode (Cat exclusive)
- Sealed, pressurised cab — standard (no canopy option)
- Improved air conditioning system (R134a, 1.0 kg)
- Adjustable wrist rests
- Suspension seat
- ROPS (ISO 12117-2:2008) certified
- TOPS (ISO 12117:1997) certified
- Top Guard ISO 10262:1998 Level I
- Long (L) undercarriage — 126″ length, 97.2″ track width
- Steel tracks — standard configuration (17.7″ shoe)
- Steel tracks with rubber pads option (+728 lb)
- Dozer blade — 97″ standard width
- Wide dozer blade option — 104″
- Counterweight option (+552 lb)
- Machine swing speed: 10.6 rpm
- Boom swing: 60° left / 50° right
- 39-gallon fuel tank
- Customisable operator performance settings
- Next Generation LCD monitor (standard)
- Advanced touchscreen monitor (optional)
- ISO or SAE control pattern — switchable
- Courtesy work lights
- Fluorescent retractable seat belt
- Ground-level side-door service access
- VisionLink® telematics ready
- 96% recyclability rating
| Engine Model | Cat C3.3B Turbo |
| Net Power @ 2,200 rpm (ISO 9249 / EEC 80/1269) | 69.5 hp |
| Gross Power (SAE J1995:2014) | 74.3 hp |
| Bore × Stroke | 3.7″ × 4.7″ |
| Displacement | 203 in³ |
| Emissions Standard | U.S. EPA Tier 4 Final & EU Stage V |
| System Type | Load-Sensing, Variable Displacement Piston Pump |
| Total Pump Flow @ 2,400 rpm | 62 gpm |
| Operating Pressure — Equipment | 4,134 psi |
| Operating Pressure — Travel | 4,134 psi |
| Operating Pressure — Swing | 3,626 psi |
| Auxiliary Circuit Primary — Max Flow / Pressure | 35 gpm / 4,134 psi |
| Auxiliary Circuit Secondary — Max Flow / Pressure | 9 gpm / 4,134 psi |
| ⚡ High Flow Auxiliary — Max Flow / Pressure | 37 gpm / 4,134 psi |
| Bucket Digging Force | 13,943 lbf |
| Stick Digging Force — Standard Stick | 9,500 lbf |
| Stick Digging Force — Long Stick | 8,023 lbf |
| Travel Speed — High | 3.1 mph |
| Travel Speed — Low | 1.6 mph |
| Max Traction Force — High Speed | 6,497 lbf |
| Max Traction Force — Low Speed | 19,064 lbf |
| Ground Pressure — Minimum Weight | 5.0 psi |
| Ground Pressure — Maximum Weight | 5.4 psi |
| Max Gradeability | 30° |
| Track Belt / Shoe Width | 17.7″ |
| Track Width | 97.2″ |
| Undercarriage Type | Long (L) |
| Undercarriage Length | 126.0″ |
| Machine Swing Speed | 10.6 rpm |
| Boom Swing — Left | 60° (23.8″ lateral offset) |
| Boom Swing — Right | 50° (36.8″ lateral offset) |
| Blade Width — Standard | 97″ |
| Blade Width — Wide Option | 104″ |
| Blade Height | 17″ |
| Max Blade Height (above grade) | 16.1″ |
| Max Blade Depth (below grade) | 26″ |
| Cab Type | Sealed & pressurised — standard (no canopy option) |
| ROPS Certification | ISO 12117-2:2008 |
| TOPS Certification | ISO 12117:1997 |
| Top Guard Level | ISO 10262:1998 Level I |
| Operator Sound Pressure (ISO 6396:2008) | 72 dB(A) |
| Exterior Sound Power (ISO 6395:2008) | 99 dB(A) |
| EU Noise Directive | 2000/14/EC |
| A/C Refrigerant | R134a (GWP 1,430) |
| Refrigerant Charge | 1.0 kg |
| CO₂ Equivalent | 1.430 metric tonnes |
| Adjustable Wrist Rests | Included |
| Suspension Seat | Included |
| Stick Steer Mode | Included (Cat exclusive) |
| Travel Cruise Control | Included |
| Customisable Operator Settings | Included |
| Next Generation LCD Monitor | Standard |
| Advanced Touchscreen Monitor | Optional upgrade |
| Courtesy Work Lights | Included |
| Fluorescent Retractable Seat Belt | Included |
| Cooling System | 2.6 gal (US) |
| Engine Oil | 3.0 gal (US) |
| Fuel Tank | 39.0 gal (US) |
| Hydraulic Tank | 14.0 gal (US) |
| Hydraulic System Total | 29.0 gal (US) |
| Recyclability Rating | 96% |
| EU Directive Compliance | 2000/14/EC |
Standard Stick — 71.8″
| Dig Depth | 161.7″ |
| Vertical Wall Depth | 117.8″ |
| Max Reach — Ground Level | 273.6″ |
| Maximum Reach | 281.1″ |
| Max Dig Height | 265.2″ |
| Max Dump Clearance | 187.4″ |
| Boom in Reach | 120.4″ |
| Tail Swing (no c/wt) | 57.1″ |
| Tail Swing (with c/wt) | 62.4″ |
| Max Blade Height | 16.1″ |
| Max Blade Depth | 26.0″ |
| Transport Height (no tools) | 95.7″ |
| Boom Working Height (with tools) | 104.7″ |
| Cab Height | 100″ |
| O/A Shipping Length (blade rear)† | 266.7″ |
| Undercarriage Length | 126.0″ |
| Track Width | 97.2″ |
| Track Shoe Width | 17.7″ |
| Swing Bearing Height | 29.7″ |
| Ground Clearance | 14.0″ |
| Boom Swing Left / Right (offset) | 23.8″ / 36.8″ |
Long Stick — 92.8″
| Dig Depth | 182.8″ |
| Vertical Wall Depth | 134.0″ |
| Max Reach — Ground Level | 293.7″ |
| Maximum Reach | 300.7″ |
| Max Dig Height | 277.1″ |
| Max Dump Clearance | 199.7″ |
| Boom in Reach | 126.6″ |
| Tail Swing (no c/wt) | 57.1″ |
| Tail Swing (with c/wt) | 62.4″ |
| Max Blade Height | 16.1″ |
| Max Blade Depth | 26.0″ |
| Transport Height (no tools) | 89.0″ |
| Boom Working Height (with tools) | 120.1″ |
| Cab Height | 100″ |
| O/A Shipping Length (blade rear)† | 277.6″ (7,052 mm) |
| Undercarriage Length | 126.0″ |
| Track Width | 97.2″ |
| Track Shoe Width | 17.7″ |
| Swing Bearing Height | 29.7″ |
| Ground Clearance | 14.0″ |
| Boom Swing Left / Right (offset) | 23.8″ / 36.8″ |
† All shipping lengths measured with blade positioned at rear of machine. Standard Stick: same value with/without counterweight (266.7″). Long Stick: same value with/without counterweight (277.6″ / 7,052 mm). All specs based on Long (L) Undercarriage configuration.
| Minimum Operating Weight (cab)* | 19,735 lb |
| Maximum Operating Weight (cab)** | 21,091 lb |
| Steel Tracks with Rubber Pads (vs plain steel) | 728 lb |
| Long Stick | 146 lb |
| Counterweight | 552 lb |
* Minimum: steel tracks (no pads), no counterweight, operator, full fuel, standard stick, blade, no bucket.
** Maximum: steel tracks with rubber pads, counterweight, operator, full fuel, long stick, blade, no bucket.
All weights based on Long (L) Undercarriage configuration.
| Feature / Item | Standard | Optional |
|---|---|---|
| Engine | ||
| Cat C3.3B Turbo — Tier 4 Final / EU Stage V | ● | — |
| Automatic Engine Idle | ● | — |
| Automatic Engine Shutdown | ● | — |
| Automatic Two-Speed Travel | ● | — |
| Variable Displacement Piston Pump — 62 gpm total | ● | — |
| Load Sensing / Flow Sharing Hydraulics | ● | — |
| ⚡ Hydraulics — incl. High Flow | ||
| Auxiliary Primary Circuit — 35 gpm @ 4,134 psi | ● | — |
| Auxiliary Secondary Circuit — 9 gpm @ 4,134 psi | ● | — |
| High Flow Auxiliary Circuit — 37 gpm @ 4,134 psi | ● | — |
| One-Way, Two-Way & Continuous Auxiliary Flow | ● | — |
| Auxiliary Line Quick Disconnects | ● | — |
| Automatic Swing Brake | ● | — |
| Operator Environment | ||
| Sealed Pressurised Cab with Improved A/C (standard — no canopy) | ● | — |
| ROPS / TOPS / Top Guard Level I | ● | — |
| Stick Steer Mode | ● | — |
| Travel Cruise Control | ● | — |
| Customisable Operator Performance Settings | ● | — |
| Next Generation LCD Monitor | ● | — |
| Advanced Touchscreen Monitor | — | ○ |
| Adjustable Wrist Rests | ● | — |
| Suspension Seat | ● | — |
| Control Pattern Changer (ISO/SAE) | — | ○ |
| Courtesy Work Lights | ● | — |
| Fluorescent Retractable Seat Belt | ● | — |
| Undercarriage & Blade | ||
| Long (L) Undercarriage — 126″ × 97.2″ track width | ● | — |
| Steel Tracks — 17.7″ shoe (standard) | ● | — |
| Steel Tracks with Rubber Pads | — | ○ |
| Standard Dozer Blade — 97″ wide | ● | — |
| Wide Dozer Blade — 104″ | — | ○ |
| Counterweight | — | ○ |
| Long Stick (92.8″) | — | ○ |
| Telematics & Connectivity | ||
| VisionLink® Fleet Management Ready | ● | — |
| Cat Product Link (cellular/satellite) | — | ○ |
● Standard ○ Optional Standard and optional equipment may vary by region. Consult your Cat dealer for details.
