NW-A1 | 13.5 HP B&S Engine Mini Excavator with 6 Attachments

Name: NW-A1 | 13.5 HP B&amp;S Engine Mini Excavator with 6 Attachments
SKU: EXC-NW12-A1&AMP-W002-A1&SER-FKLT-US-[gslily]1+1+1
Availability: InStock

Original price was: $8,099.99.Current price is: $5,102.99.

Large Orders: For large quantity orders, please contact us directly at infos@bidado00fficial.com

+1 (253) 270-1217 Sales Contact Number

infos@bidado00fficial.com Contact Email

Free Ground Shipping

No Sales Tax

Lifetime Tech Support

Bidadoo 100% Guarantee

Description

Description

AHM Corp · NW-A1 · 1-Ton B&S Engine Mini Excavator

6 Attachments Included · 3 ft Width · B&S 25T2 · Adjustable Seat

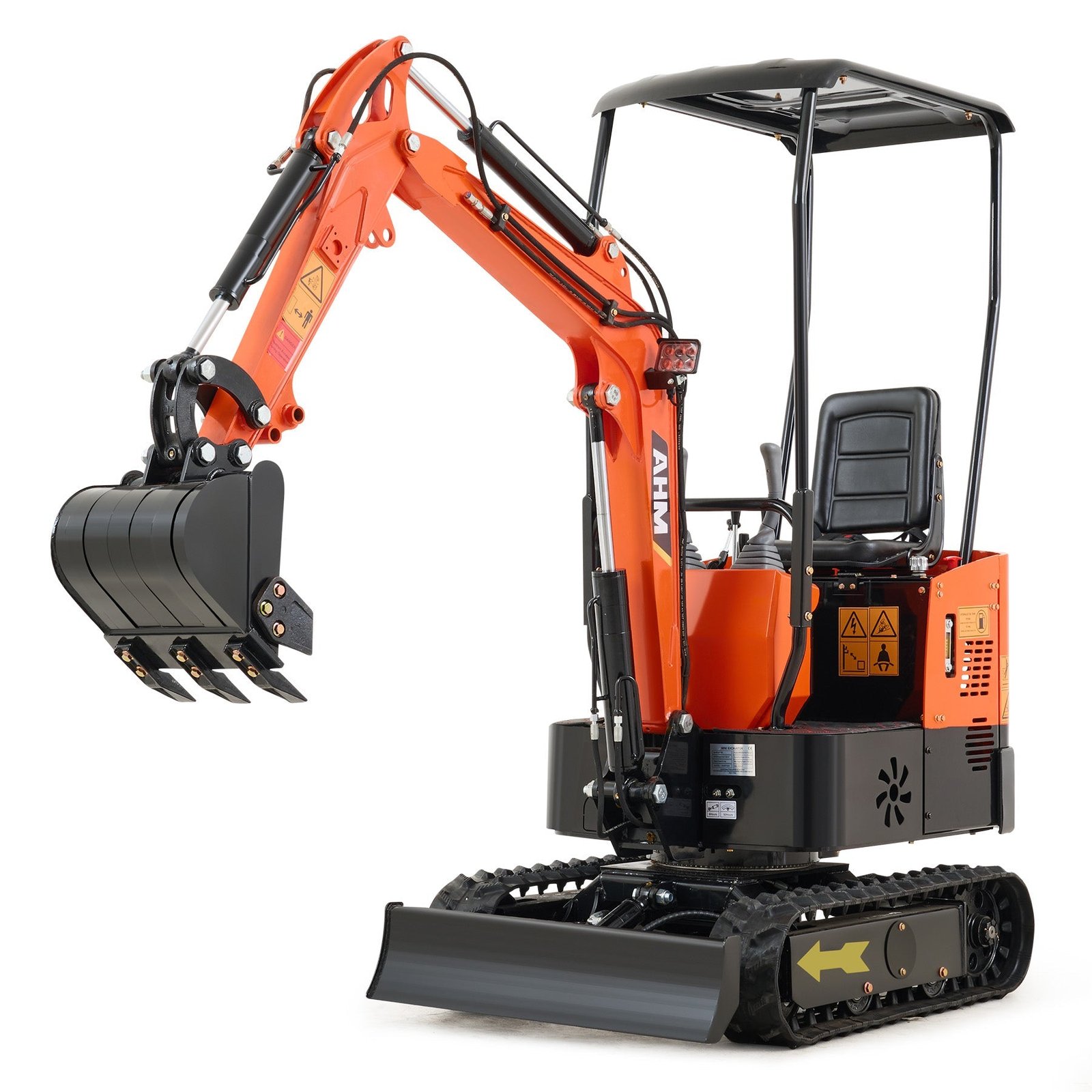

AHM NW-A1 Mini Excavator

B&S 25T2 — 13.5 HP — 6 Attachments — 3 ft Width — 2,585 lbf — Front Joysticks

A complete 6-attachment excavation system in a 3-foot-wide chassis. The NW-A1 includes hammer, log grapple, quick hitch, rake, grading bucket, and auger — all ready to work from delivery. Powered by a B&S 25T2 13.5 HP engine with 2,585 lbf of digging force, front-mounted joysticks, adjustable seat, and a protective canopy for extended operation.

Attachments

Included as Standard

Hammer, grapple, auger, rake, grading bucket & quick hitch — all included, ready from delivery.

Width

3 ft

36″ / 910 mm

Fits through standard gates, between buildings, and into tight backyards and farm access points.

Digging Force

2,585

lbf (11.5 kN)

Substantial digging force for excavation, lifting, landscaping, and demolition on demanding sites.

Max Dig Depth

68.9″

1,750 mm / 5.9 ft

Deep enough for foundation work, drainage, utility installation, and trenching tasks.

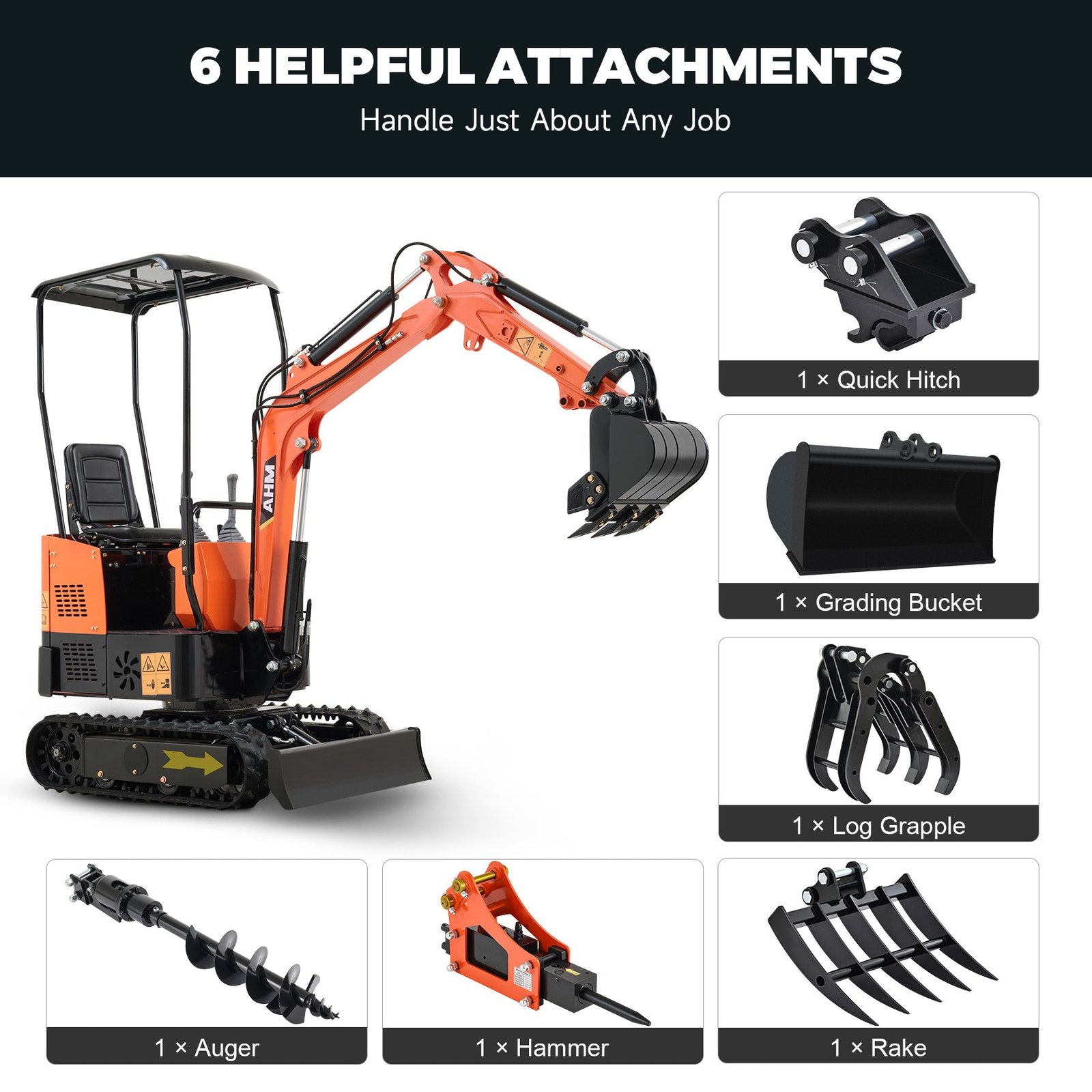

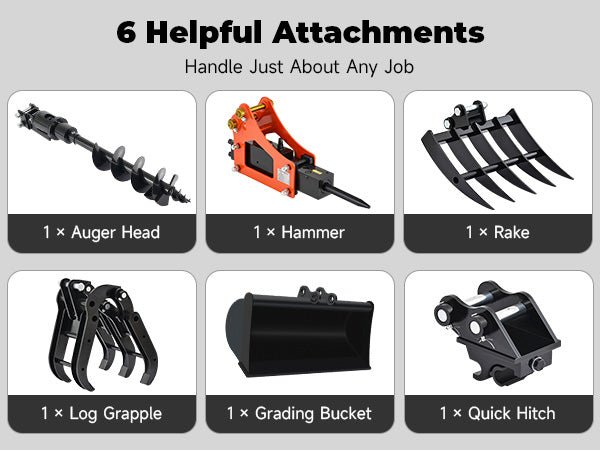

6 Attachments Included — Ready to Work From Day One

Hammer

Log Grapple

Quick Hitch

Rake

Grading Bucket

Auger

B&S 25T2

Briggs & Stratton 25T2 — 13.5 HP (10 kW) — 3,060 RPM — Gasoline · 2,585 lbf (11.5 kN) digging force · 6.6 L fuel tank · ~1 L/hr consumption · 12.7 L hydraulic tank · 48.5 in track length · 16.2 in ground clearance

13.5 HP

B&S 25T2

850 kg

Net Weight

3 ft

Max Width

30°

Max Slope Grade

Key Features

6 Attachments Included — Every Job Covered

Hammer for breaking concrete and asphalt; log grapple for grabbing and moving timber and debris; quick hitch for fast attachment changeovers; rake for clearing brush, roots, and stumps; grading bucket for precise excavation and levelling; auger for drilling fence post holes and footings. Six tools in one machine from day one.

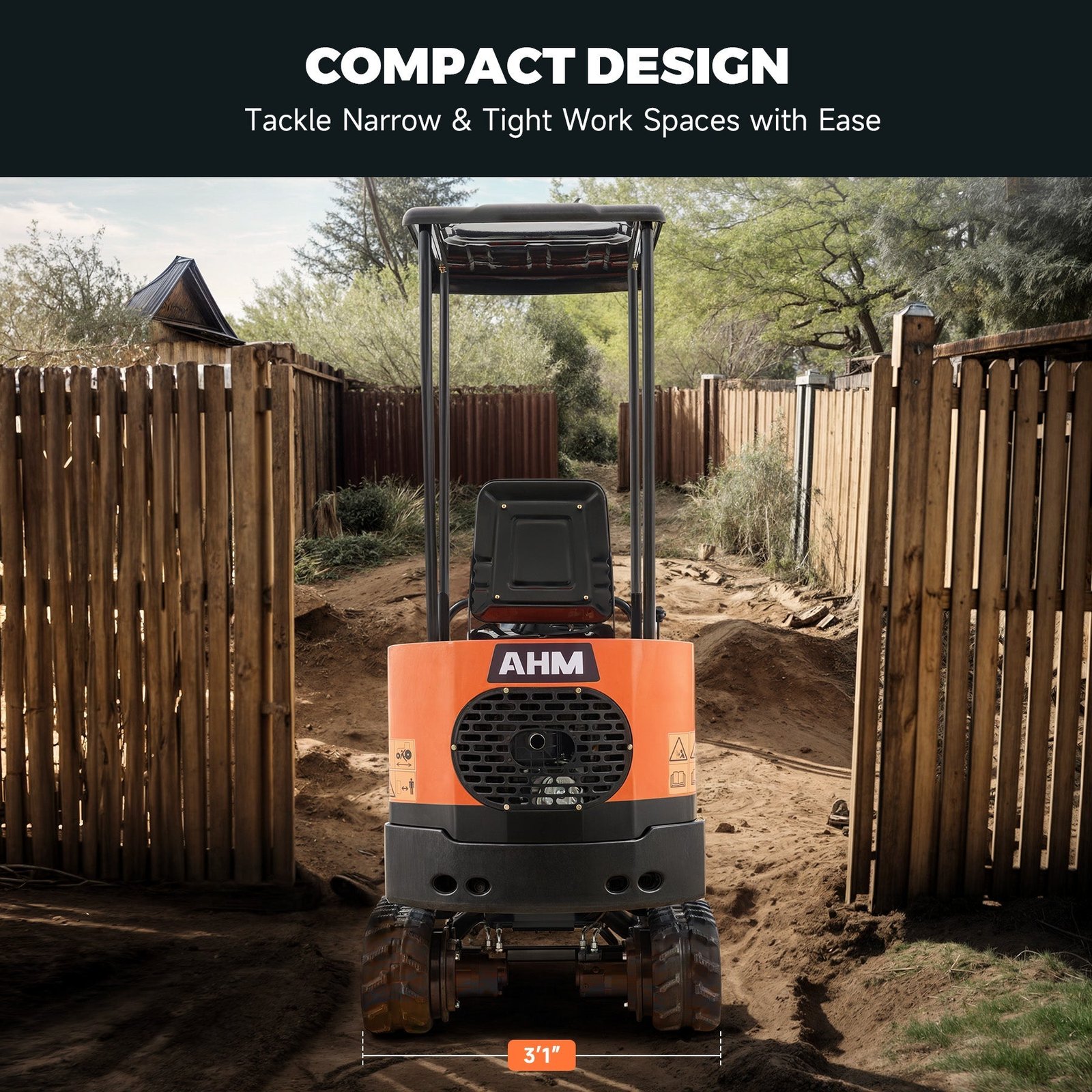

3 ft Maximum Width — Fits Standard Gates

At just 3 feet wide (36 in / 910 mm), the NW-A1 passes through standard residential gates, between buildings, and into backyards and farm access points where wider machines can’t go. Maximum width without compromising digging performance — still delivers 2,585 lbf and 68.9 in of dig depth.

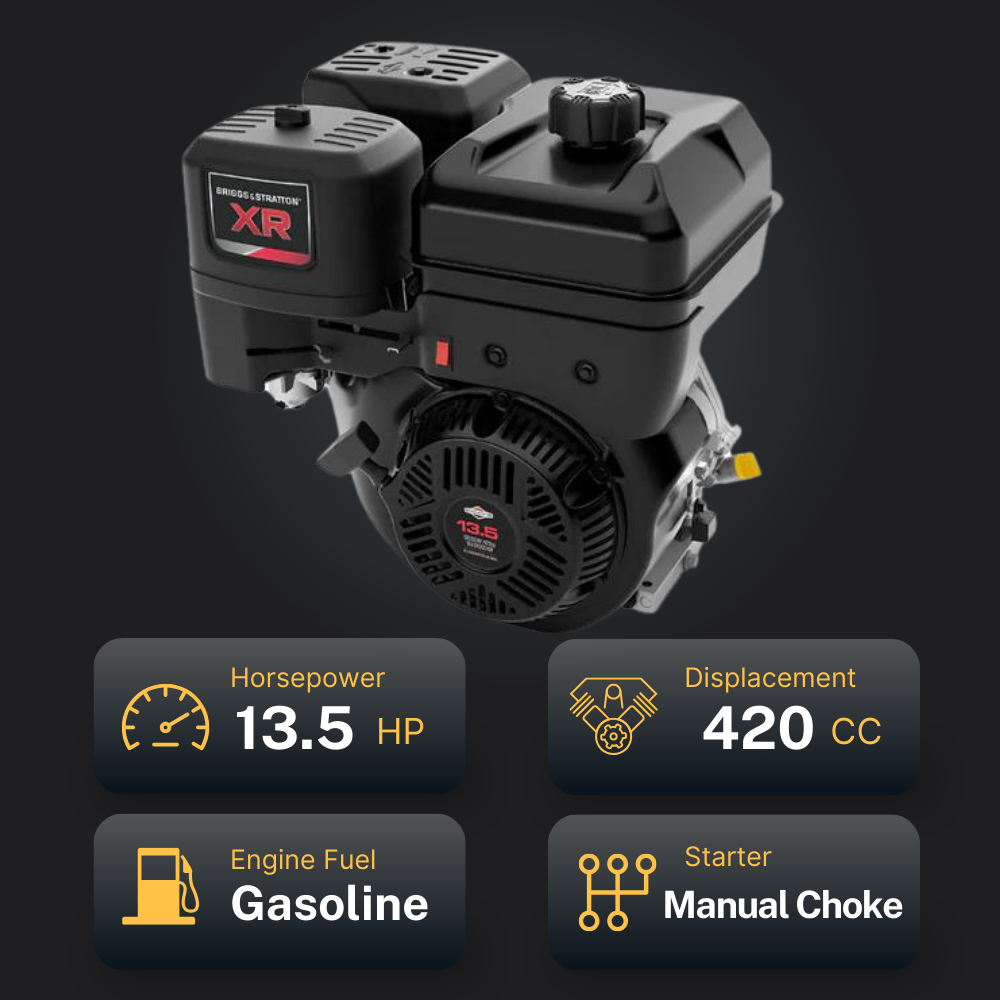

B&S 25T2 — 13.5 HP

Briggs & Stratton 25T2 gasoline engine at 13.5 HP (10 kW) and 3,060 RPM — a specific B&S model designation. 6.6 L fuel tank at ~1 L/hr for extended daily runtime. 12.7 L hydraulic tank with 16.2 in platform ground clearance for obstacle clearance on rough terrain.

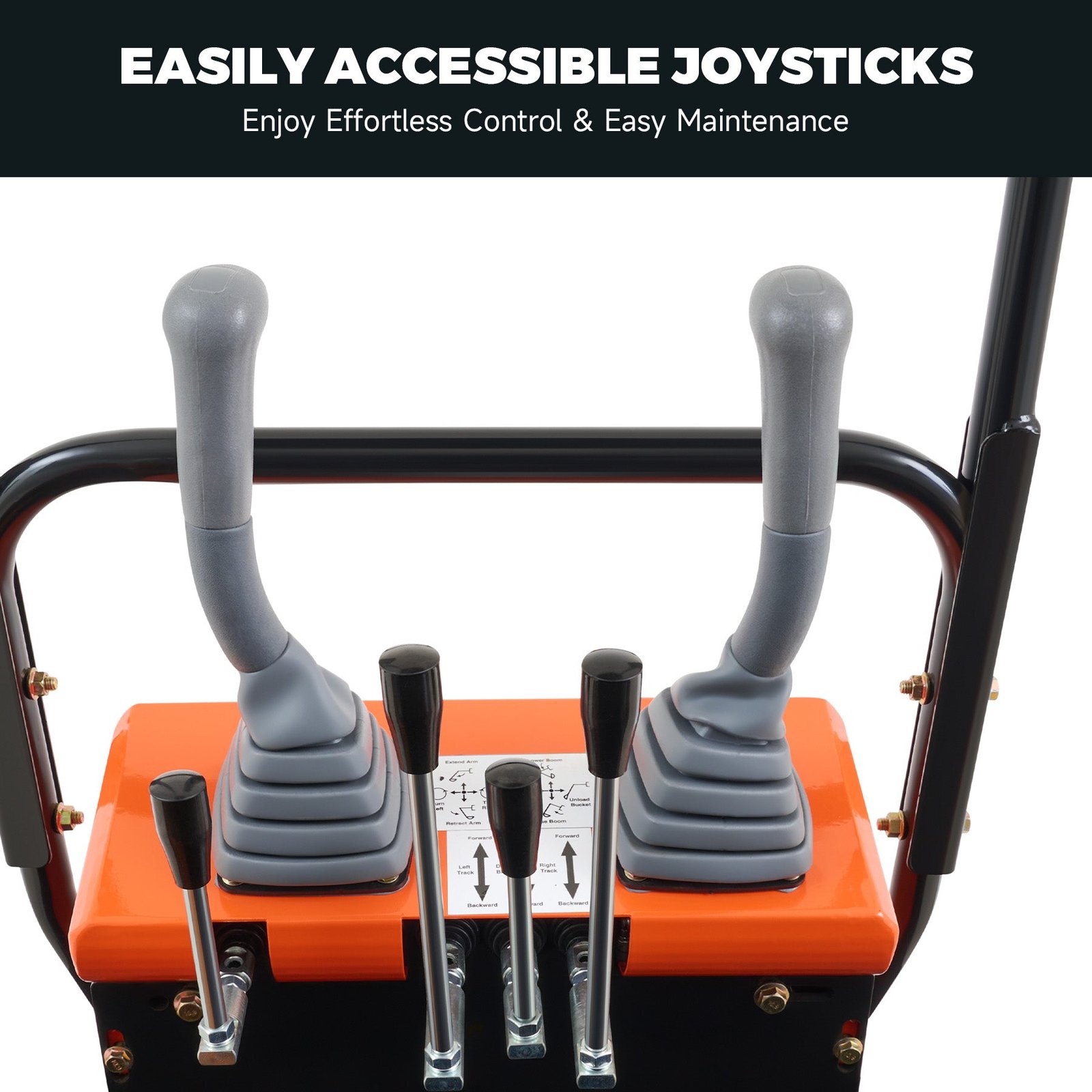

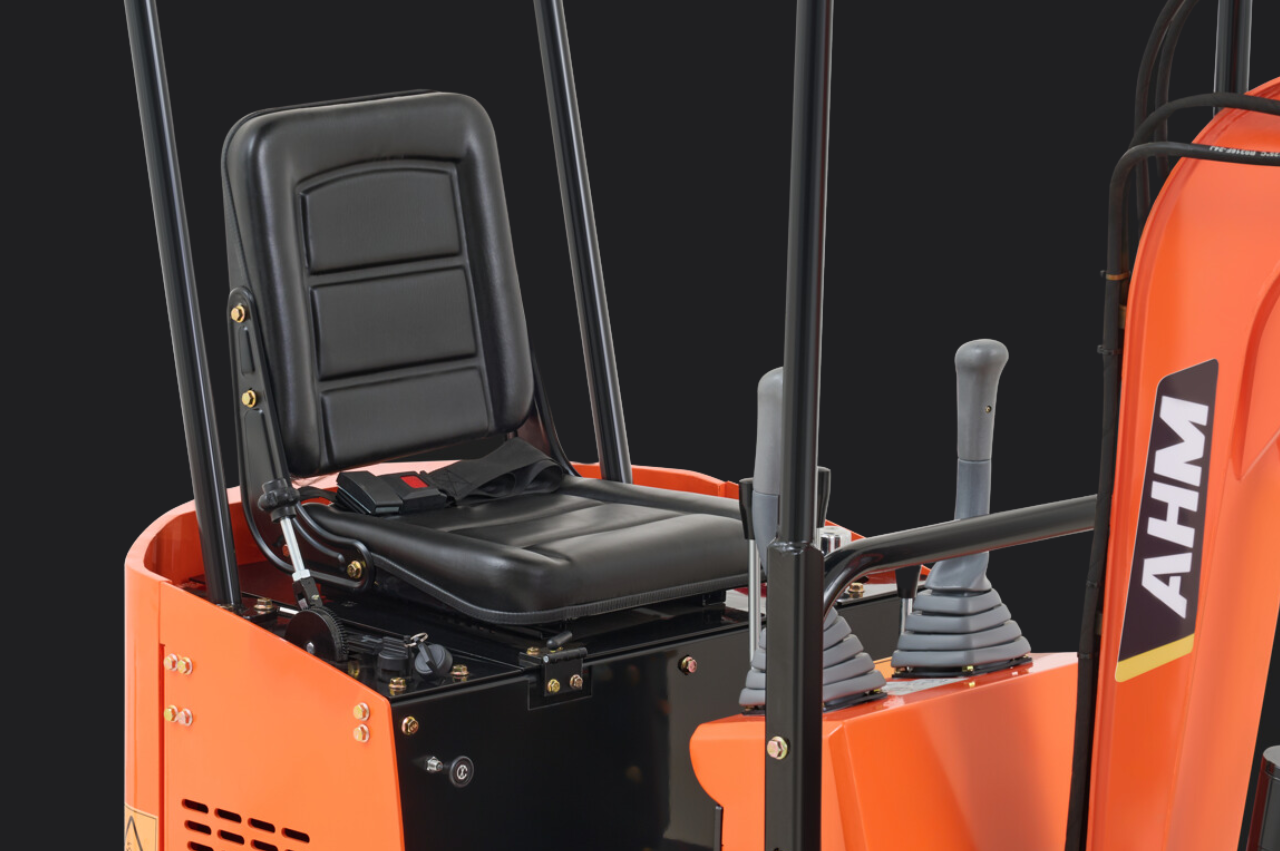

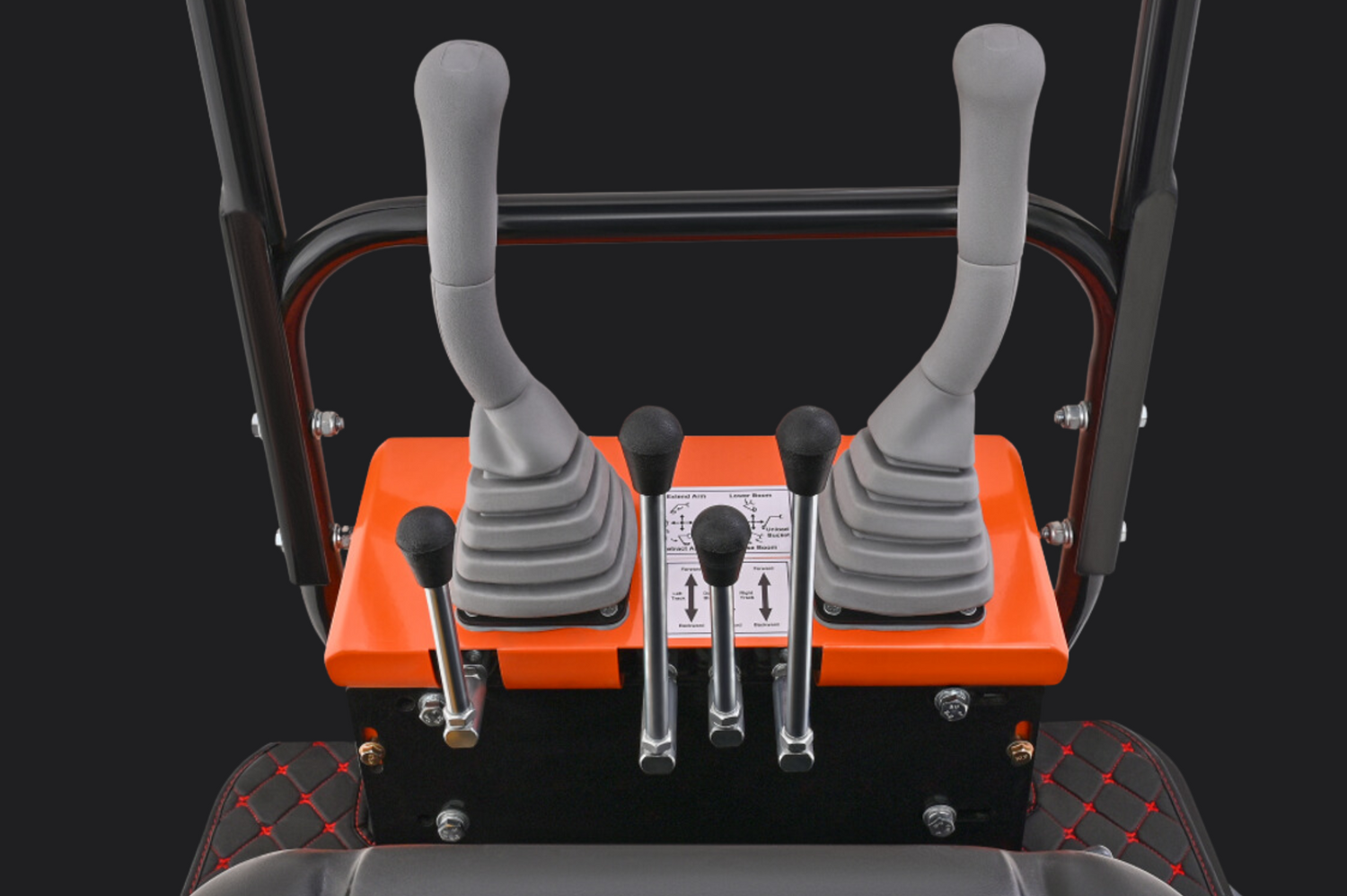

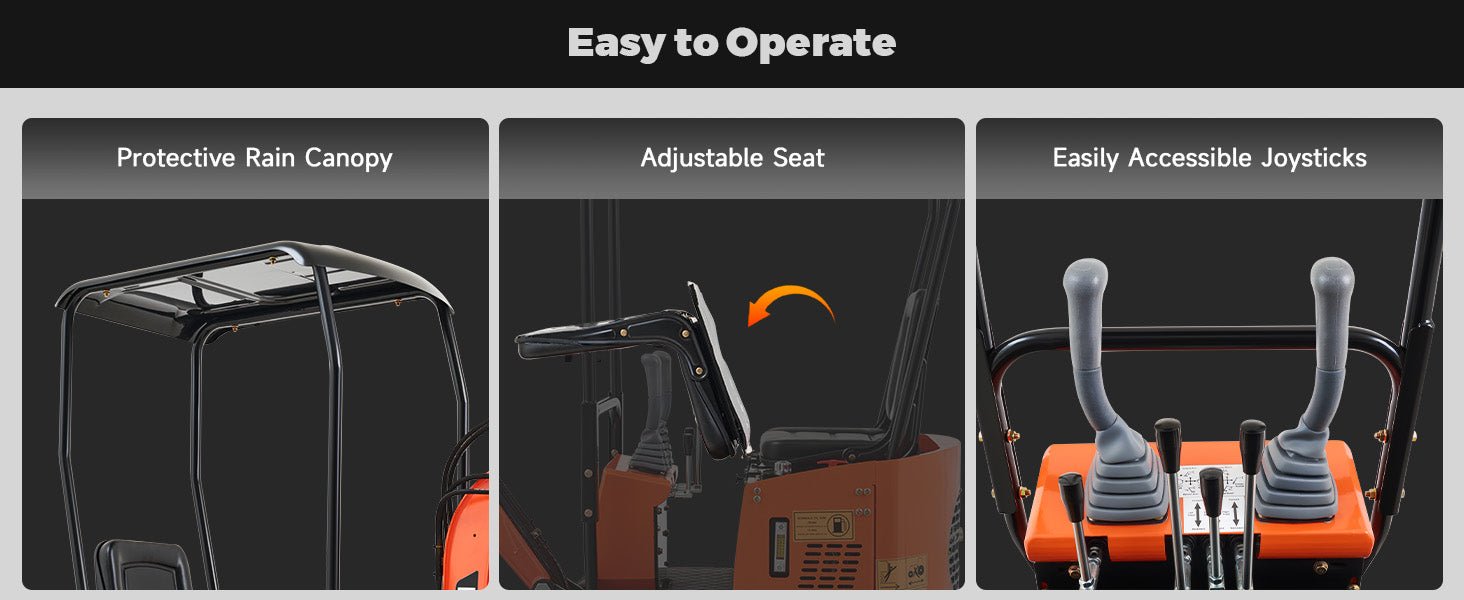

Front Joystick Controls & Adjustable Seat

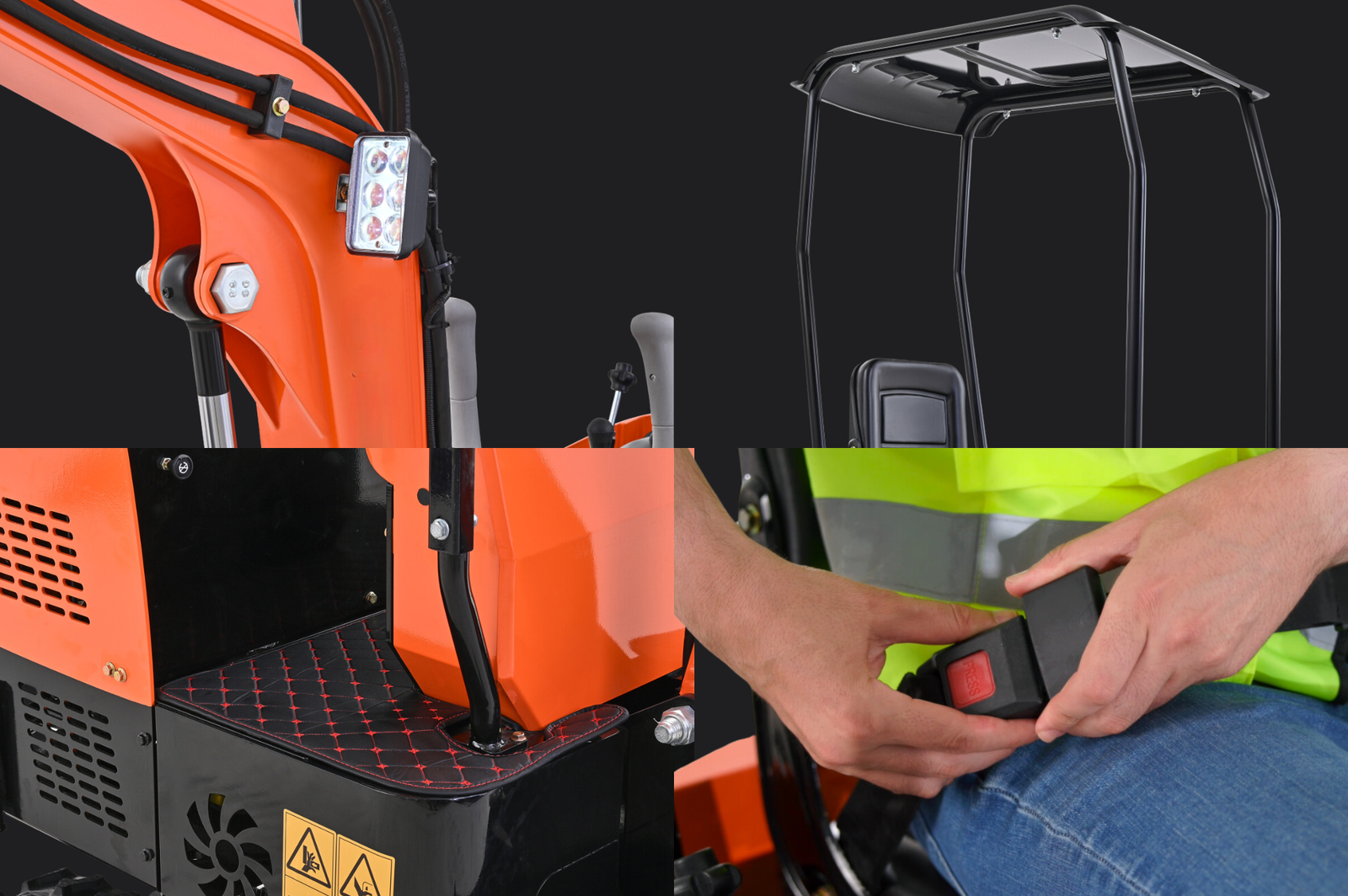

Front-mounted intuitive joysticks for responsive and precise machine control — accessible for operators of all experience levels. Adjustable operator seat accommodates different body sizes for comfortable extended operation. Protective canopy shields from sun and debris during long working days.

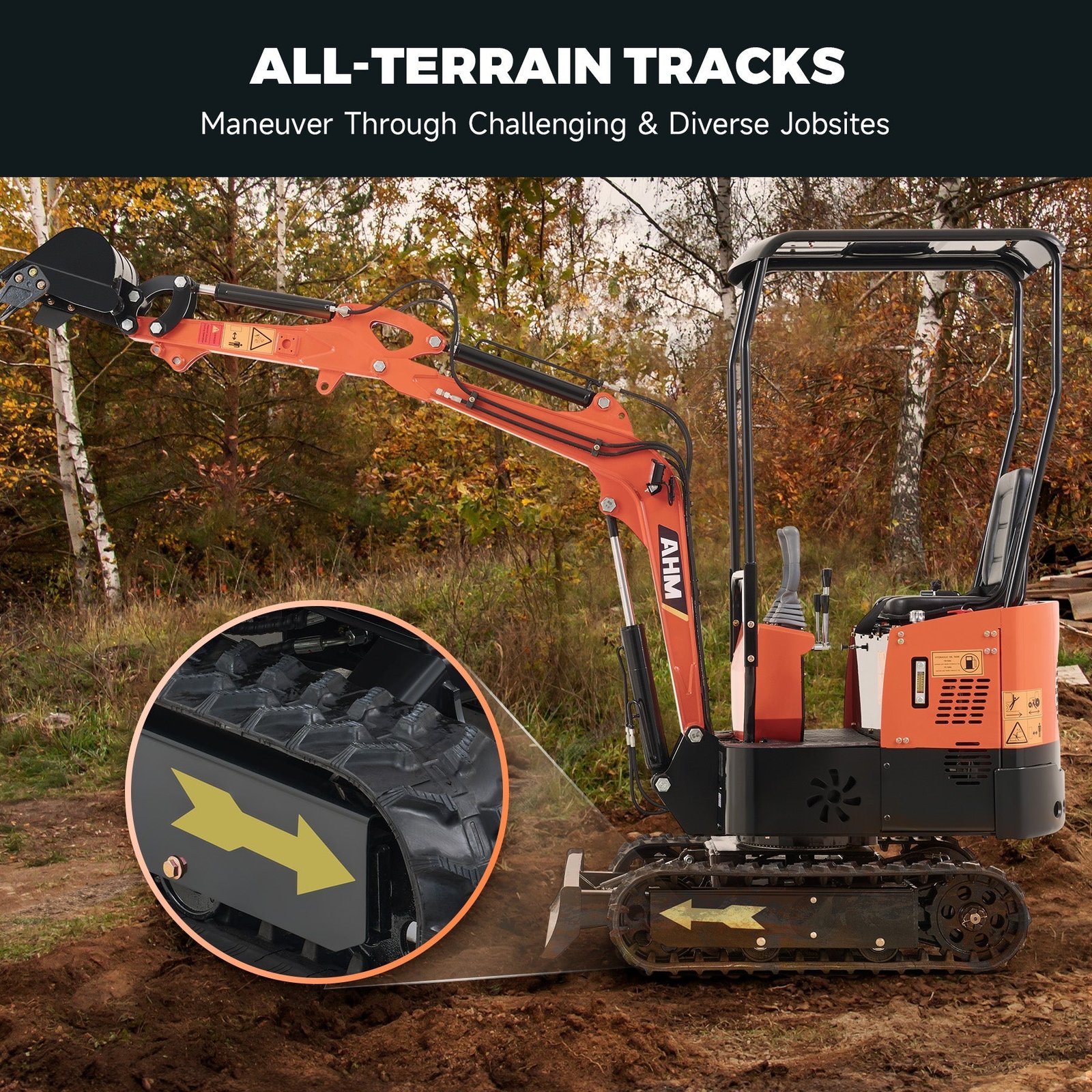

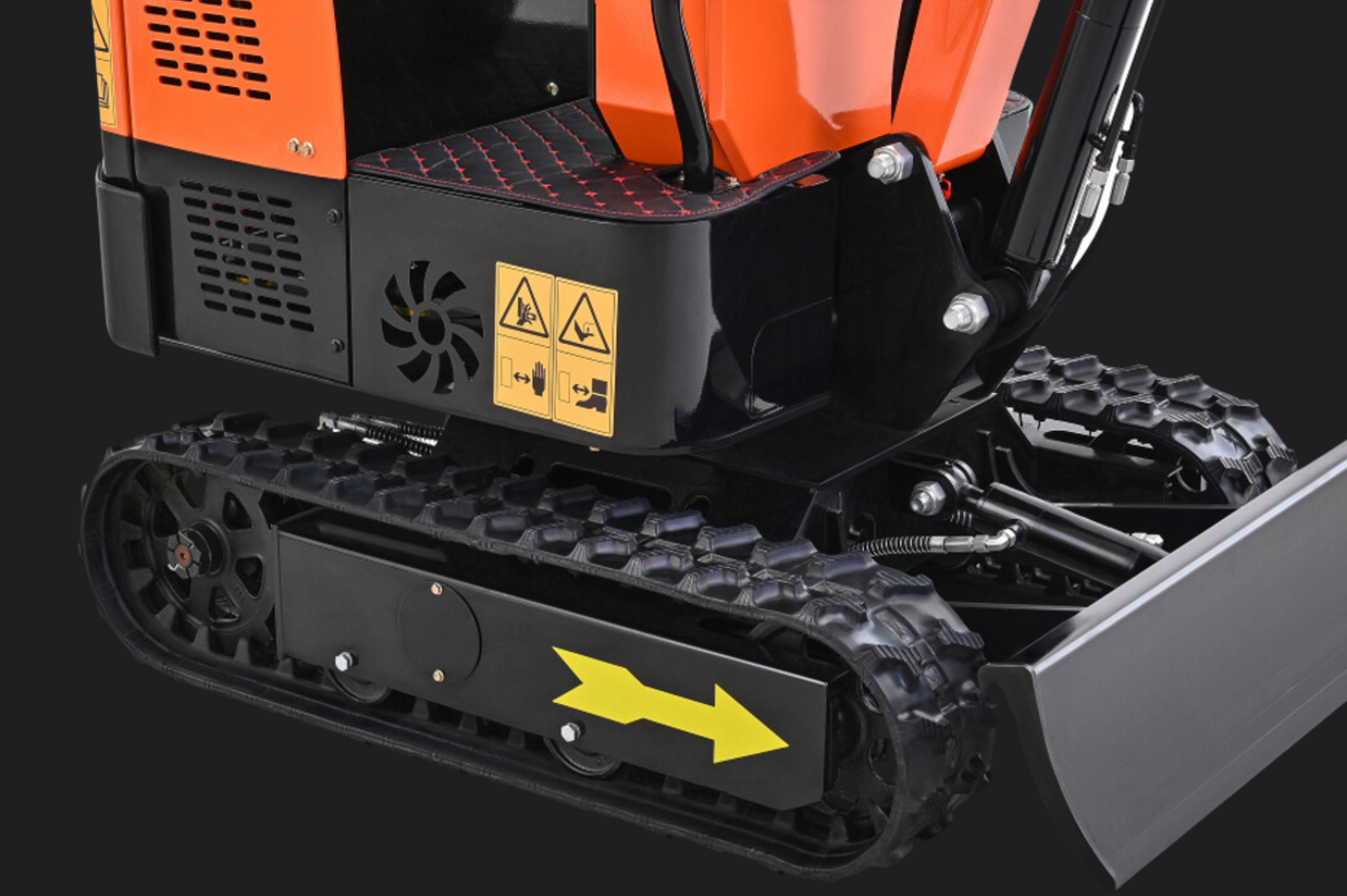

48.5″ All-Terrain Tracks

48.5 in (1,230mm) overall track length with 16.2 in (410mm) platform ground clearance for stable operation on loose soil, rocky paths, muddy areas, gravel, and rugged terrain. All-terrain rubber tracks move without damaging turf, indoor flooring, paving, or pavement.

2,585 lbf — 5.9 ft Dig Depth

11.5 kN (2,585 lbf) of maximum bucket digging force and 1,750mm (68.9 in) of maximum dig depth — with 3,050mm (120 in) of ground reach. Built for tough jobs including excavation, lifting, landscaping, demolition, and material handling across a full day of site work.

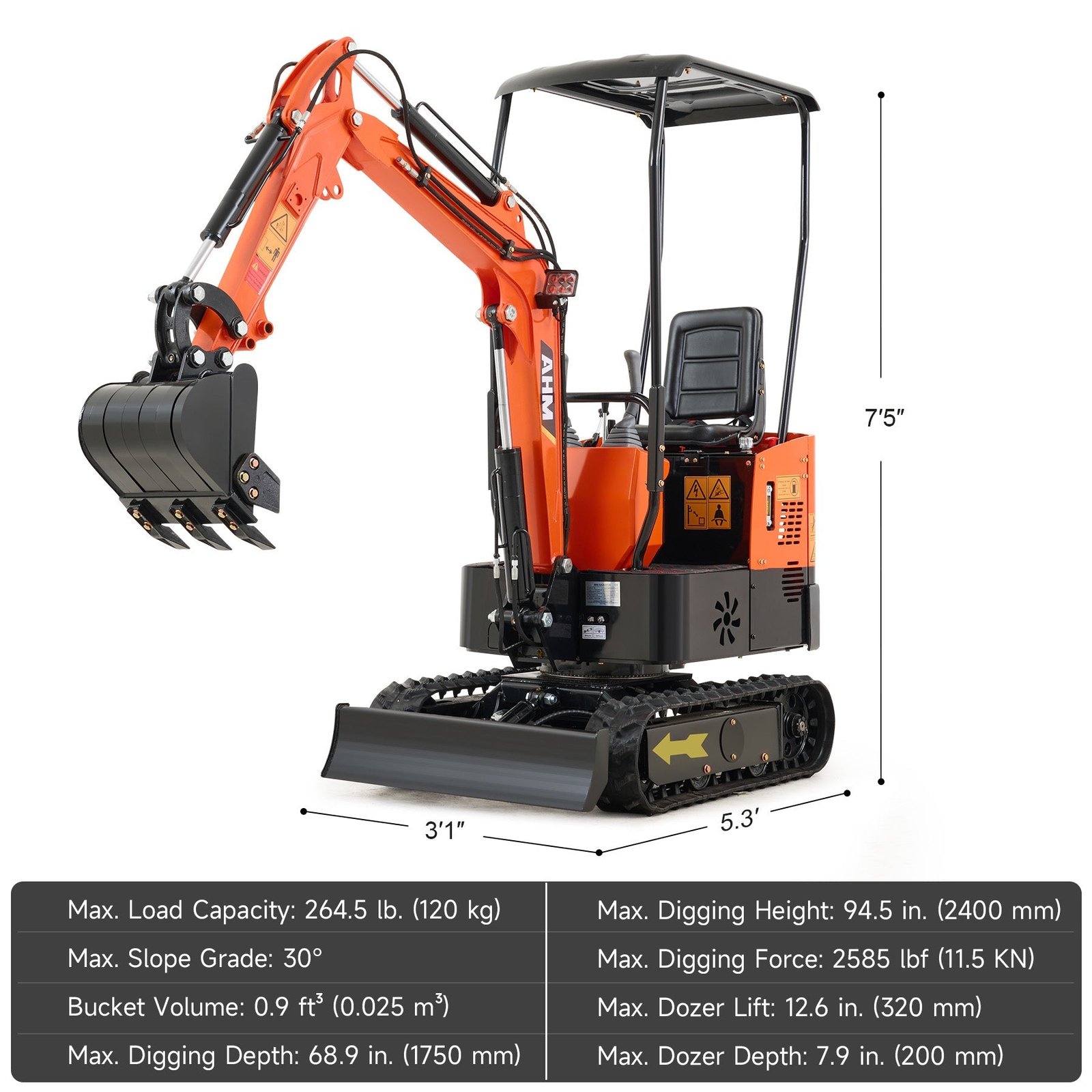

Full Specifications

Engine

Engine Brand & Model	Briggs & Stratton 25T2
Fuel Type	Gasoline
Rated Power	13.5 HP (10 kW)
Rated Speed	3,060 RPM
Fuel Tank	6.6 L / 1.7 gal
Fuel Consumption	~1 L/hr (0.3 gal/hr)
Hydraulic Tank	12.7 L / 3.3 gal

Performance

Net Weight	850 kg / 1,874 lbs
Max Bucket Digging Force	2,585 lbf (11.5 kN)
Max Digging Depth	1,750 mm / 68.9 in / 5.9 ft
Max Dumping Height	1,590 mm / 62.6 in
Max Digging Radius	3,050 mm / 120 in
Max Slope Grade	30°
Platform Ground Clearance	410 mm / 16.2 in
Overall Track Length	1,230 mm / 48.5 in

Construction & Warranty

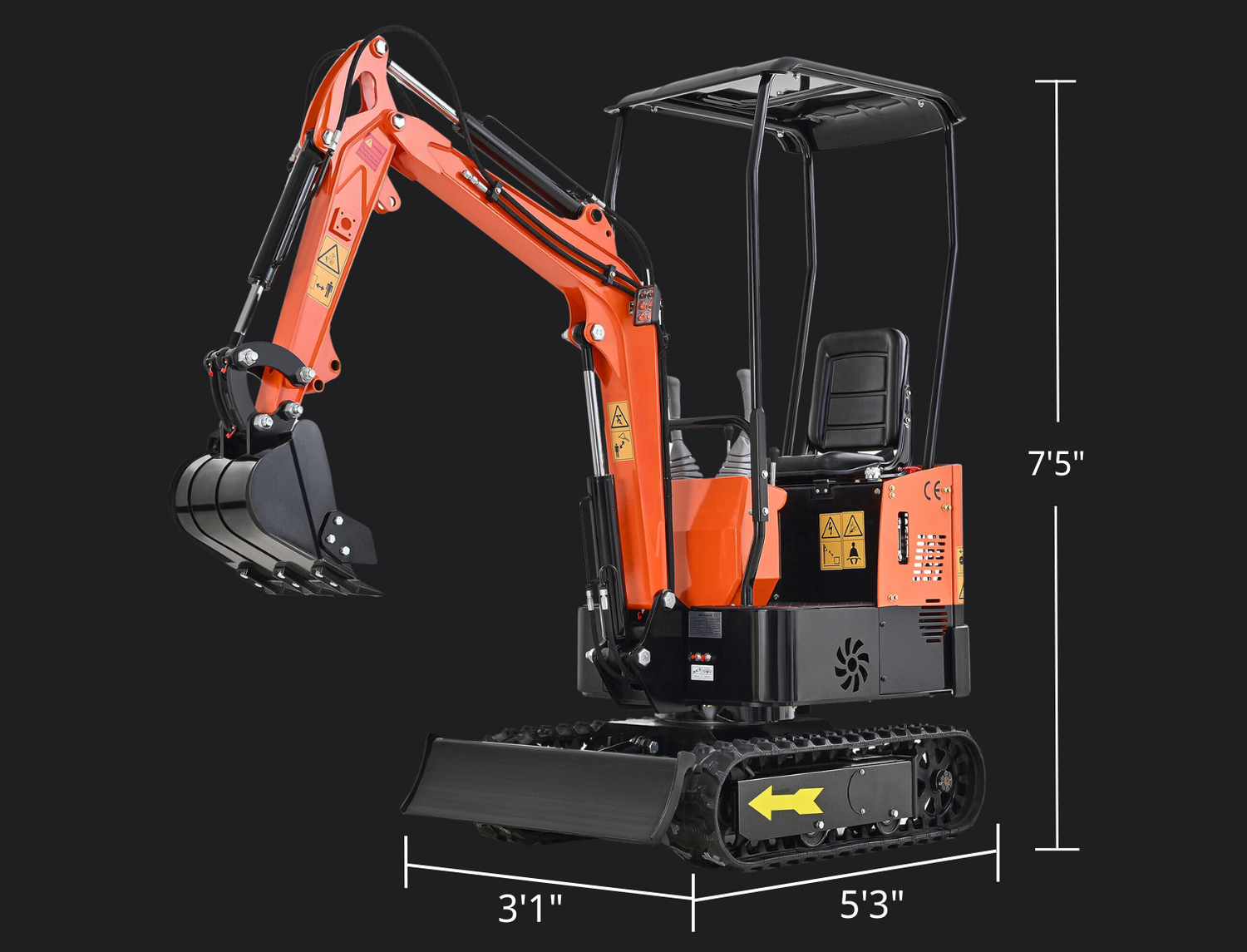

Max Width	~910 mm / 36 in / 3 ft
Frame Material	Steel
Track Material	All-Terrain Rubber
Controls	Front Joysticks
Seat	Adjustable
Canopy	Protective ROPS Canopy
Warranty	1 Year

Everything Included

✓

B&S 25T2 13.5 HP Engine

✓

Hammer

✓

Log Grapple

✓

Quick Hitch

✓

Rake

✓

Grading Bucket

✓

Auger

✓

Adjustable Seat

✓

Protective Canopy

✓

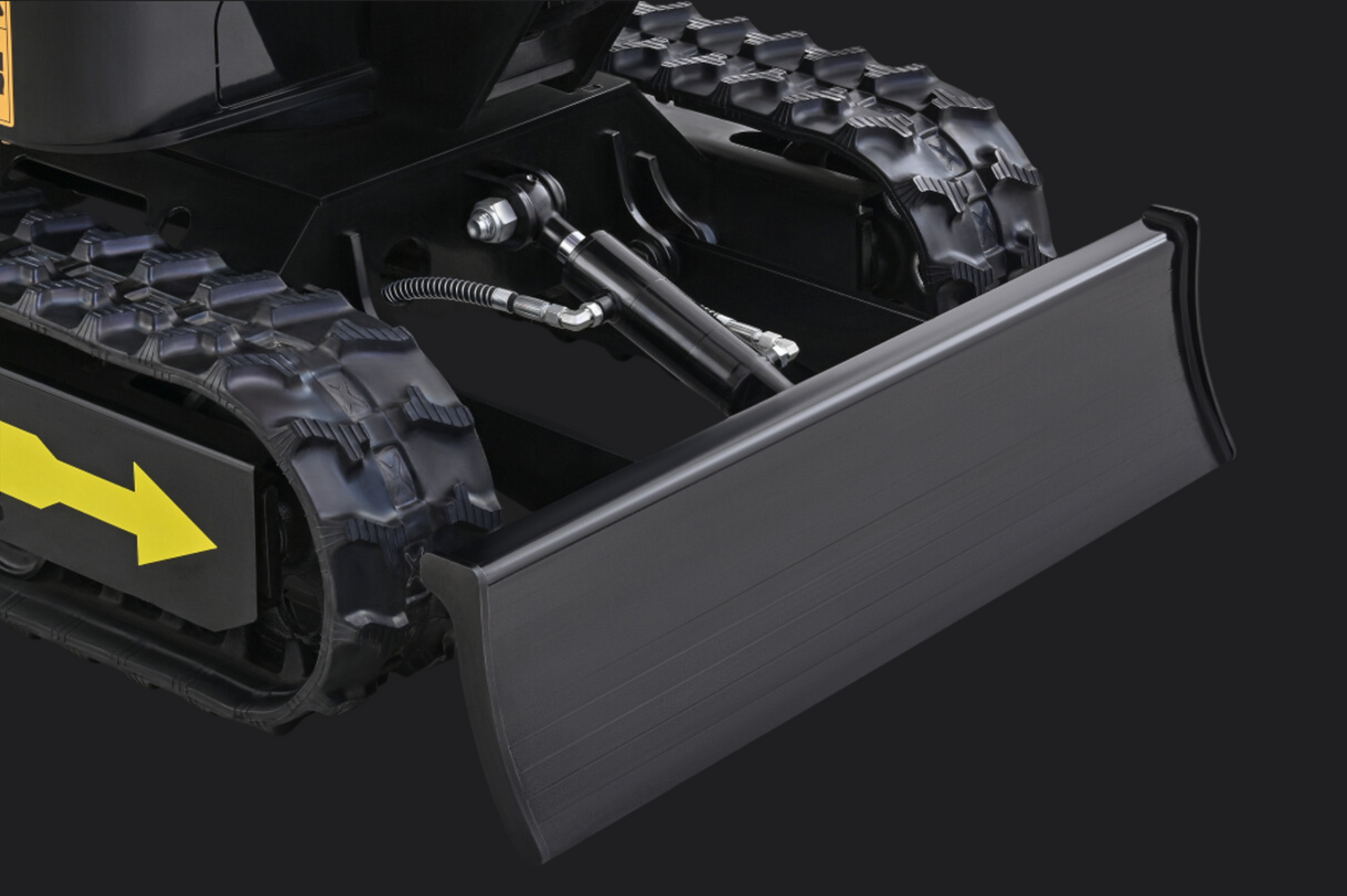

Dozer Blade

✓

All-Terrain Rubber Tracks

✓

Tool Box + Full Accessory Kit

✓

1-Year Warranty

Full Package List

Mini Excavator (1x)

Filter (1x)

Pipe Clamps (4x)

Grease Fittings (4x)

Hose Nozzle (1x)

Socket (1x)

Grease Gun (1x)

Hex Wrench (1x)

Socket Lever (1x)

Adjustable Wrench (1x)

Wrenches (4x)

Lubricating Grease (1x)

Tool Box (1x)

Adapters (4x)

User Manual (1x)

Included — By Category

Engine & Hydraulics

B&S 25T2 13.5 HP Gasoline

Hydraulic System

Front Joystick Controls

Cab & Structure

Protective ROPS Canopy

Adjustable Operator Seat

All-Terrain Rubber Tracks

Dozer Blade

6 Included Attachments

Hammer

Log Grapple

Quick Hitch

Rake

Grading Bucket

Auger

Accessories & Warranty

Tool Box + Full Accessory Kit

User Manual

1-Year Warranty

Built For

Backyard & Garden Access

Fence Post Installation

Tree & Brush Clearing

Concrete Breaking

Trenching

Foundation Digging

Stump Removal

Landscaping

Tight Gate Access
