Name: AX-17 | 23 HP B&amp;S Engine 1.6 Ton Mini Excavator with Swing Boom
SKU: EXC-17E1-A1&AMP-W002-A1&SER-FKLT-US-[gslily]1+1+1
Availability: InStock

Original price was: $12,999.99.Current price is: $8,189.99.

Large Orders: For large quantity orders, please contact us directly at info@bidado00fficial.com

+1 (253) 270-1217 Sales Contact Number

info@bidado00fficial.com Contact Email

Free Ground Shipping

No Sales Tax

Lifetime Tech Support

Bidadoo 100% Guarantee

Description

Description

AHM Corp · AX-17 · 1.6-Ton B&S Engine Mini Excavator

23 HP · Swing Boom 45°L / 55°R · Pilot Controls · Oil Cooler + Safety Lock

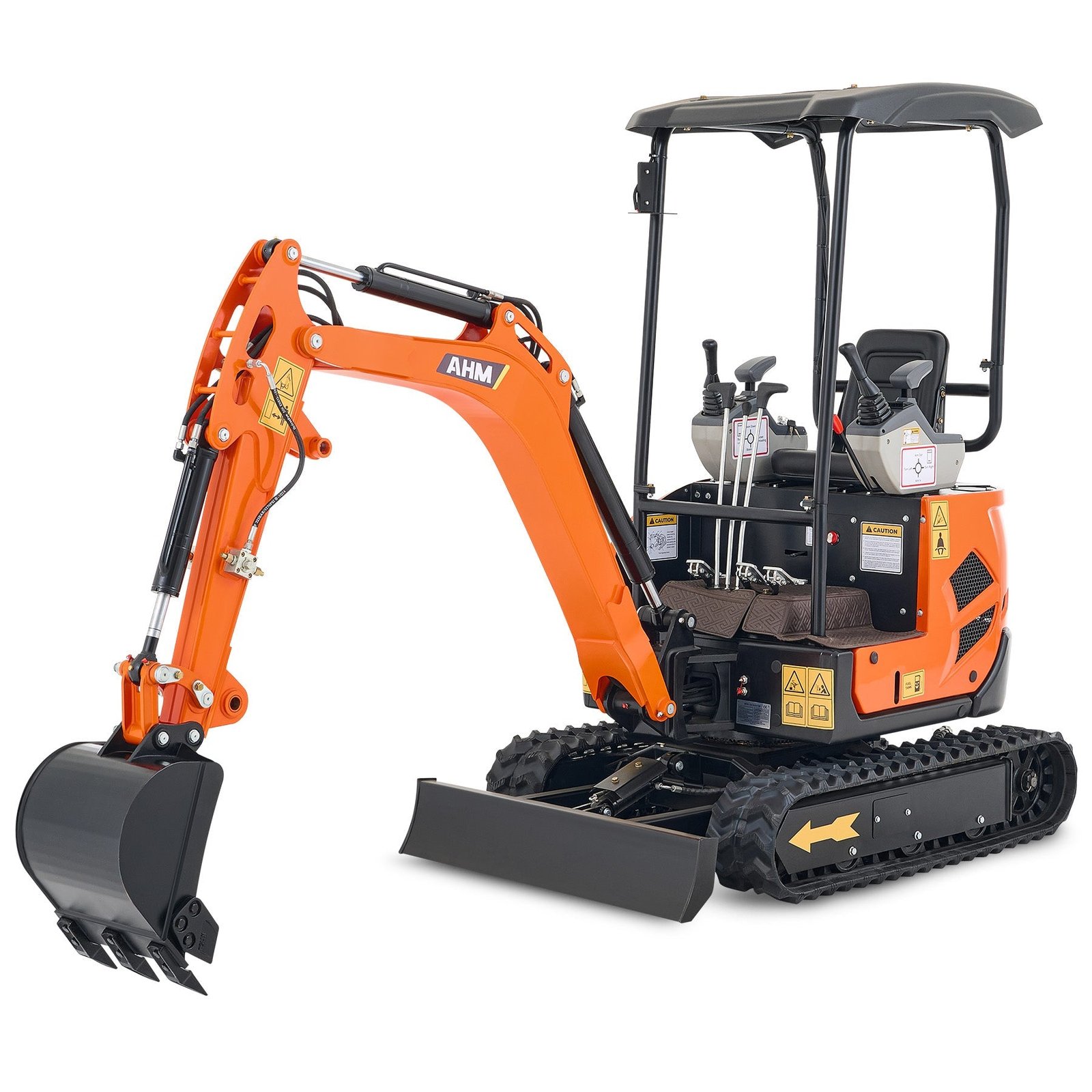

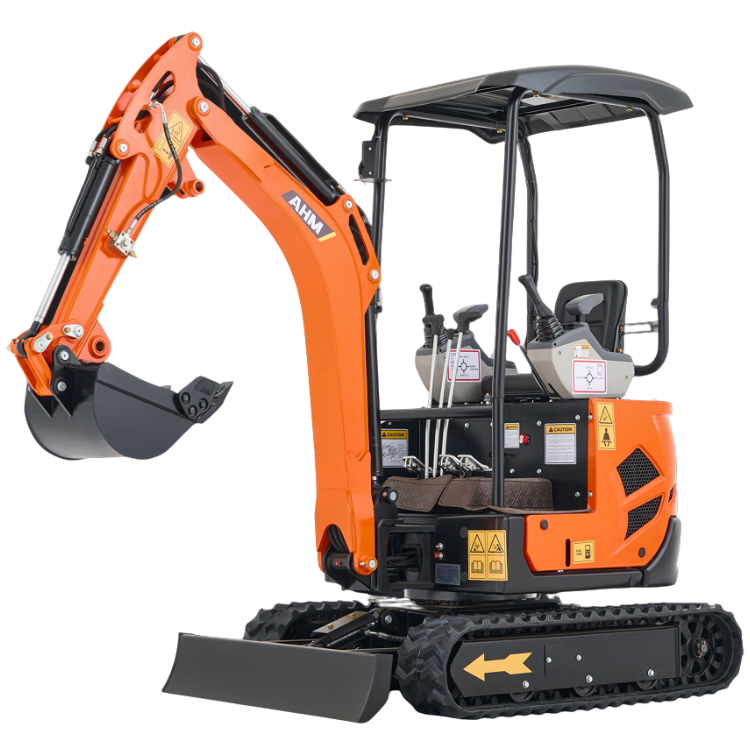

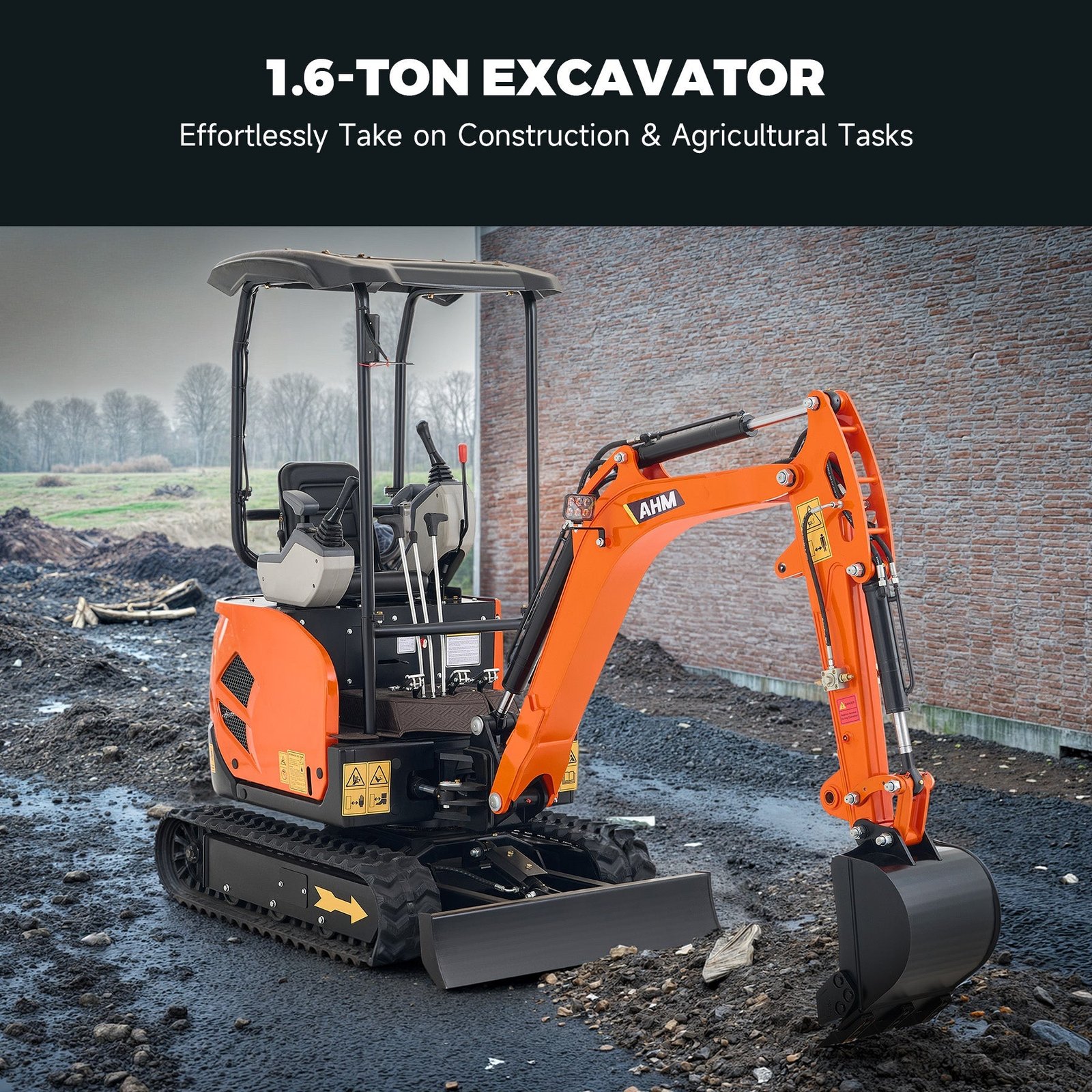

AHM AX-17 Mini Excavator

23 HP EPA — 1.6 Ton — Swing Boom — Pilot Hydraulic Controls — Open Canopy

The same 1.6-ton, 23 HP swing boom platform as the AX-17J — with open canopy instead of enclosed cab. Asymmetric side swing (45° left, 55° right), precision pilot-operated hydraulic controls, hydraulic oil cooler, safety lock, and 551 lb load capacity. Choose the AX-17 for maximum visibility and ventilation; choose the AX-17J for all-weather enclosed cab protection.

Engine Power

23 HP

17 kW — EPA Certified

Full 23 HP output for heavy-duty earthmoving, high-flow attachments, and demanding daily use.

Swing Boom

45°L / 55°R

Asymmetric Range

10° more reach to the right — where most operators work alongside walls and obstacles.

Load Capacity

551 lb

250 kg

More than double the capacity of the 1-ton AX-12 series for moving heavier material on site.

360° Visibility

Open

Canopy Design

Open operator station gives maximum visibility and ventilation for comfortable fair-weather use.

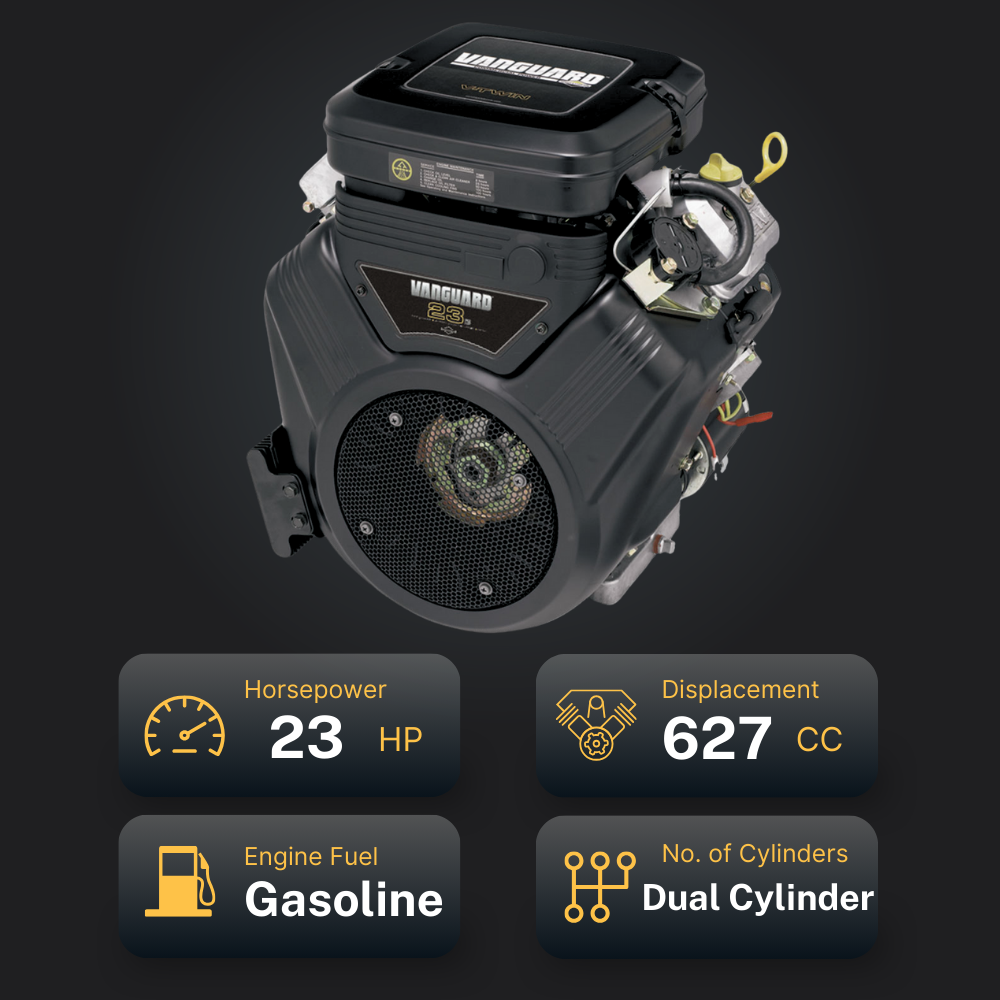

B&S 23 HP — EPA

B&S 23 HP (17 kW) — EPA Certified — Gasoline · Pilot-operated hydraulic controls · Hydraulic oil cooler · Safety lock · 10.6 L fuel tank · 3.6 L/hr consumption · Swing boom 45°L / 55°R · 551 lb (250 kg) load capacity

23 HP

B&S EPA

1.6 Ton

Operating Weight

88.9″

Max Dig Depth

134.5″

Max Ground Reach

AX-17 vs AX-17J — One Difference

AX-17 ▲ This Model

AX-17J

Cab

Open canopy —360° visibility

Enclosed cab + fan

Engine

23 HP B&S EPA

Swing Boom

45°L / 55°R

Pilot Controls

Yes

Oil Cooler + Safety Lock

Yes

Best For

Fair weather & max visibility

All-weather & comfort

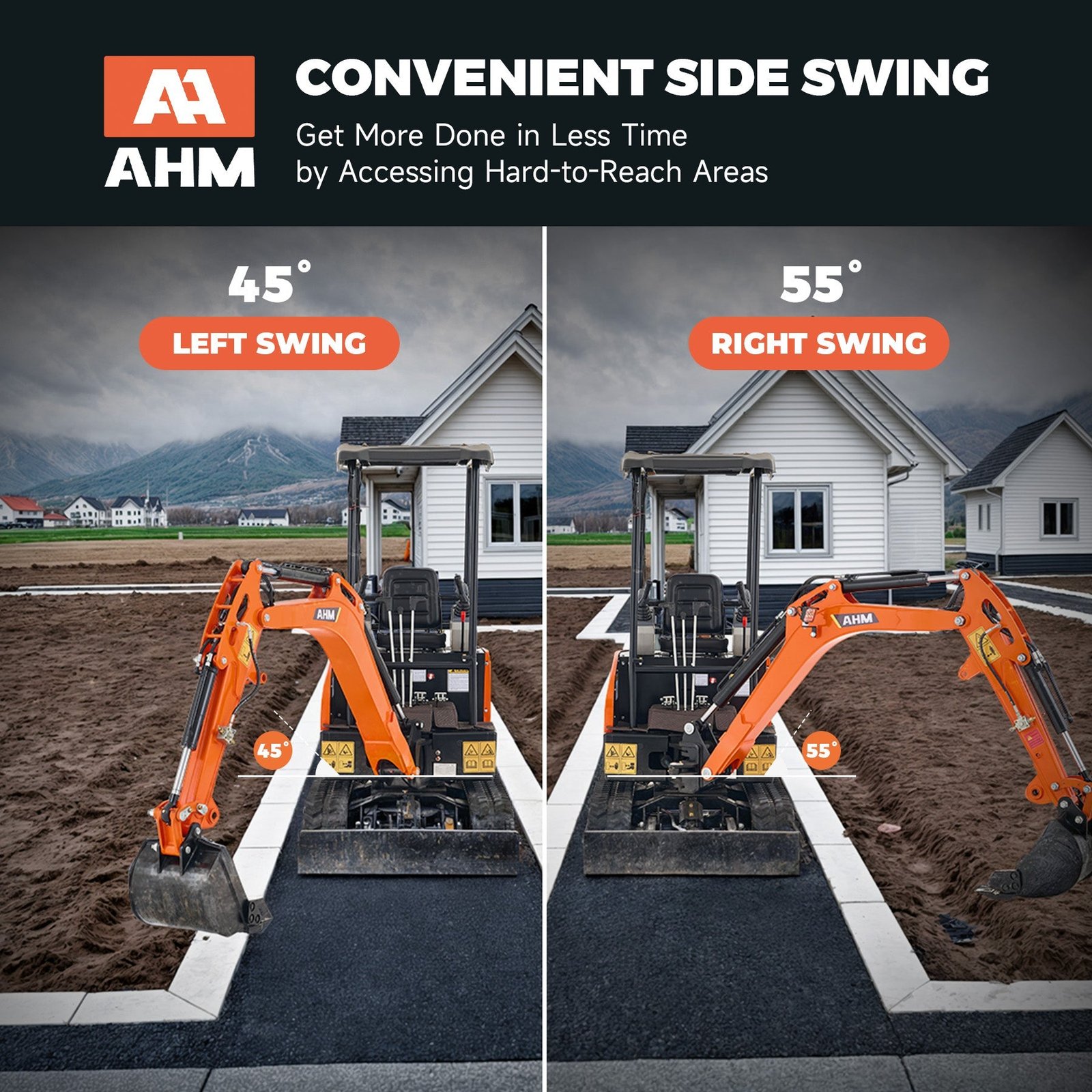

Swing Boom Arc

Asymmetric Swing Boom — 45° Left / 55° Right

45°

Left

55°

Right

More swing to the right — where most operators work alongside walls, fences, and kerbs. Navigate around obstacles and dig in tight spaces without repositioning the machine.

Key Features

Swing Boom — 45° Left / 55° Right

Asymmetric swing boom with 45° left and 55° right movement — 10° more reach to the right where most operators dig alongside structures. Maximise reach and efficiency without repositioning, even in tight alleys, against walls, and on confined residential sites.

Open Canopy — 360° Visibility

Open operator station provides unrestricted 360-degree visibility from the seat for maximum situational awareness. Full natural ventilation for comfortable operation in warm conditions. Choose the AX-17 for fair-weather sites where airflow and visibility are the priority.

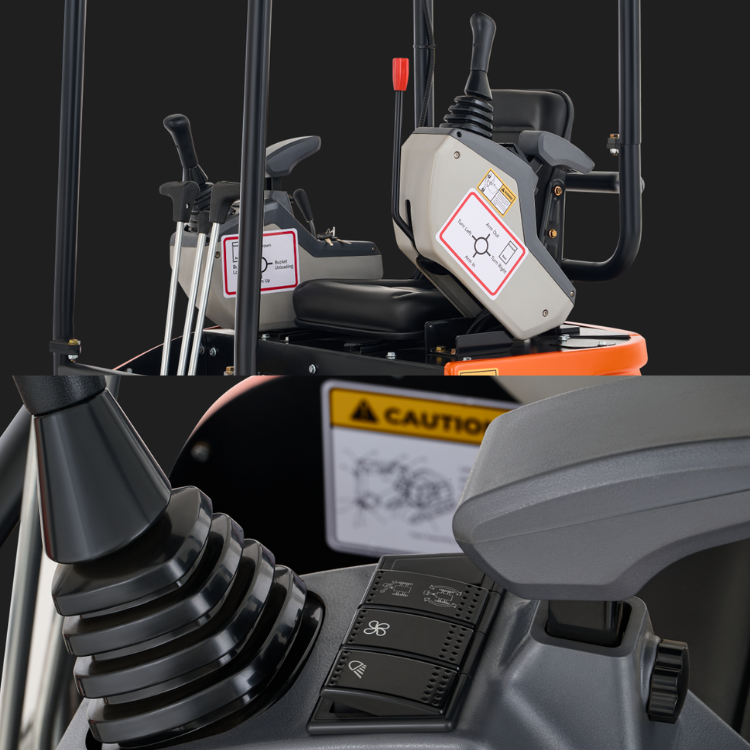

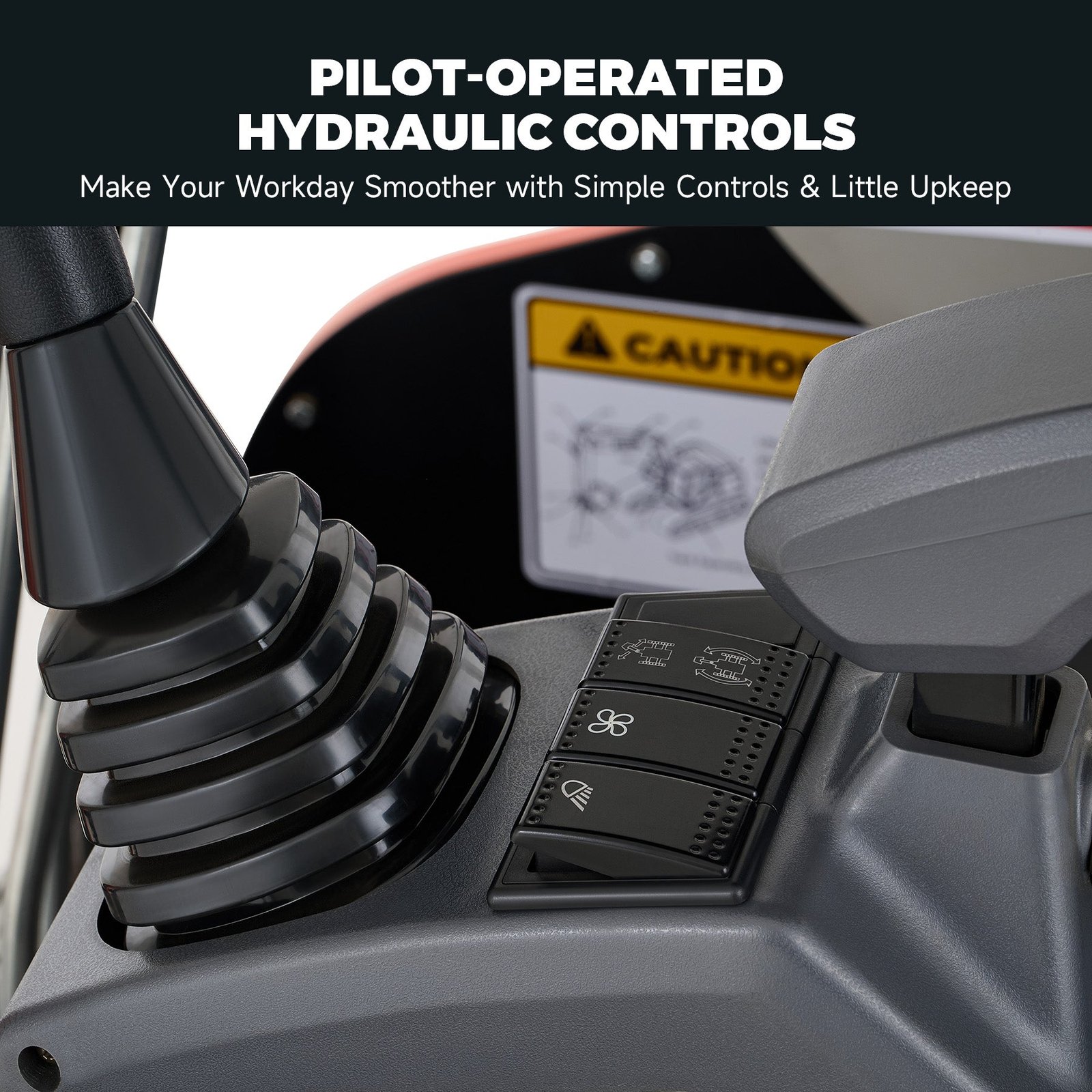

Pilot-Operated Hydraulic Controls

Precision pilot hydraulic controls deliver fast, accurate responses for both delicate and demanding tasks. Reduces operator fatigue significantly compared to direct-control machines — a meaningful difference during full-day operation.

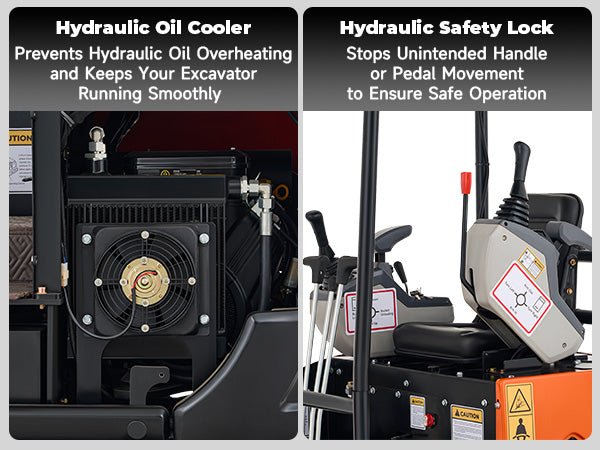

Hydraulic Oil Cooler & Safety Lock

Integrated hydraulic oil cooler prevents system overheating during sustained intensive operation — critical when running high-flow attachments or working in warm conditions. Safety lock prevents unintended machine movement when exiting or in unsafe positions.

551 lb Load Capacity — 1.6 Ton

250 kg (551 lb) rated load capacity and 1.6-ton operating weight. More than double the load capacity of the AX-12 series — handles substantially heavier material placement, pipe laying, and lifting that lighter machines cannot manage safely.

23 HP — 88.9″ Dig Depth

23 HP EPA-certified B&S engine for everything from light landscaping to heavy earthmoving. 2,258mm (88.9 in) maximum dig depth and 3,417mm (134.5 in) of ground reach — the deepest and widest reach among AHM open-canopy models.

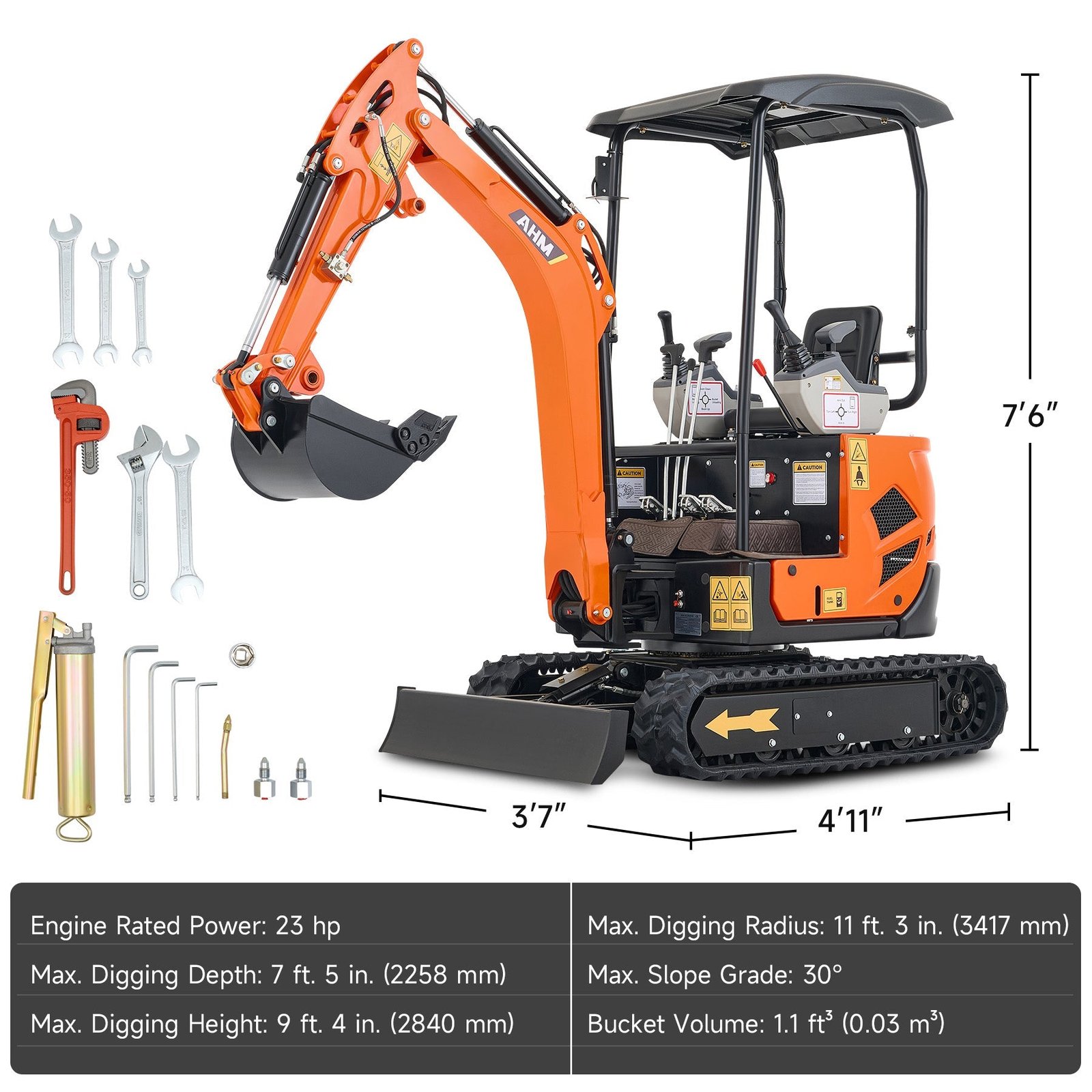

Full Specifications

Engine

Engine Power	23 HP (17 kW) — EPA Certified
Fuel Type	Gasoline
Fuel Tank	10.6 L / 2.8 gal
Fuel Consumption	3.6 L/hr (0.95 gal/hr)

Performance

Operating Weight	1.6 Ton
Max Load Capacity	551 lbs (250 kg)
Max Digging Depth	2,258 mm / 88.9 in / 7.4 ft
Max Digging Height	2,840 mm / 111.8 in / 9.3 ft
Max Dump Height	1,781 mm / 70.1 in
Max Digging Radius	3,417 mm / 134.5 in / 11.2 ft
Max Slope Grade	30°
Side Swing — Left	45°
Side Swing — Right	55°

Bucket & Blade

Bucket Width	400 mm / 15.7 in
Bucket Volume	0.03 m³ / 1.06 ft³

Construction, Safety & Warranty

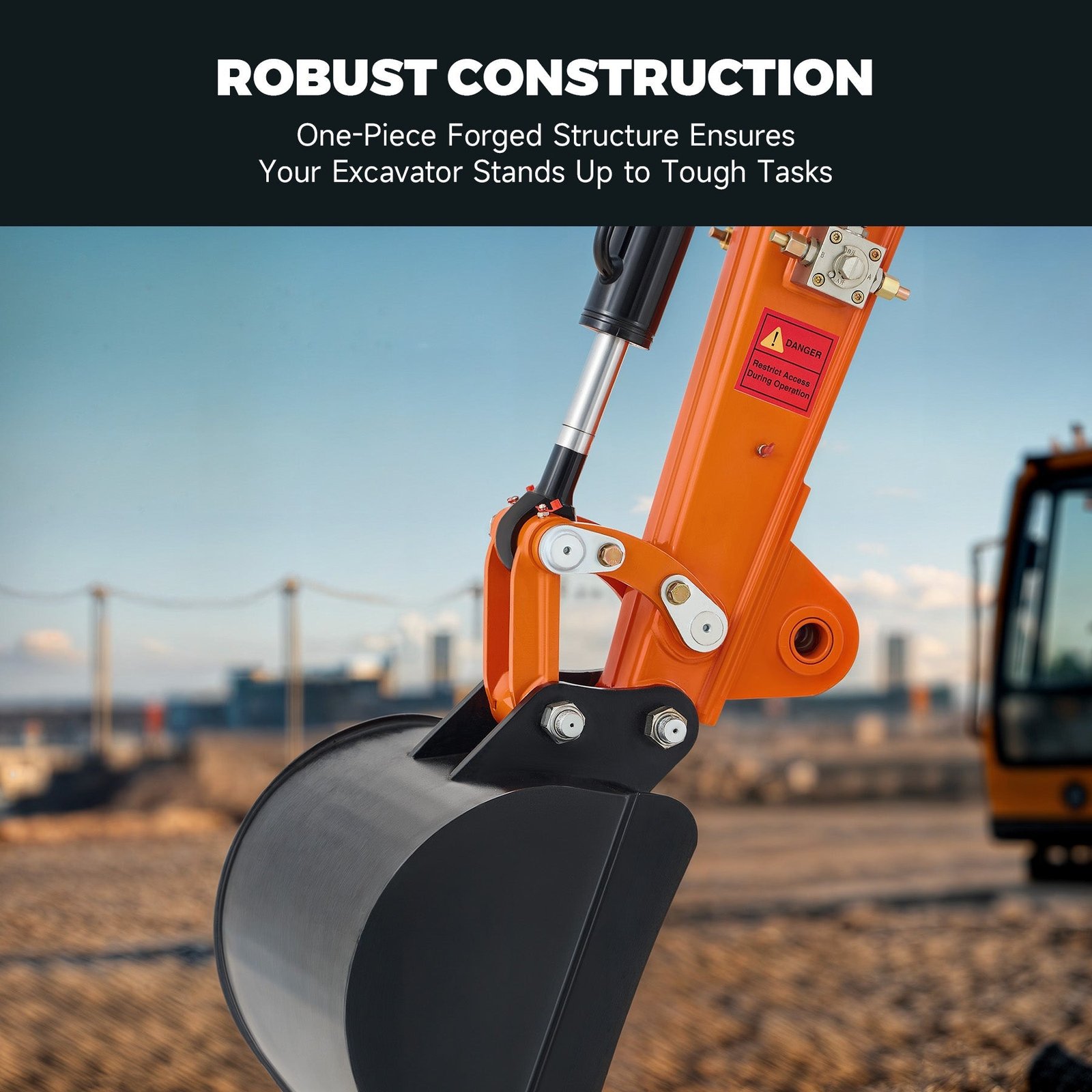

Frame Material	Steel

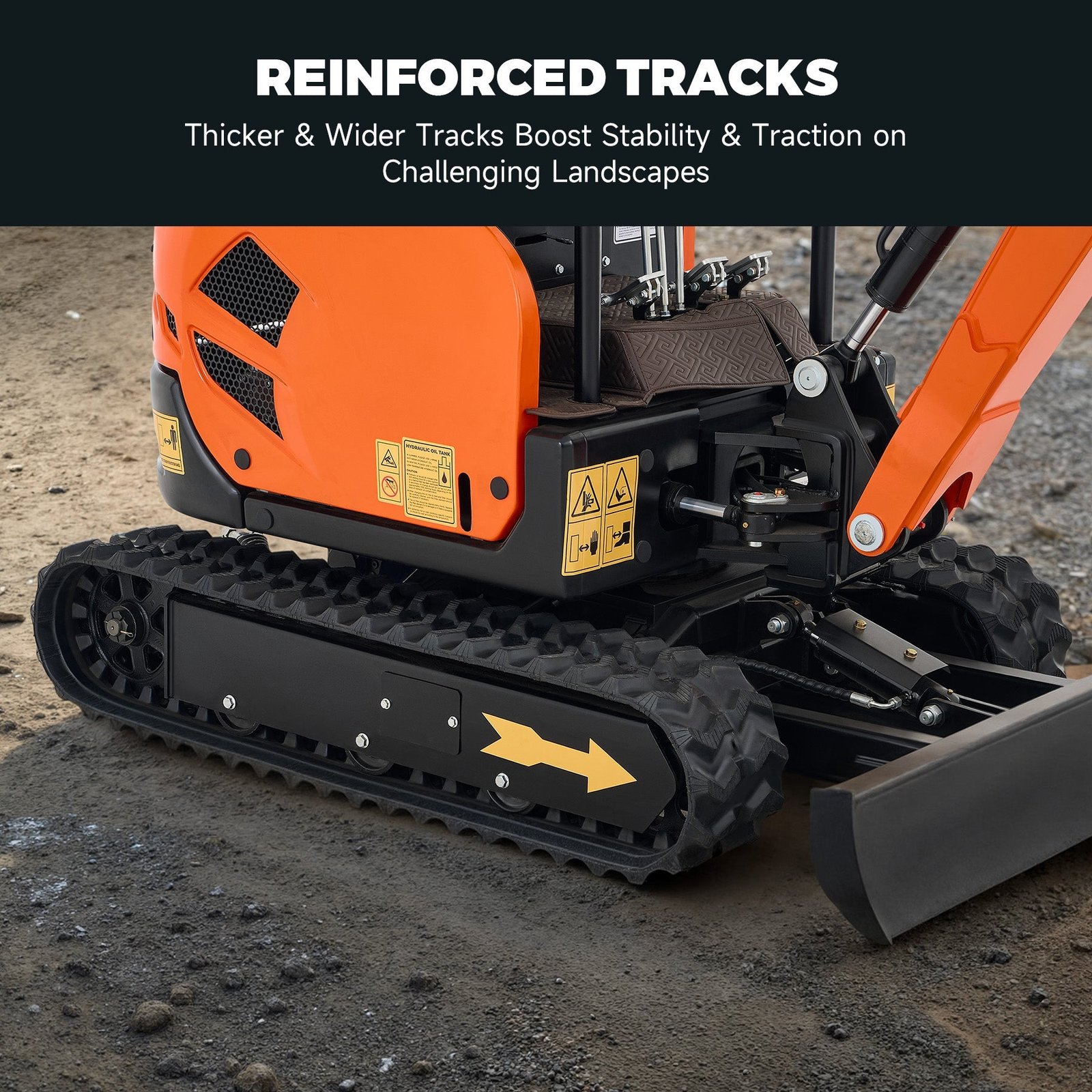

Track Material	All-Terrain Rubber
Cab Type	Open Canopy — 360° Visibility
Hydraulic Controls	Pilot-Operated
Hydraulic Oil Cooler	Included
Safety Lock	Included
Warranty	1 Year

Everything Included

✓

B&S 23 HP EPA Gasoline Engine

✓

Open Canopy (360° Visibility)

✓

Swing Boom (45°L / 55°R)

✓

Pilot-Operated Hydraulic Controls

✓

Hydraulic Oil Cooler

✓

Safety Lock

✓

15.7″ Grading Bucket

✓

Dozer Blade

✓

All-Terrain Rubber Tracks

✓

Oil Filter + Full Tool Kit

✓

Grease Gun & Nozzle

✓

1-Year Warranty

Full Package List

Mini Excavator (1x)

Oil Filter (1x)

Adjustable Wrench (1x)

Wrenches (4x)

Grease Gun (1x)

Grease Gun Nozzle (1x)

Hex Wrenches (4x)

Socket (1x)

Pipe Clamp Wrench (1x)

Adapters (4x)

Instruction Manual (1x)

Included — By Category

Engine & Hydraulics

B&S 23 HP EPA Engine

Pilot-Operated Hydraulic Controls

Hydraulic Oil Cooler

Safety Lock

Cab & Structure

Open Canopy (360° Visibility)

All-Terrain Rubber Tracks

Dozer Blade

Boom & Attachments

Swing Boom (45°L / 55°R)

15.7″ Grading Bucket

Tool Kit & Warranty

Oil Filter + Full Wrench Set

Grease Gun + Nozzle

Instruction Manual

1-Year Warranty

Built For

Work Along Walls & Fences

Fair-Weather Sites

Deep Excavation

Foundation Digging

Heavy Material Handling

High-Flow Attachments

Tight Access Sites

Utility Installation

Professional Contractors
