Name: MechMaxx Mini Compact Excavator with B&amp;S VANGUARD 408cc 14HP Engine, 65.7" Max Digging Depth, 2370 lb Operating Weight, Model MEC10
SKU: mechmaxx-mini-compact-excavator-with-b-s-vanguard-408cc-14hp-engine-65-7-max-digging-depth-2370-lb-operating-weight-model-mec10
Availability: InStock

Original price was: $9,699.00.Current price is: $6,109.99.

Large Orders: For large quantity orders, please contact us directly at infos@bidado00fficial.com

+1 (253) 270-1217 Sales Contact Number

infos@bidado00fficial.com Contact Email

Free Ground Shipping

No Sales Tax

Lifetime Tech Support

Bidadoo 100% Guarantee

Description

Description

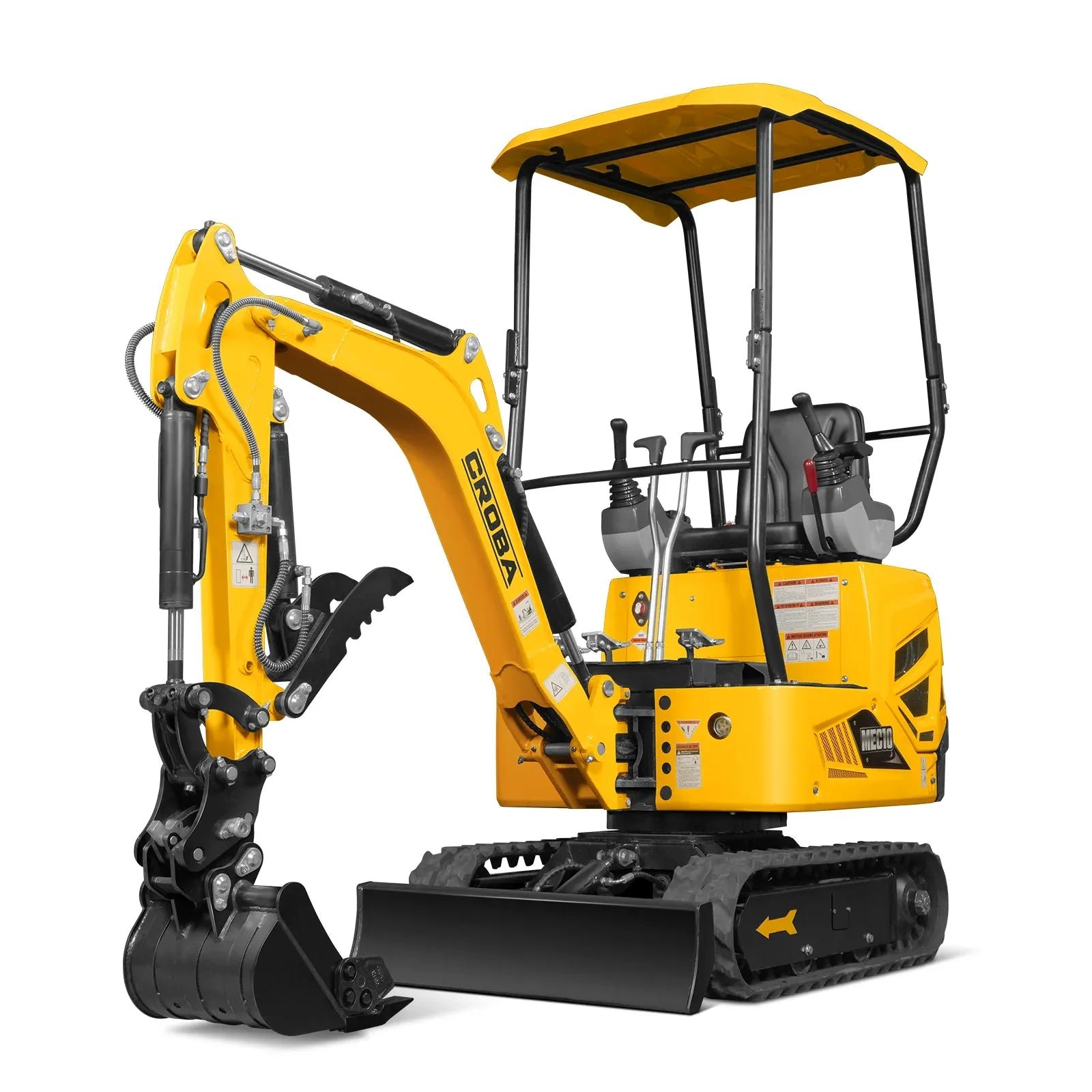

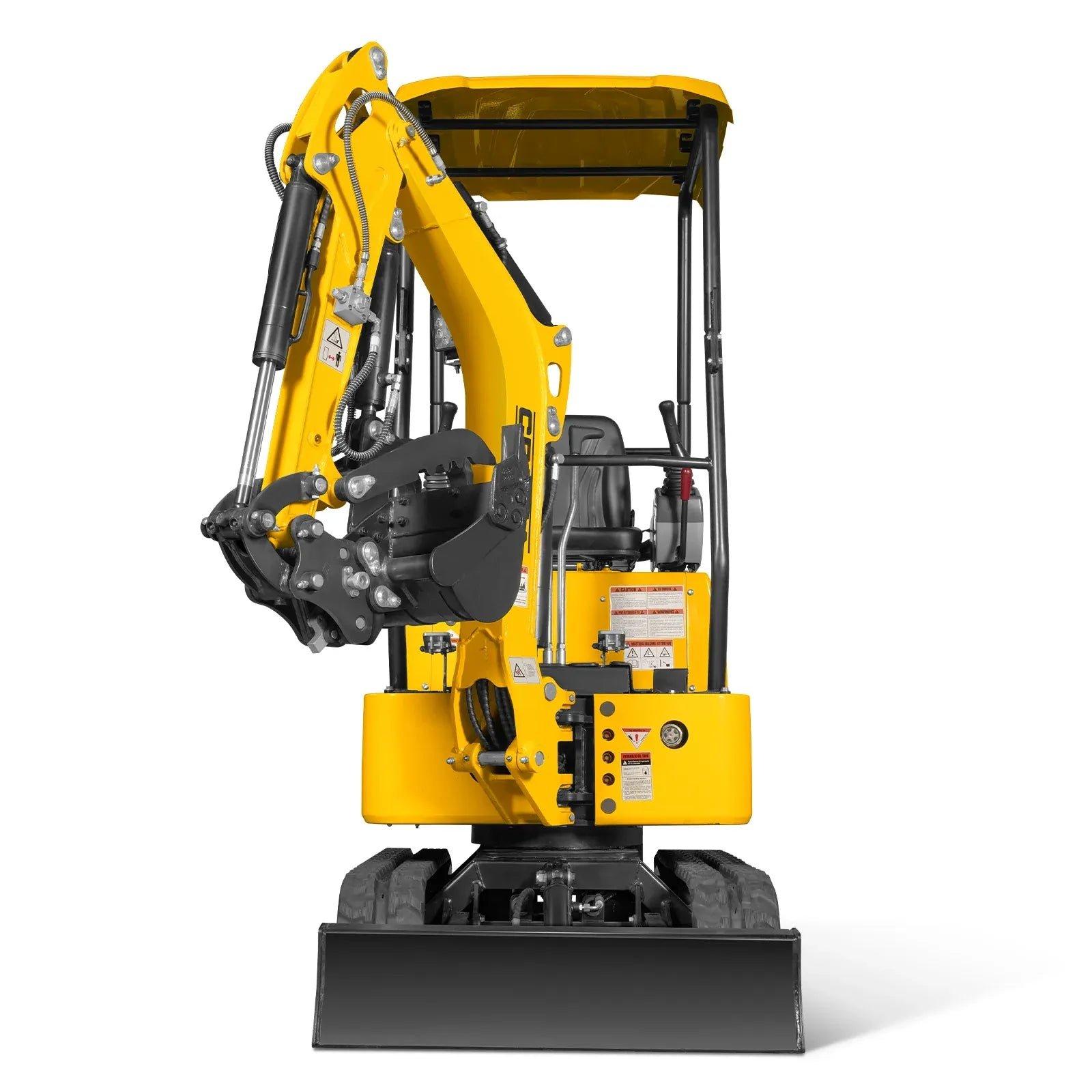

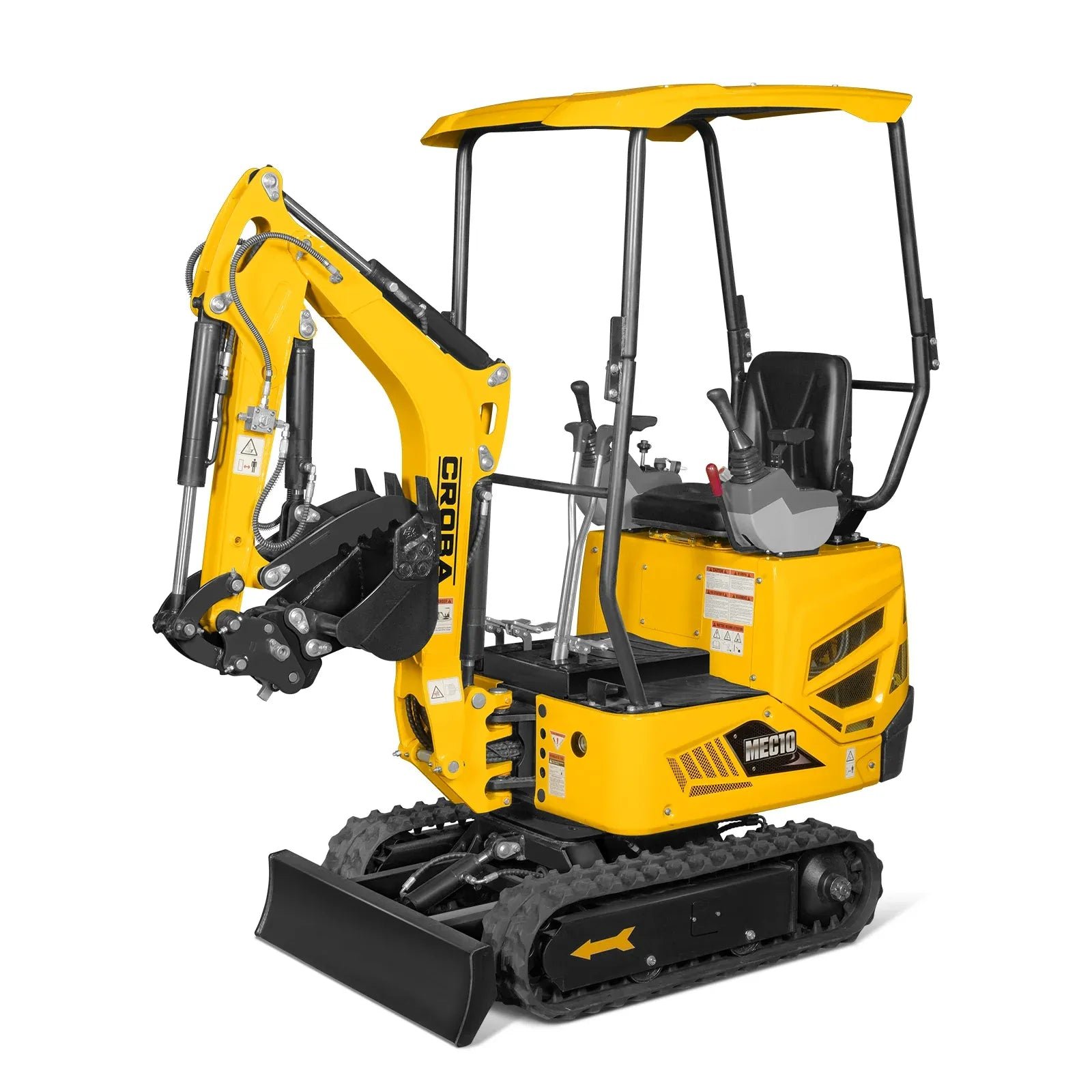

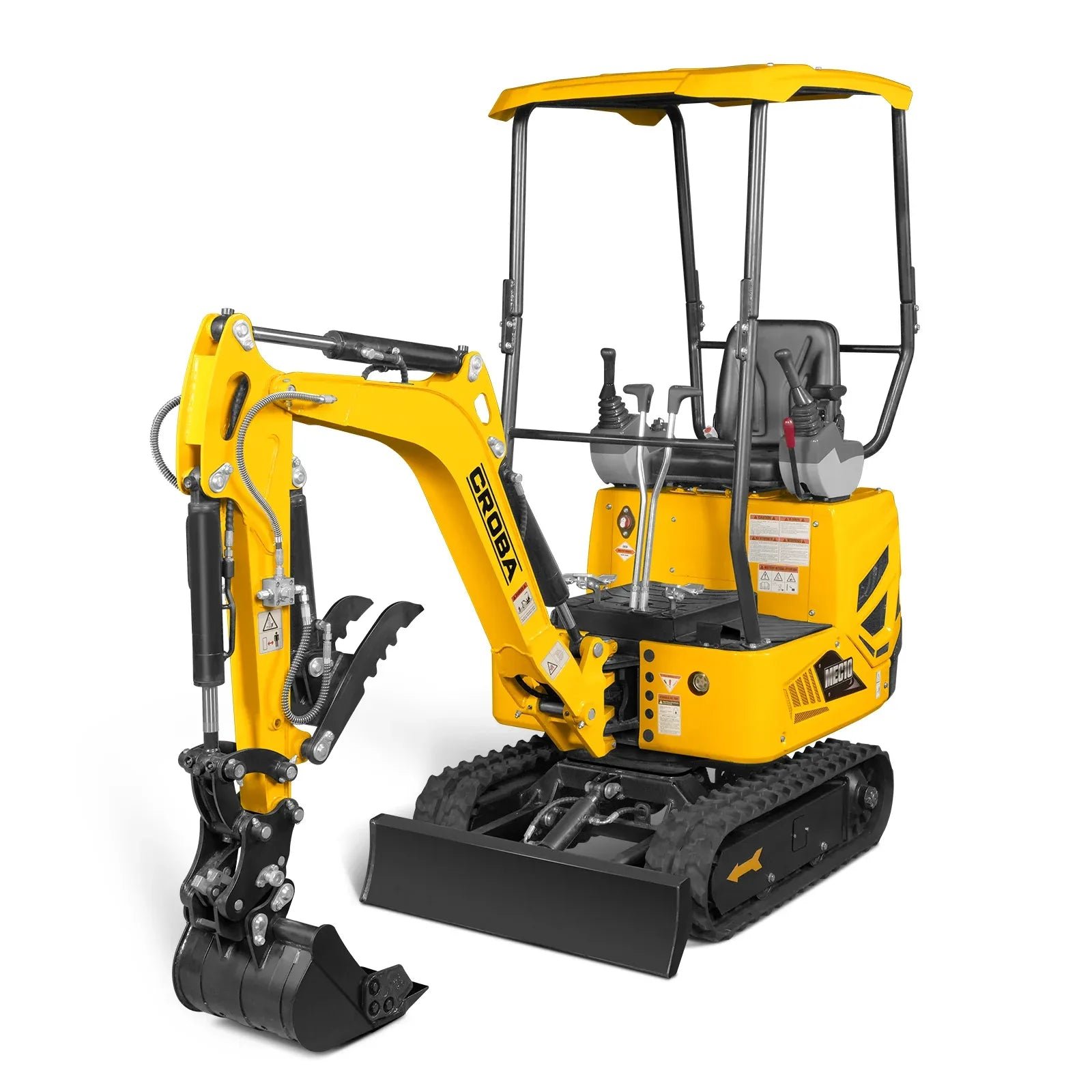

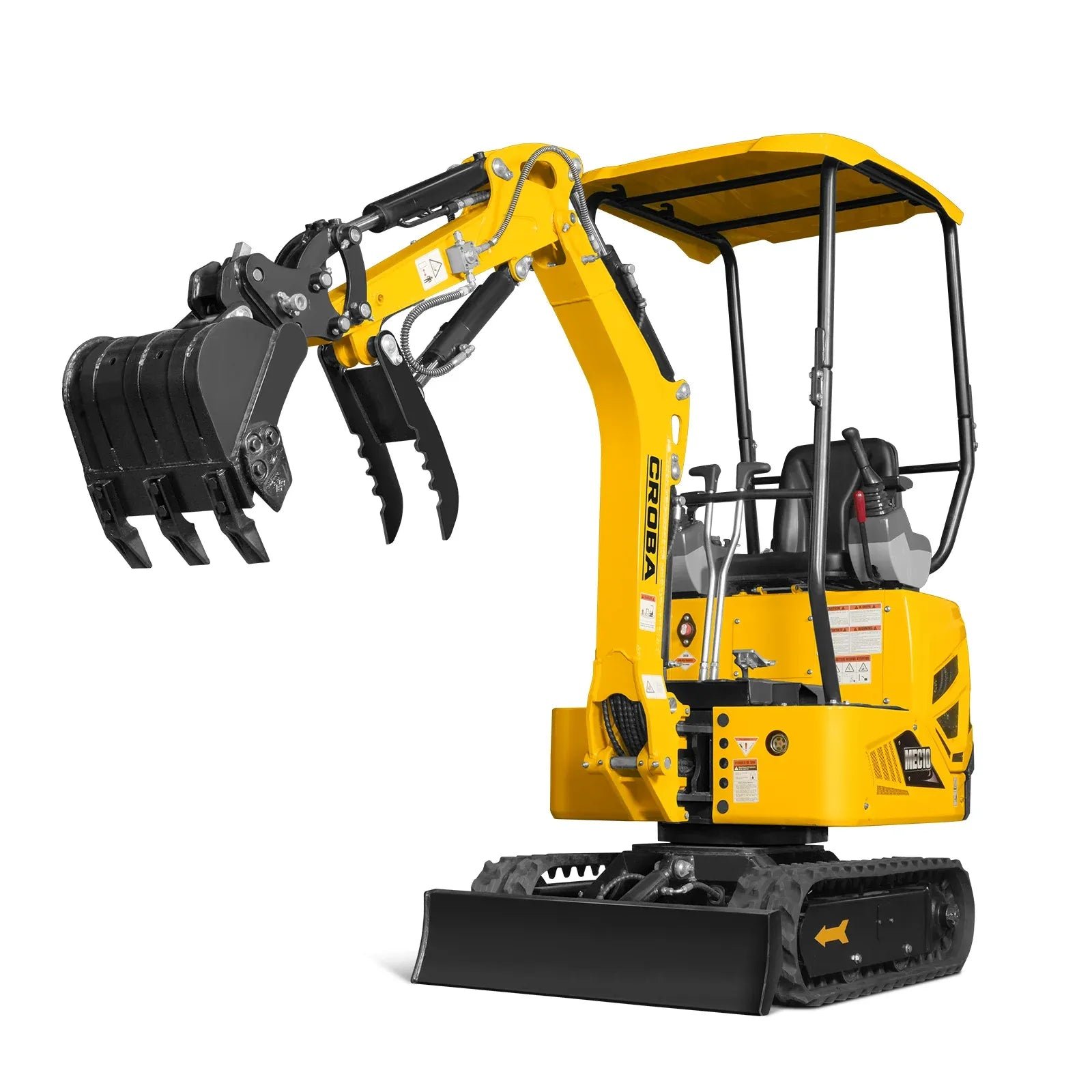

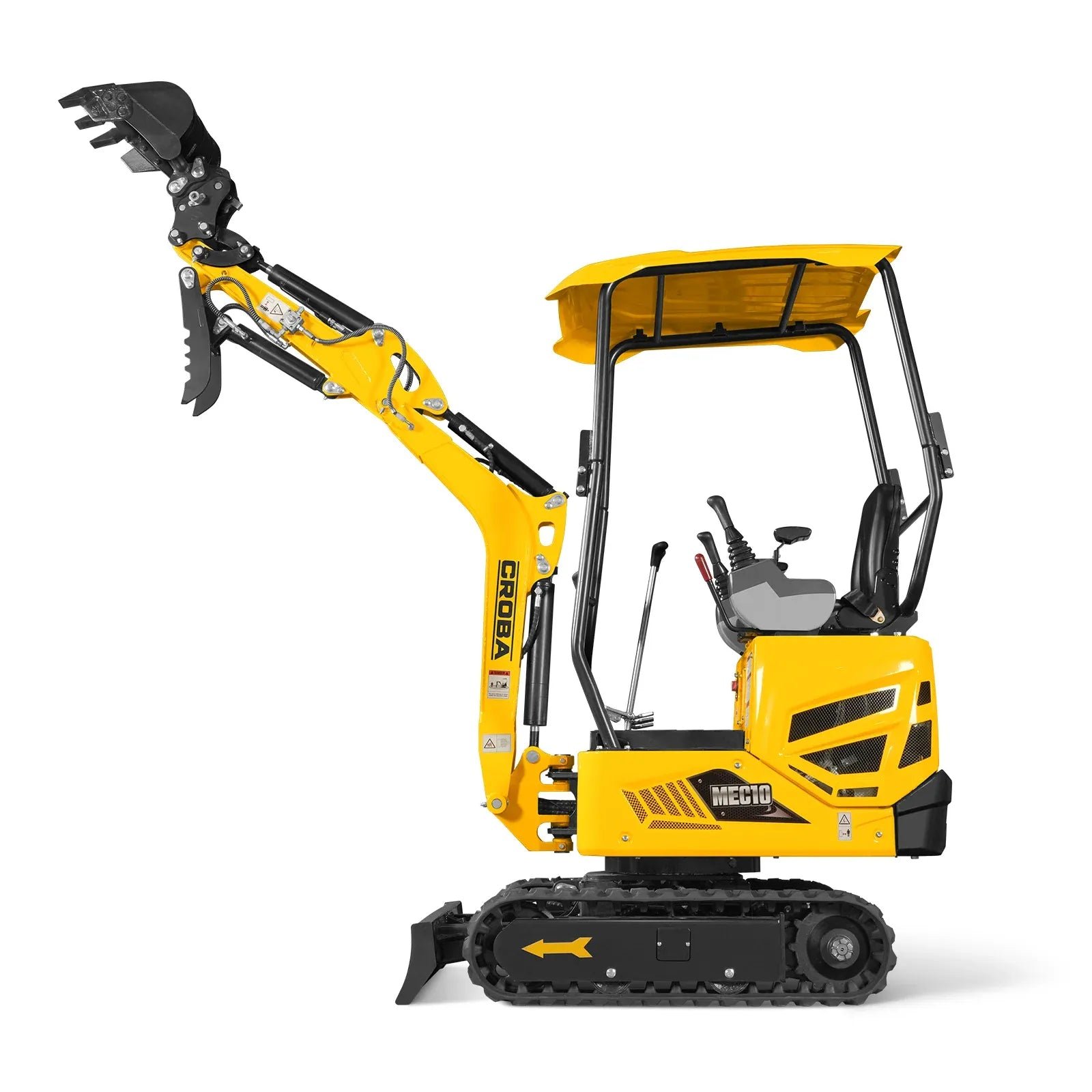

MechMaxx · MEC10 · Mini Compact Excavator

MechMaxx MEC10 Mini Compact Excavator

B&S Vanguard 408cc 14 HP — Pilot Controls — Hydraulic Thumb

Compact, capable, and engineered for tight access. The MEC10 is powered by a Briggs & Stratton Vanguard 408cc engine — a professional-grade single-cylinder powerplant with a 3-year warranty — and delivers 65.7″ of digging depth and 118.7″ of ground reach in a 2,370 lb footprint.

Briggs & Stratton Vanguard 25V000 — 408cc · 14 HP · 3,600 RPM

3-Year Warranty + 1 Bonus Year · Professional-Grade Single Cylinder

200-hr oil change intervals — 2× industry standard

600-hr air cleaner life — 2× industry standard

50% less oil waste

45° high inclination operation

Optimised sound & low vibration

Reduced environmental impact

14 HP

Vanguard 408cc

2,370 lbs

Operating Weight

65.7″

Max Dig Depth

118.7″

Max Ground Reach

Key Features

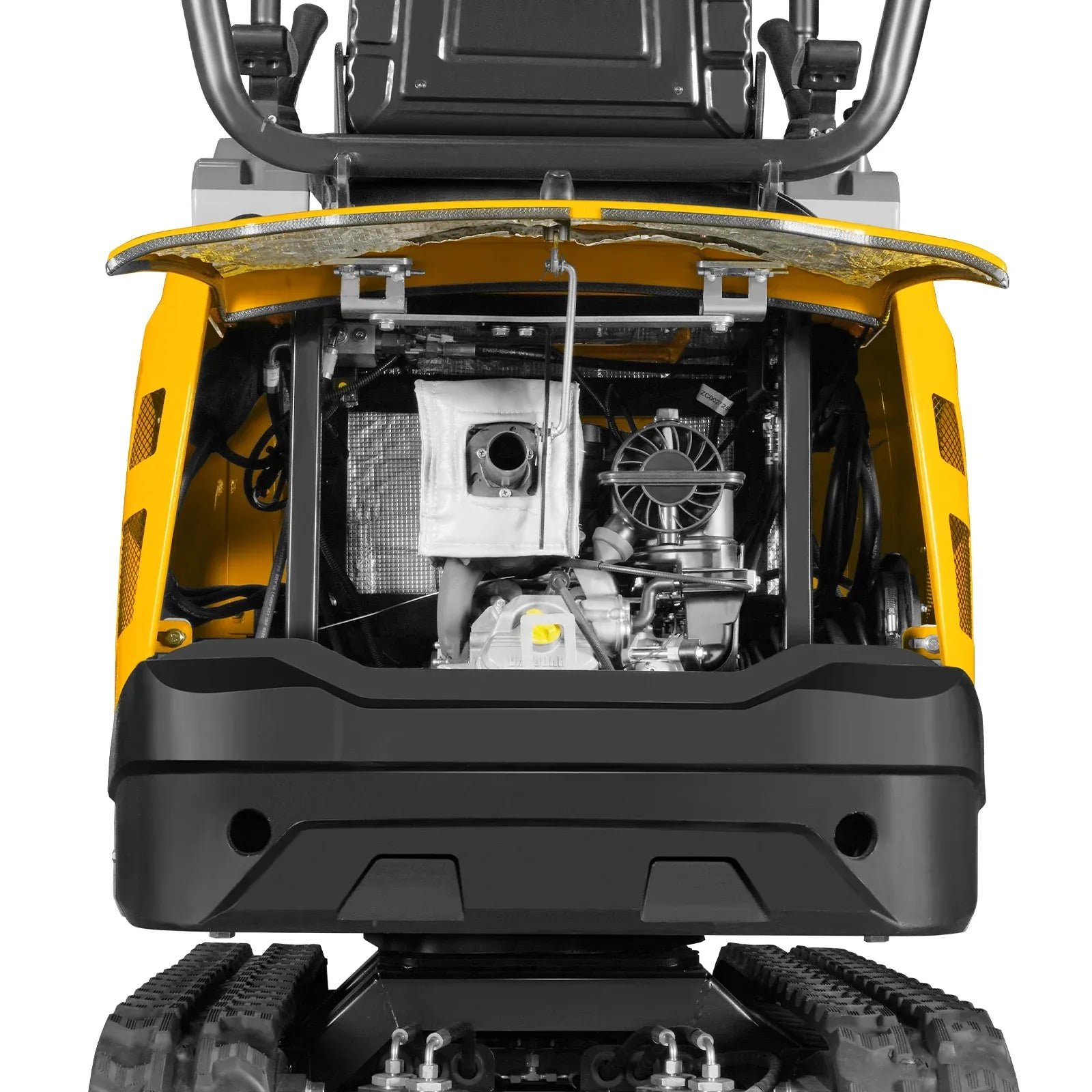

B&S Vanguard 408cc 14 HP Engine

Professional-grade Briggs & Stratton Vanguard single-cylinder air-cooled engine. 200-hour oil change intervals and 600-hour air cleaner life — both double the industry standard. Built for demanding, continuous professional operation with 50% less oil waste than comparable engines.

3-Year + 1 Bonus Year Engine Warranty

The Vanguard engine comes with a 3-year standard warranty plus 1 additional bonus year — a total of 4 years of engine protection. Significantly more coverage than standard mini excavator engines at this size class.

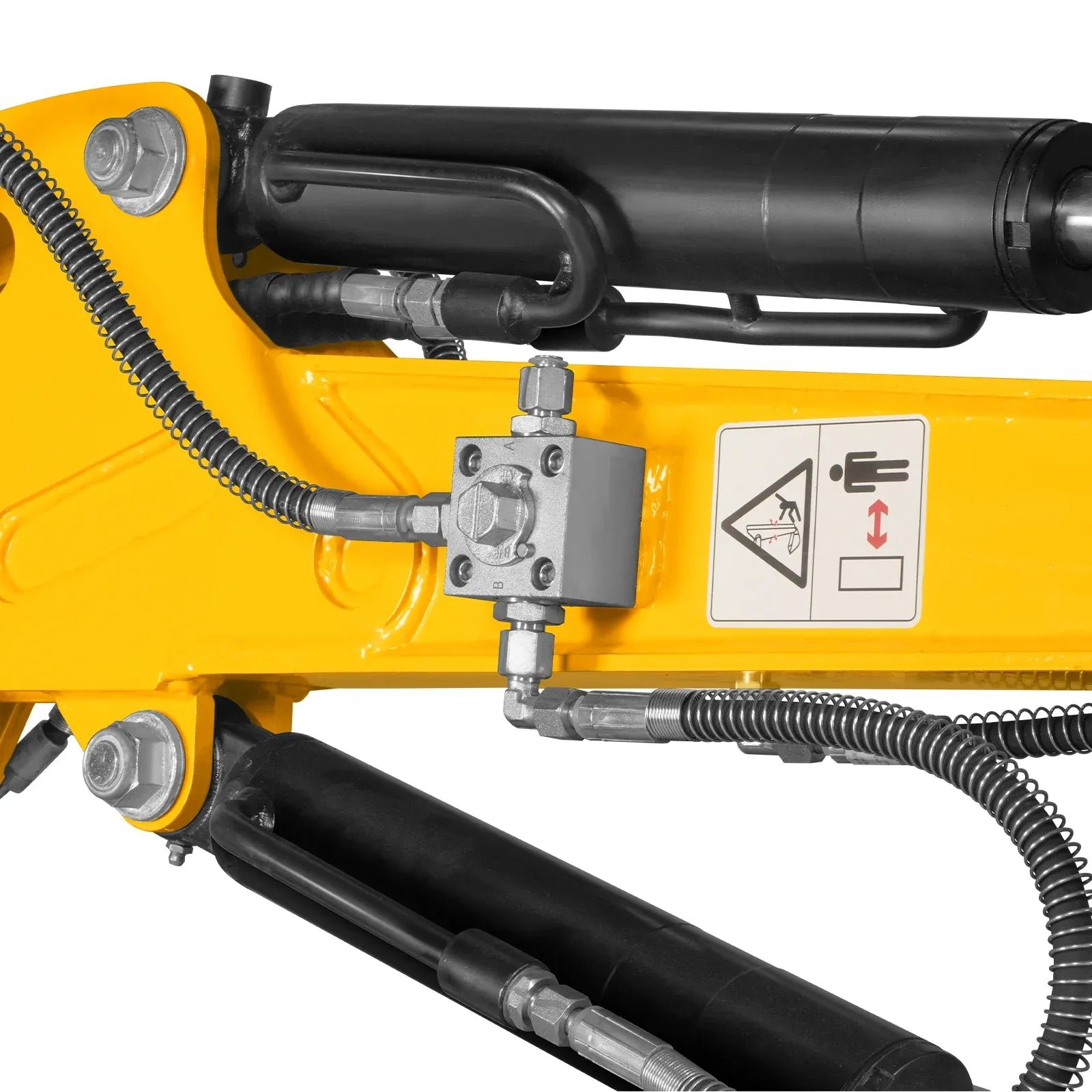

High-Flow Hydraulic System

4.65 GPM max discharge flow with an enhanced hydraulic system supporting high-flow attachments including augers, rippers, and mulcher heads — expanding capability well beyond basic digging for concrete work and vegetation management.

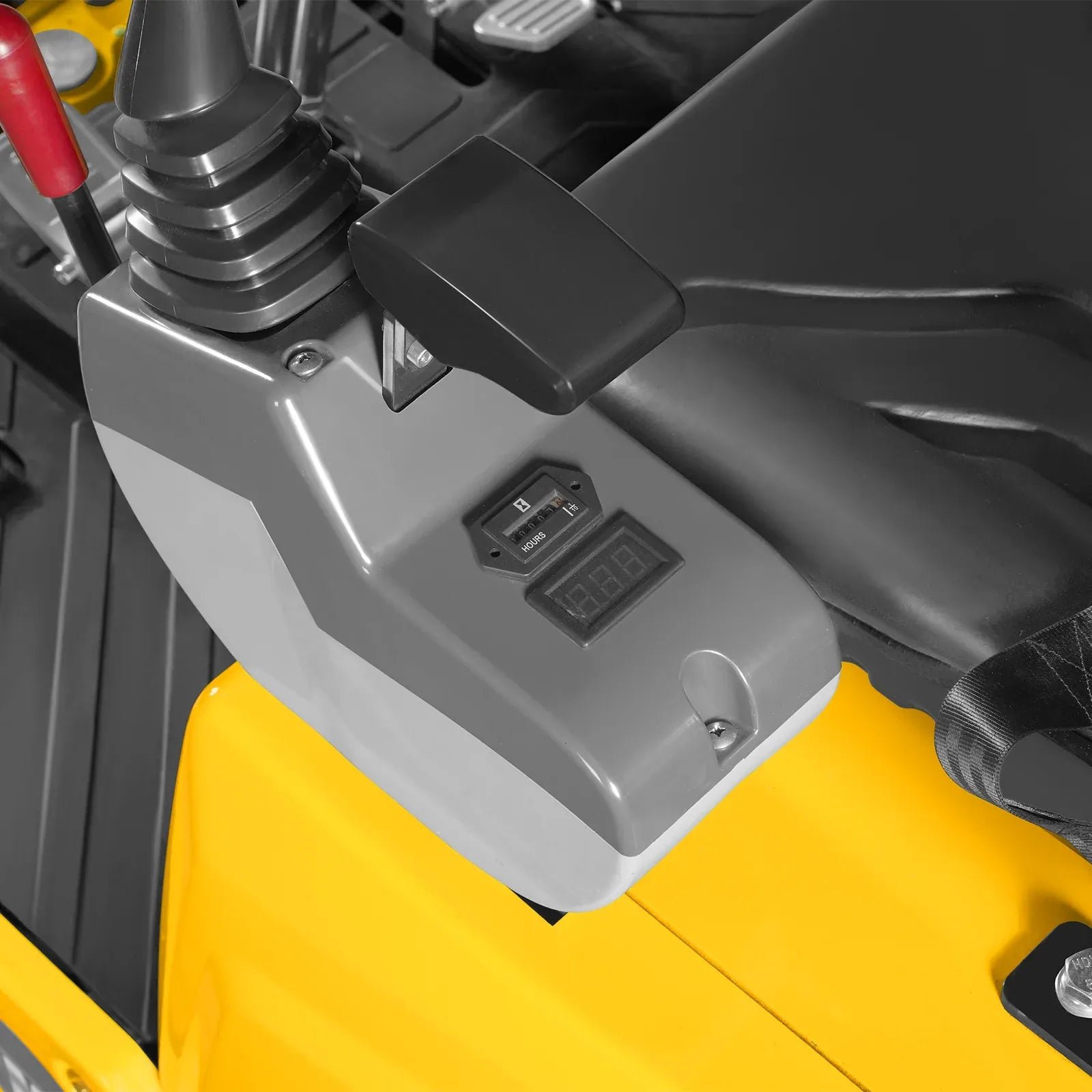

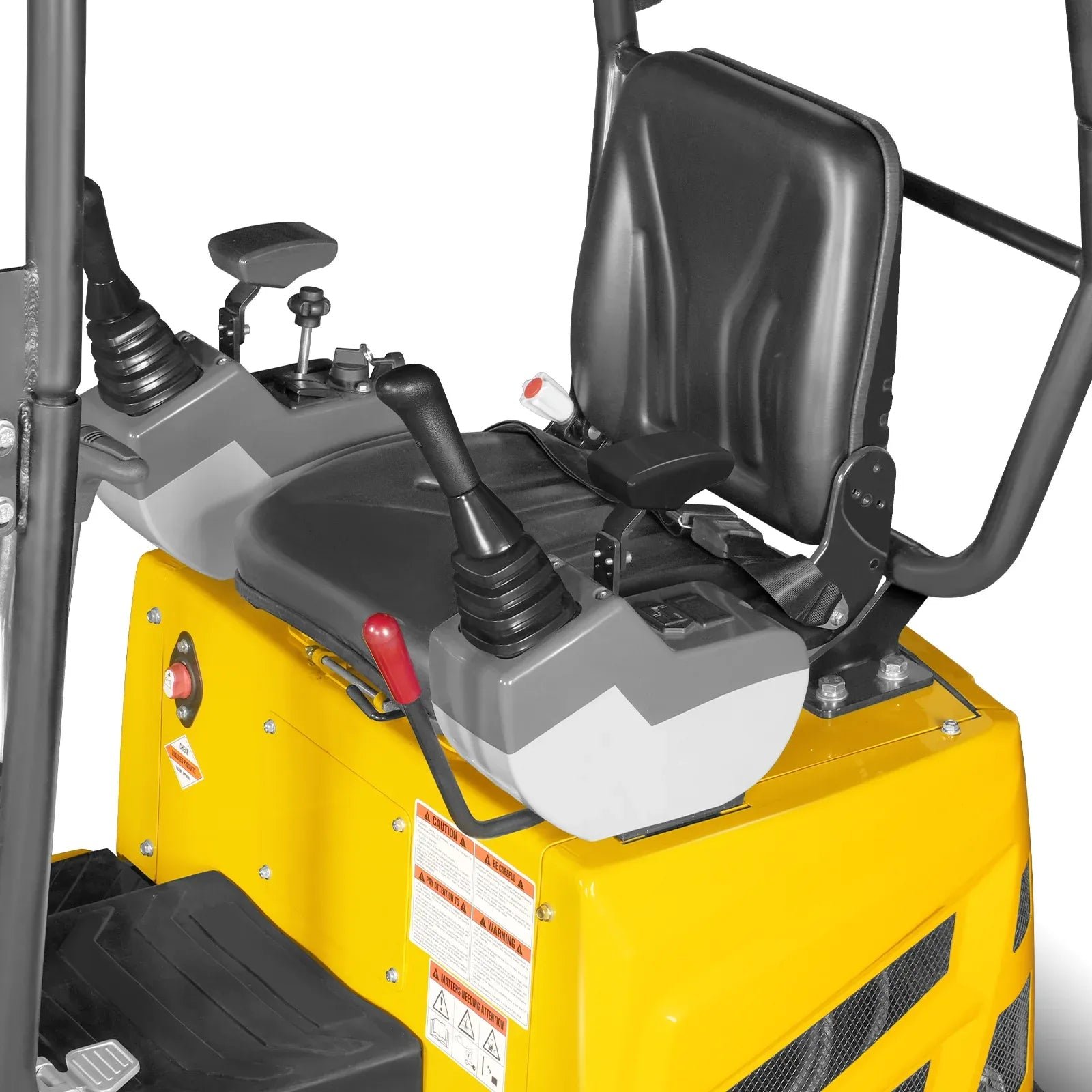

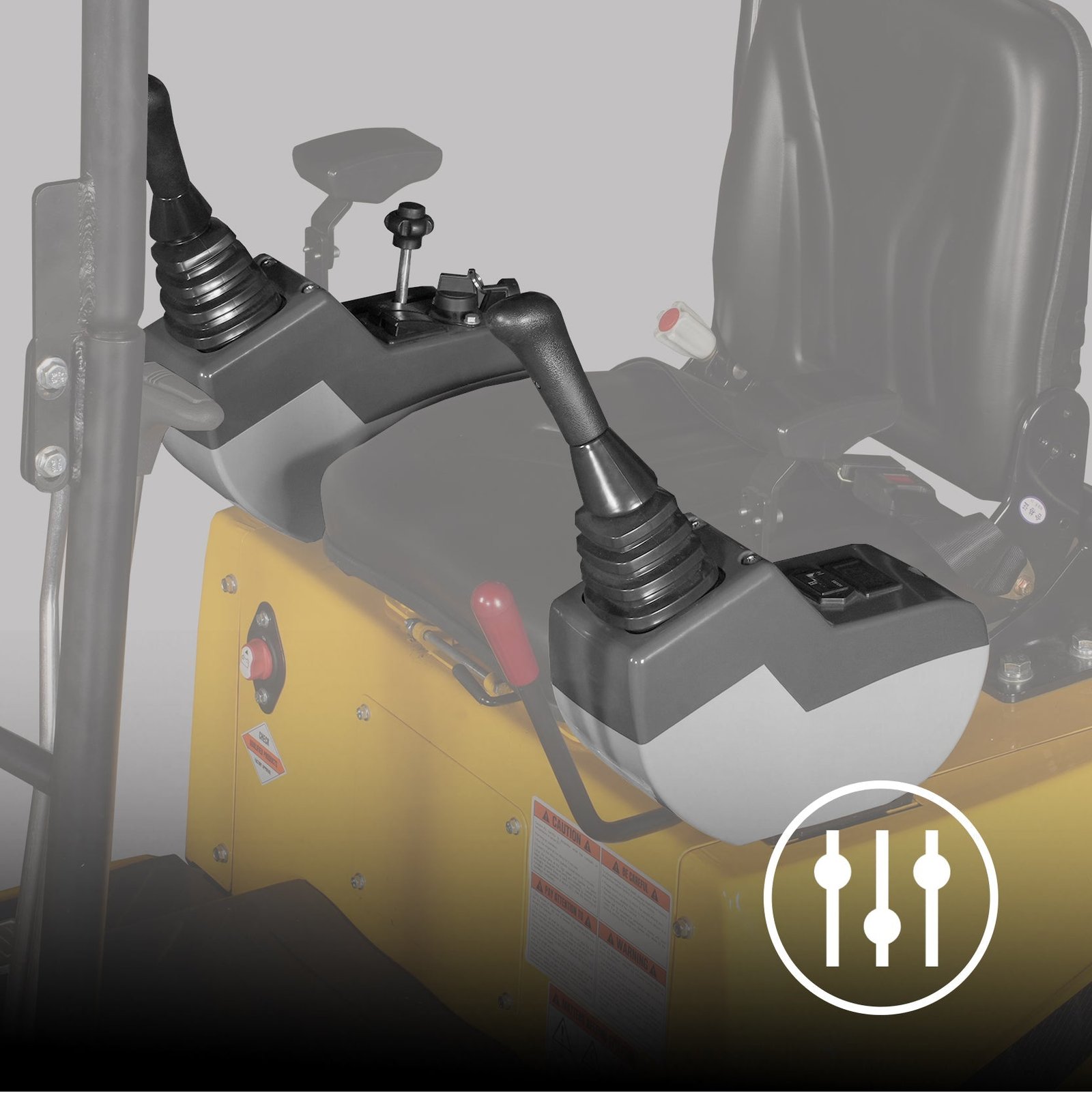

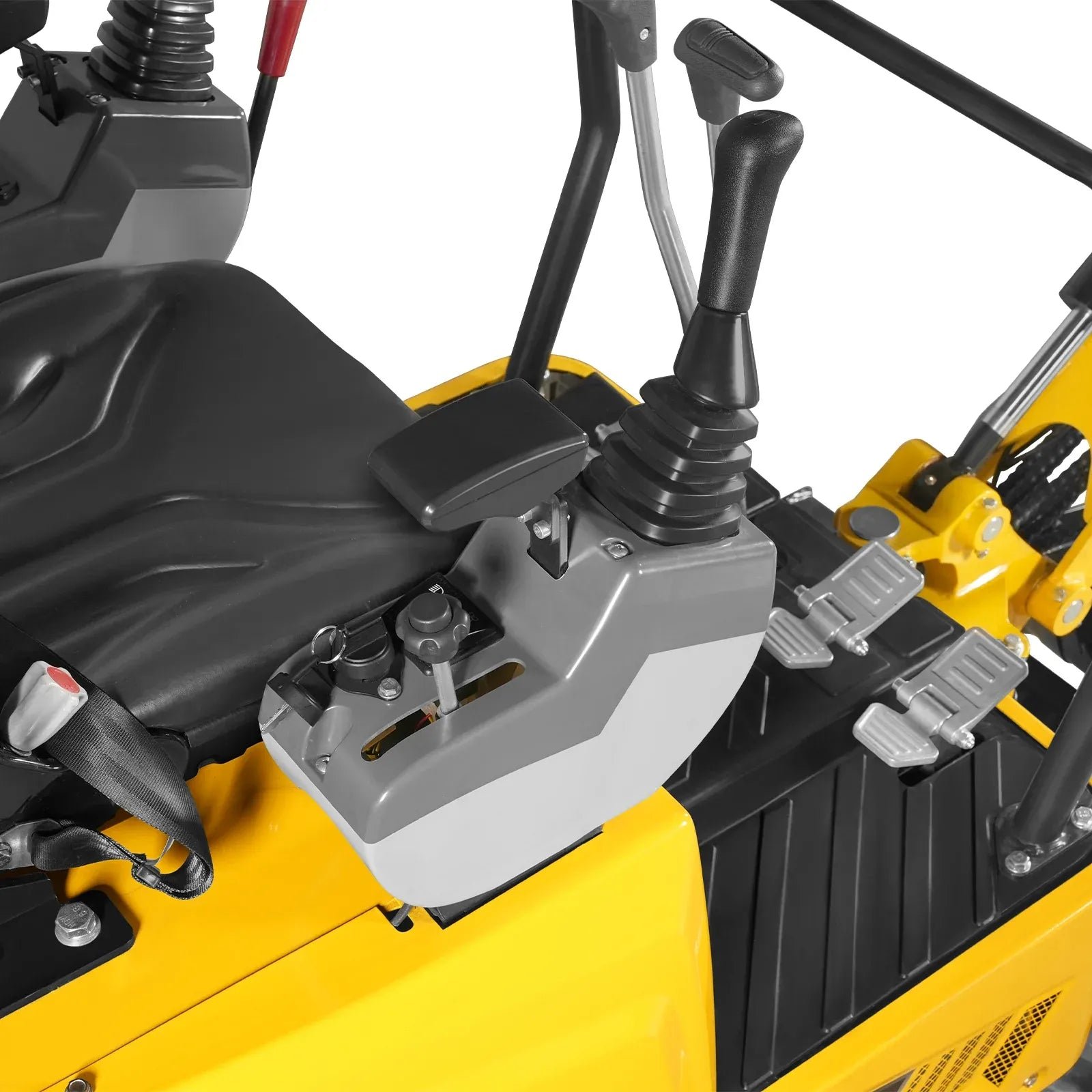

Pilot-Operated Controls

Smooth, responsive pilot-operated control levers for precise machine handling. Reduces operator fatigue during extended operating periods and improves accuracy on detailed digging and grading work.

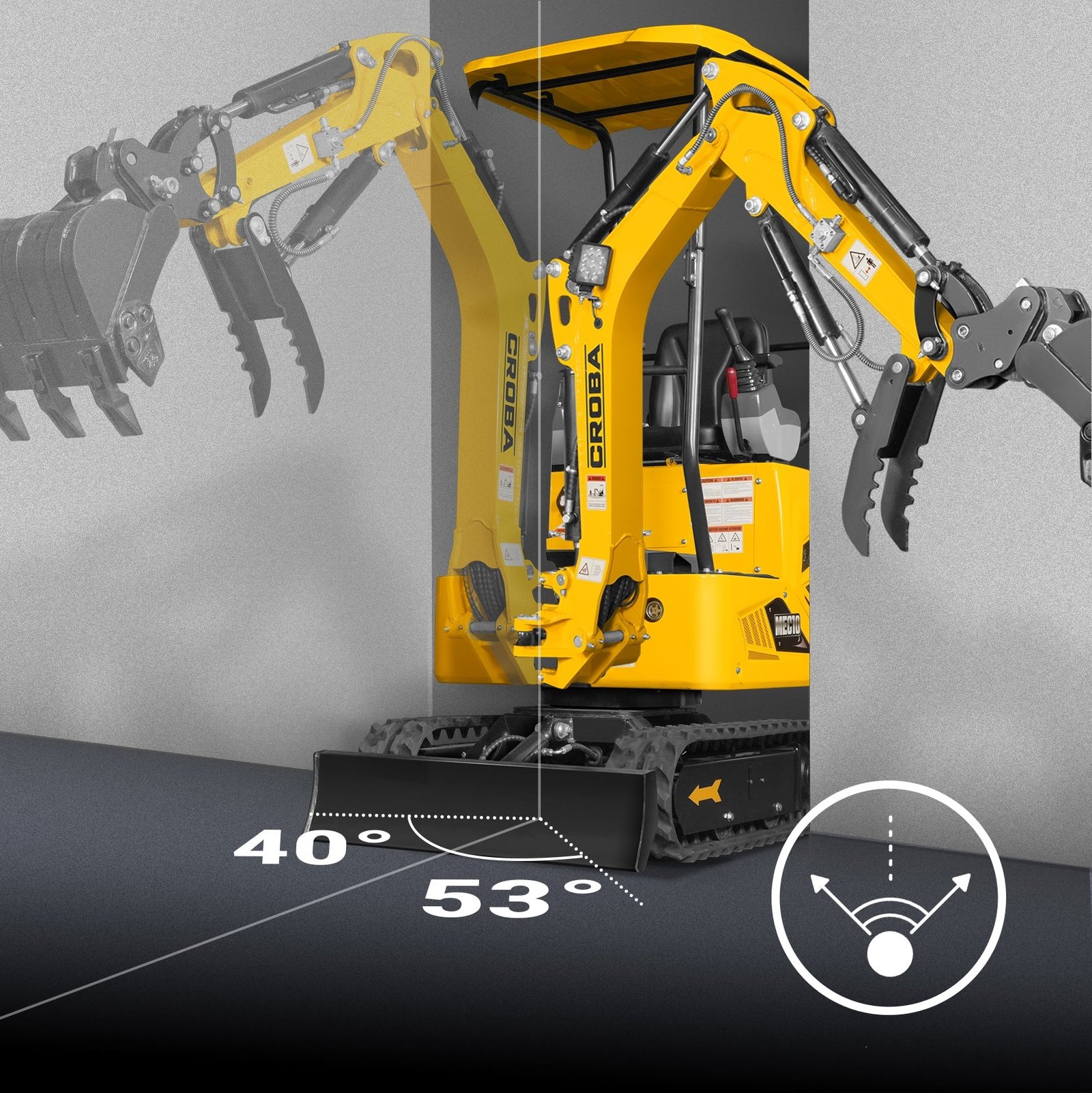

Boom Swing — 53° Left / 40° Right

Swing the digging arm left or right to access tight spaces alongside walls and fences without repositioning the machine — dump soil exactly where you need it.

360° Rotation

Full 360° cab rotation allows efficient digging, loading, and repositioning without moving the machine — maximising productivity in the tightest jobsite conditions.

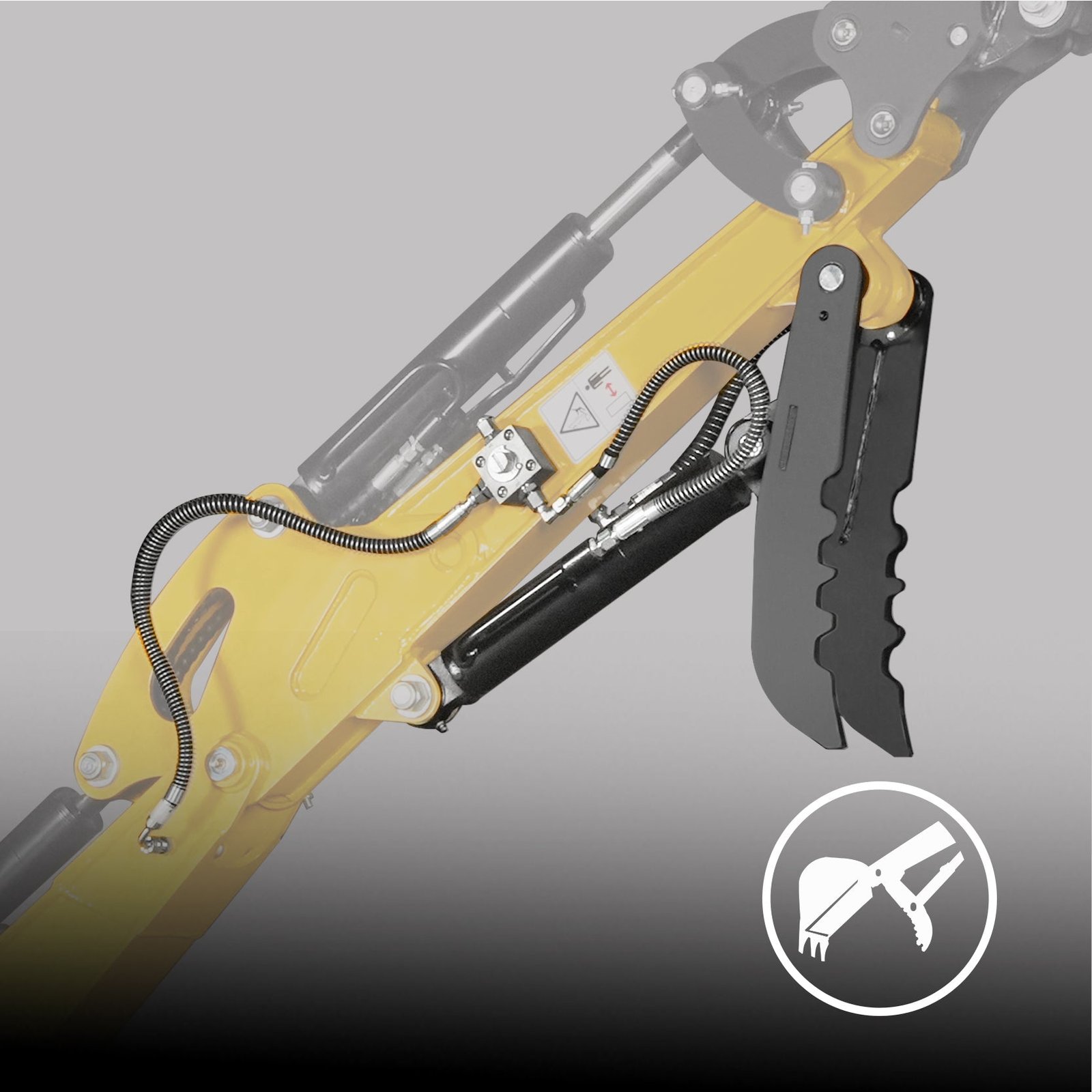

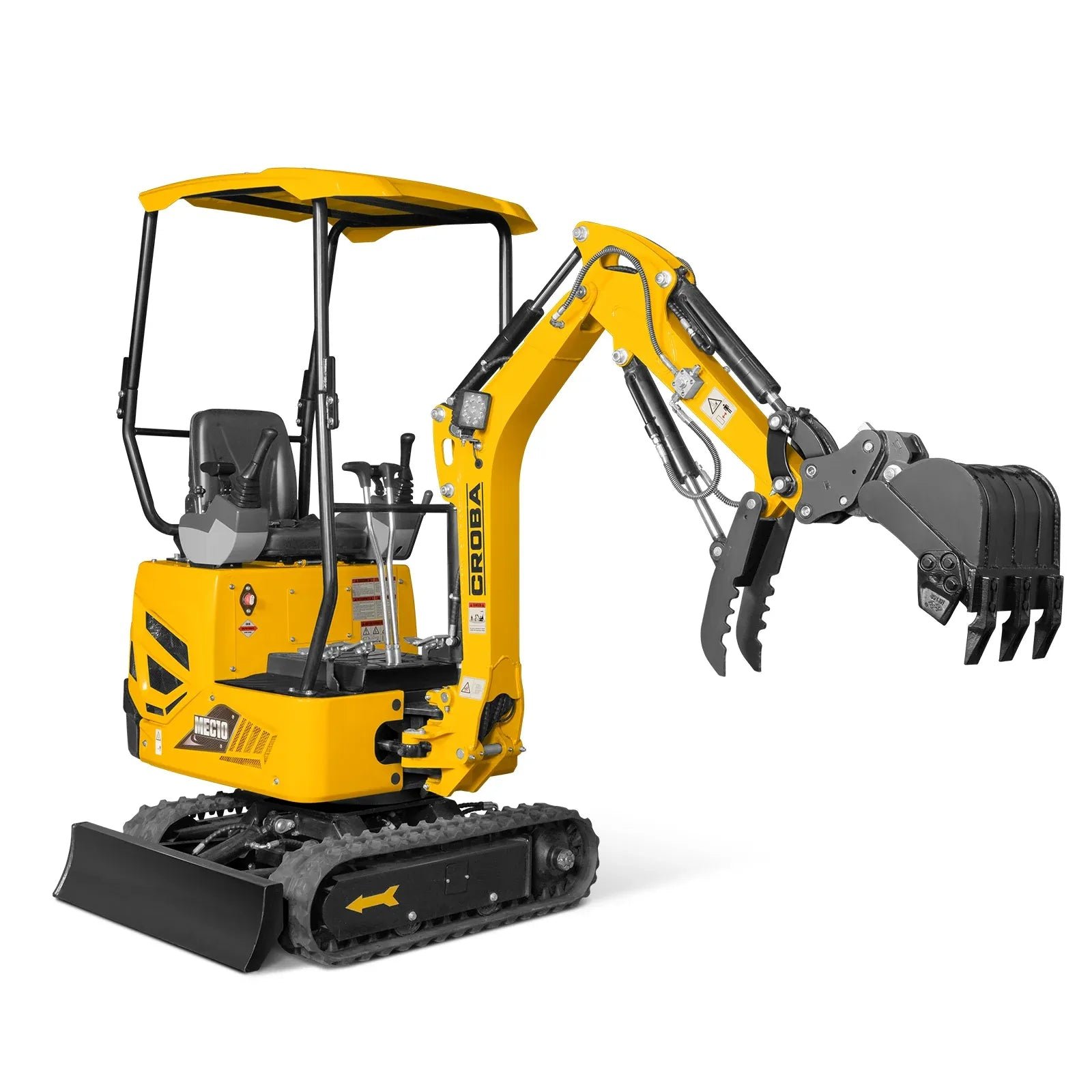

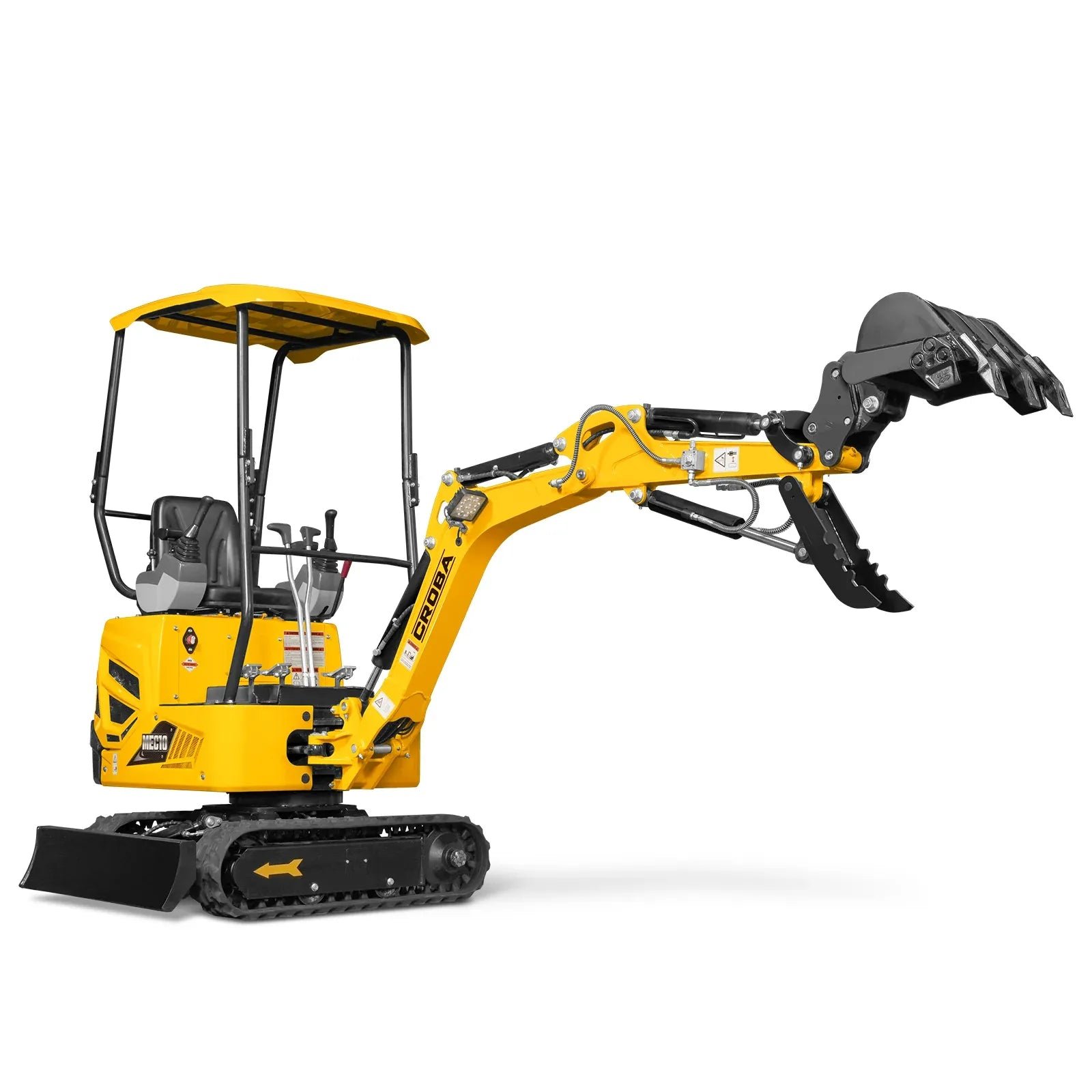

Hydraulic Thumb Included

Adjustable hydraulic thumb for convenient handling of rocks, branches, and debris — position controlled directly from the operator’s seat. Included as standard on every MEC10.

45° High Inclination Capability

The Vanguard engine is engineered to operate at up to a 45° angle of inclination — far beyond standard mini excavator engines. Work confidently on steep slopes, embankments, and uneven terrain.

Full Specifications

Engine

Engine Model	Briggs & Stratton Vanguard 25V000
Engine Output	14 HP
Rated Speed	3,600 RPM
Displacement	408 cc
No. of Cylinders	1
Bore	3.465 in
Stroke	2.638 in
Engine Warranty	3 Years + 1 Bonus Year
Oil Change Interval	200 hrs (2× industry standard)
Air Cleaner Life	600 hrs (2× industry standard)
Max Inclination	45°

Performance & Scope of Work

Operating Weight	2,370 lbs

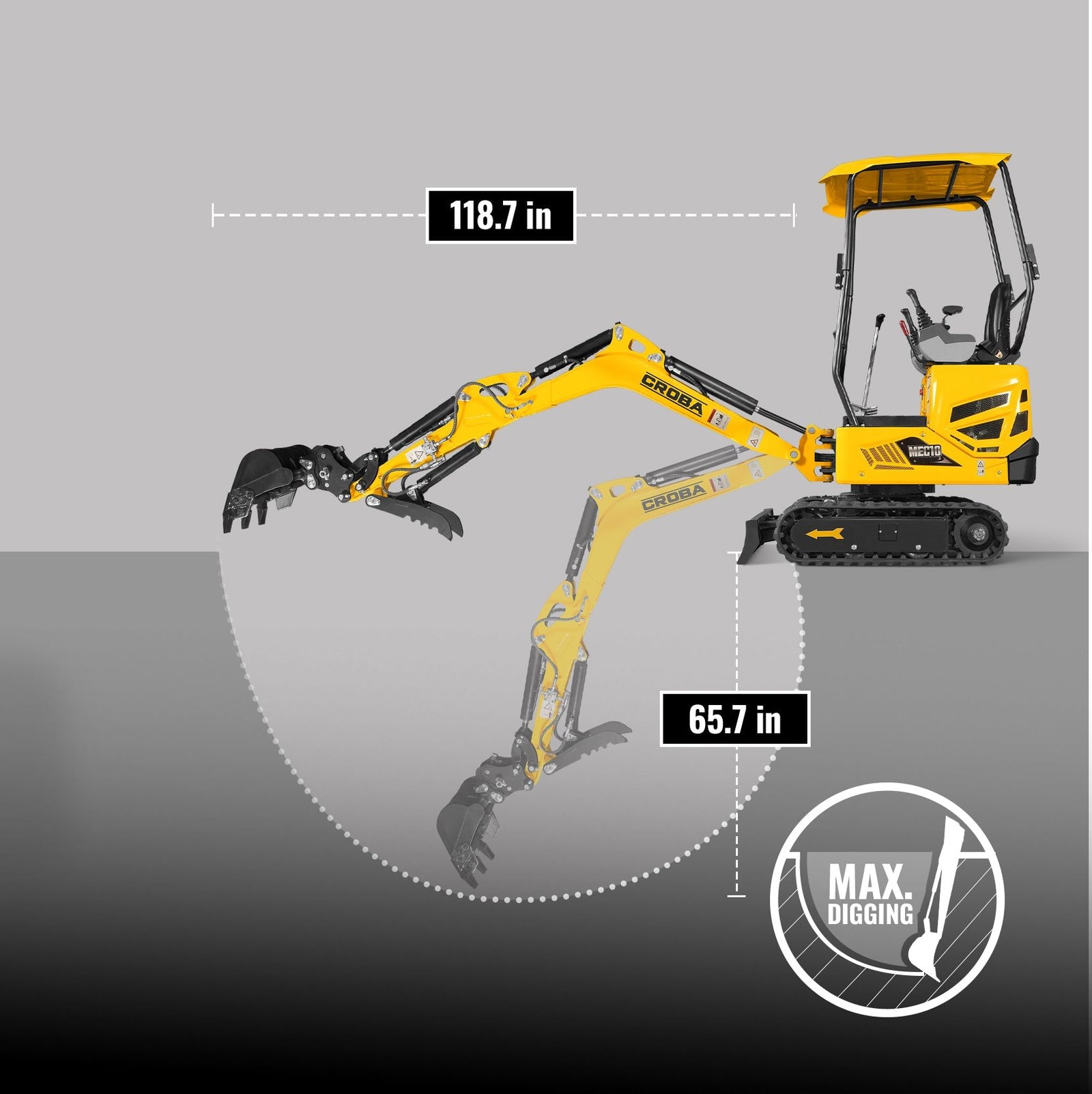

Max Digging Depth	65.7 in
Max Vertical Digging Depth	62.6 in
Max Digging Height	109 in
Max Dumping Height	80 in
Max Digging Radius	119 in
Max Digging Radius at Ground Level	118.7 in
Max Lift Above Ground	5.9 in
Max Depth Dozer Blade	7.4 in
Max Lifting Height Dozer Blade	5.9 in
Min Turning Radius of Working Device	48.1 in
Boom Swing — Left	53°
Boom Swing — Right	40°
Rotation	360°
Tail Swing Radius	32.6 in

Travel System

Max Travel Speed	0.75 mph
Maximum Traction Force	3,035 lbf
Ground Clearance	15.9 in
Ground Pressure	5.1 psi
Gradeability — Maximum	30°

Hydraulic System

Max Discharge Flow	4.65 GPM
Swing Speed	8 RPM

Digging Forces & Bucket

Bucket Digging Force	1,619 lbf
Arm Digging Force	1,191 lbf
Bucket Capacity	0.7 ft³
Bucket Width	15 in

Dimensions

Transportation Length	82 / 115 in
Overall Width	37 in
Track Width	37 in
Overall Height (to Top of Cab)	88.5 in
Track Length	48.5 in
Track Belt / Shoe Width	7 in
Crawler Wheel Base	36 in
Counterweight Ground Clearance	16 in

Capacities

Fuel Tank	1.52 gal
Hydraulic Oil Tank	3.96 gal
Engine Oil	0.7 gal

Shipping

Packing Size	91 × 40 × 98 in
Net / Gross Weight	2,180 / 2,440 lbs
Package Method	Wood Case
Machine Warranty	1 Year

Everything Included

✓

B&S Vanguard 408cc 14 HP Engine

✓

3-Year + 1 Bonus Year Engine Warranty

✓

High-Flow Hydraulic System

✓

Pilot-Operated Controls

✓

Boom Swing 53° Left / 40° Right

✓

360° Rotation

✓

Hydraulic Thumb

✓

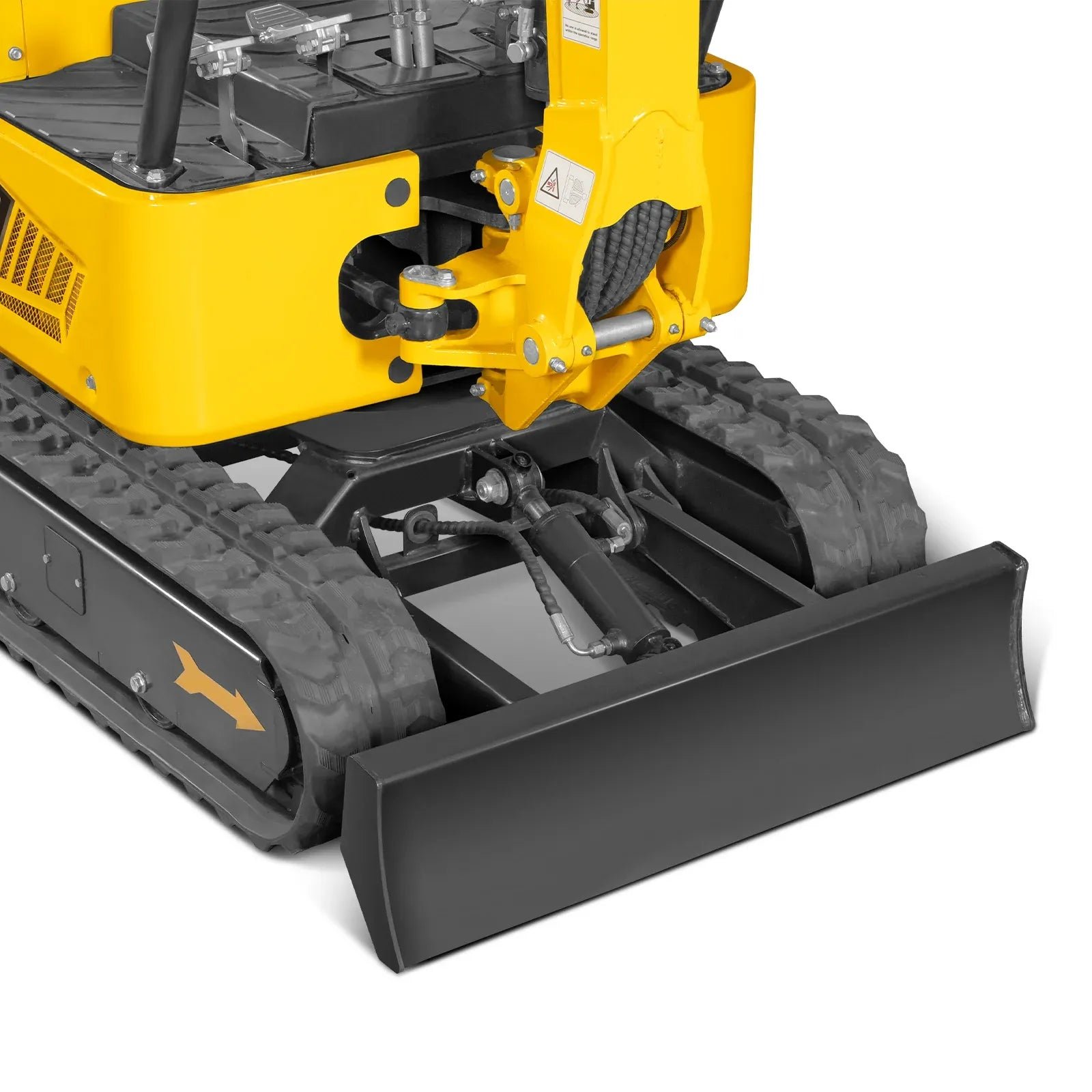

Dozer Blade

✓

Product Manual (PDF)

✓

Demonstration Guide

✓

Maintenance Guide

Included — By Category

Engine & Hydraulics

B&S Vanguard 25V000 — 408cc 14 HP

High-Flow Hydraulic System (4.65 GPM)

Pilot-Operated Controls

Documents & Warranty

Product Manual (PDF)

Demonstration Guide

Maintenance Guide

1-Year Machine Warranty

3-Year + 1 Bonus Year Engine Warranty

Travel & Structure

360° Rotation

Dozer Blade

Boom & Attachments

Boom Swing 53° Left / 40° Right

Hydraulic Thumb

Built For

Tight Access Sites

Backyards & Gardens

Narrow Lanes & Alleys

Trenching

Landscaping

Light Demolition

Steep Slope Work

Utility Installation

Property Maintenance

3600 RPM Displacement 408 cc Engine Output 14 HP Engine Warranty 3 Years Fuel Tank 1.52 gal Engine Oil 0.7 gal Max. Travel Speed 0.75 mph Maximum Traction Force 3035 lbf Ground Clearance 15.9 in Ground Pressure 5.1 psi Gradeability – Maximum 30° Operating Weight 2370 lbs Hydraulic Oil Tank 3.96 gal Max. Discharge Flow 4.65 GPM Swing Speed 8 RPM Tail Swing Radius 32.6 in Bucket Digging Force 1619 lbf Arm Digging Force 1191 lbf Bucket Capacity 0.7 ft³ Bucket Width 15 in Max. Digging Height 109 in Max. Dumping Height 80 in Max. Digging Depth 65.7 in Max. Vertical Digging Depth 62.6 in Max. Digging Radius 119 in Max. Digging Radius at Ground Level 118.7 in Min. Turning Radius of Working Device 48.1 in Max. Lifting Height Dozer Blade 5.9 in Max. Depth Dozer Blade 7.4 in Boom Swing – Left 53° Boom Swing – Right 40° Transportation Length 82 / 115 in Overall Width 37 in Overall Height (To Top of Cab) 88.5 in Counter Weight Ground Clearance 16 in Crawler Wheel Base 36 in Track Belt/Shoe Width 7 in Track Length 48.5 in Track Width 37 in Package Method Wood Case Packing Size 91 x 40 x 98 in Machine Warranty 1 Year Weight (N.W./G.W.) 2180 / 2440 lbs
