Name: MechMaxx Mini Compact Excavator with HONDA GX390 Engine, 65.7" Max Digging Depth, 2280 lb Operating Weight, Model MEC10
SKU: mechmaxx-mini-compact-excavator-with-honda-gx390-engine-65-7-max-digging-depth-2280-lb-operating-weight-model-mec10
Availability: InStock

Original price was: $8,699.00.Current price is: $5,479.99.

Large Orders: For large quantity orders, please contact us directly at infos@bidado00fficial.com

+1 (253) 270-1217 Sales Contact Number

infos@bidado00fficial.com Contact Email

Free Ground Shipping

No Sales Tax

Lifetime Tech Support

Bidadoo 100% Guarantee

Description

Description

MechMaxx · MEC10 · Mini Compact Excavator

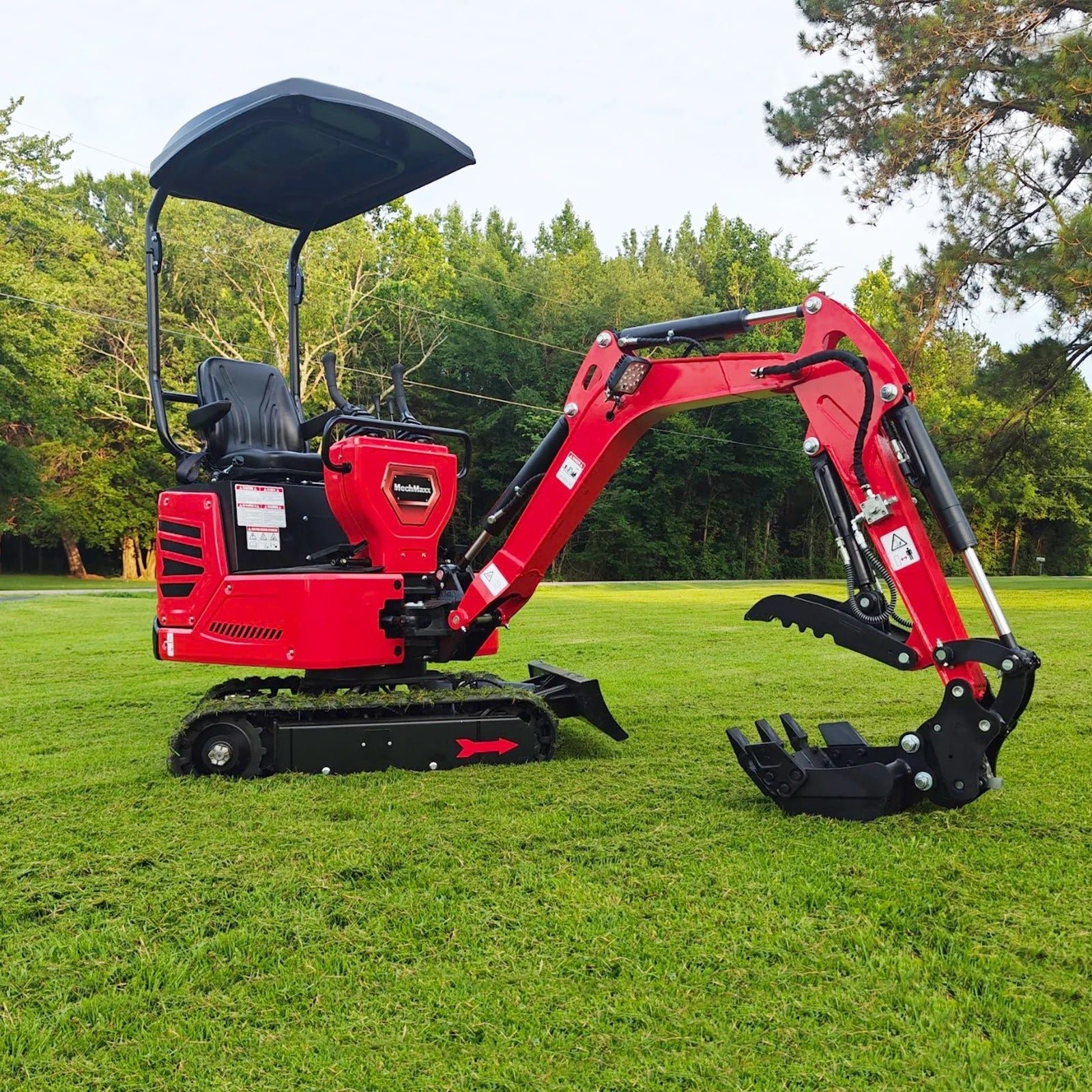

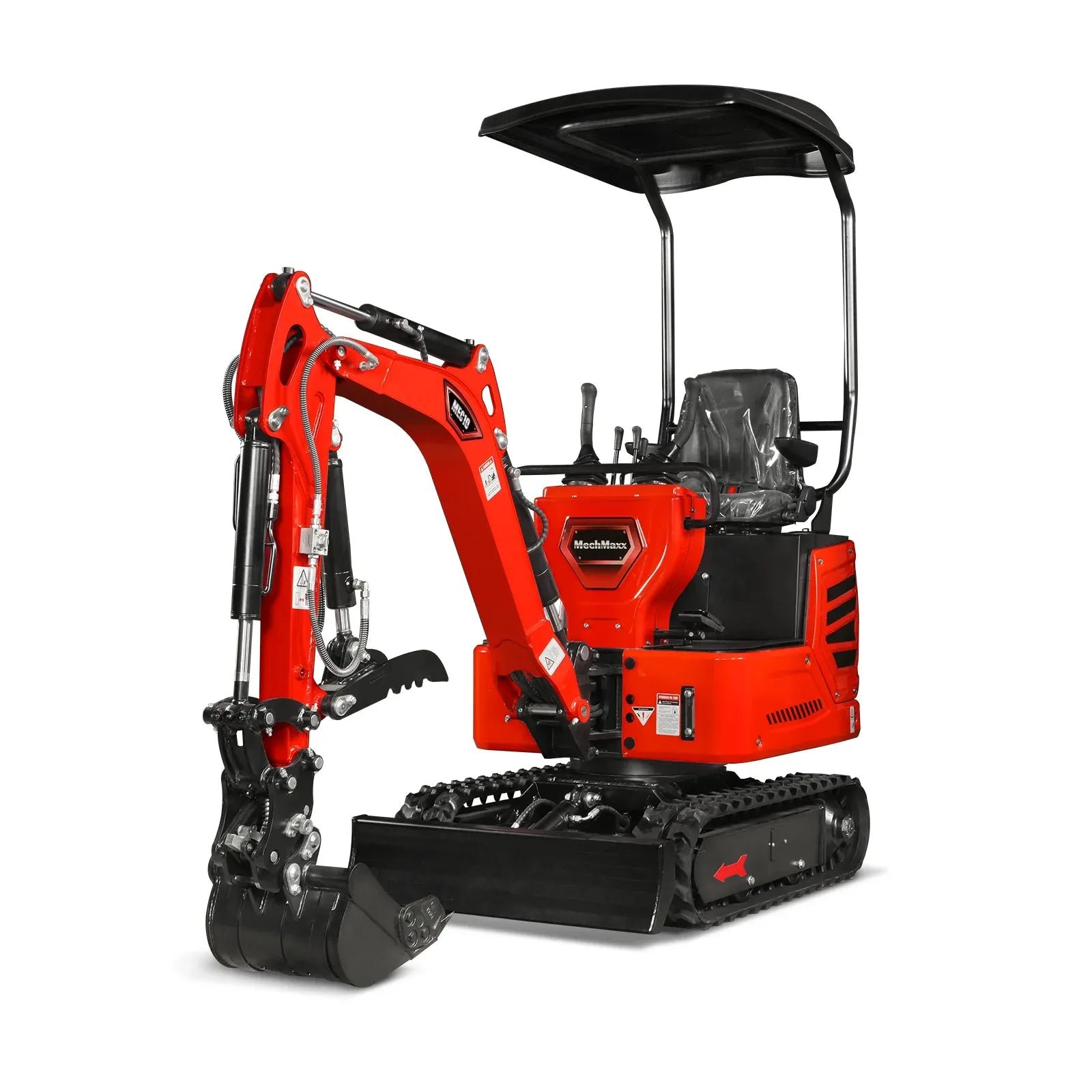

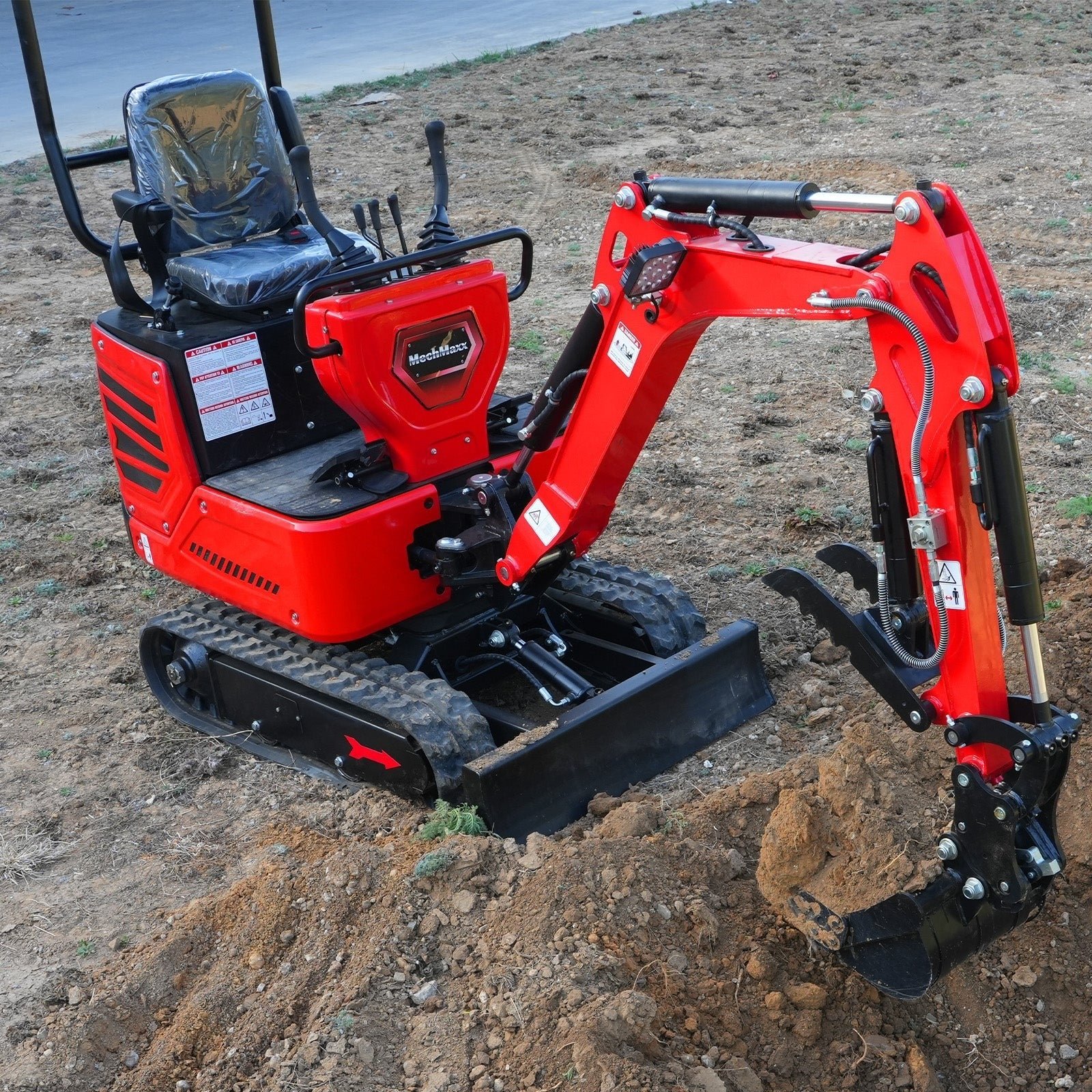

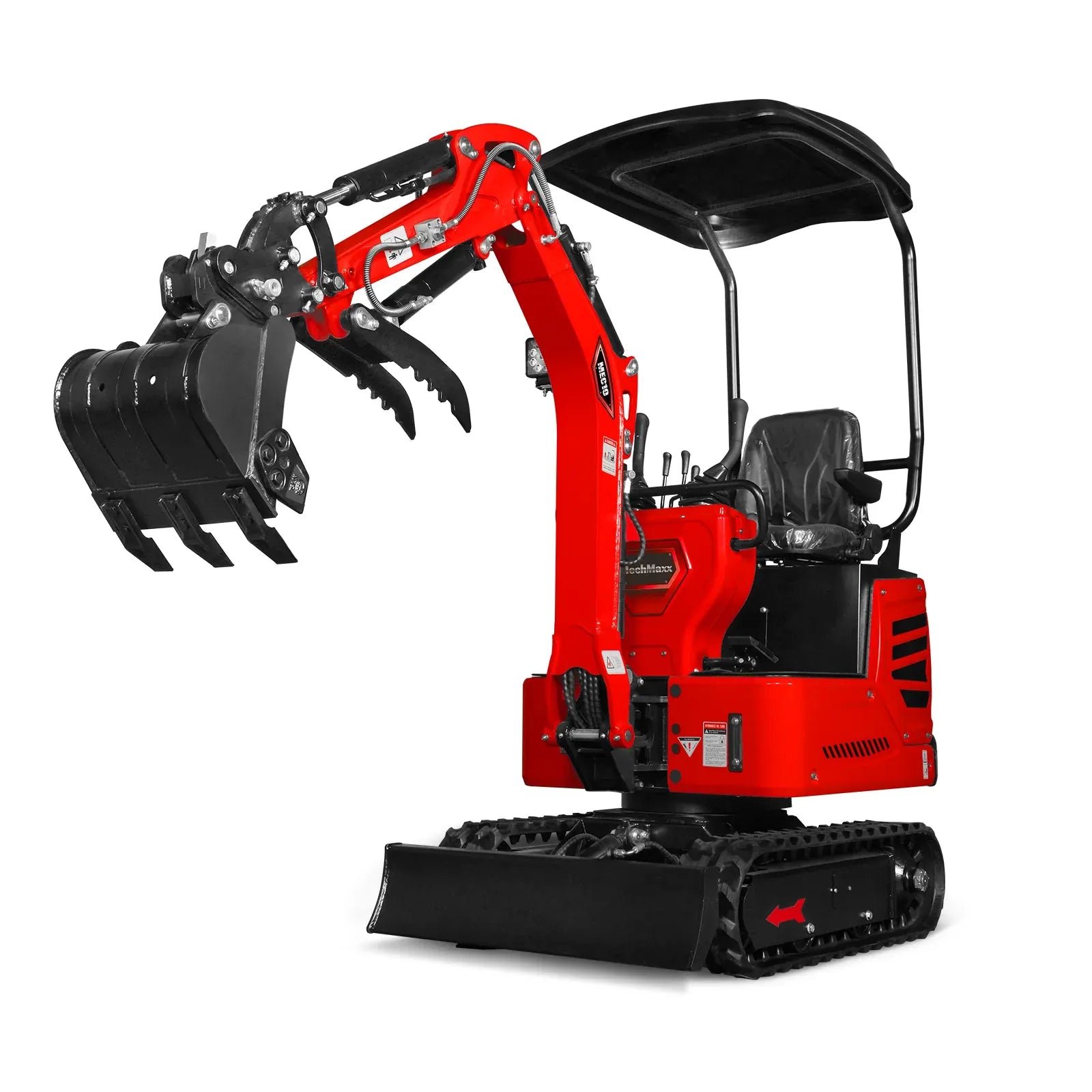

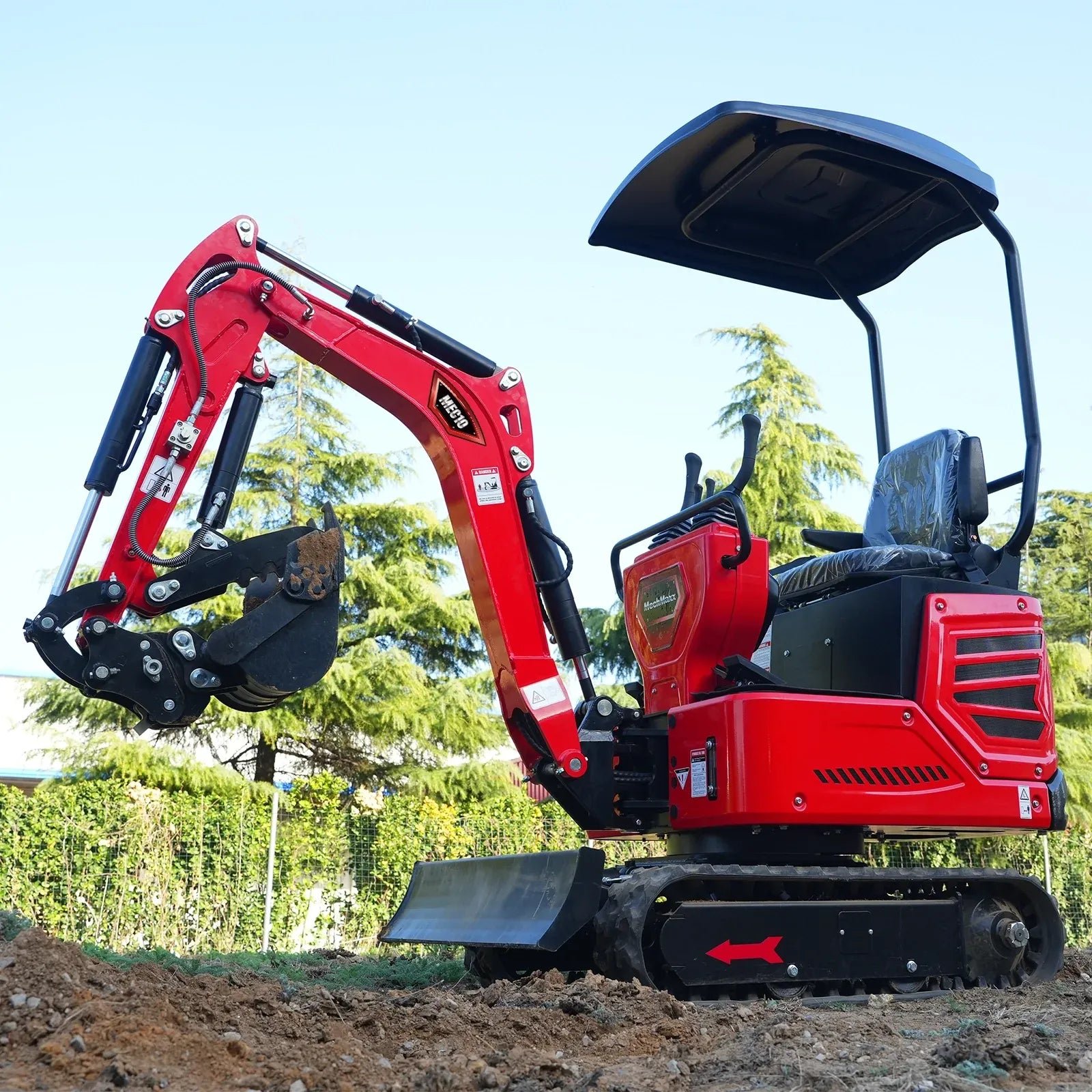

MechMaxx MEC10 Mini Compact Excavator

Honda GX390 Engine — 36″ Chassis — Hydraulic Oil Radiator

Built for tight access and reliable daily performance. The MEC10 Honda is powered by the legendary Honda GX390 — a 389cc OHV engine famous for low noise, low vibration, and low emissions without sacrificing power. At just 36″ chassis width, it fits where other machines can’t.

Honda GX390 — 389cc · 11.7 HP · 3,600 RPM · Electric Start

GX Series — Legendary reliability · Low noise · Low vibration · Low emissions · 1-Year Engine Warranty

OHV design — increased efficiency & optimal power transfer

High compression ratio for better fuel efficiency

Ball bearing supported crankshaft for greater stability

Cast iron cylinder sleeve — high quality materials

Muffler & breather valve enhancements reduce noise

Ergonomic easy-grip recoil rope design

Lower emissions — same power output

Electric start

11.7 HP

Honda GX390

2,280 lbs

Operating Weight

65.7″

Max Dig Depth

36″

Chassis Width

Key Features

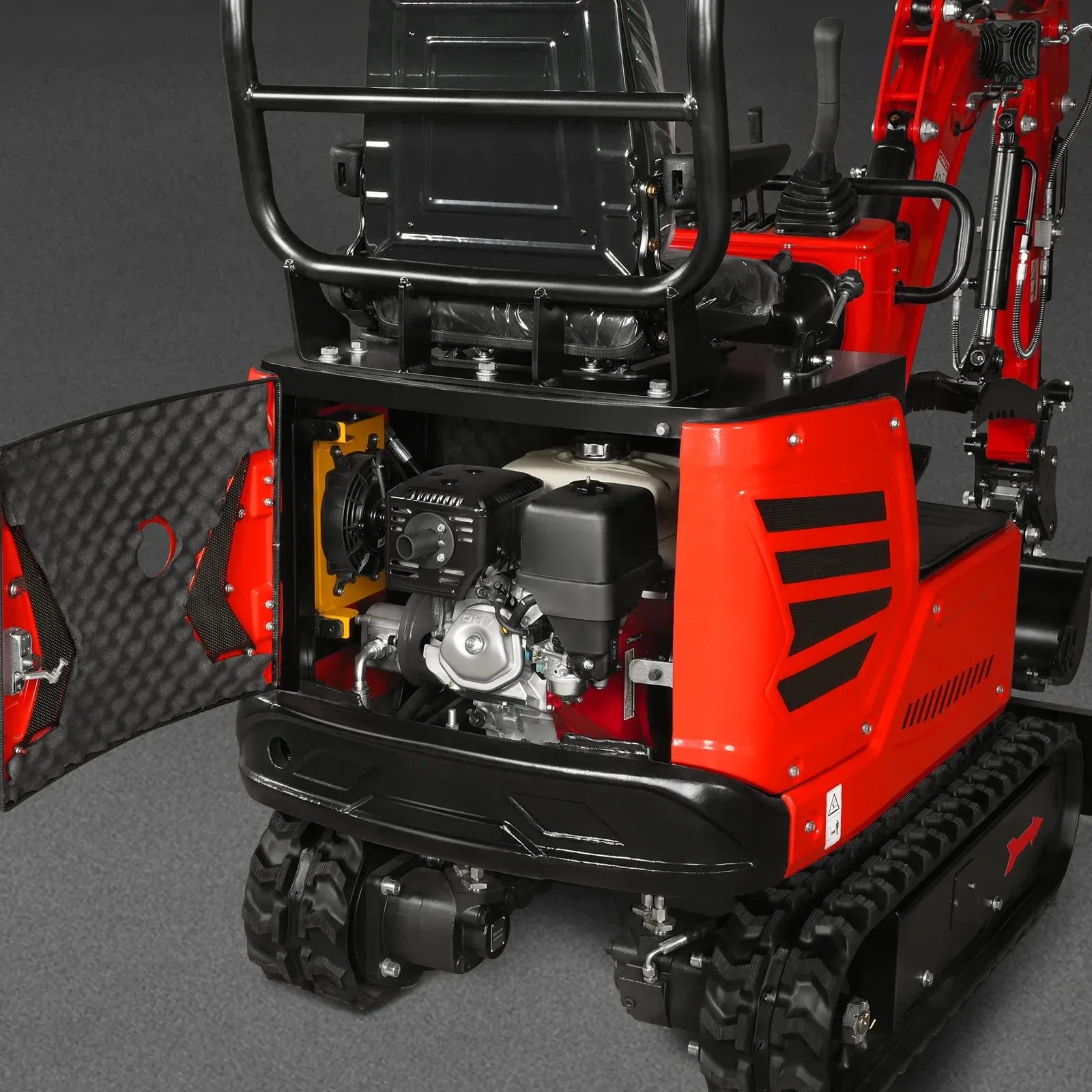

Honda GX390 OHV Engine

389cc overhead valve single-cylinder engine with electric start. OHV design delivers increased efficiency and optimal power transfer. Ball bearing supported crankshaft, cast iron cylinder sleeve, and GX series legendary reliability — low noise, low vibration, and lower emissions without any sacrifice in power output.

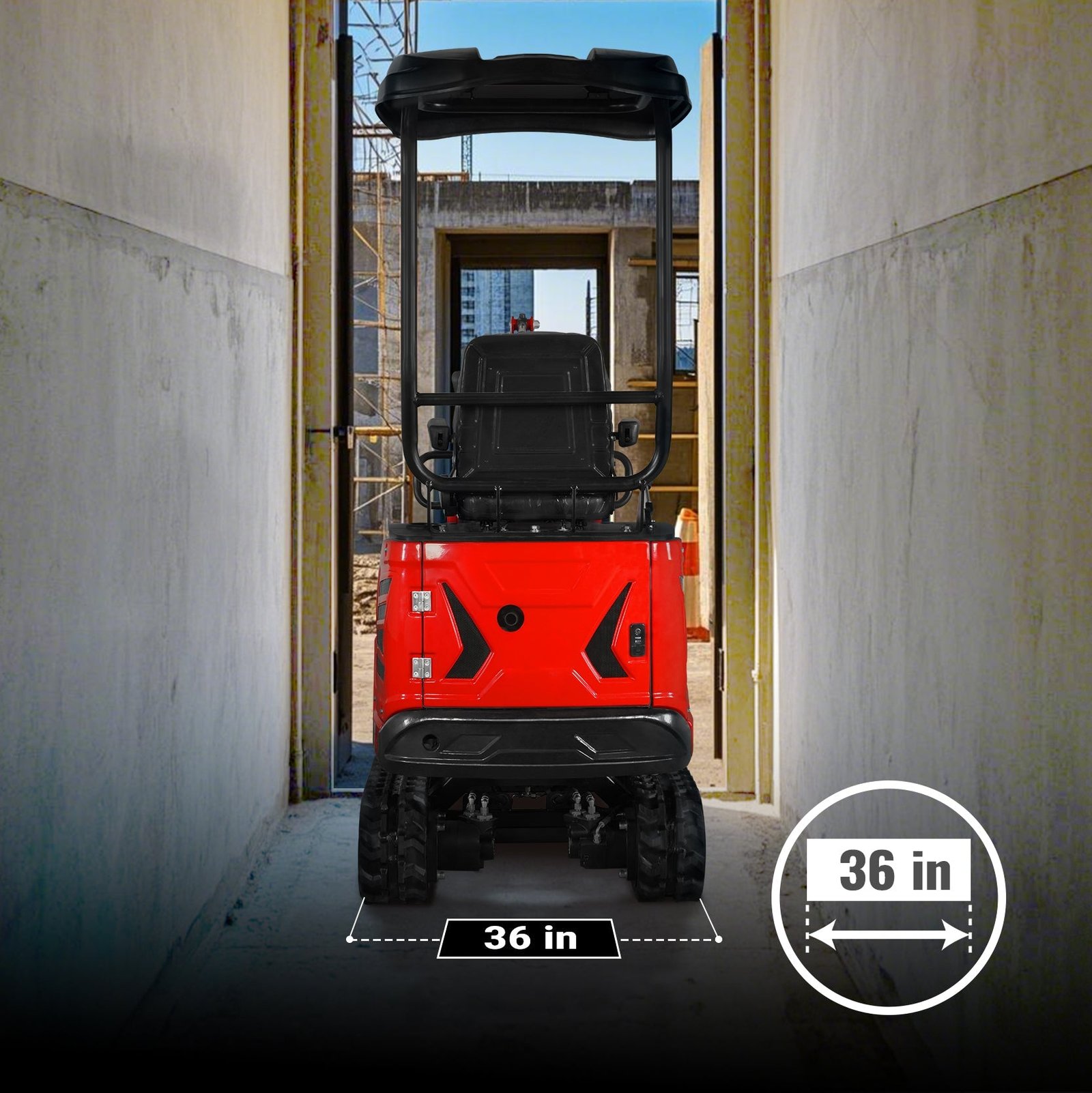

36″ Compact Chassis Width

At 36″ wide, this is one of the narrowest chassis in its class — significantly smaller than a standard excavator. Fits through gates, narrow alleys, garden paths, and confined access points where larger machines are blocked.

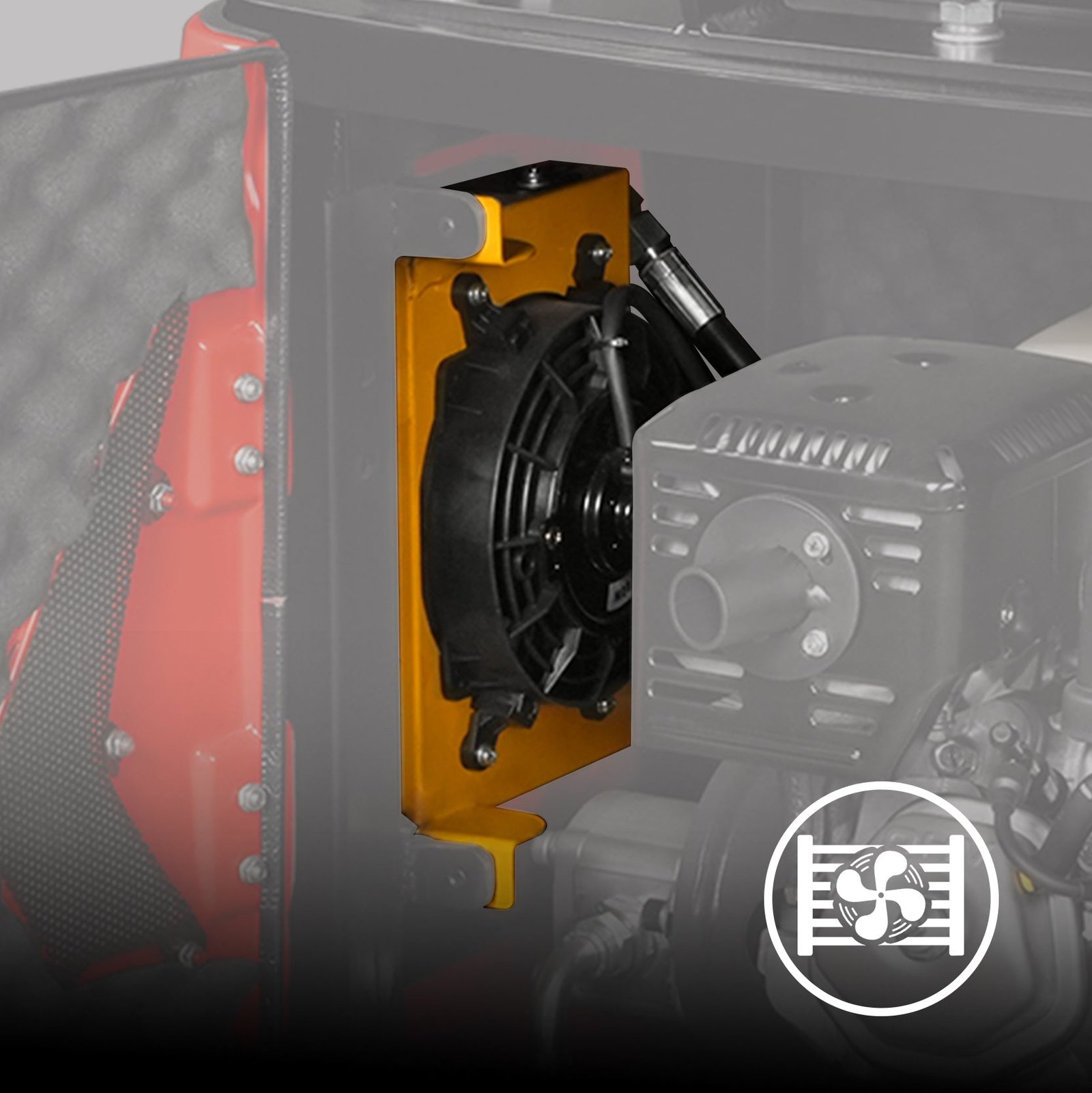

Hydraulic Oil Radiator

A dedicated hydraulic oil radiator cools the hydraulic fluid during intensive continuous operation — preventing overheating, protecting components, dissipating heat as oil circulates through the system, and maintaining consistent system efficiency and longevity.

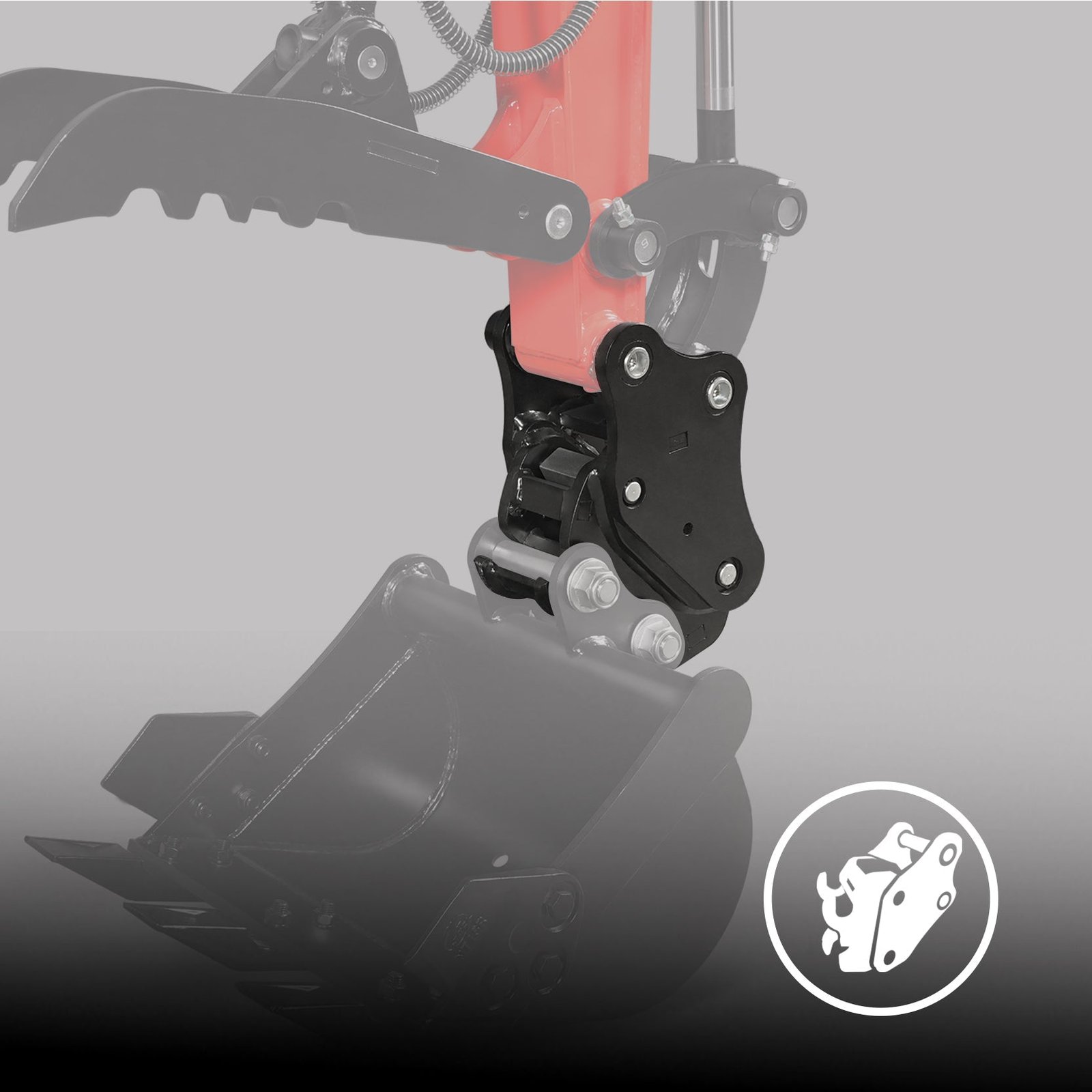

Semi-Automatic Quick Hitch

Heavy-duty steel quick hitch for fast, secure attachment changes on the job. Easily connect and detach attachments without tools — a must-have for multi-task jobsite operation.

High-Flow Hydraulic System

5.7 GPM auxiliary standard flow supports high-flow attachments including augers, rippers, and mulcher heads — handling concrete work and vegetation management alongside standard digging and trenching tasks.

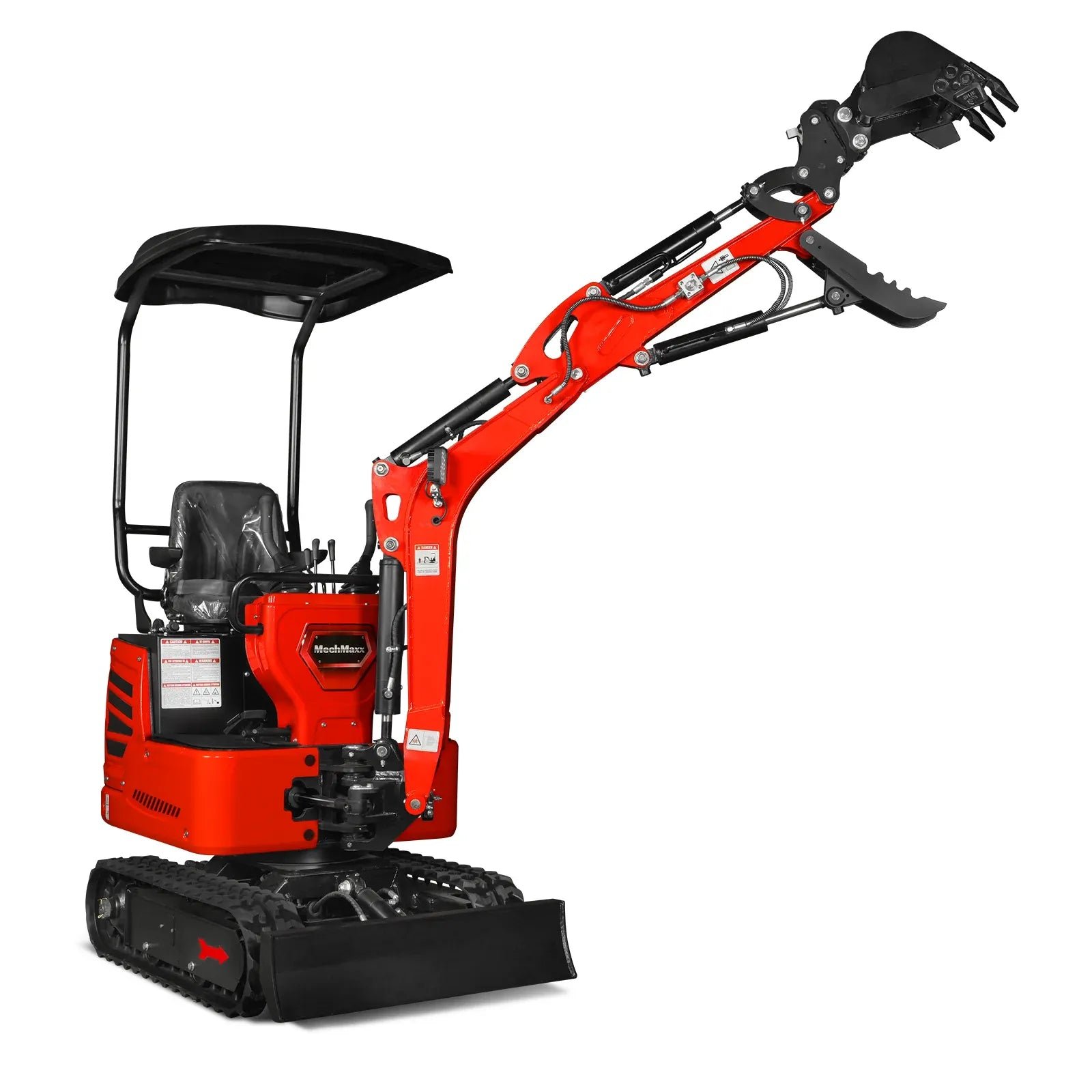

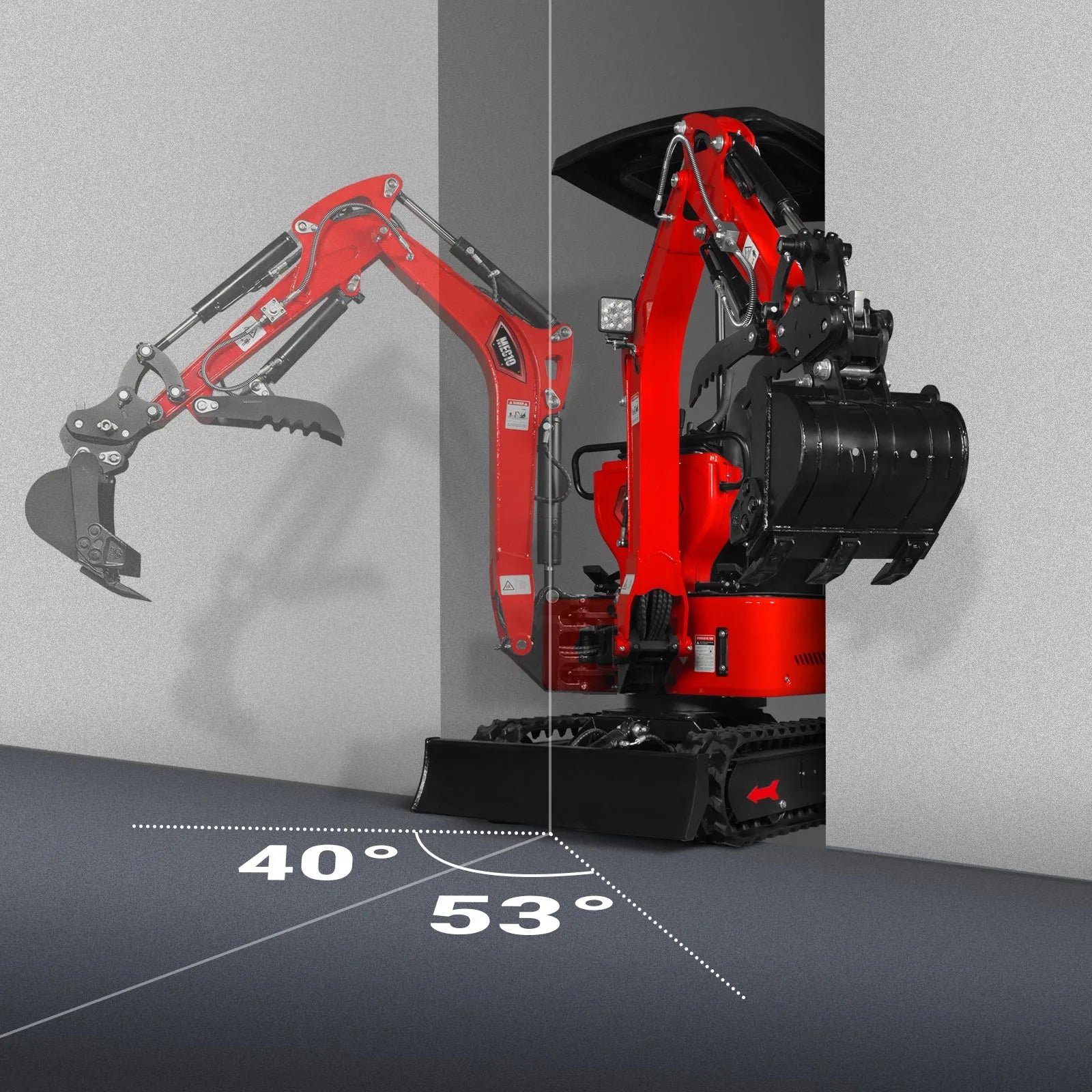

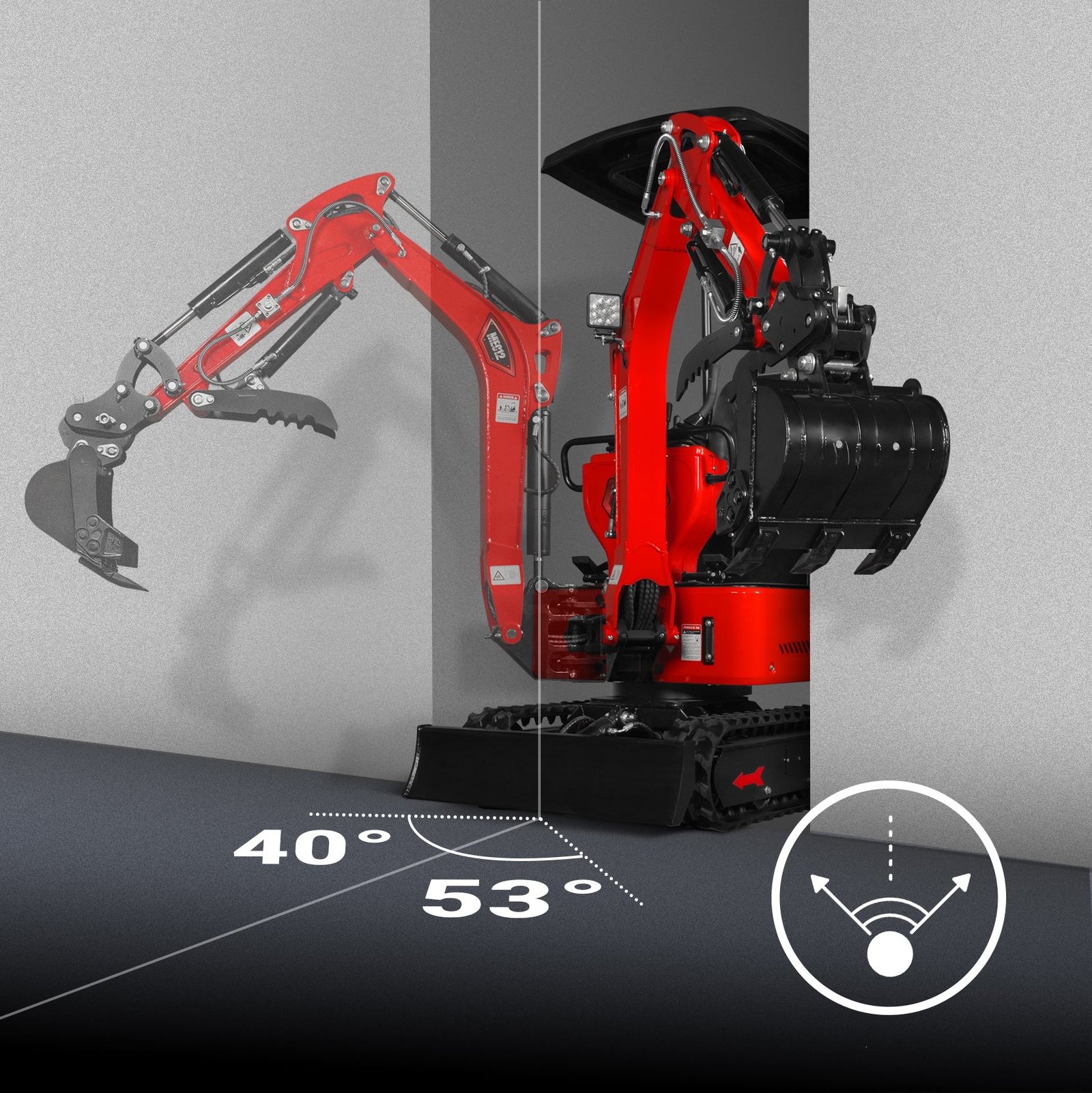

Boom Swing — 53° Left / 40° Right

The digging arm swings 53° left and 40° right — letting you access tight spots alongside walls, fences, and structures and dump soil exactly where you need it without repositioning the machine.

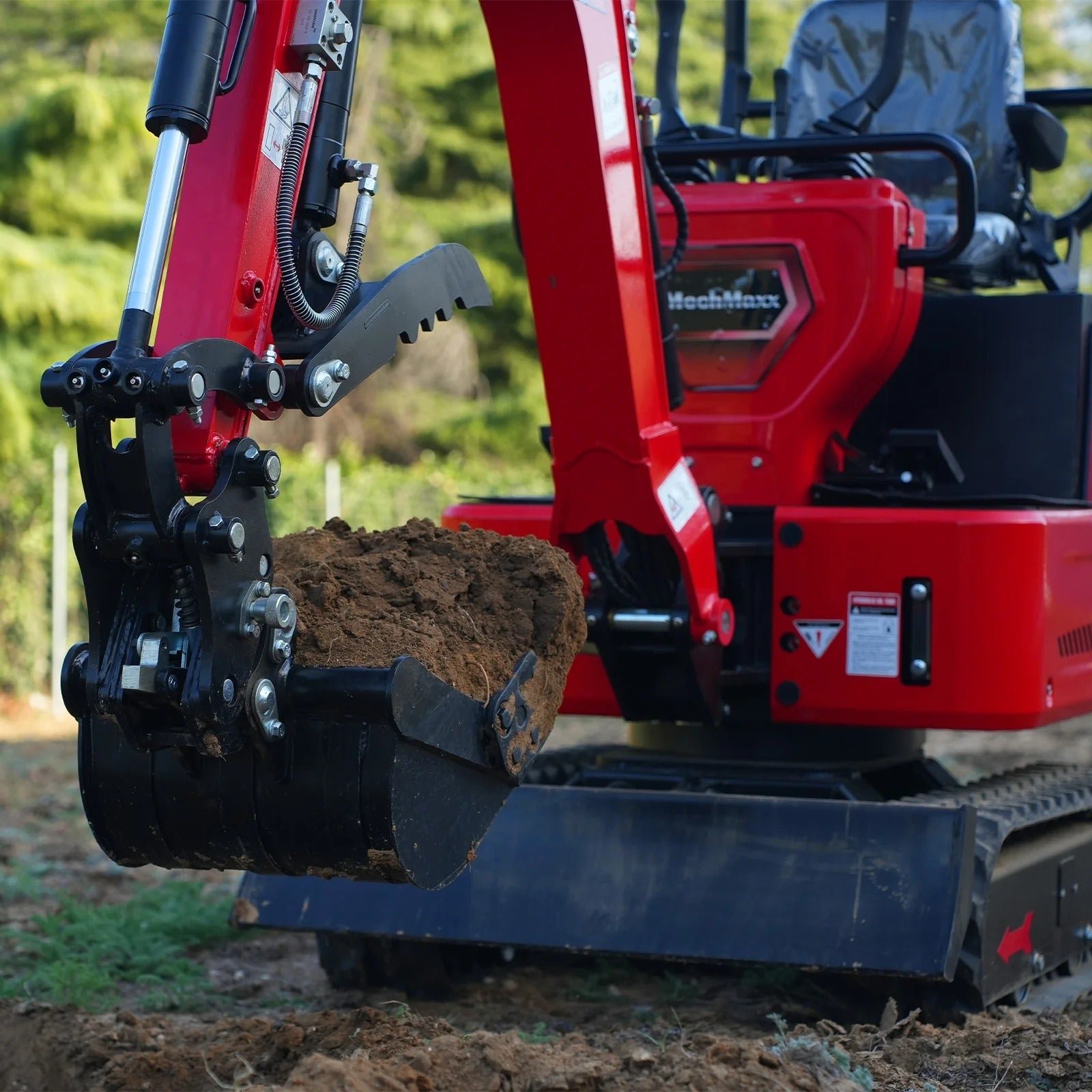

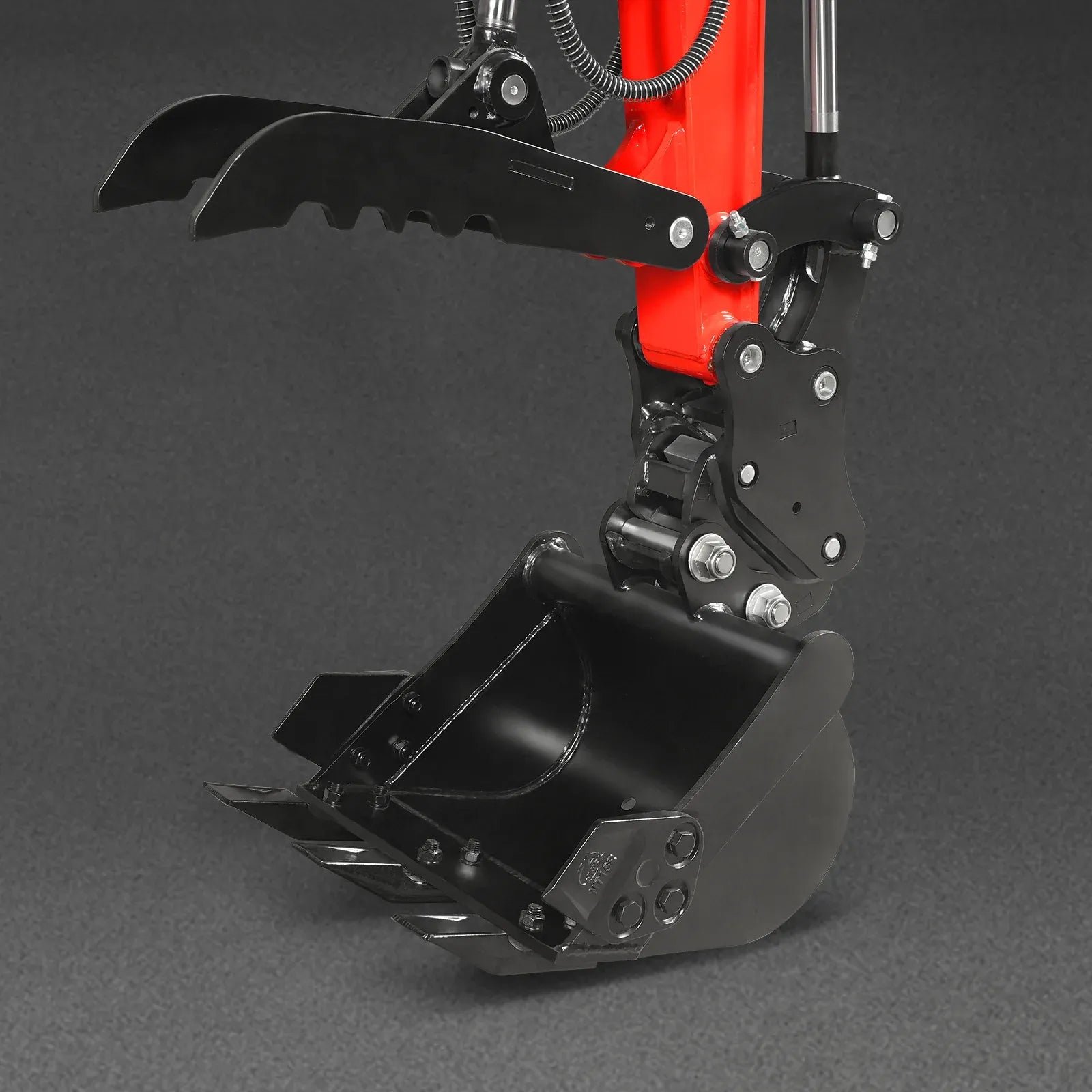

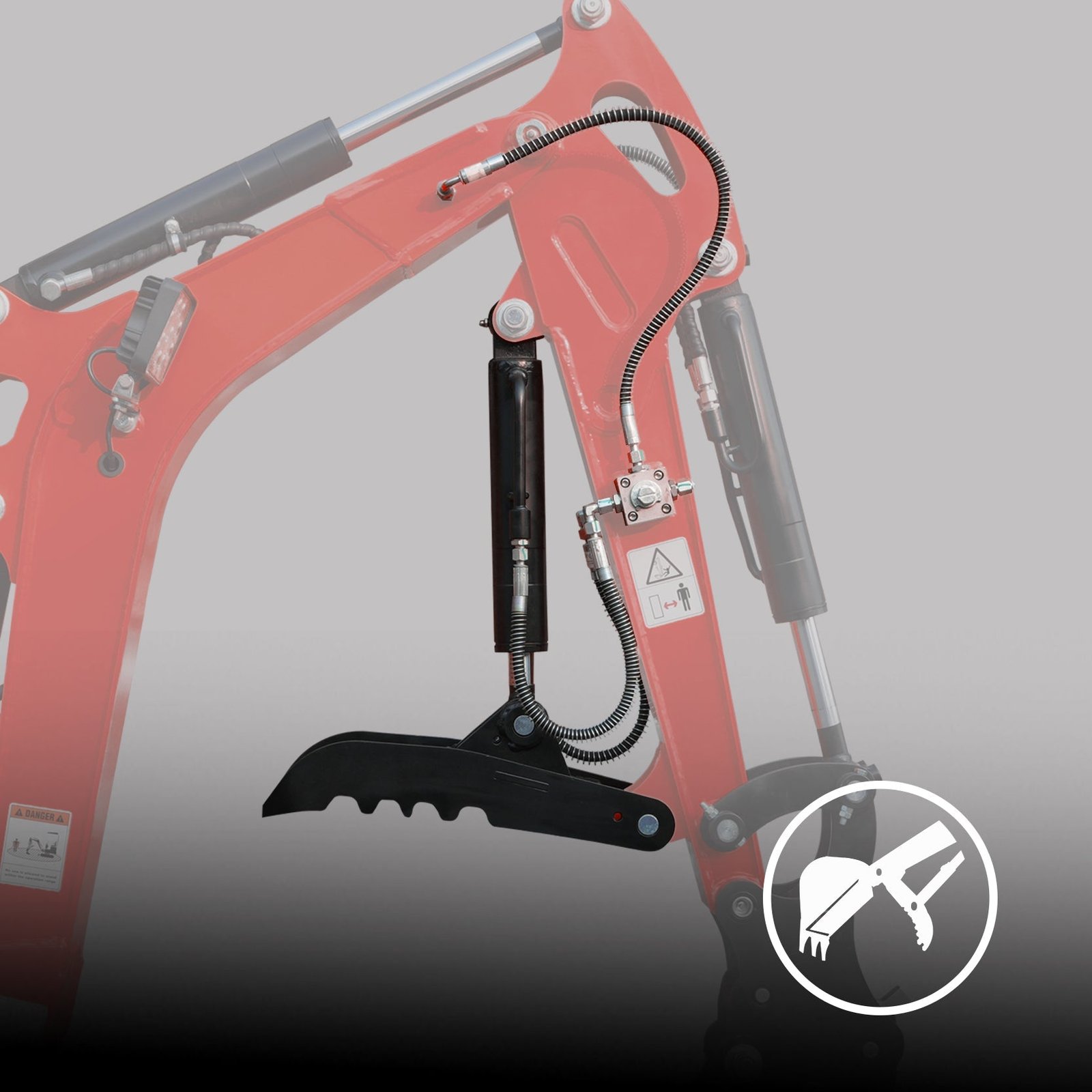

Hydraulic Thumb Included

Adjustable hydraulic thumb for handling rocks, branches, and debris directly from the operator’s seat — convenient positioning with no need to exit the cab between picks.

360° Rotation

Full 360° cab rotation at 11 RPM slewing speed for efficient digging, loading, and repositioning without moving the tracks — maximum operational flexibility on confined jobsites.

Full Specifications

Engine

Engine Model	Honda GX390
Engine Type	4-Stroke, OHV, Single Cylinder, Air-Cooled
Displacement	389 cc
Engine Output	11.7 HP
Rated Power	8.7 kW at 3,600 RPM
Max Net Torque	26.5 N·m at 2,500 RPM
Start Type	Electric Start
Engine Oil Type	10W-30
Fuel Tank	1.6 gal
Engine Oil Capacity	0.3 gal
Engine Warranty	1 Year

Performance & Scope of Work

Operating Weight	2,280 lbs
Rated Lift Capacity	728 lbs
Lift Radius	80 in

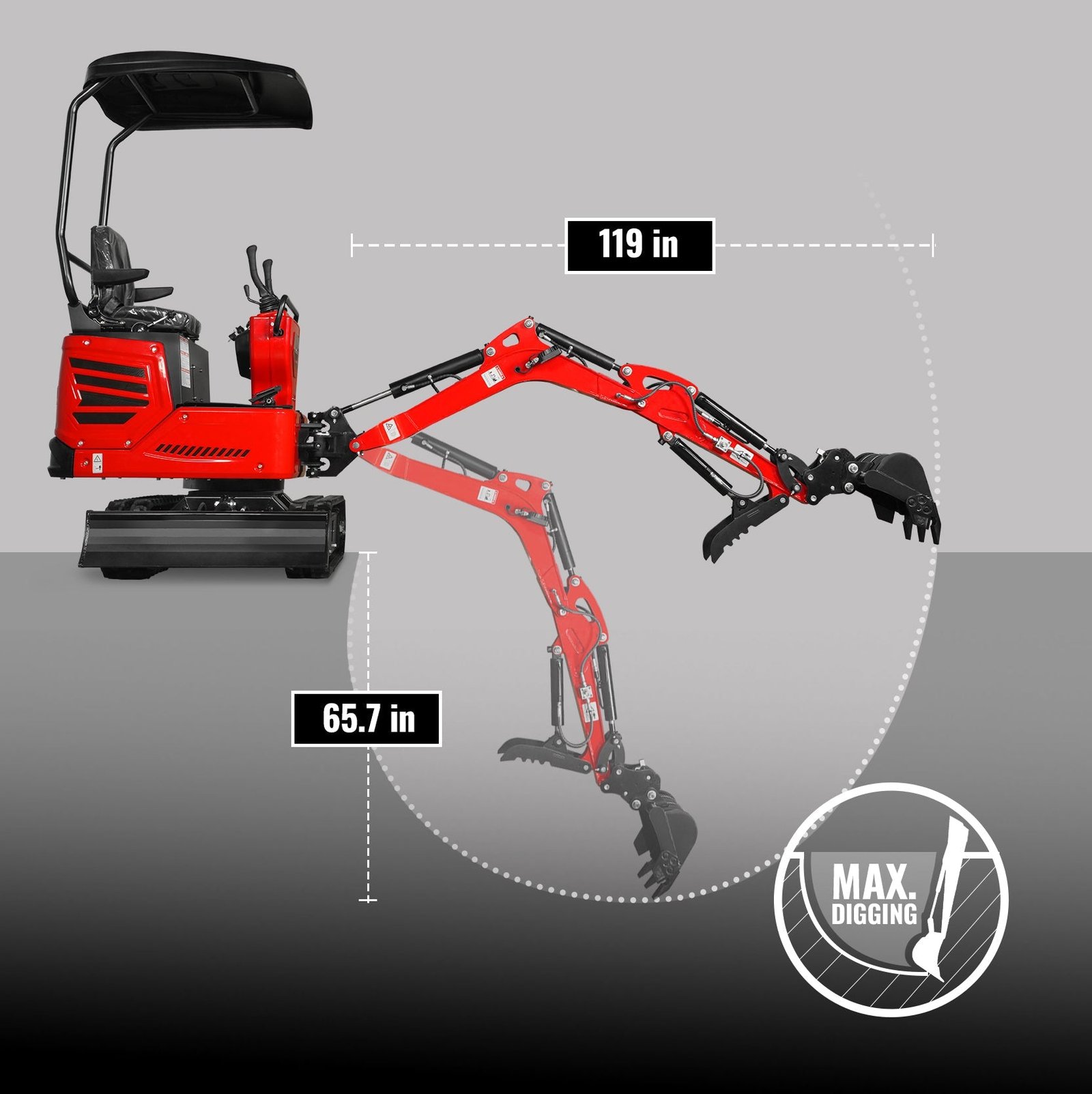

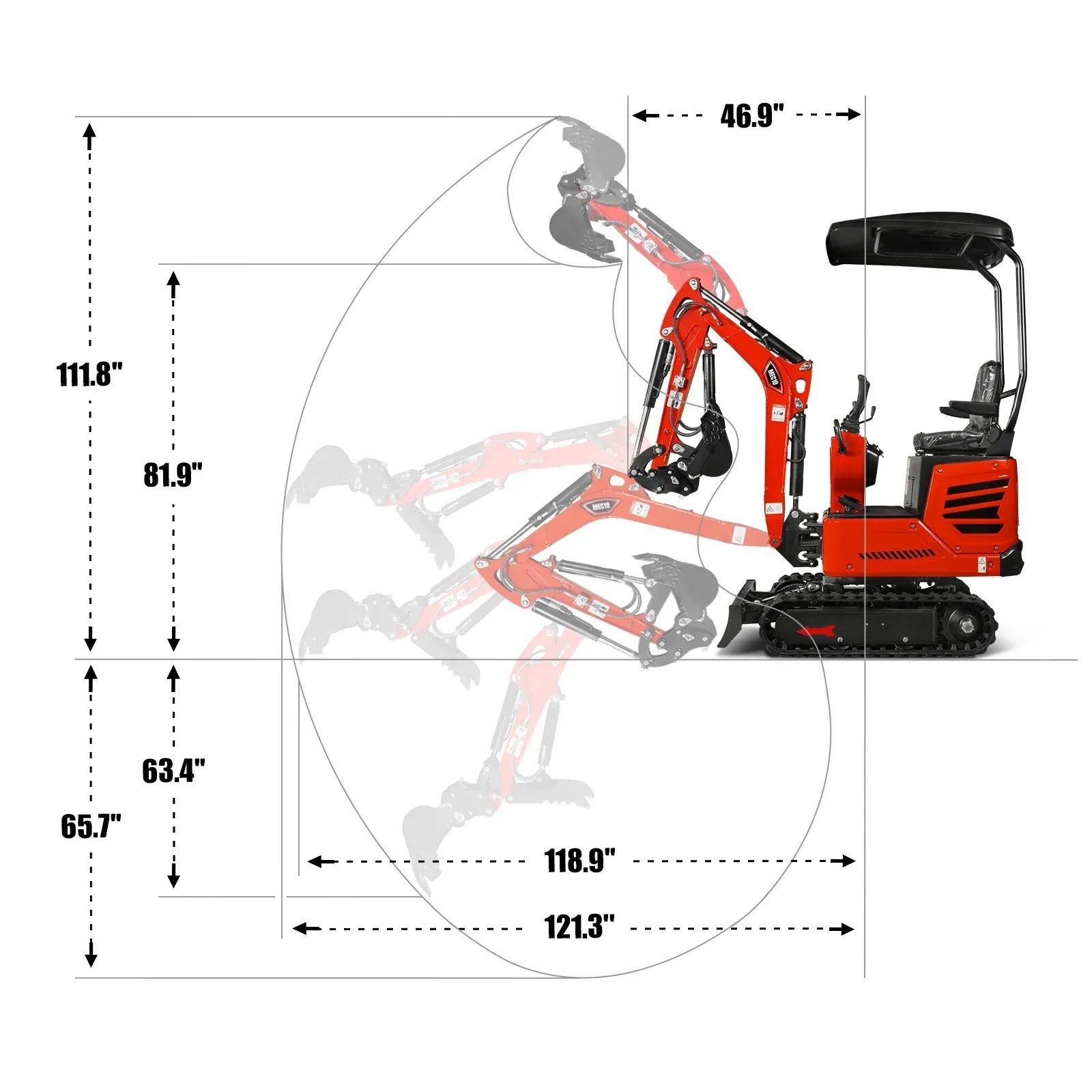

Max Digging Depth	65.7 in
Max Vertical Digging Depth	63.3 in
Max Digging Height	111.8 in
Max Unloading Height	81.8 in
Max Digging Radius	121 in
Max Digging Radius on Ground	119 in
Min Turning Radius	46.8 in
Max Lifting Height Dozer Blade	5.9 in
Max Depth Dozer Blade	7.4 in
Boom Swing — Left	53°
Boom Swing — Right	40°
Rotation	360°
Counterweight Turning Radius	32.6 in

Travel System

Max Travel Speed	0.75 mph
Max Tractive Force	3,035 lbf
Ground Clearance	15.7 in
Ground Pressure	5.1 psi
Max Gradeability	30°

Hydraulic System

Auxiliary Standard Flow	5.7 GPM
Slewing Speed	11 RPM
Hydraulic Oil Tank	3.96 gal

Digging Forces & Bucket

Bucket Digging Force	1,619 lbf
Arm Digging Force	1,191 lbf
Bucket Capacity	0.7 ft³
Bucket Width	15 in

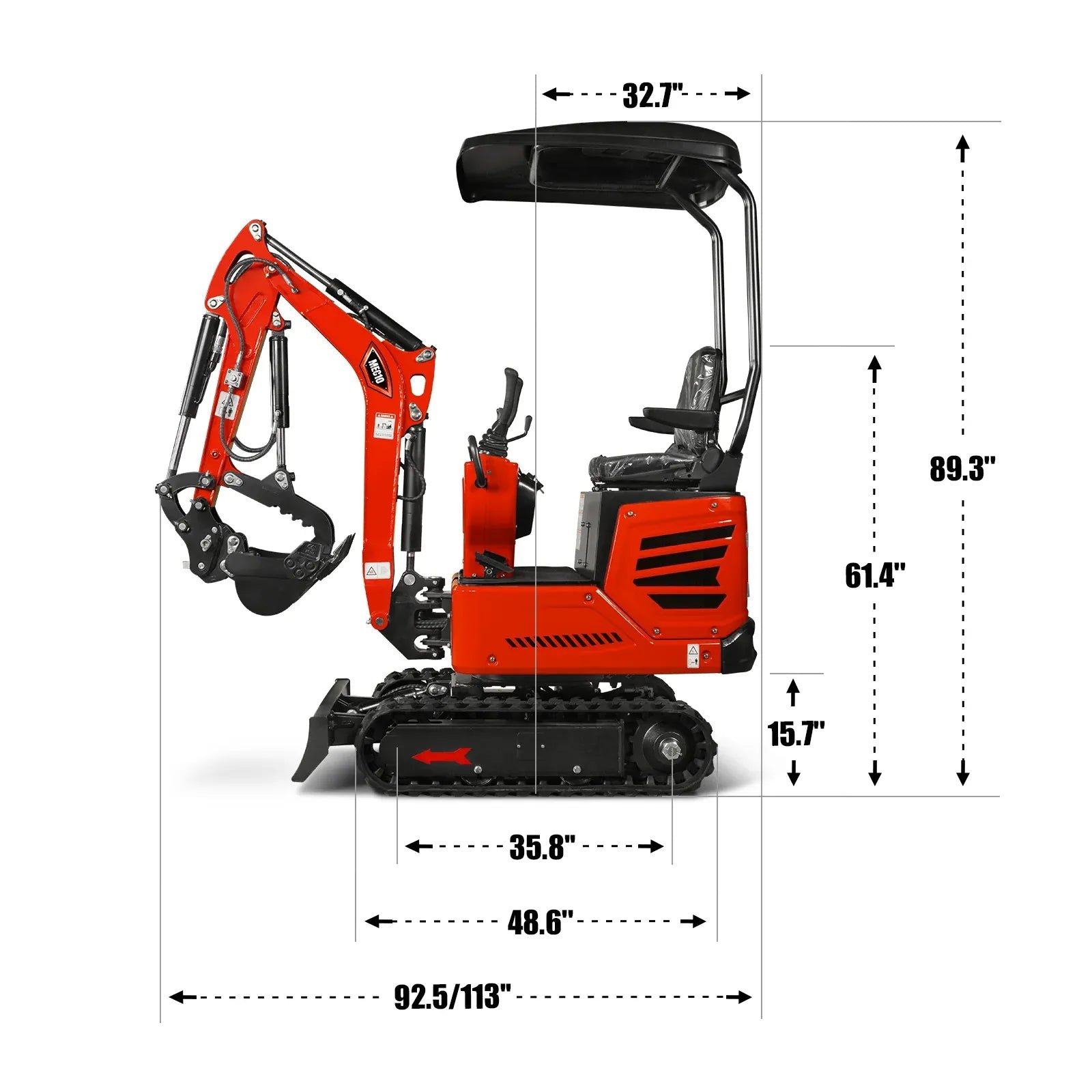

Dimensions

Transportation Length	92.5 / 113 in

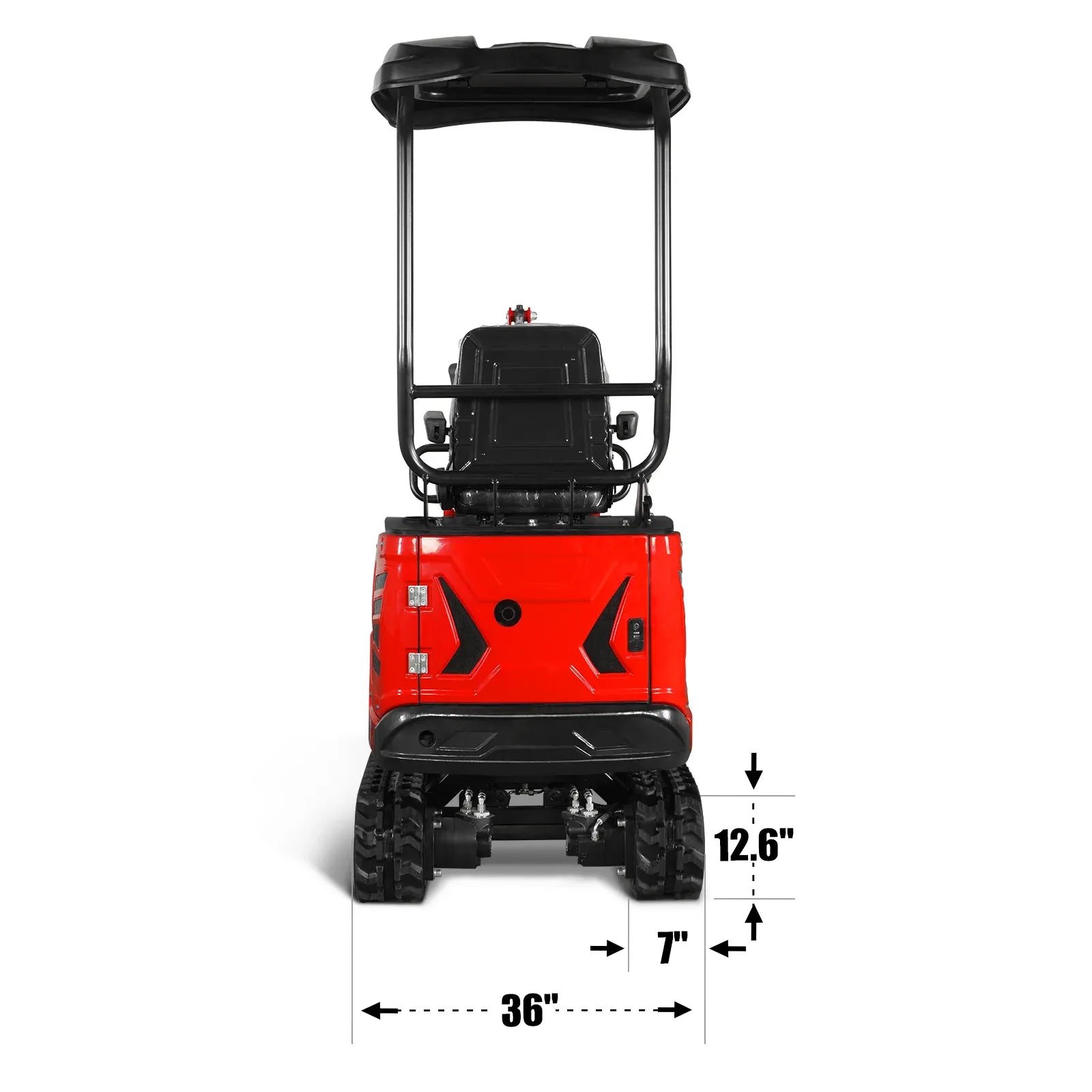

Chassis Width	36 in
Wheel Track	35.8 in
Track Width	7 in
Track Length	48.6 in
Track Height	12.6 in
Overall Height	89.3 in
Overall Operating Height (Fully Raised)	111.8 in
Height of Seat to Ground	61.4 in
Counterweight Ground Clearance	16 in

Shipping

Packing Size	91 × 40 × 98 in
Net / Gross Weight	2,100 / 2,376 lbs

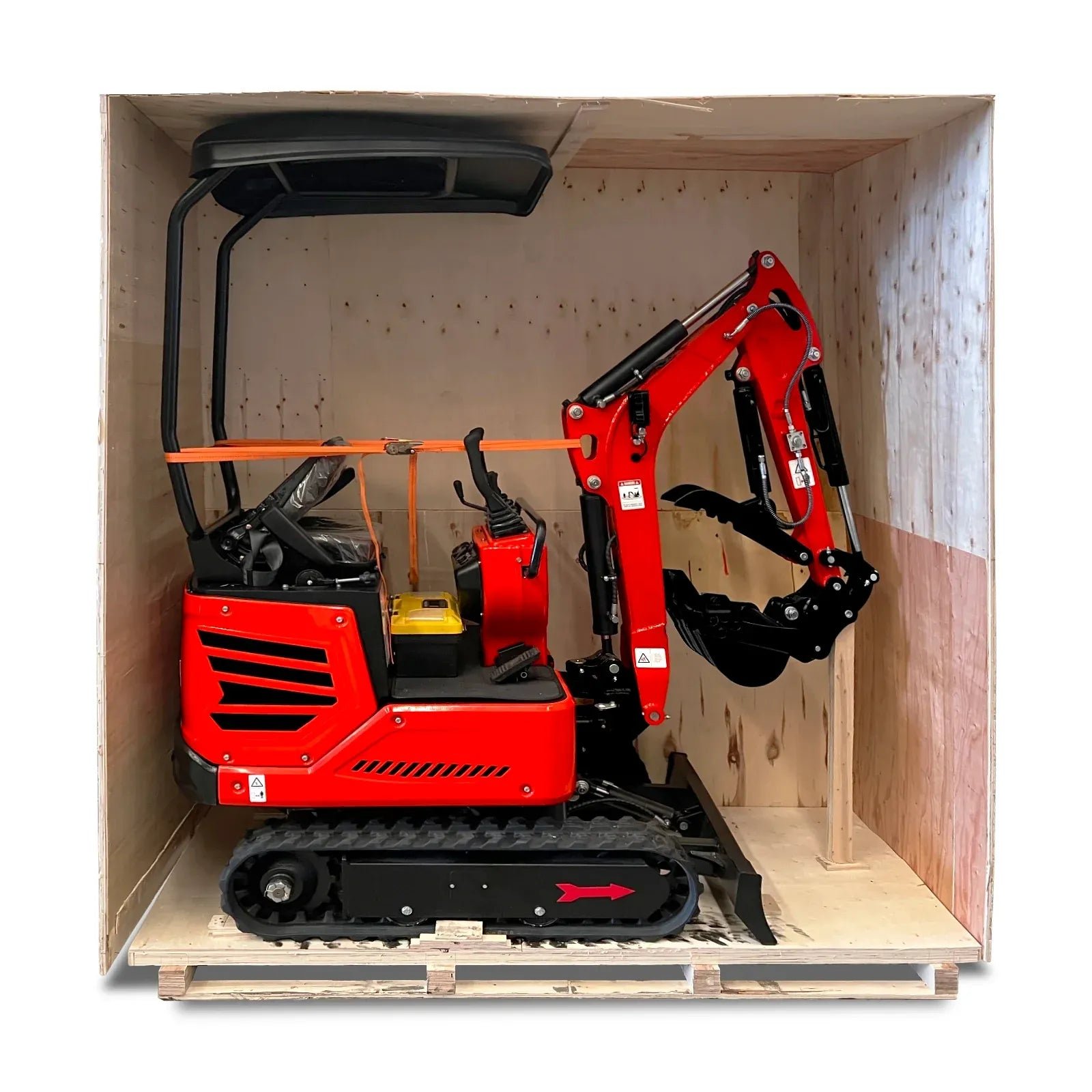

Package Method	Plywood Case
Machine Warranty	1 Year

Everything Included

✓

Honda GX390 389cc Engine (Electric Start)

✓

Hydraulic Oil Radiator

✓

High-Flow Hydraulic System (5.7 GPM)

✓

Pilot-Operated Controls

✓

Semi-Automatic Quick Hitch

✓

360° Rotation

✓

Boom Swing 53° Left / 40° Right

✓

Hydraulic Thumb

✓

Dozer Blade

✓

Product Manual (PDF)

✓

Engine Manual (PDF)

✓

Demonstration Guide

Included — By Category

Engine & Hydraulics

Honda GX390 — 389cc 11.7 HP, Electric Start

Hydraulic Oil Radiator

High-Flow Hydraulic System (5.7 GPM)

Pilot-Operated Controls

Travel & Structure

360° Rotation

Dozer Blade

36″ Compact Chassis

Boom & Attachments

Boom Swing 53° Left / 40° Right

Semi-Automatic Quick Hitch

Hydraulic Thumb

Documents & Warranty

Product Manual (PDF)

Engine Manual (PDF)

Demonstration Guide

1-Year Machine Warranty

1-Year Engine Warranty

Built For

Tight Access Sites

Backyards & Gardens

Narrow Lanes & Alleys

Trenching

Landscaping

Light Demolition

Utility Installation

Residential Construction

Property Maintenance
