MechMaxx · MEC17PRO · Mini Compact Excavator

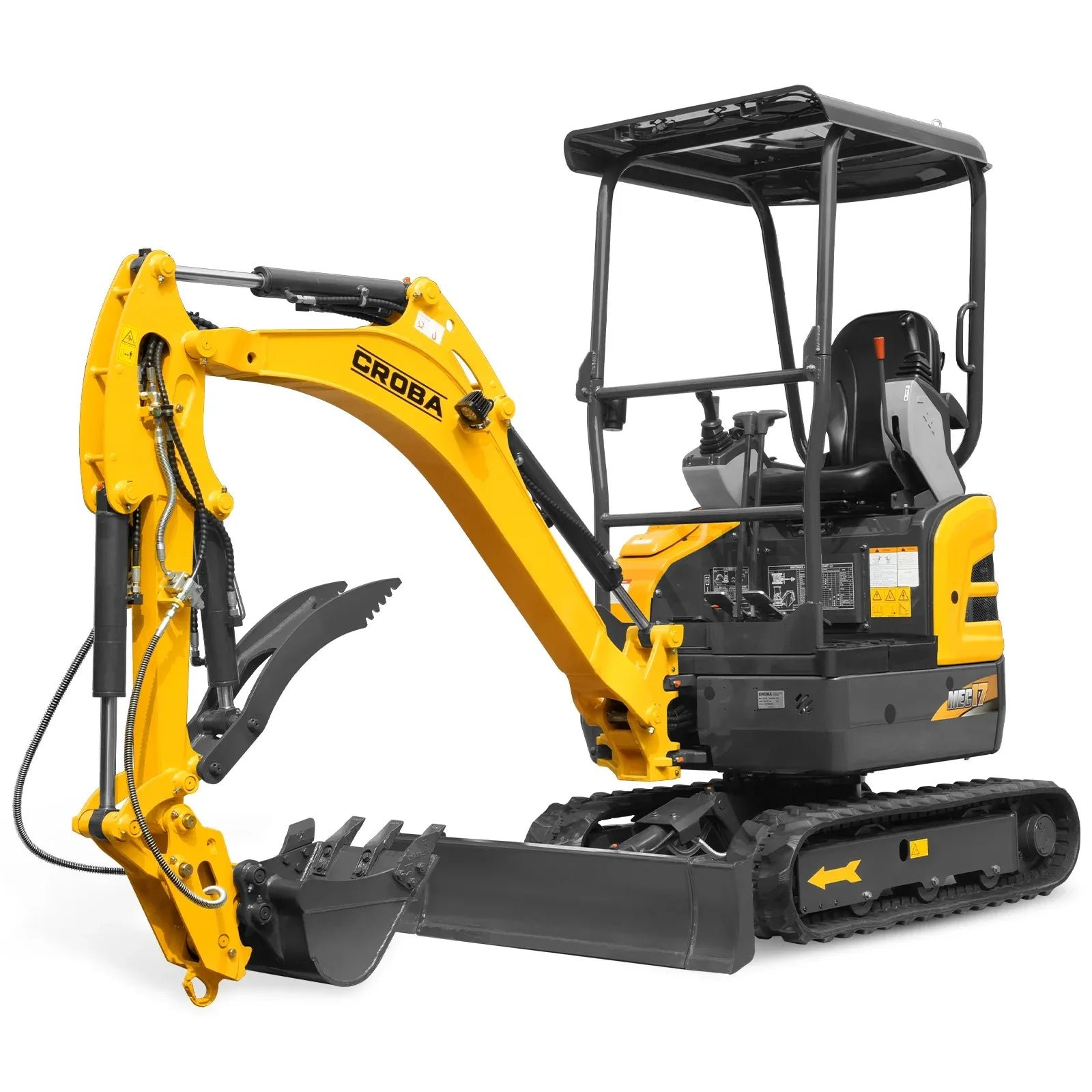

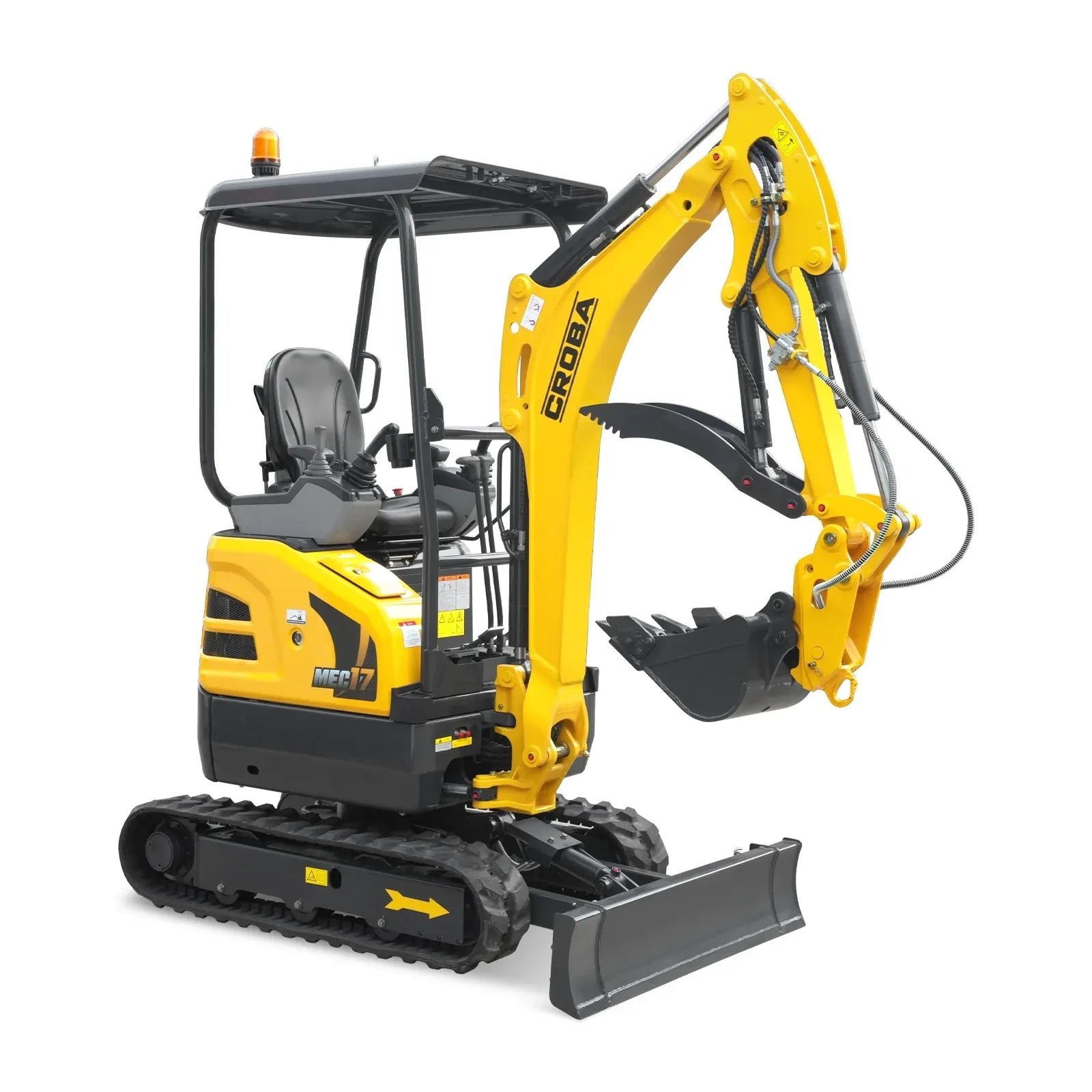

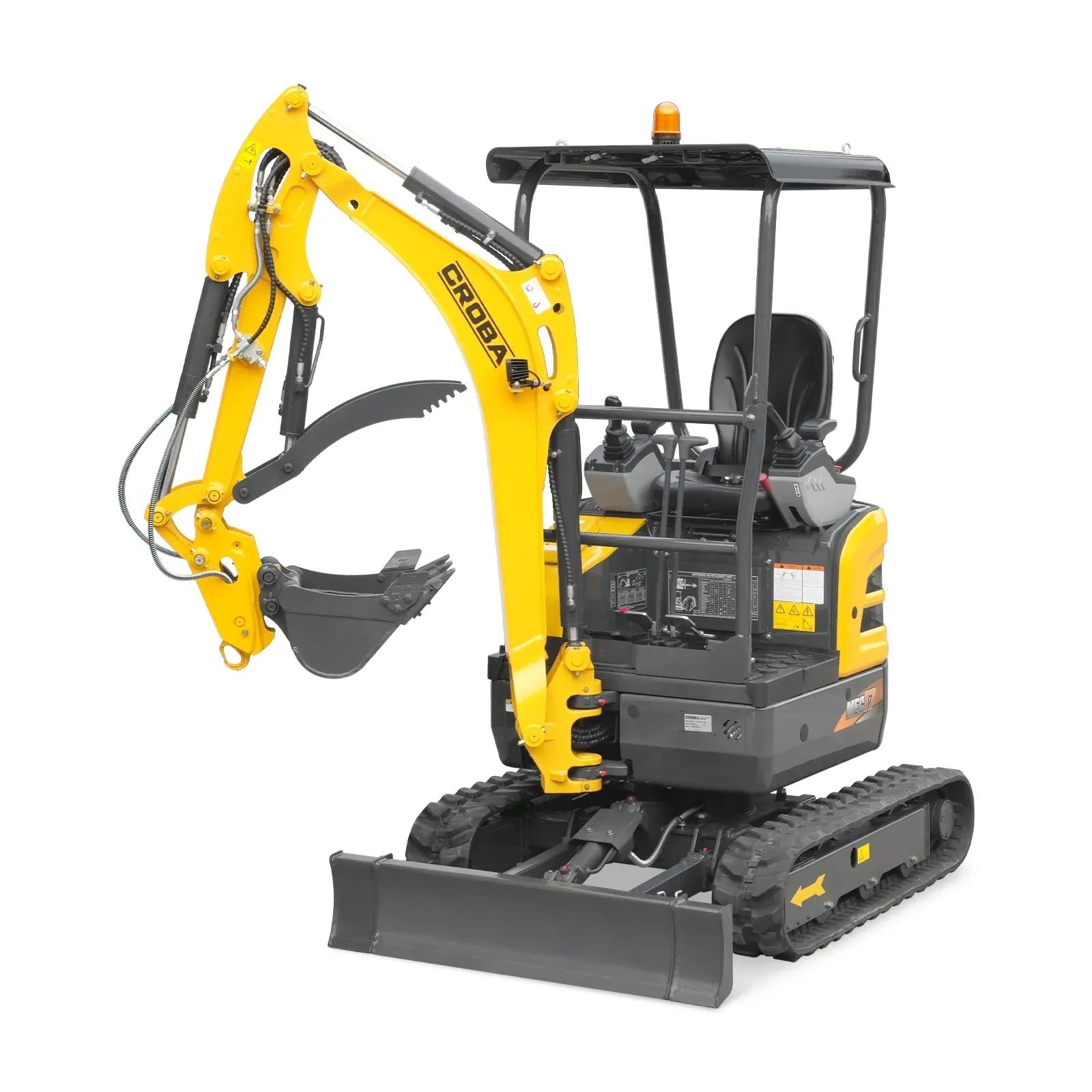

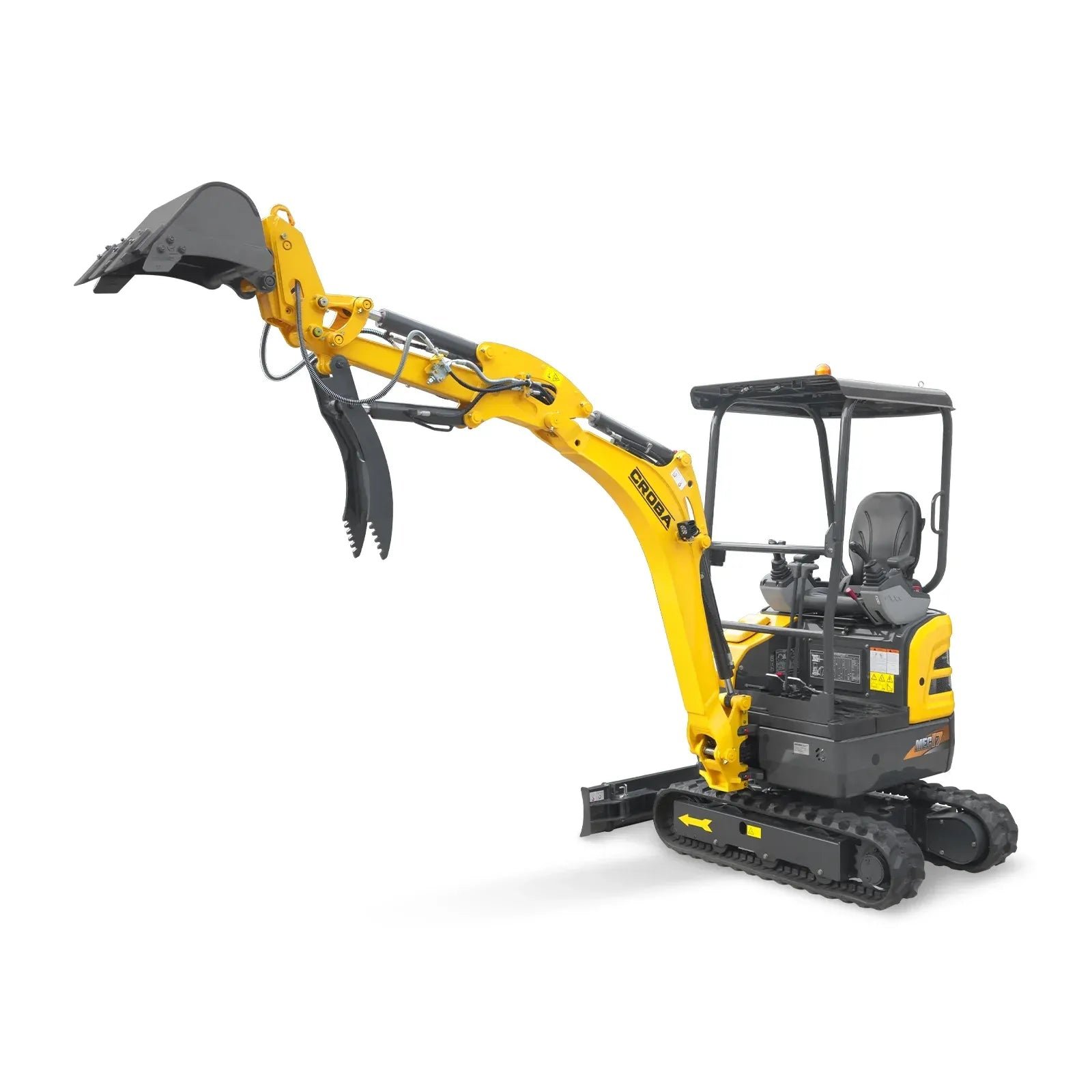

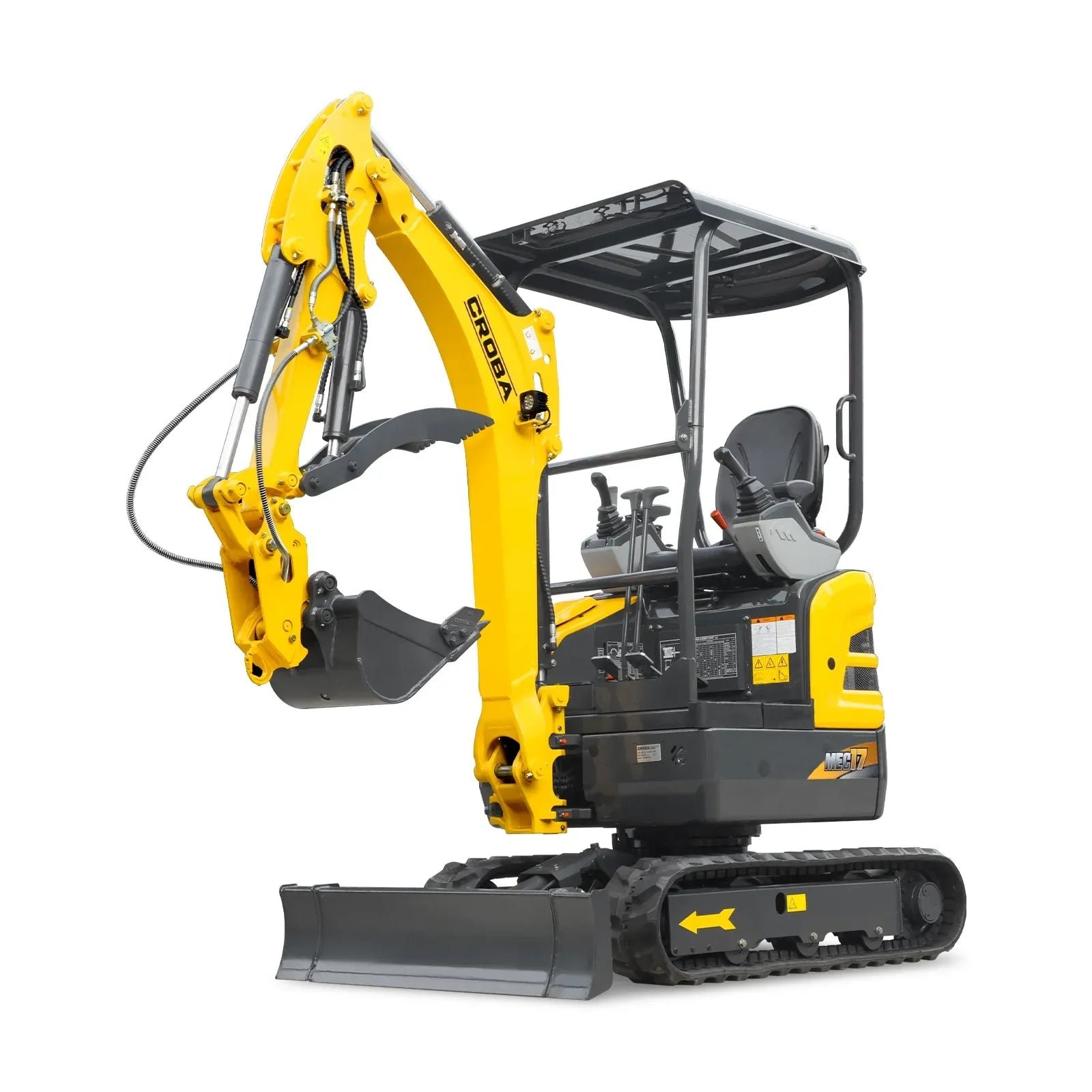

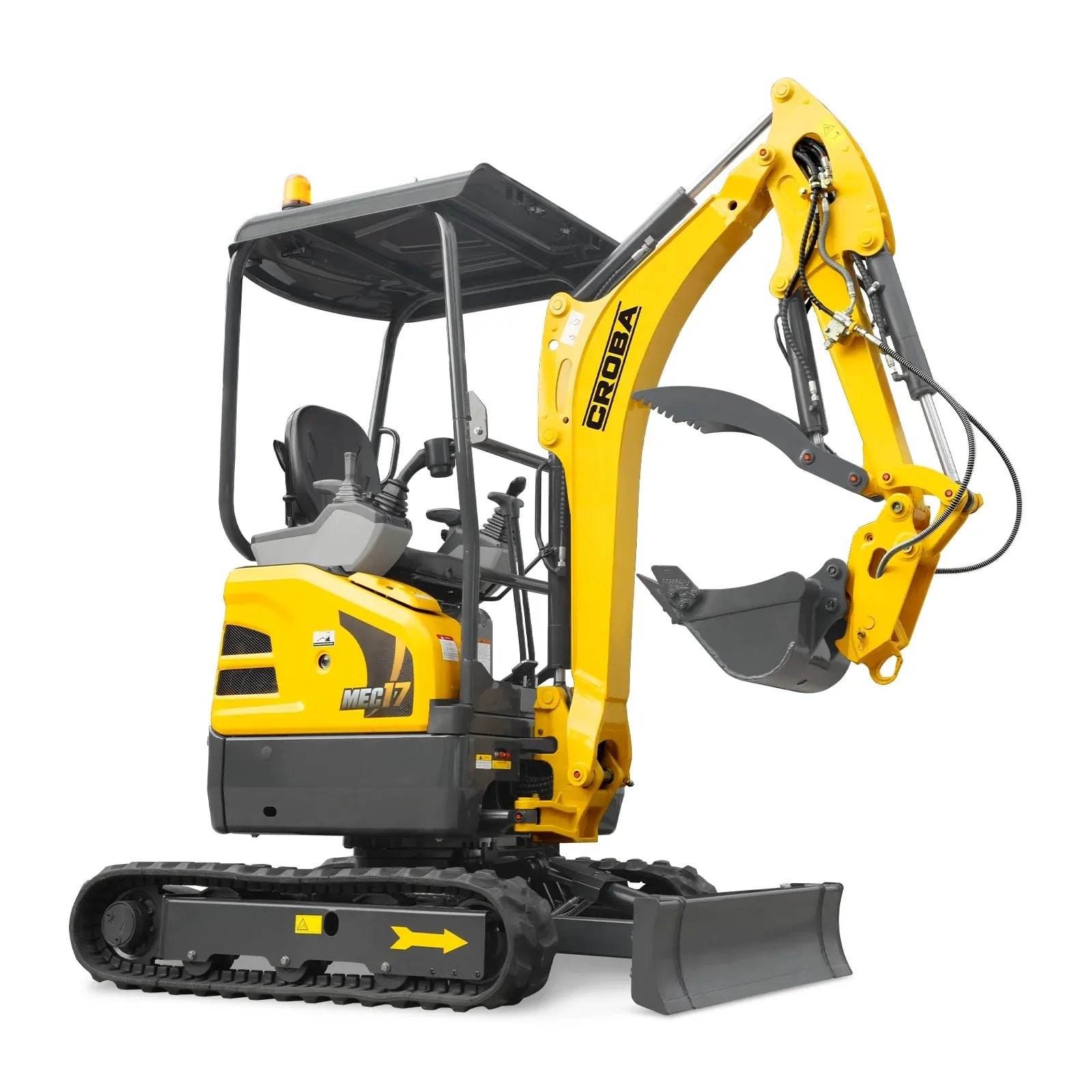

MechMaxx MEC17PRO Mini Compact Excavator

Kubota D902 — Upgraded Long Arm — Zero Tail Swing — 95″ Dig Depth

The MEC17PRO is the upgraded pro version of the MEC17 — featuring a longer boom and arm assembly for greater reach and digging depth, more digging force, a dual auxiliary circuit, and an upgraded hydraulic system rated at 17 GPM. Built for operators who need more from a compact machine without stepping up in size class.

Kubota D902-NT-EF03 — 18.5 HP · 3,600 RPM · 54.8 in³ displacement. Reliable, fuel-efficient, low vibration, and built for long service life. 2-year or 2,000-hour engine warranty, whichever comes first.

MEC17PRO vs MEC17 — Key Upgrades

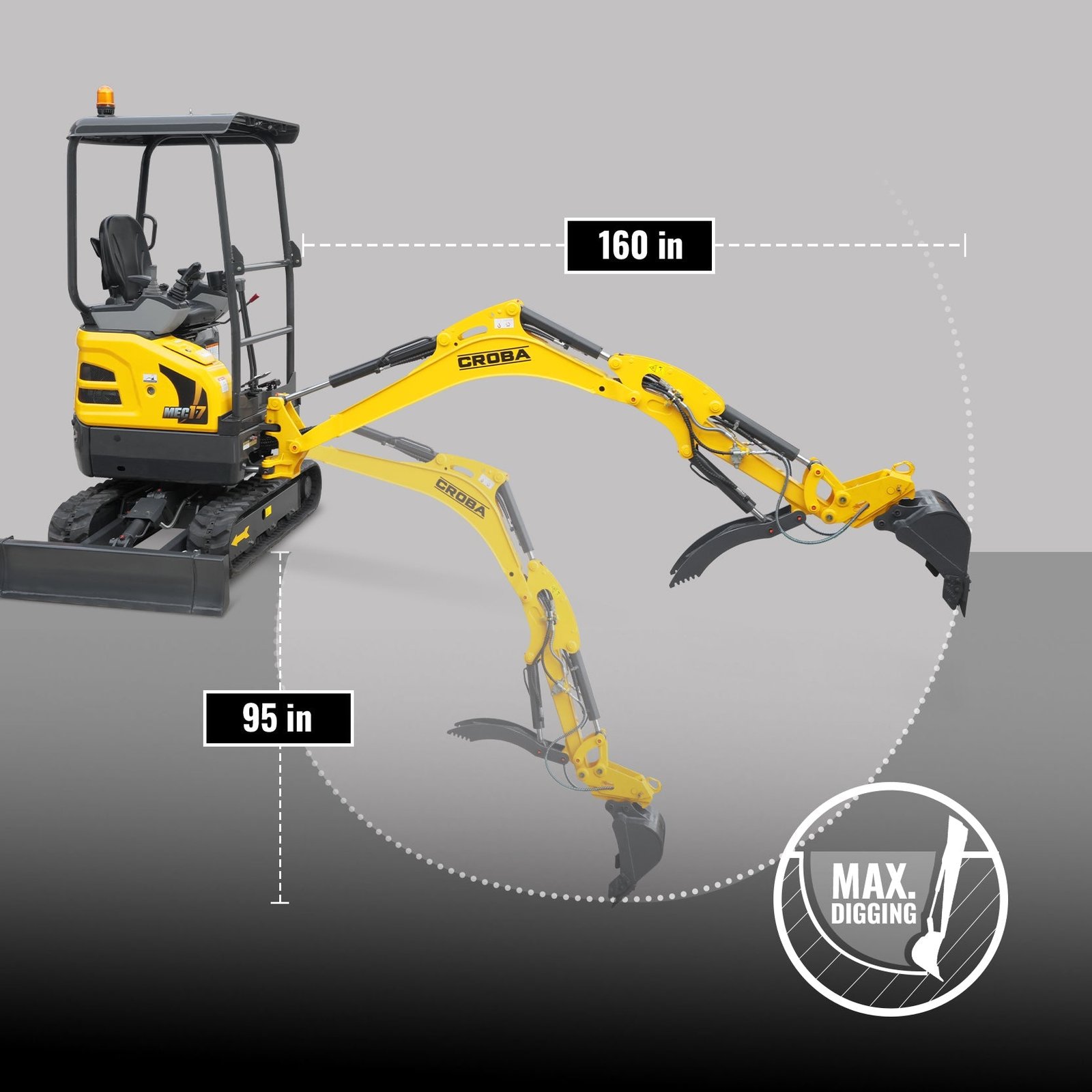

Max Dig Depth

95″

MEC17: 89″

Max Digging Radius

160″

MEC17: 154″

Bucket Digging Force

3,597 lbf

MEC17: not rated

Arm Length

43.3″

MEC17: 37.4″

Boom Length

72″

MEC17: standard

Dual Aux Circuit

9.1 + 2.6 GPM

MEC17: primary only

18.5 HP

Kubota D902

4,190 lbs

Operating Weight

95″

Max Dig Depth

160″

Max Digging Radius

Key Features

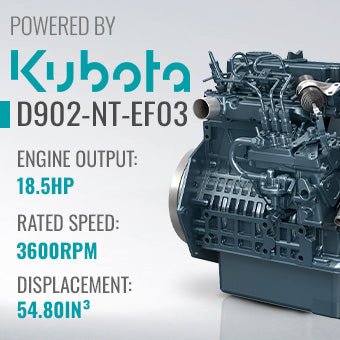

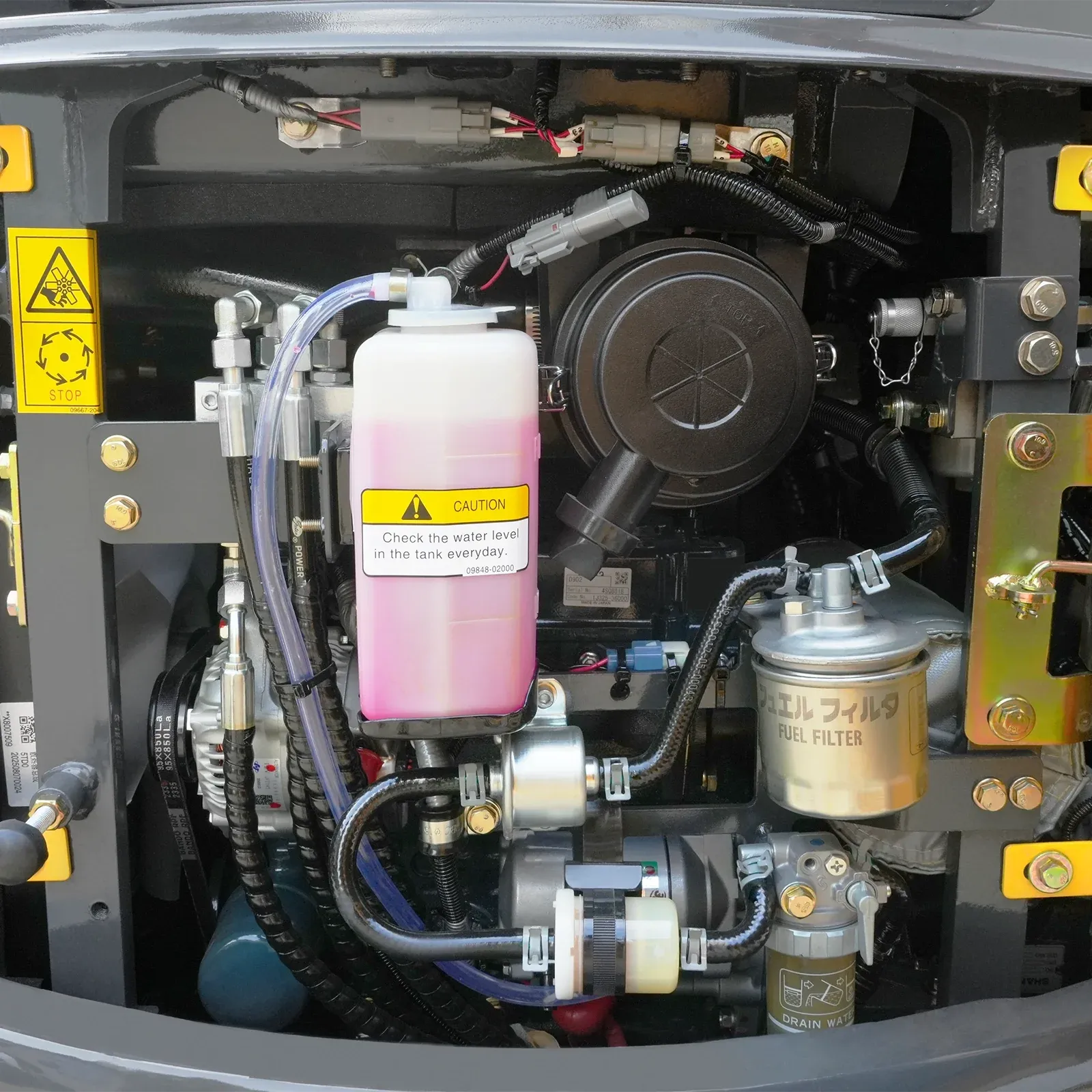

Kubota D902-NT-EF03 Engine

18.5 HP at 3,600 RPM with 54.8 in³ displacement. Reliable, fuel-efficient, and low vibration — backed by a 2-year or 2,000-hour engine warranty. Consistent power delivery for heavy-duty continuous operation.

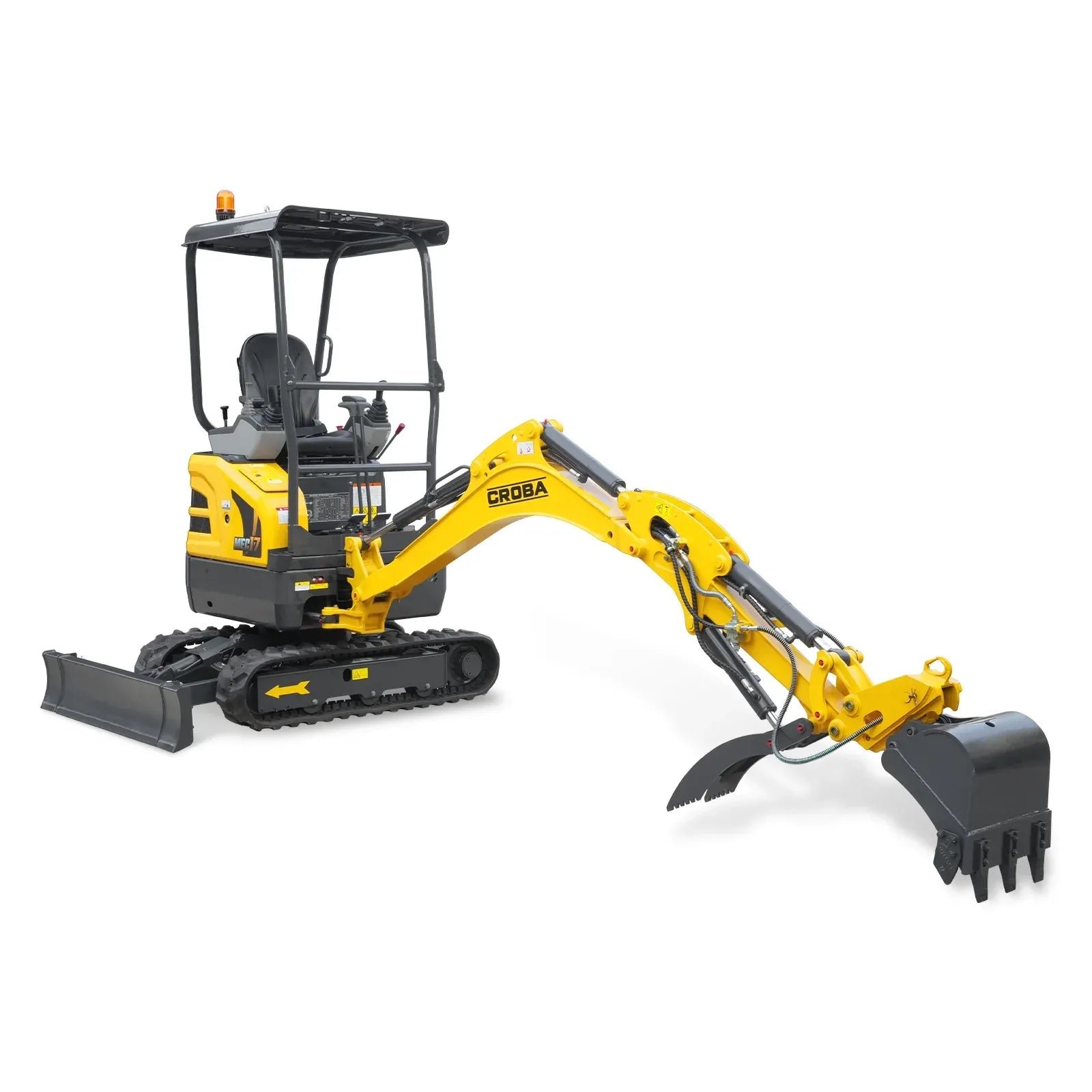

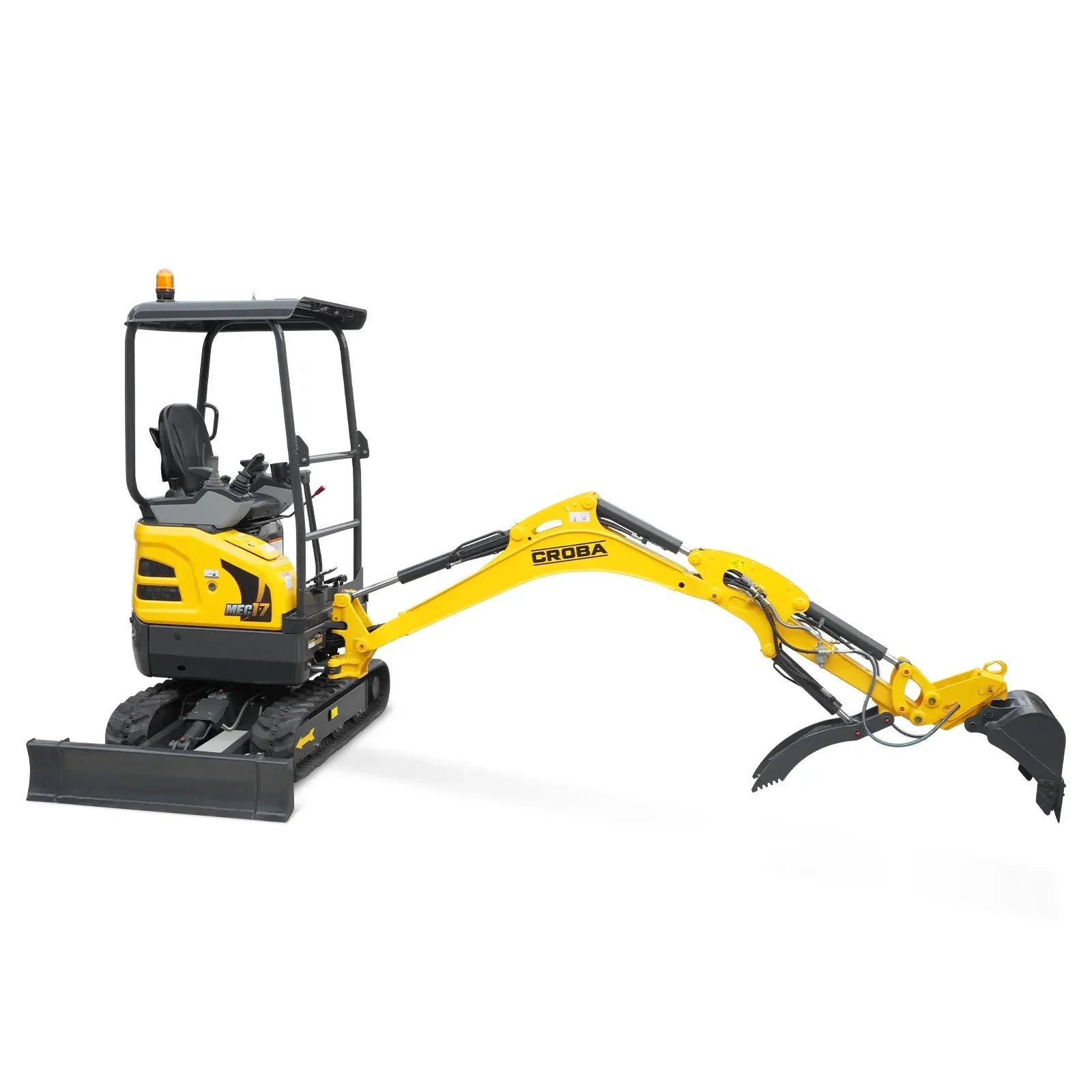

Upgraded Long Arm Assembly

72″ boom and 43.3″ arm — longer than the standard MEC17 — delivering 95″ max digging depth, 160″ max digging radius, and 157″ reach at ground level. Access deeper, reach further, work less.

Dual Auxiliary Hydraulic Circuit

Primary auxiliary flow of 9.1 GPM plus a secondary circuit at 2.6 GPM — enabling simultaneous or independent attachment operation. Supports a wider range of complex attachments than single-circuit machines.

17 GPM High-Flow Hydraulic System

17 GPM pump flow at 2,300 RPM — supports high-flow attachments including augers, rippers, and mulcher heads for concrete work and vegetation management beyond standard digging applications.

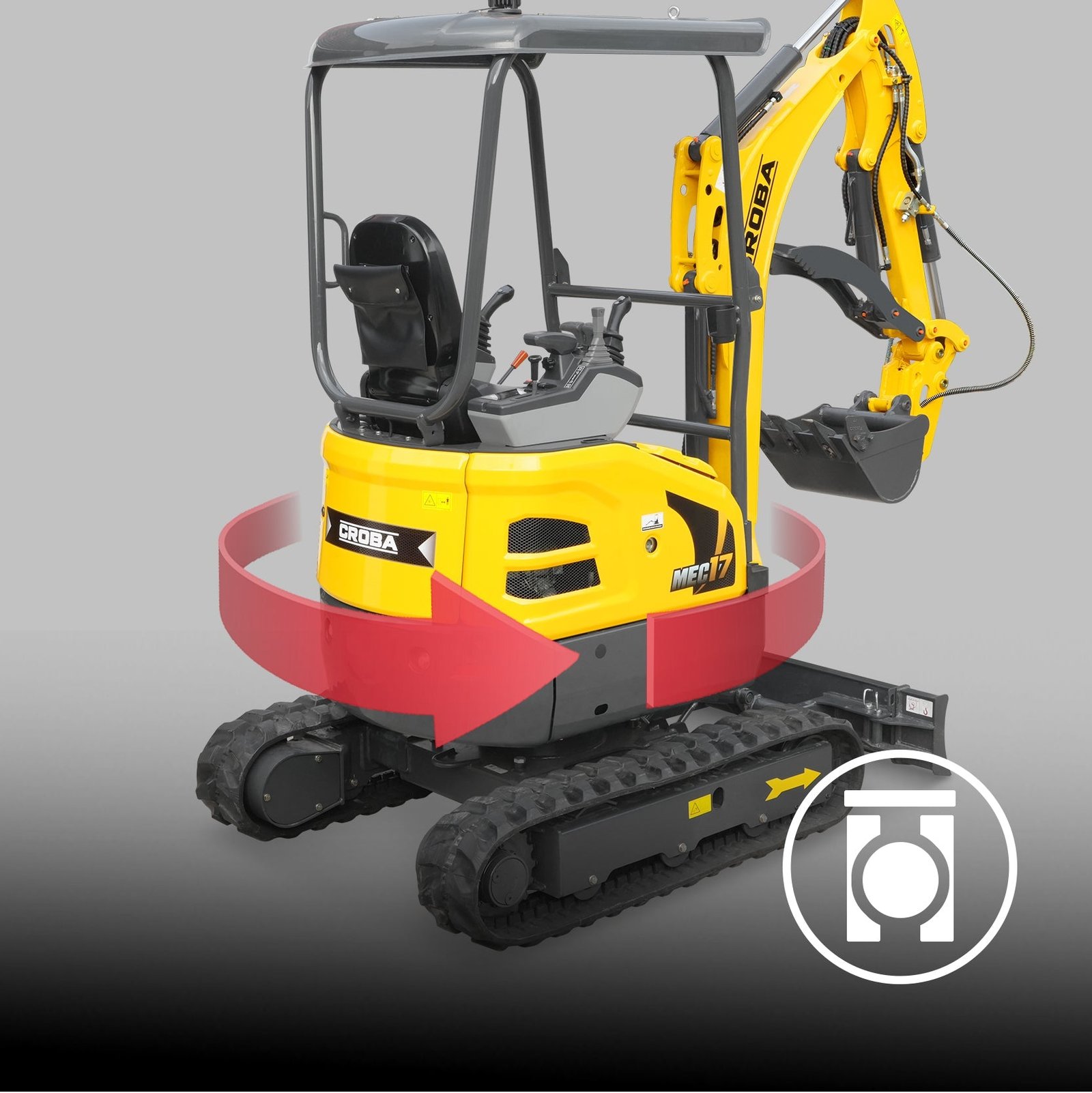

Zero Tail Swing — 25.6″ Radius

25.6 in tail swing radius keeps the rear counterweight within the track width during full 360° rotation — letting you work directly alongside walls, vehicles, and obstacles without rear collision risk.

Danfoss SW2.5K Swing Motor

Danfoss SW2.5K swing motor at 9.5 RPM — one of the most trusted names in hydraulic motor engineering. Consistent, smooth cab rotation for efficient digging and repositioning.

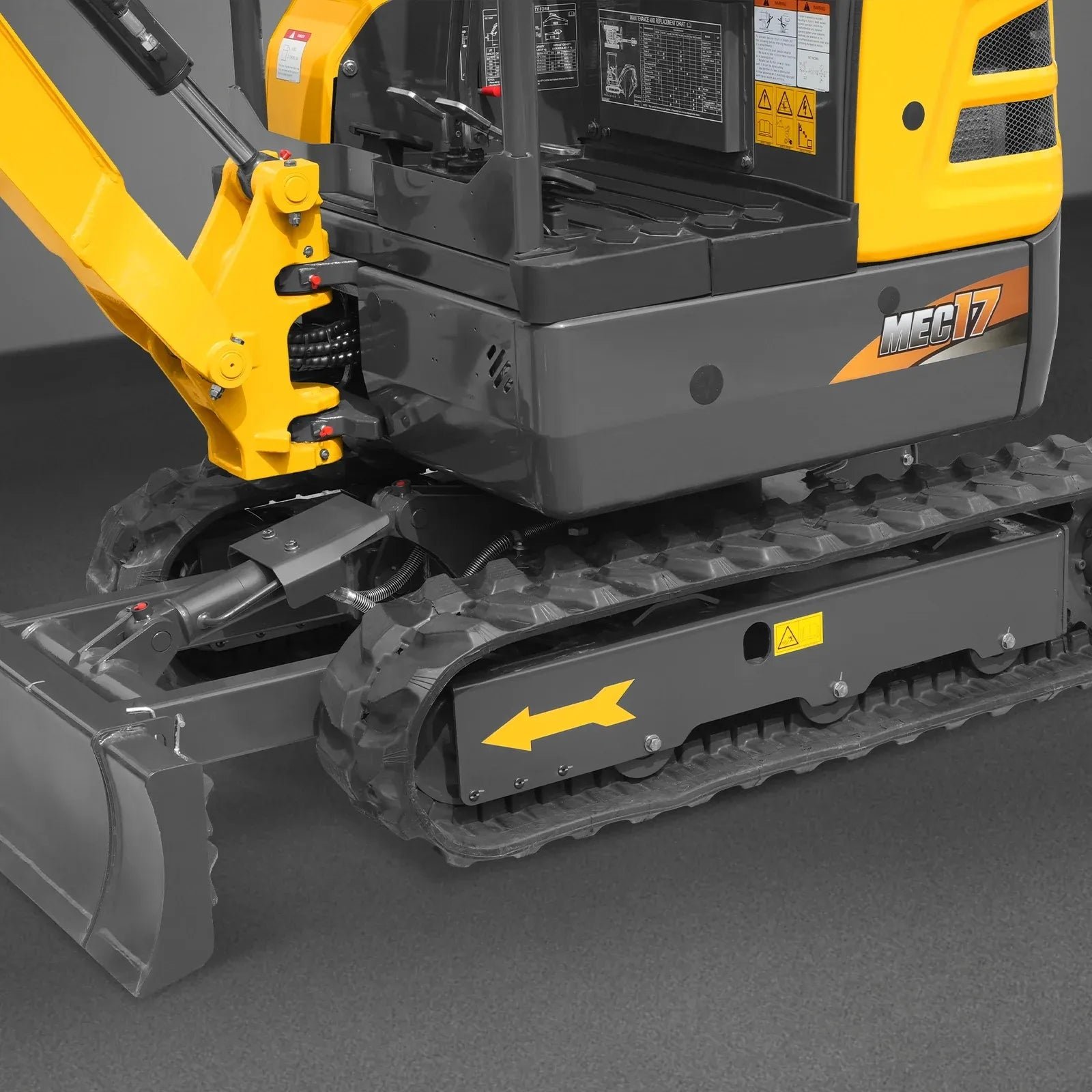

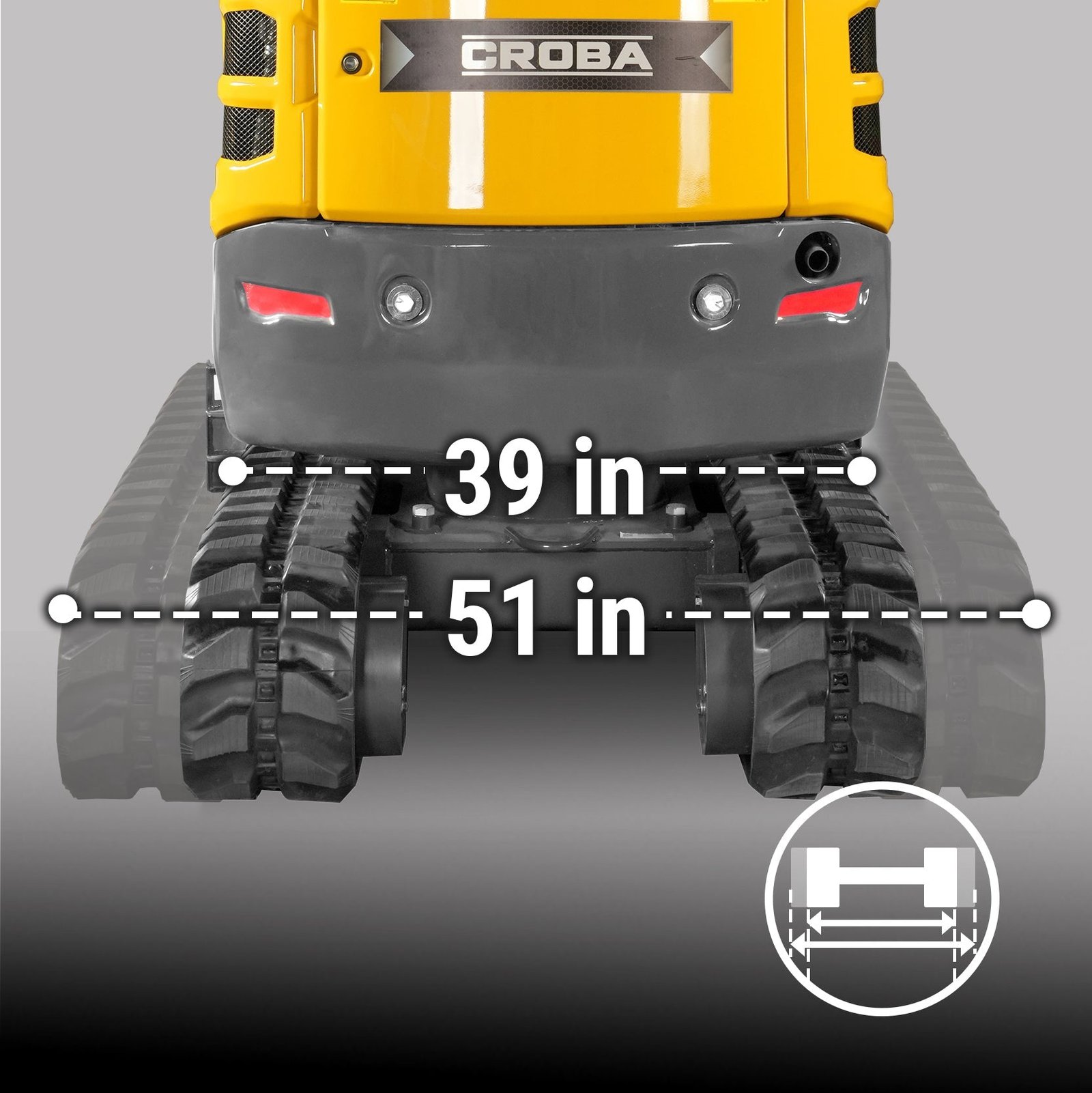

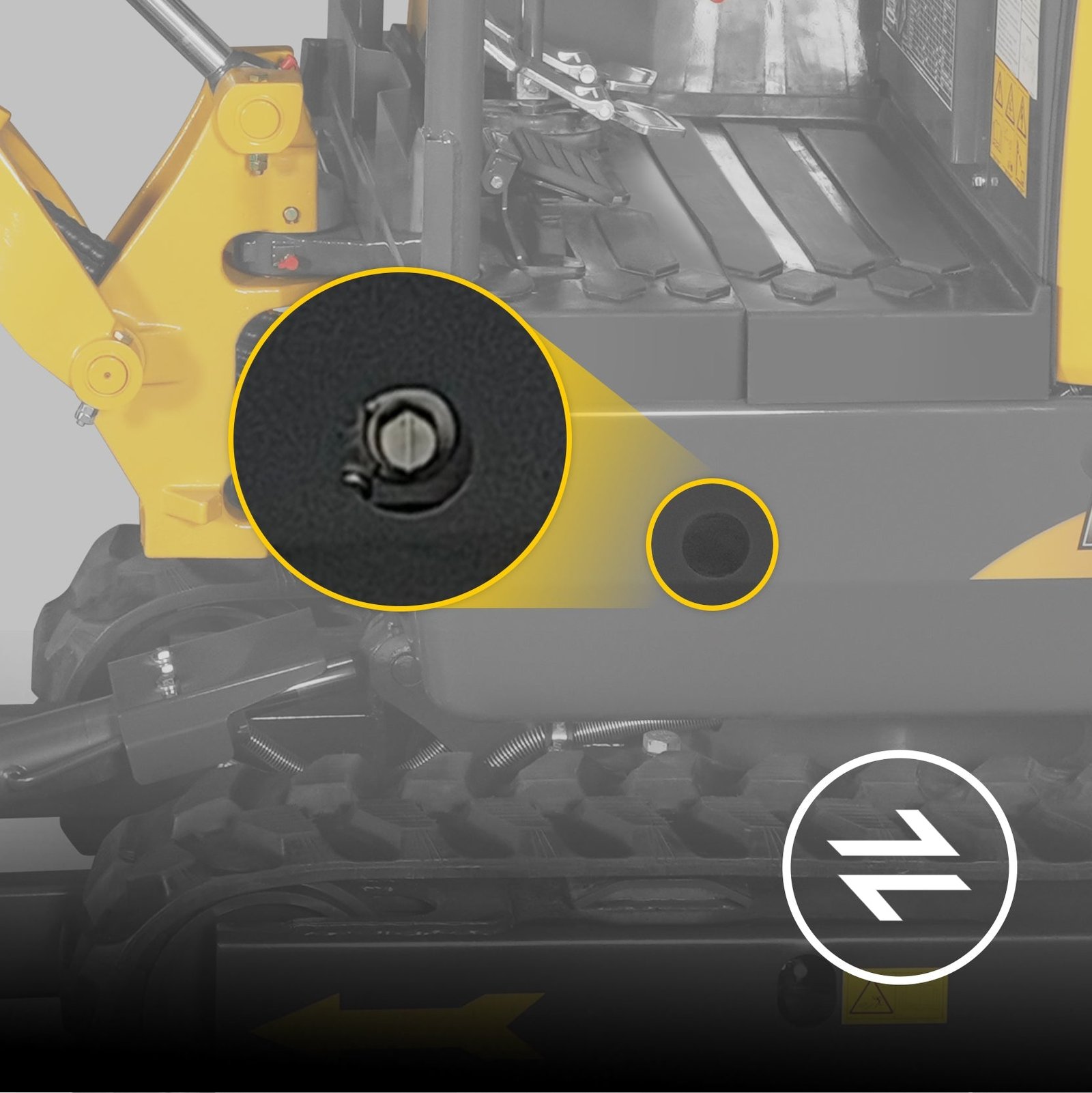

Retractable Undercarriage — 39″ to 51″

Retract tracks to 39″ for passing through tight access points. Extend to 51″ for enhanced stability on uneven terrain. 6 track rollers with 9.1 in shoe width for maximum ground contact.

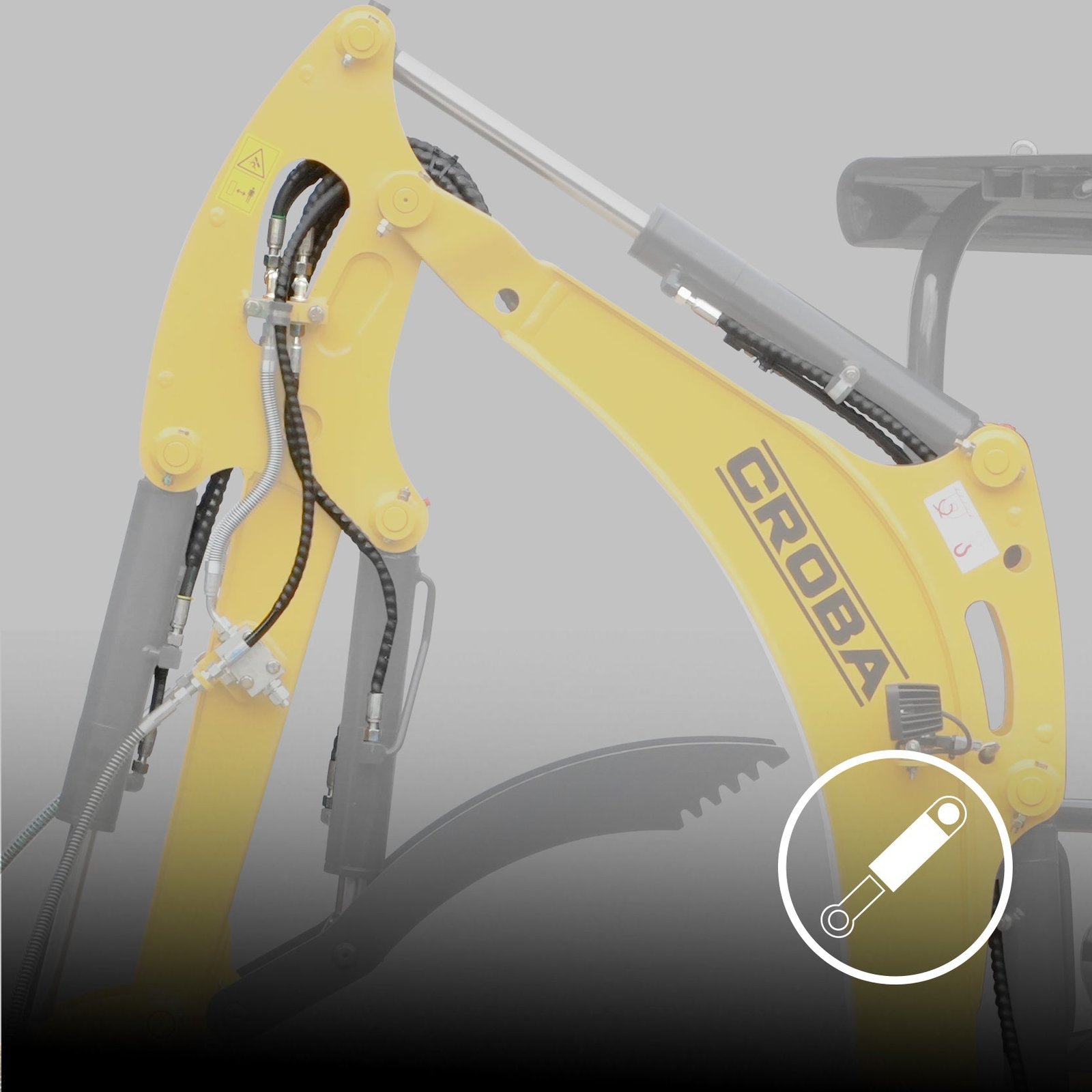

Gates Hydraulic Hoses & Protected Routing

Gates hydraulic hoses throughout for exceptional durability and long service life. Built-in hose routing protects lines from impacts and abrasion during demanding construction work.

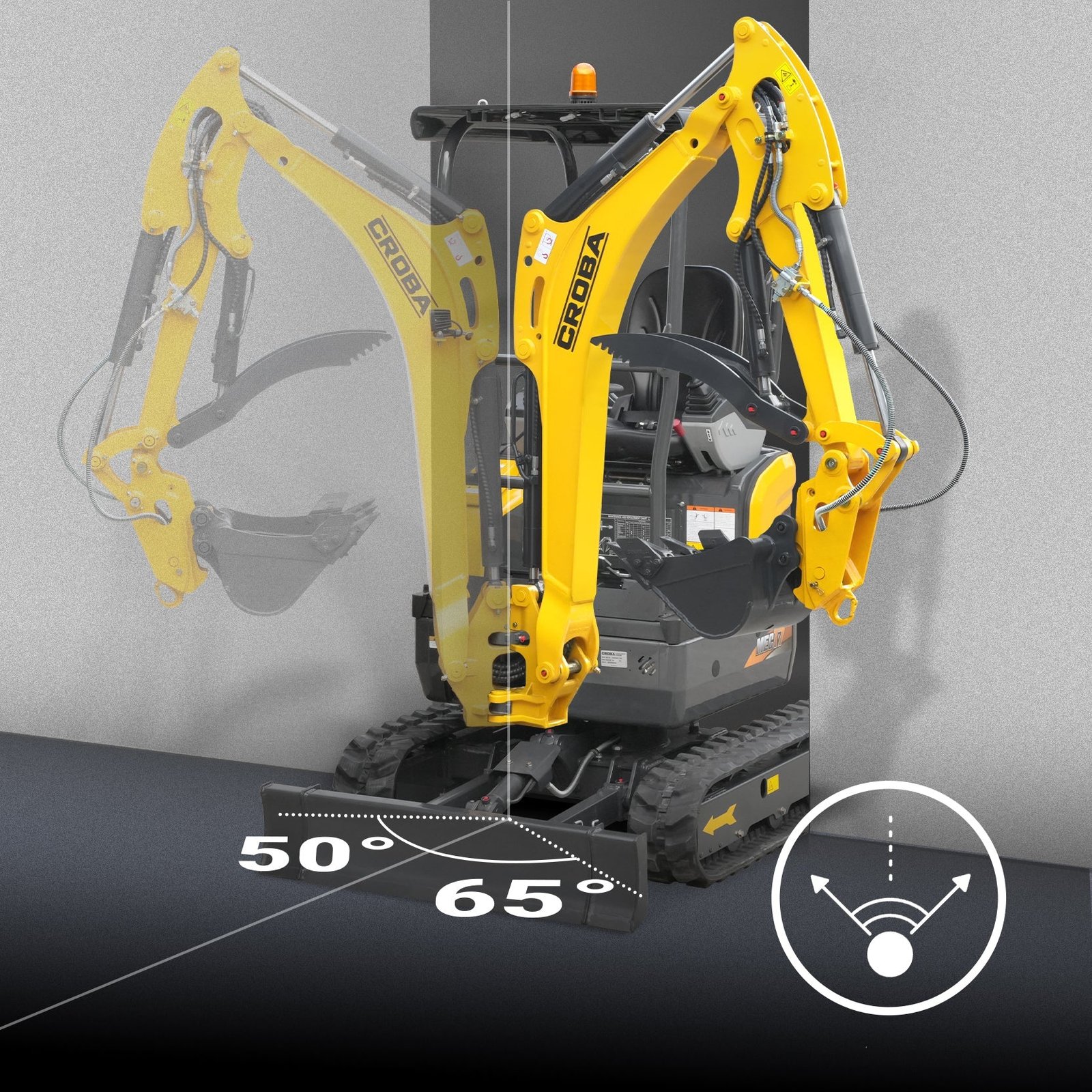

Boom Swing — 65° Left / 50° Right

Wide boom swing range for digging alongside walls, fences, and tight jobsite edges. Combined with zero tail swing and retractable tracks — complete access in the most confined spaces.

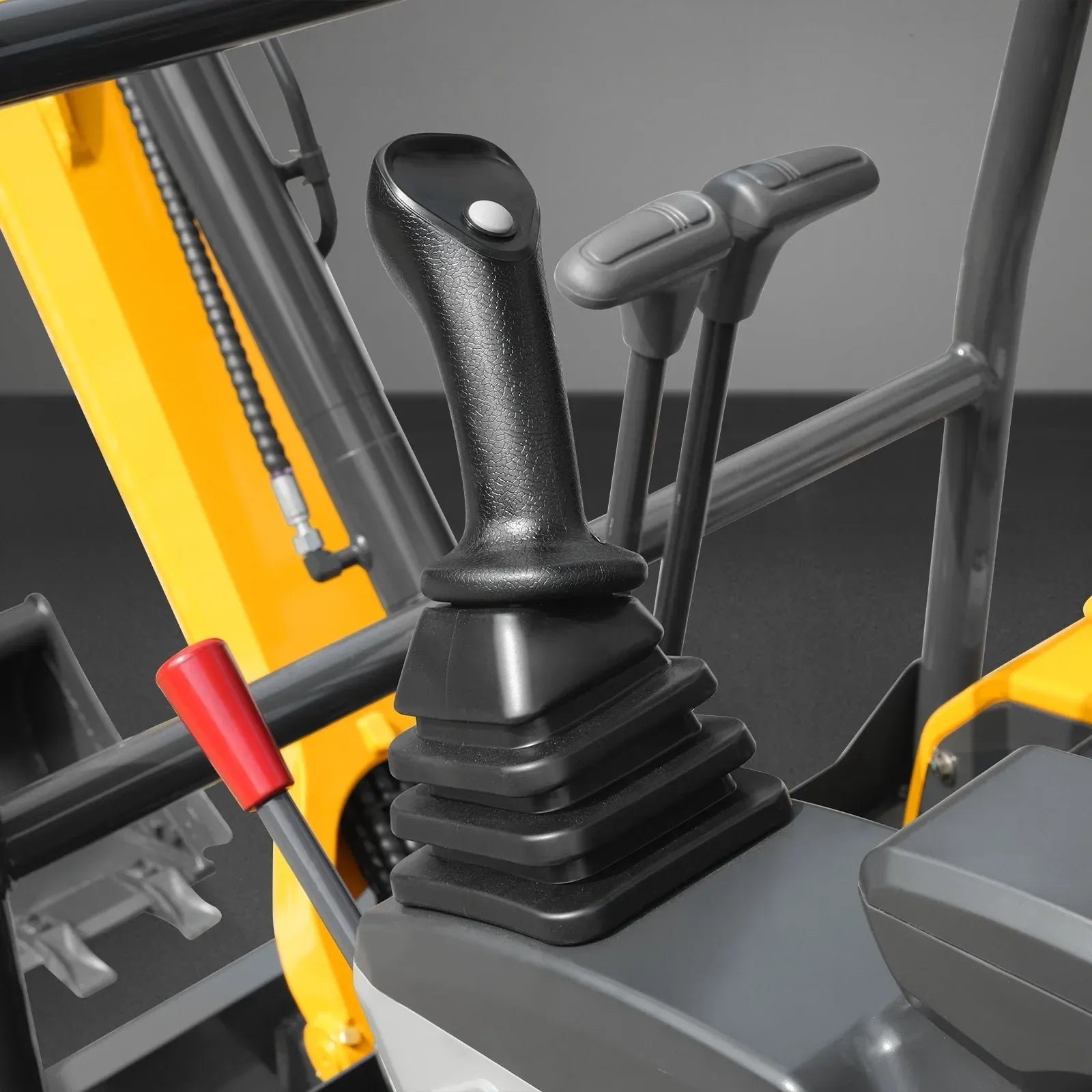

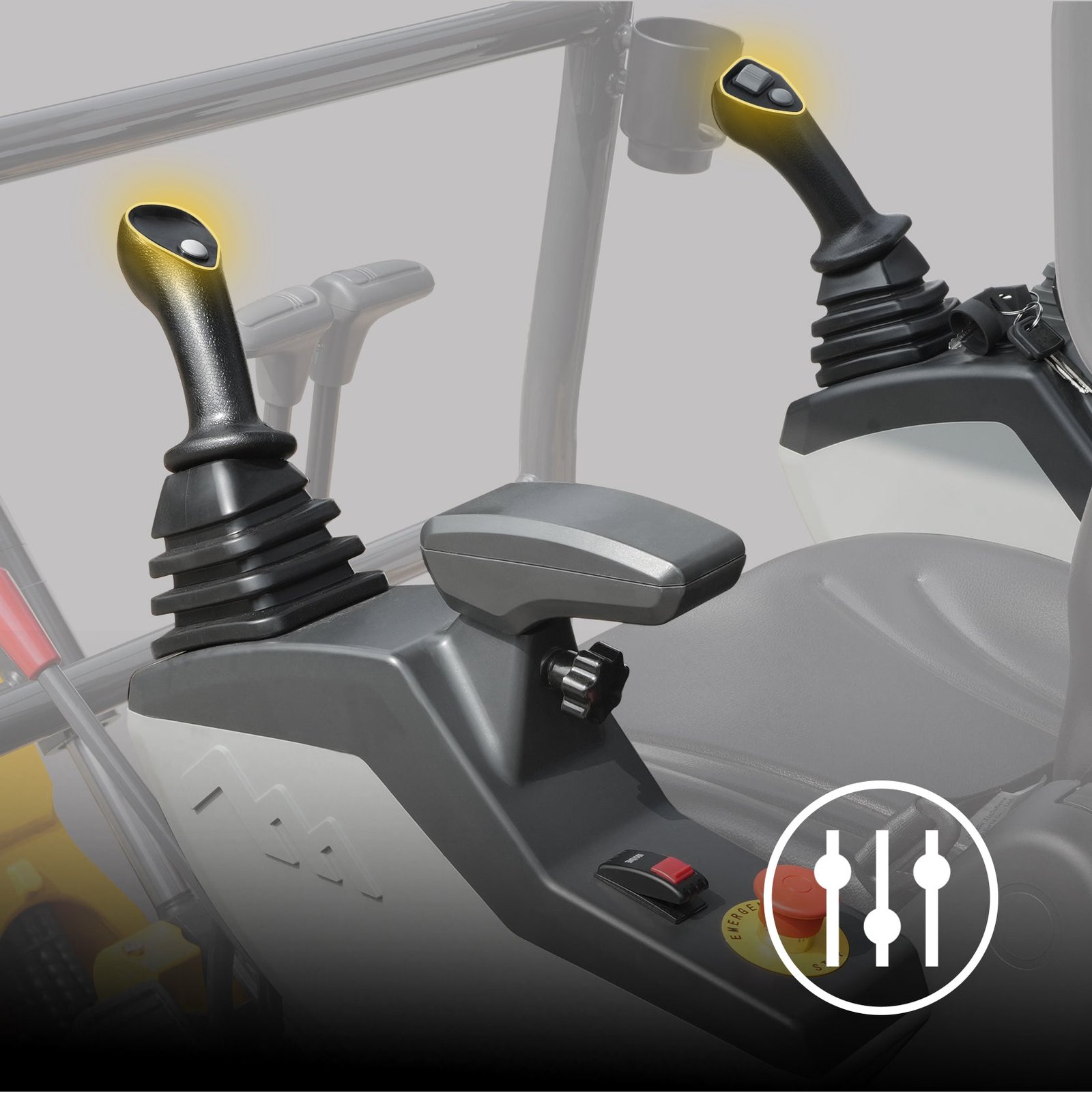

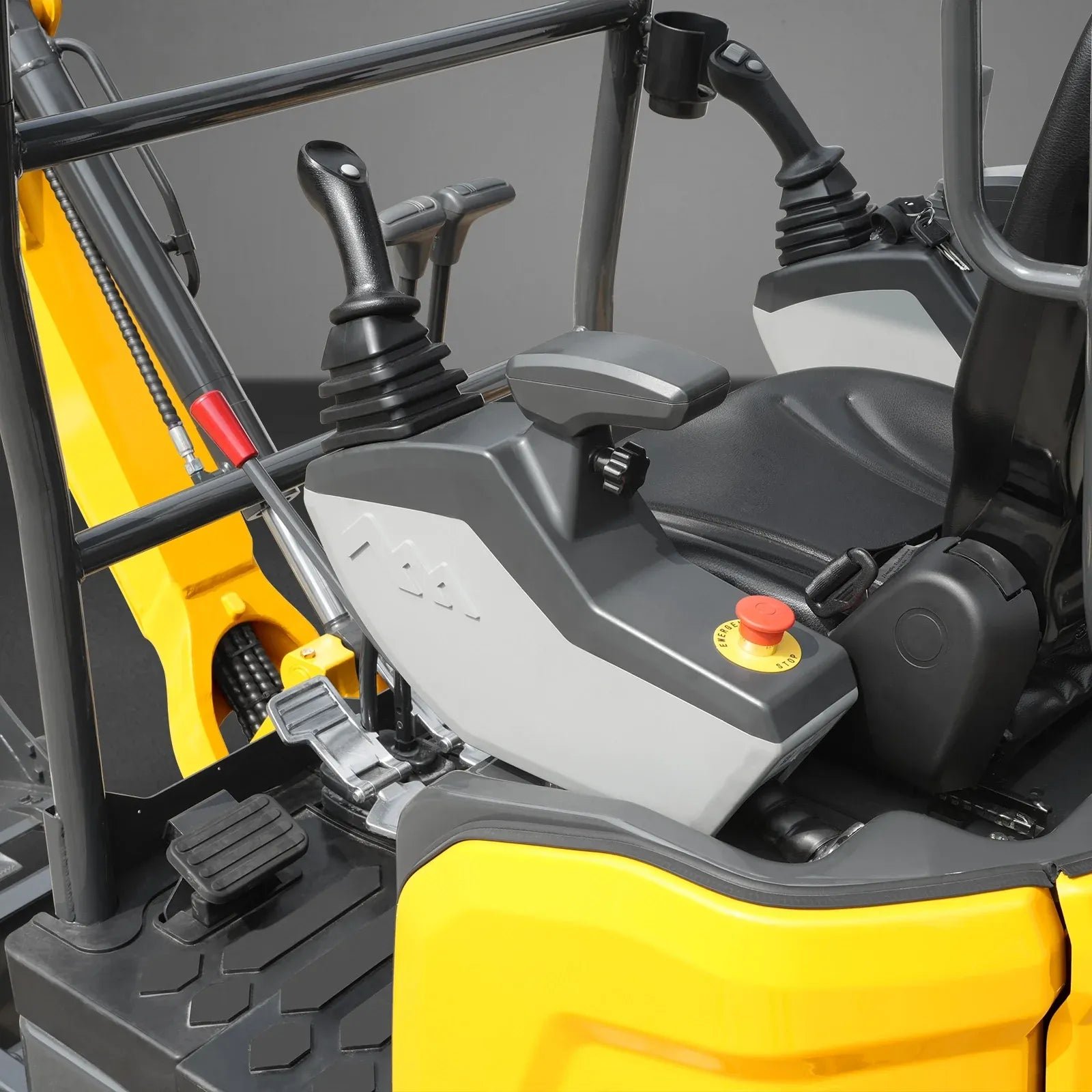

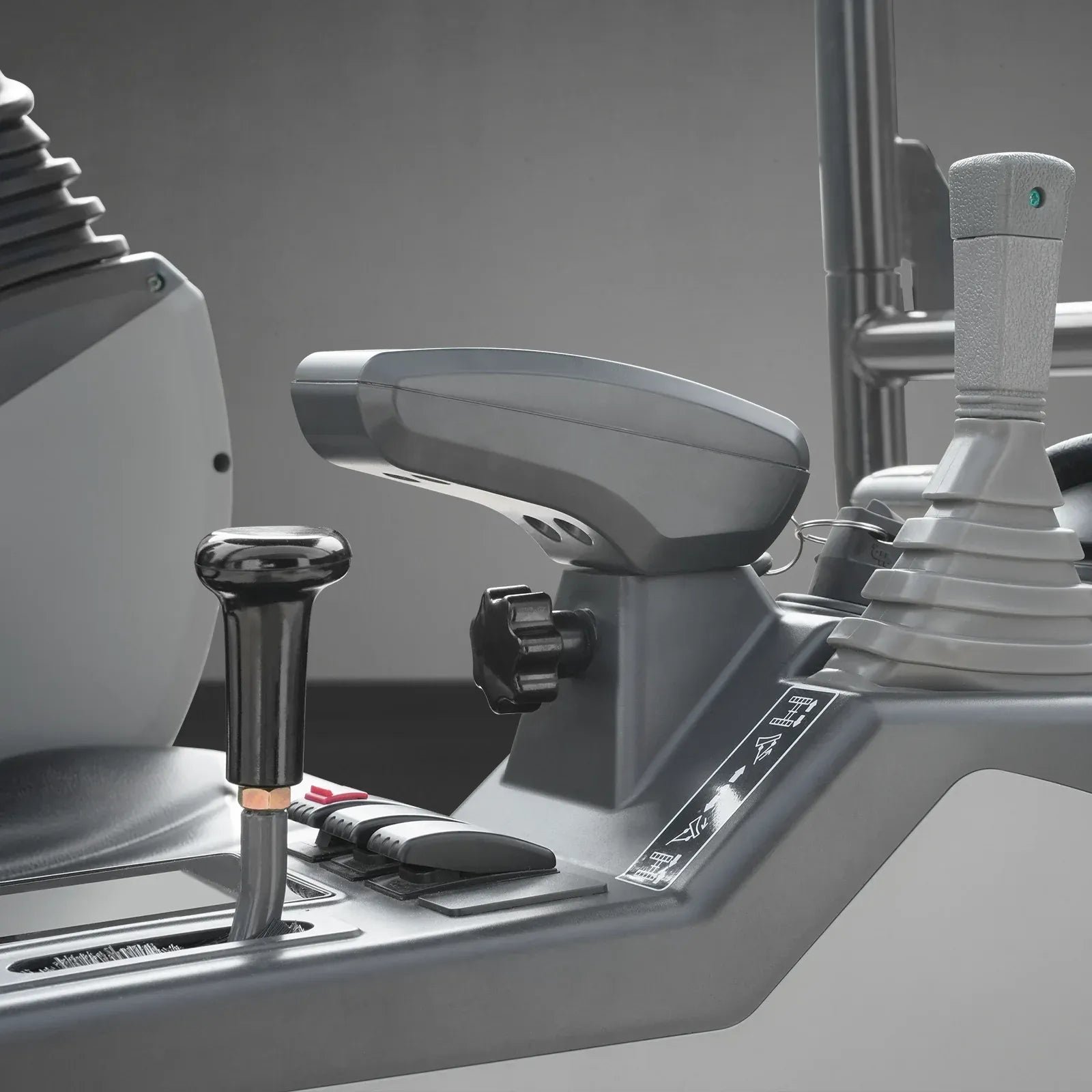

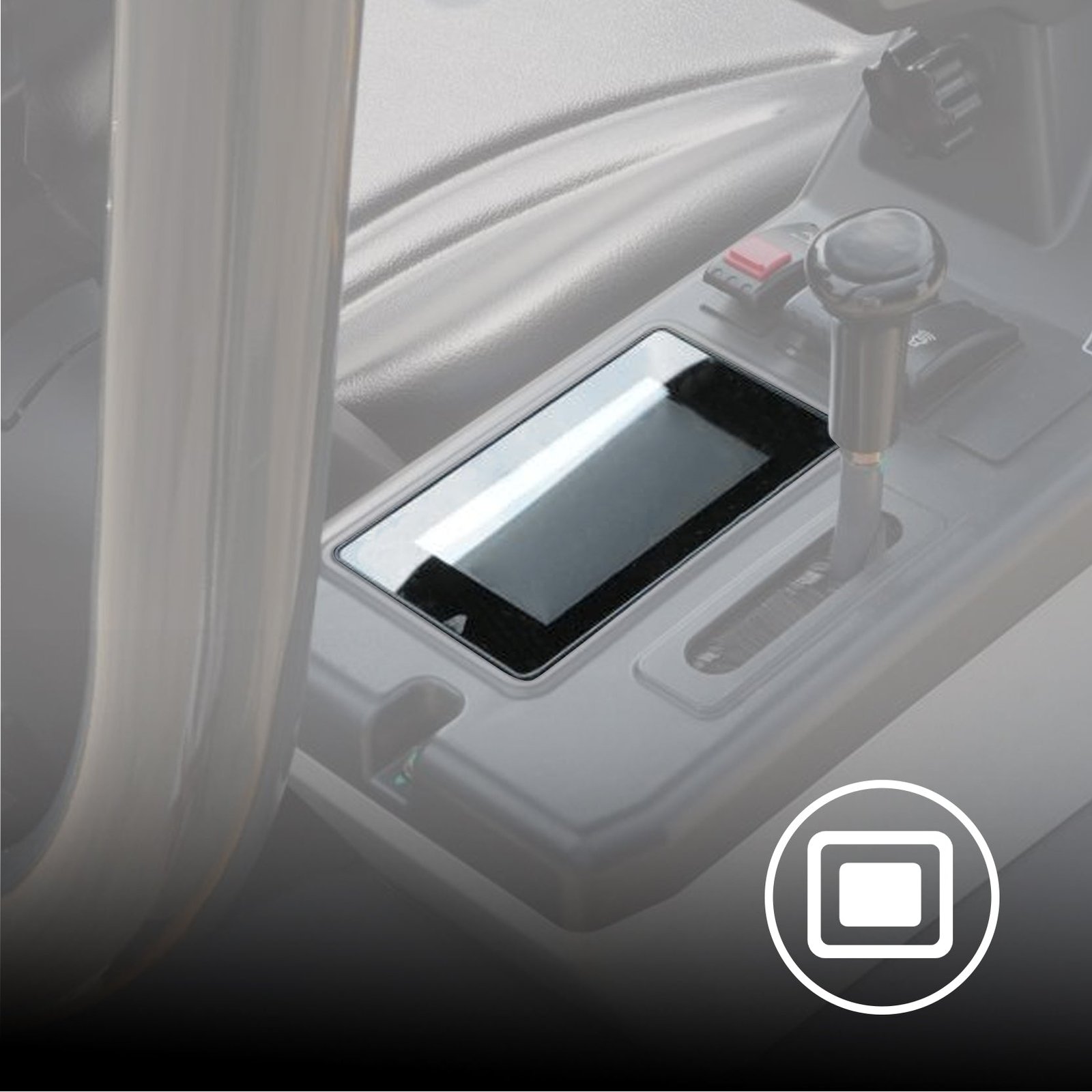

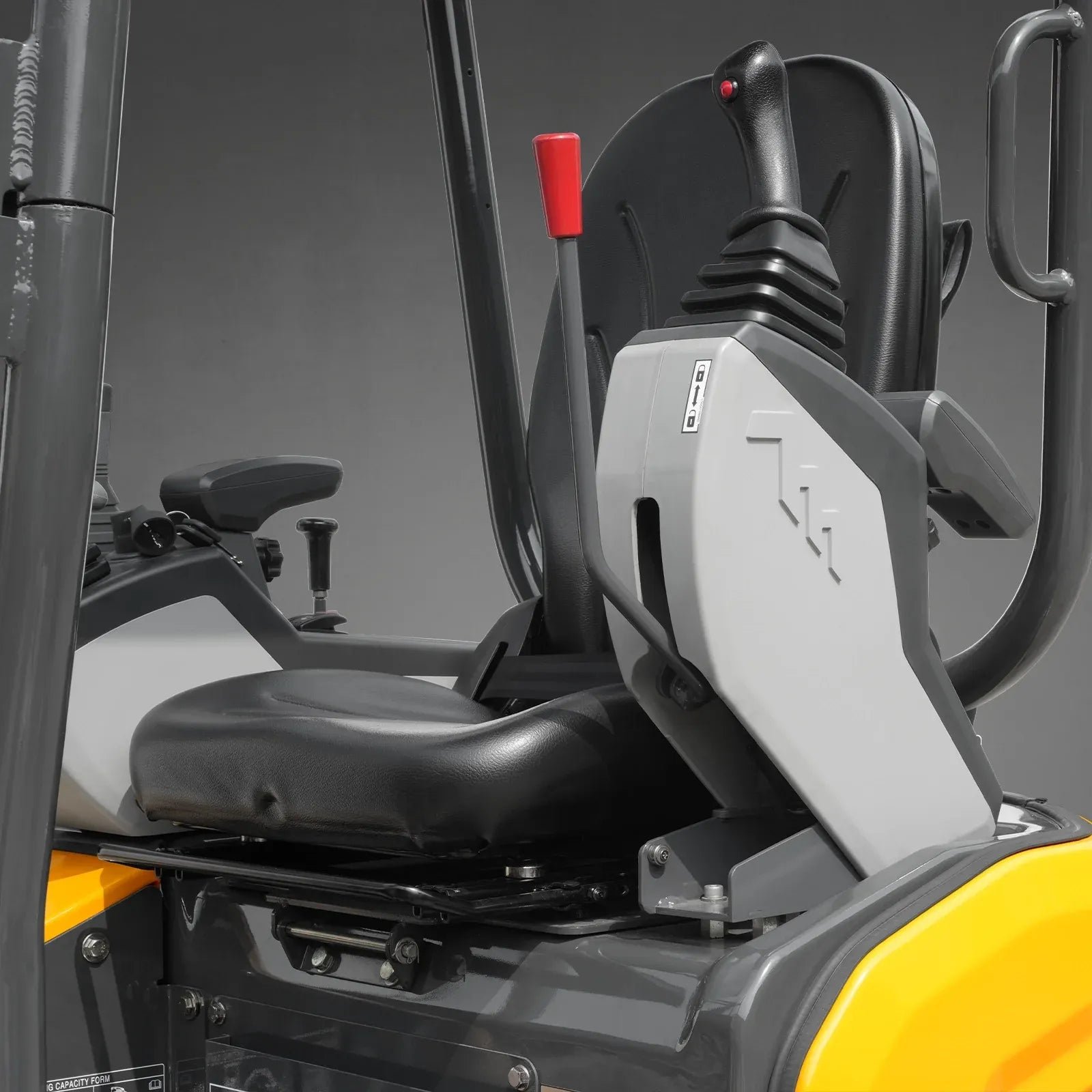

Pilot-Operated Controls & LCD Display

Smooth, responsive pilot-operated joystick controls reduce fatigue during extended operation. Integrated LCD display provides real-time machine monitoring. High-back seat for long-shift comfort.

Full Specifications

Engine

Engine Model	Kubota D902-NT-EF03
Engine Output (Net)	15.8 HP
Engine Output (Gross)	18.5 HP
Rated Speed	2,300 RPM (operating) / 3,600 RPM (max)
Displacement	54.8 in³
No. of Cylinders	3
Bore	2.83 in
Stroke	2.9 in
Engine Warranty	2-Year or 2,000-Hour (whichever comes first)

Performance & Scope of Work

Operating Weight	4,190 lbs
Max Digging Depth	95 in
Max Vertical Digging Depth	81 in
Max Digging Height	147 in
Max Dumping Height	104 in
Max Digging Radius	160 in
Max Digging Radius at Ground Level	157 in
Cutting Depth Per Pass	6 in
Max Lift Above Ground	11 in
Max Drop Below Ground	7.5 in
Min Turning Radius of Working Device	57 in
Boom Swing — Left	65°
Boom Swing — Right	50°
Rotation	360°
Tail Swing Radius	25.6 in

Travel System

Type of Tracks	Rubber
Track Roller Qty	6
Travel Speed — High	2.67 mph
Travel Speed — Low	1.37 mph
Max Traction Force — Low Speed	4,047 lbf
Ground Clearance	5.7 in
Ground Pressure	4.2 psi
Gradeability — Maximum	30°

Hydraulic System

Pump Flow at 2,300 RPM	17 GPM
Auxiliary Circuit — Primary Flow	9.1 GPM
Auxiliary Circuit — Secondary Flow	2.6 GPM
Swing Motor	Danfoss SW2.5K
Swing Speed	9.5 RPM
Hydraulic Hoses	Gates

Digging Forces & Arm

Boom Length	72 in
Arm Length	43.3 in
Bucket Digging Force	3,597 lbf
Arm Digging Force	2,136 lbf

Bucket

Bucket Capacity	1.4 ft³
Bucket Width	17.7 in

Dimensions

Overall Length	133 in
Ground Contact Length (Transportation)	96 in
Overall Width (Retracted / Expanded)	39 / 51 in
Track Width (Retracted / Expanded)	39 / 51 in
Track Gauge (Retracted / Expanded)	30 / 42 in
Blade Width (Retracted / Expanded)	39 / 51 in
Blade Height	11.8 in
Overall Height (to Top of Cab)	94.7 in
Track Length	62.7 in
Shoe Width	9.1 in
Crawler Wheel Base	48.4 in
Counterweight Ground Clearance	18 in

Capacities

Fuel Tank	5 gal
Hydraulic Oil Tank	3.6 gal
Engine Oil	1 gal
System Capacity	5.7 gal

Shipping

Packing Size	112.6 × 43.7 × 99.2 in
Net / Gross Weight	4,012 / 4,580 lbs
Package Method	Wood Case
Machine Warranty	1 Year

Everything Included

✓

Kubota D902-NT-EF03 Engine

✓

Upgraded Long Arm Assembly

✓

17 GPM High-Flow Hydraulics

✓

Dual Auxiliary Circuit (9.1 + 2.6 GPM)

✓

Danfoss SW2.5K Swing Motor

✓

Gates Hydraulic Hoses

✓

Protected Hydraulic Routing

✓

Zero Tail Swing Design

✓

Retractable Undercarriage (39″–51″)

✓

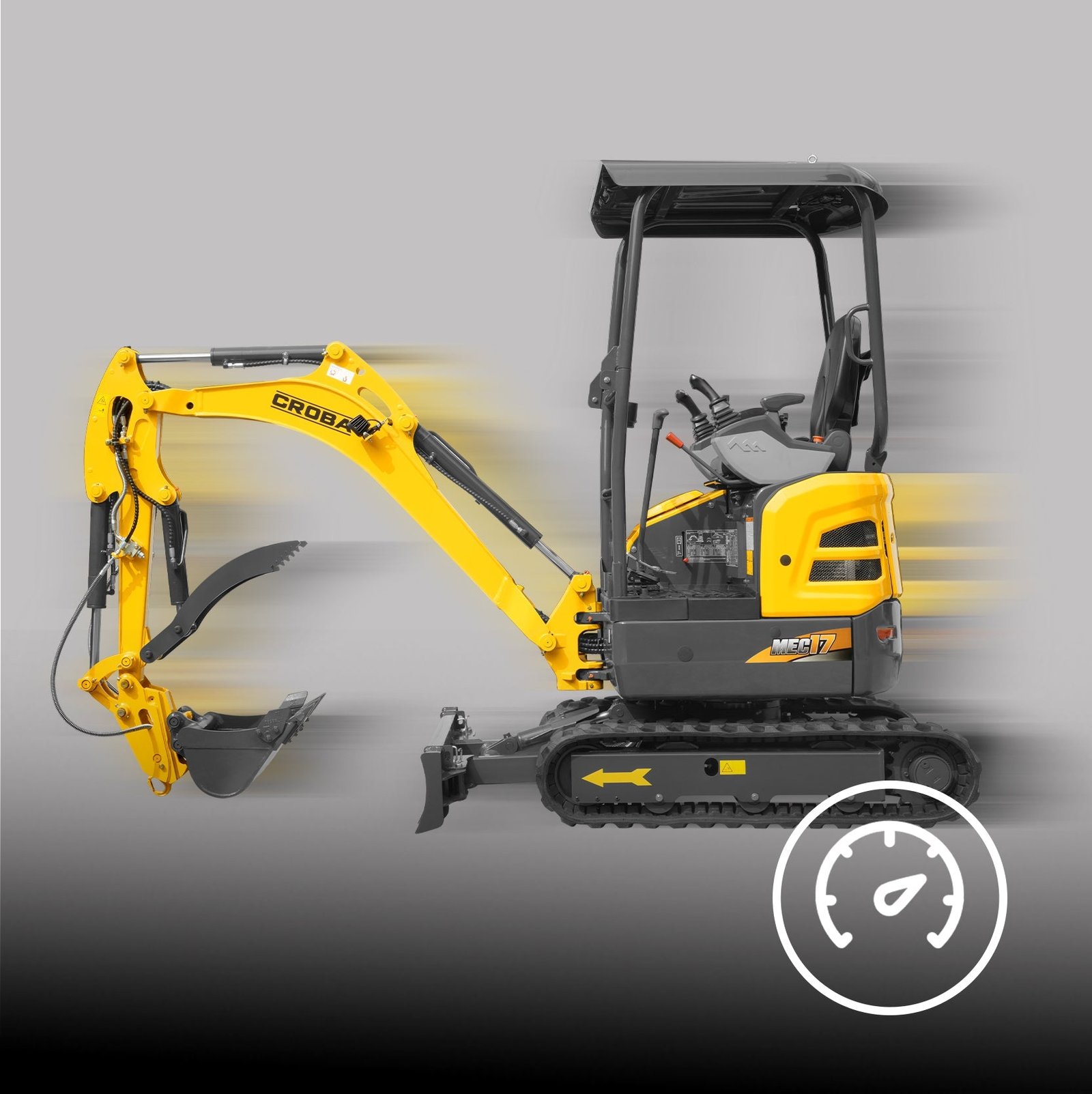

Two-Speed Travel (High / Low)

✓

360° Rotation

✓

Boom Swing 65° Left / 50° Right

✓

Pilot-Operated Controls

✓

LCD Display

✓

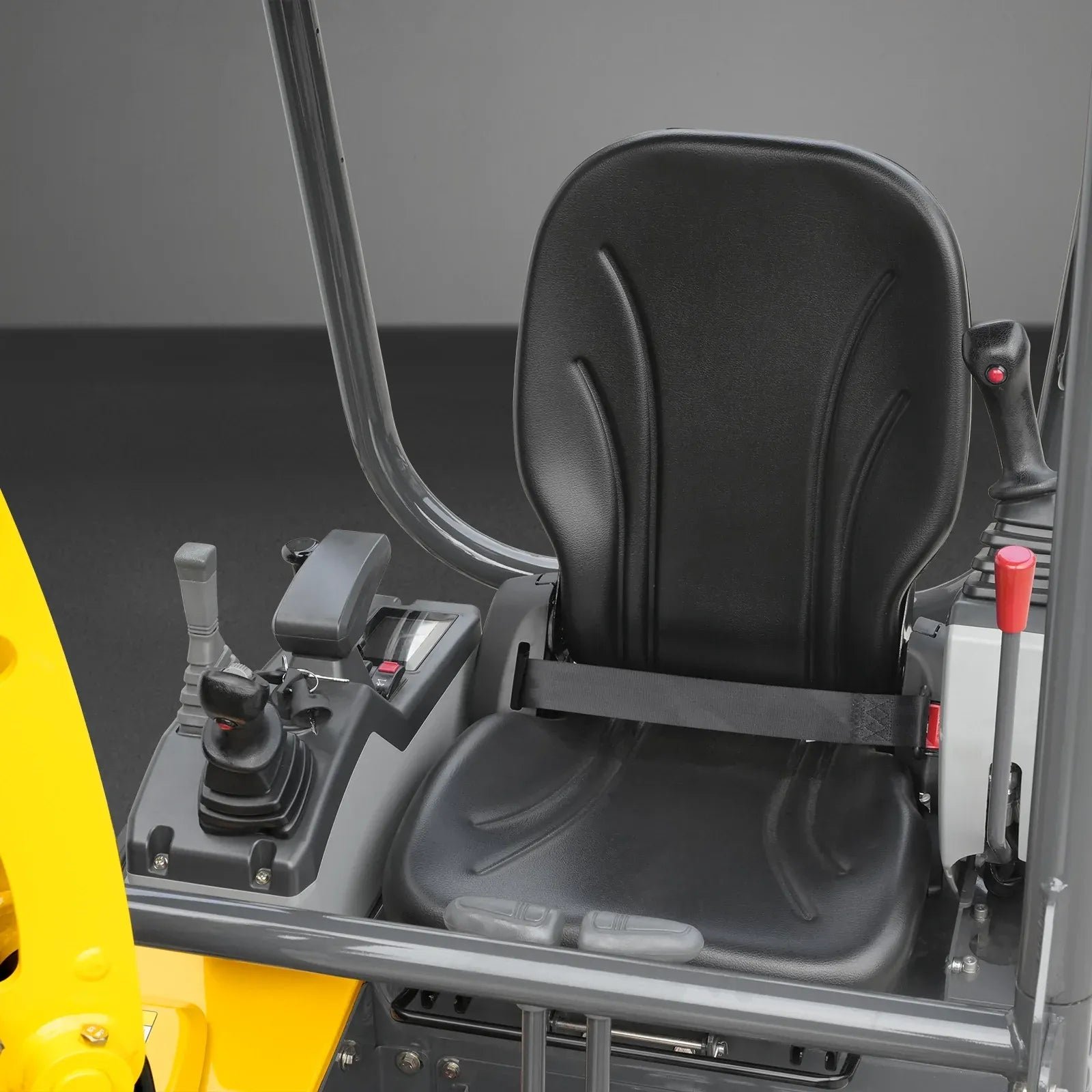

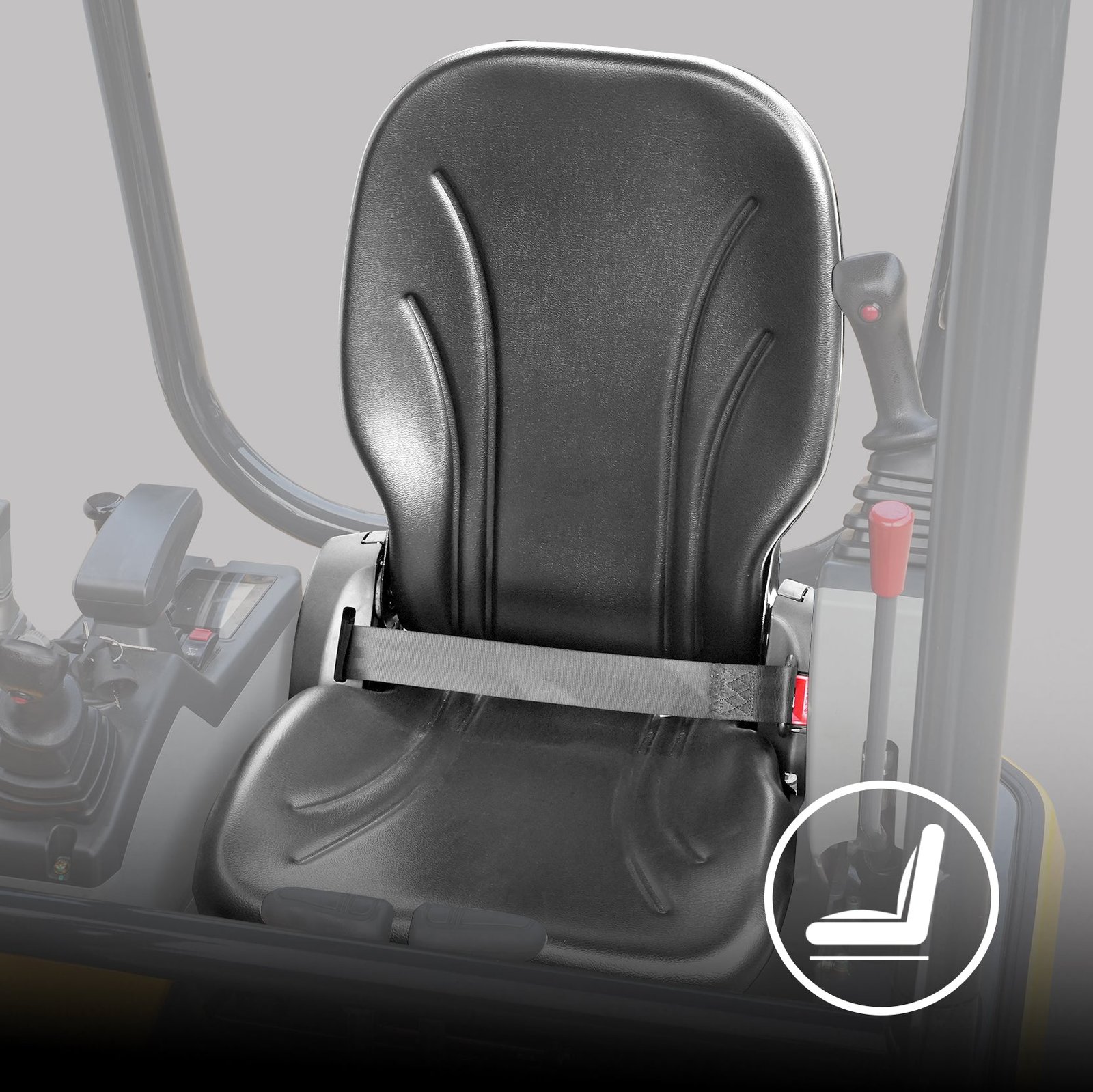

High-Back Seat

✓

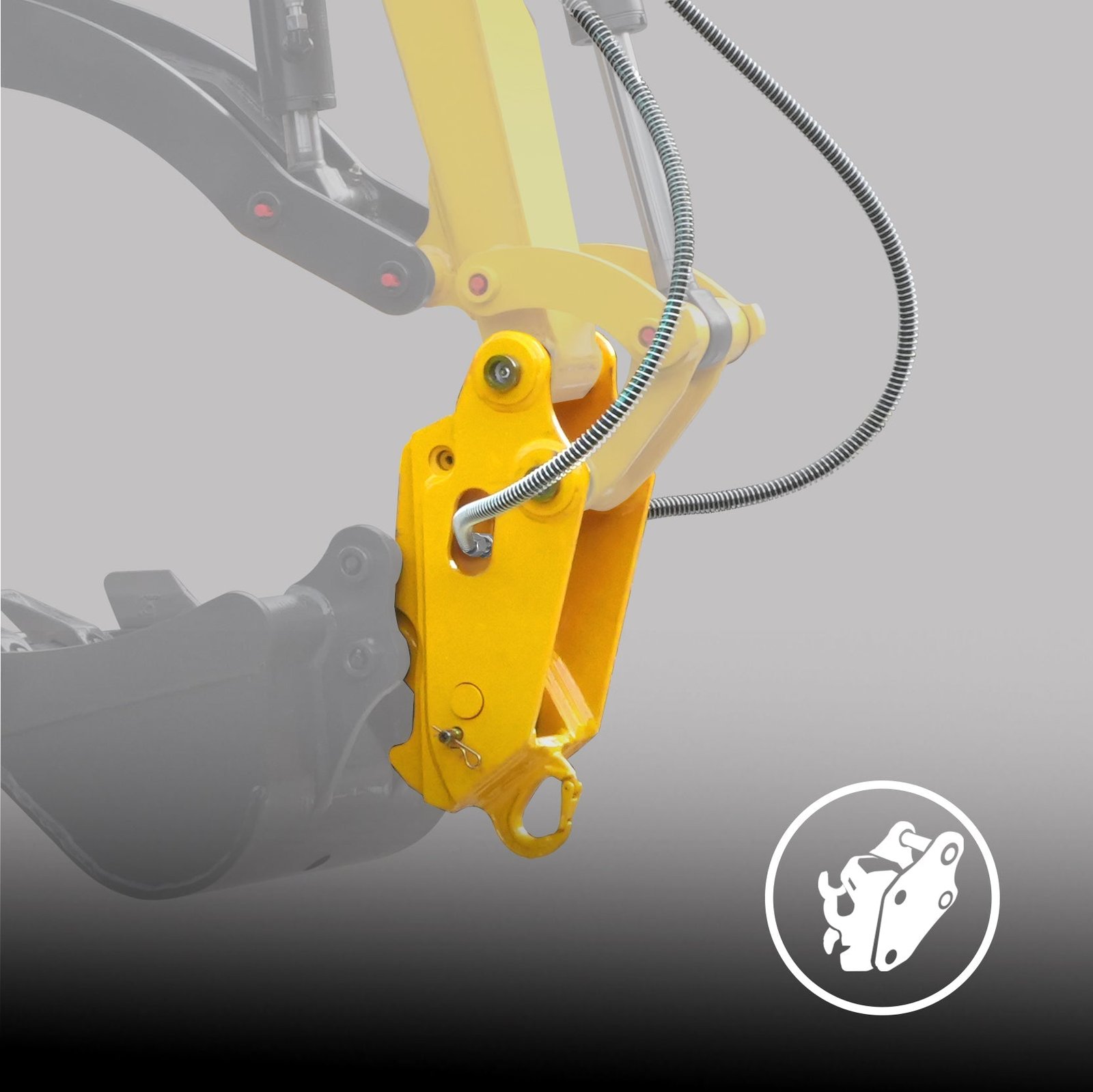

Semi-Automatic Quick Hitch

✓

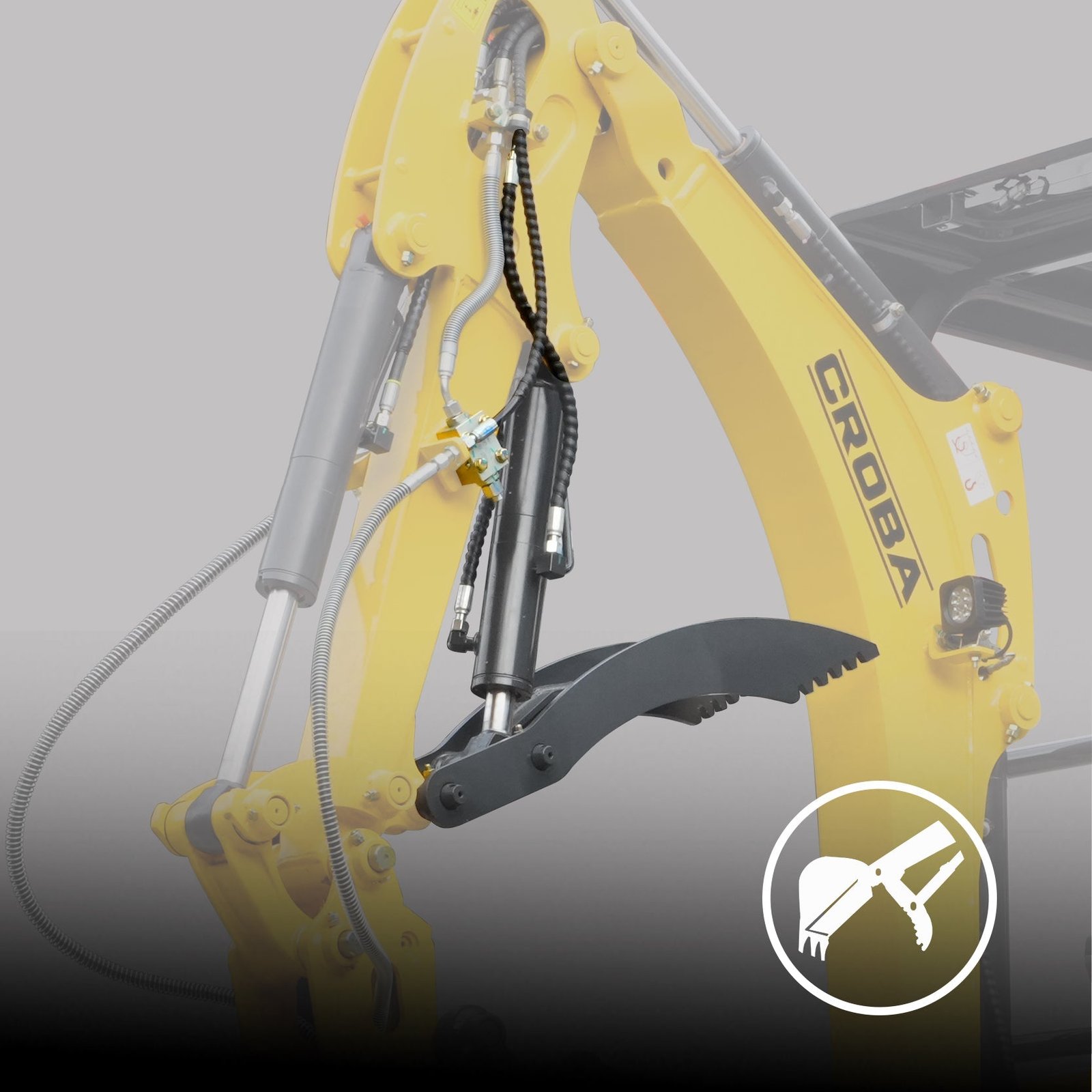

Hydraulic Thumb

✓

Product Manual (PDF)

✓

Demonstration Guide

Included — By Category

Engine & Hydraulics

Kubota D902-NT-EF03 Engine

17 GPM High-Flow Hydraulic System

Dual Auxiliary Circuit (9.1 + 2.6 GPM)

Danfoss SW2.5K Swing Motor

Gates Hydraulic Hoses

Protected Hydraulic Routing

Pilot-Operated Controls

Cab & Operator

High-Back Seat

LCD Display

Product Manual (PDF)

Demonstration Guide

Undercarriage & Travel

Zero Tail Swing Design

Retractable Undercarriage (39″–51″)

Two-Speed Travel (High / Low)

360° Rotation

Boom, Attachments & Warranty

Upgraded Long Arm Assembly (72″ boom / 43.3″ arm)

Boom Swing 65° Left / 50° Right

Semi-Automatic Quick Hitch

Hydraulic Thumb

1-Year Machine Warranty

2-Year / 2,000-Hr Engine Warranty

Built For

Deep Excavation

Tight Access Sites

Trenching

Foundation Work

Landscaping

Light Demolition

Utility Installation

Multi-Attachment Jobs

Residential Construction
