Description

Description

MechMaxx · MEC17 · Mini Compact Excavator

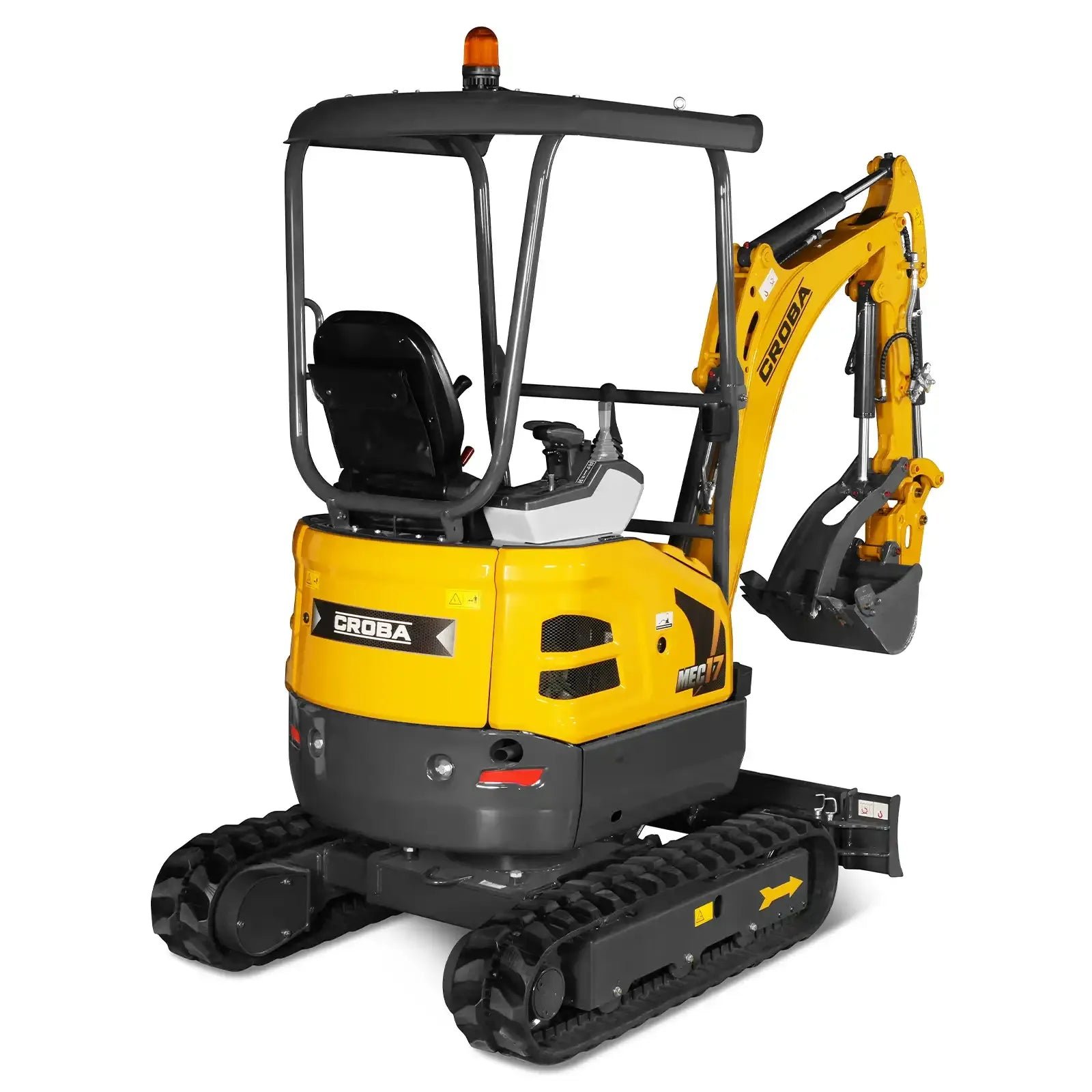

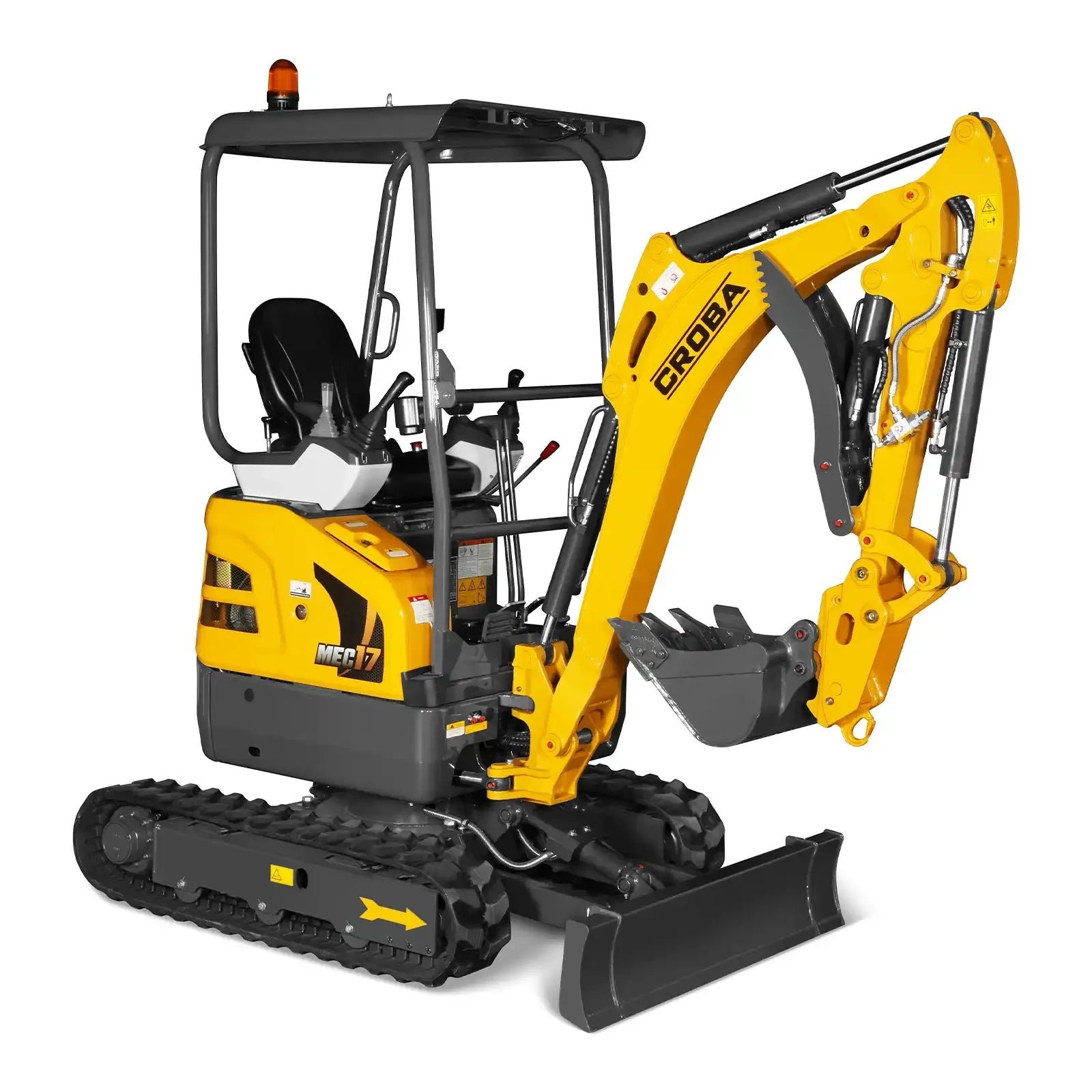

MechMaxx MEC17 Mini Compact Excavator

Kubota D902 Engine — Zero Tail Swing — Retractable Tracks

Built for jobs where space is tight but performance still matters. The MEC17 is powered by a dependable Kubota D902 diesel engine and designed for narrow access areas — backyards, alleys, gardens, and confined construction sites where larger machines can’t operate efficiently.

Kubota D902-NT-EF03 — 18.5 HP · 3,600 RPM · 54.8 in³ displacement. Reliable, fuel-efficient, low vibration, and built for long service life. 2-year or 2,000-hour engine warranty, whichever comes first.

18.5 HP

Kubota D902

4,145 lbs

Operating Weight

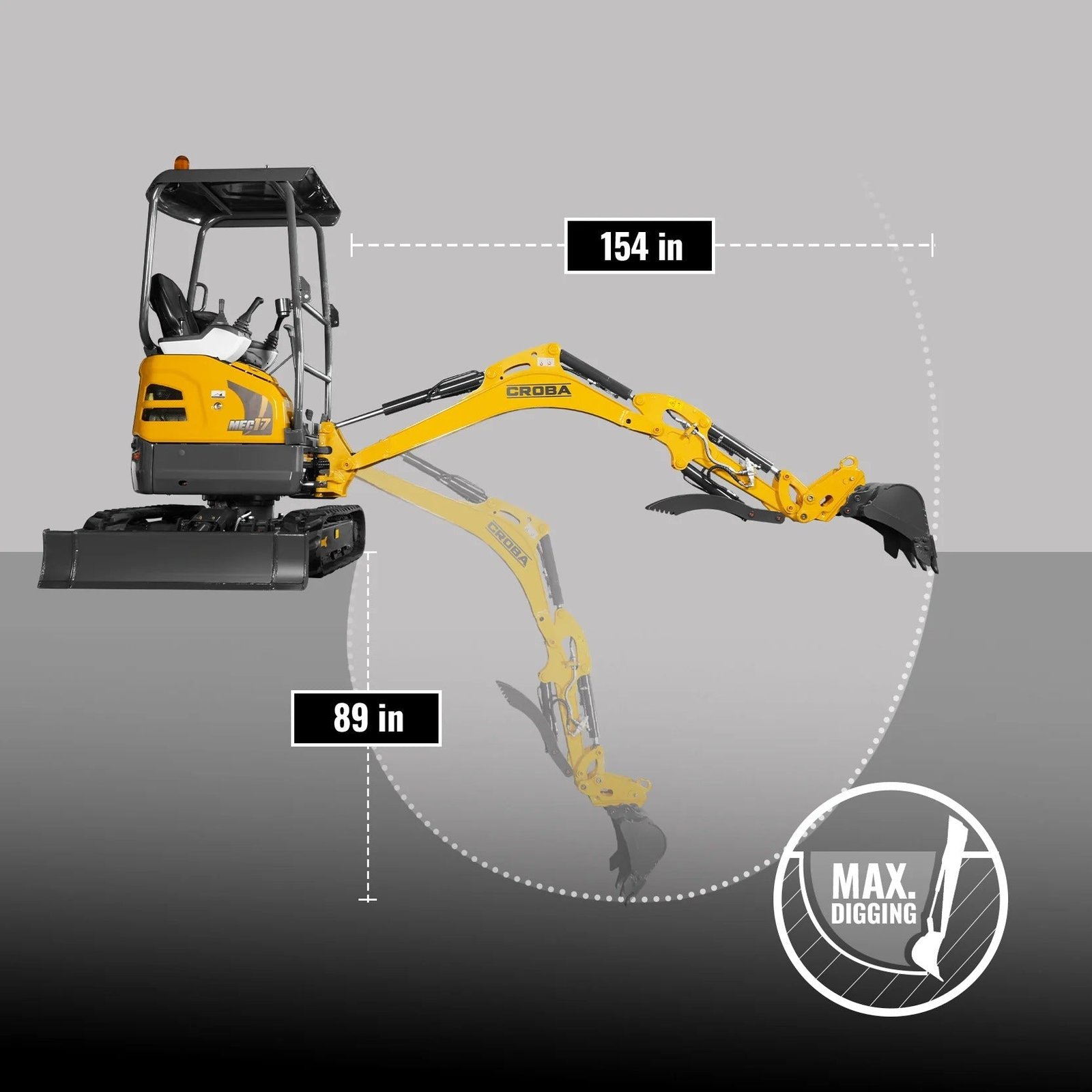

89″

Max Dig Depth

154″

Max Ground Reach

Key Features

Kubota D902 Diesel Engine

18.5 HP at 3,600 RPM with a 54.8 in³ displacement. High compression ratio for better fuel efficiency, low noise, low vibration, and excellent performance. Backed by a 2-year or 2,000-hour engine warranty.

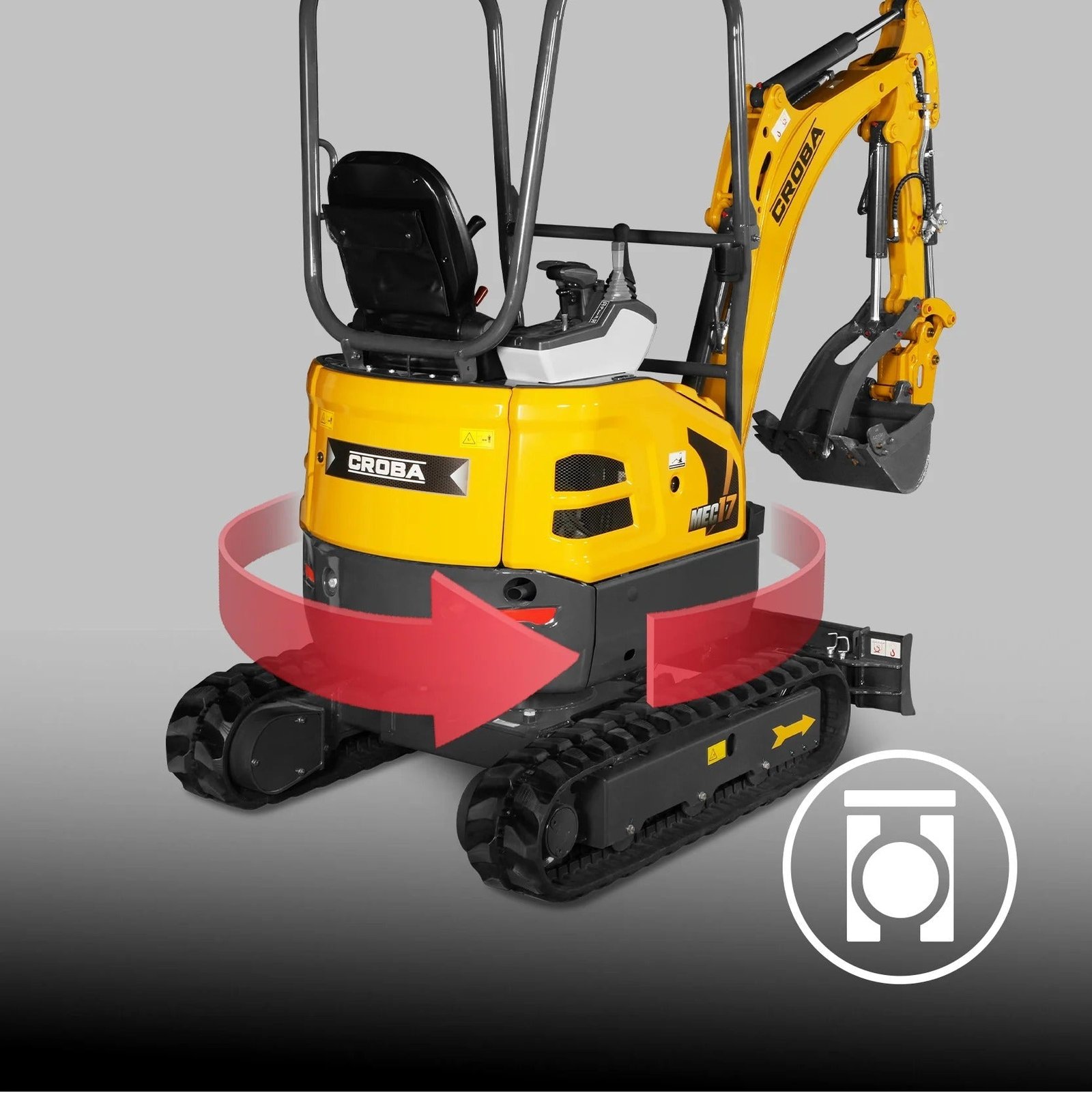

Zero Tail Swing Design

25.6 in tail swing radius keeps the rear of the machine within its track width during full 360° rotation — allowing safe operation directly alongside walls, vehicles, and obstacles without rear collision risk.

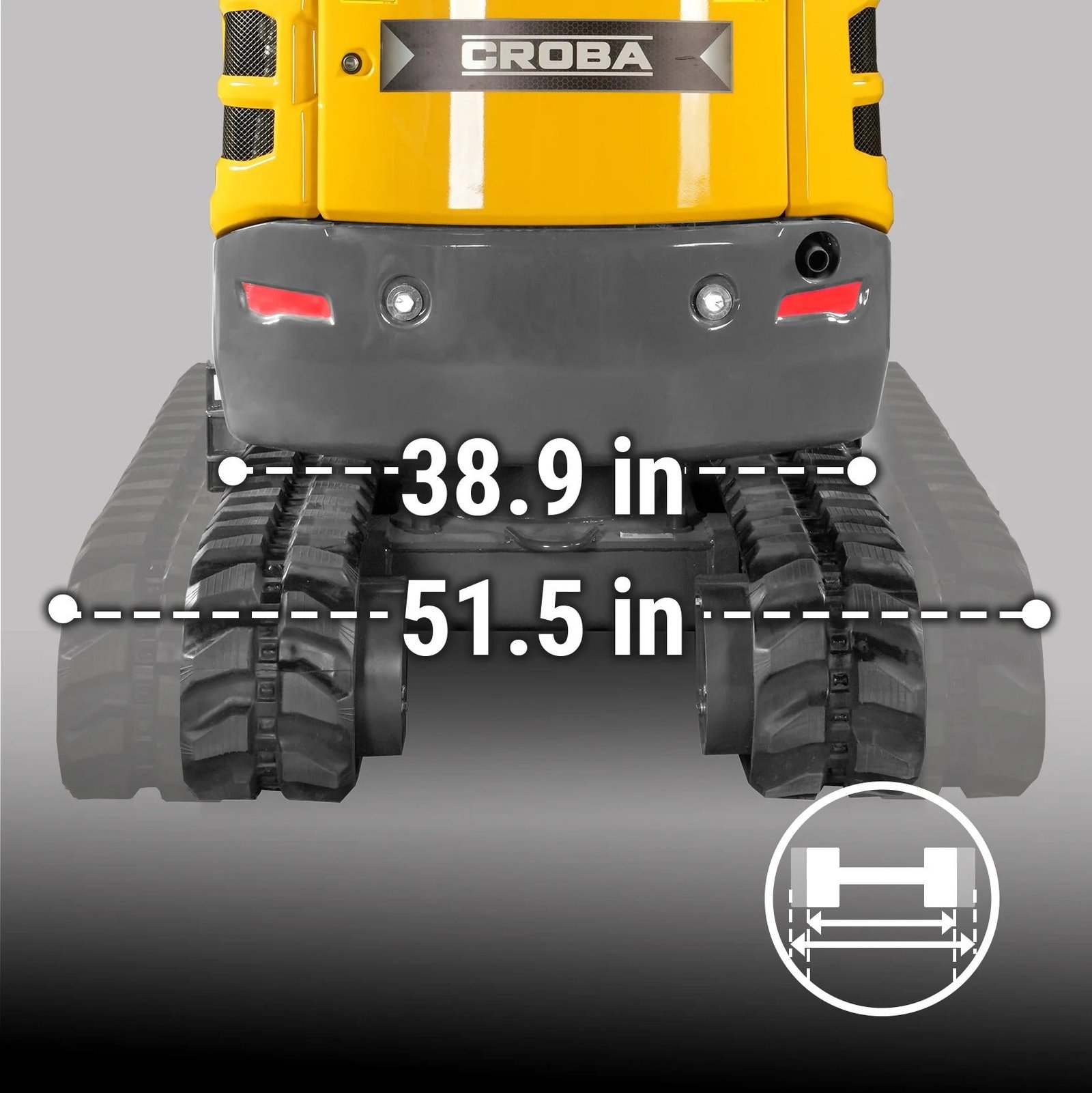

Retractable Undercarriage — 39″ to 51″

Retract tracks to 39″ for passing through tight access points. Extend to 51″ for enhanced stability on uneven terrain. Track gauge adjusts to match the job — no tools required.

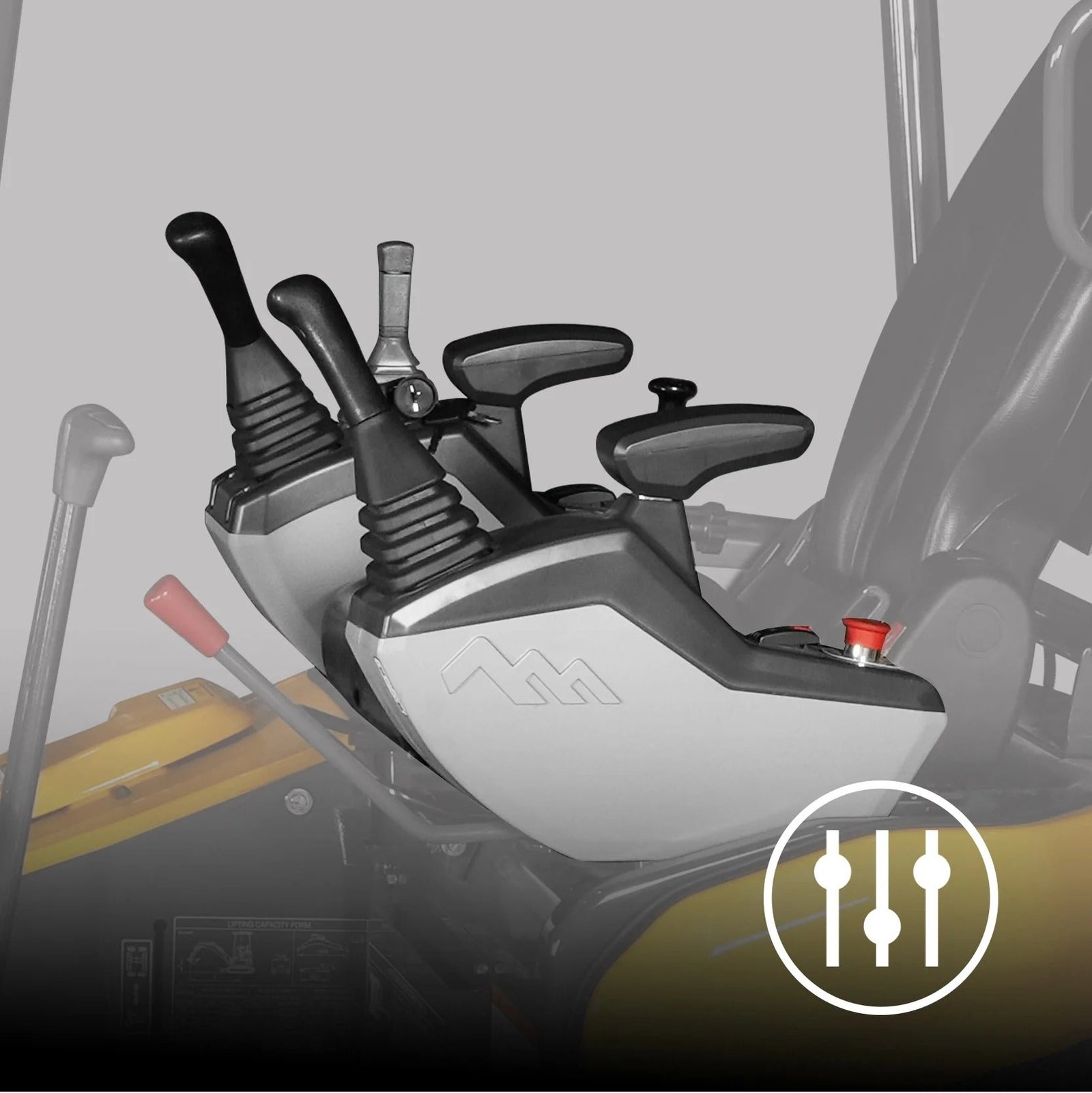

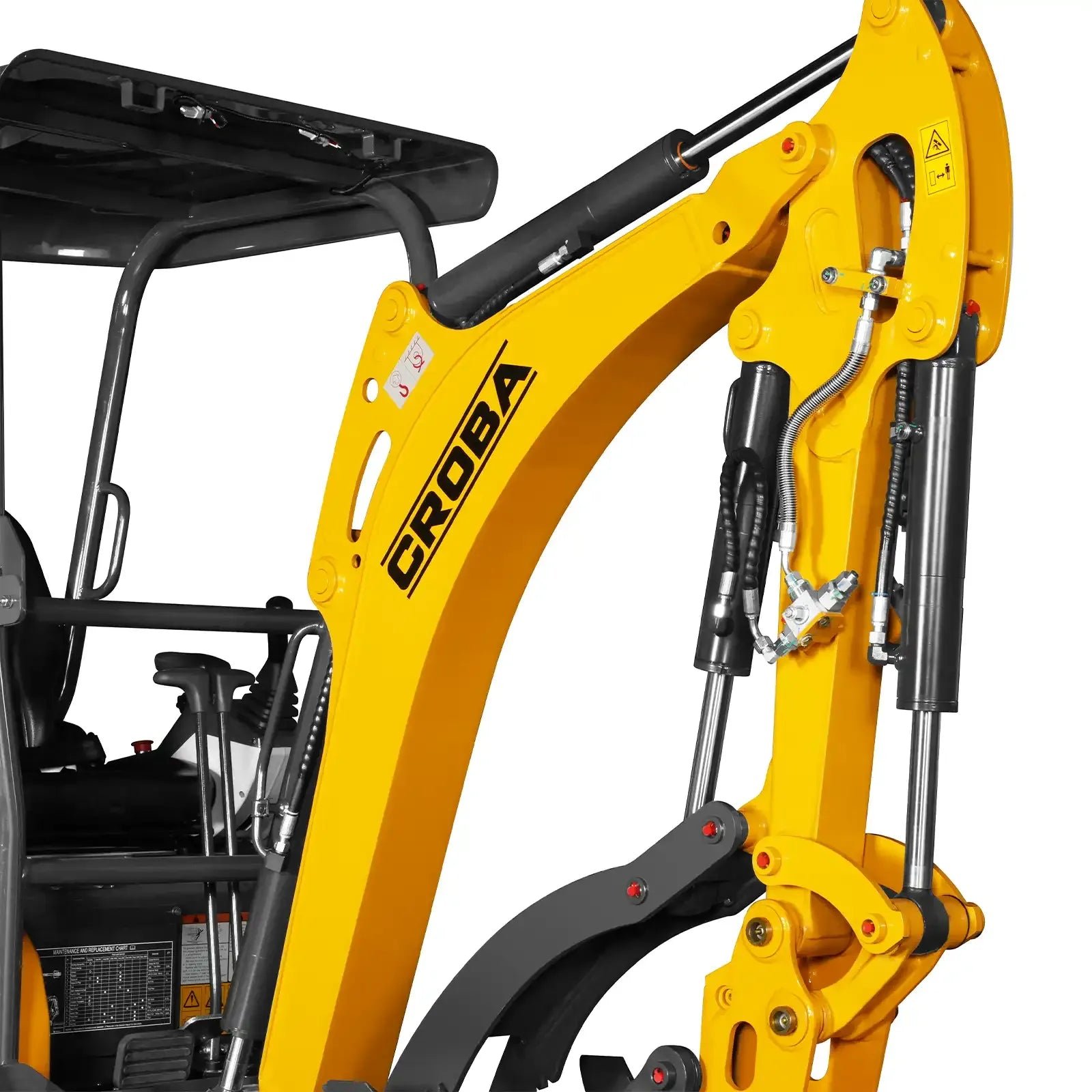

Pilot-Operated Controls

Smooth, responsive pilot-operated joystick controls deliver precise machine handling and reduce operator fatigue during extended operating periods. Reversible control pattern for left- or right-hand operation via a simple knob twist.

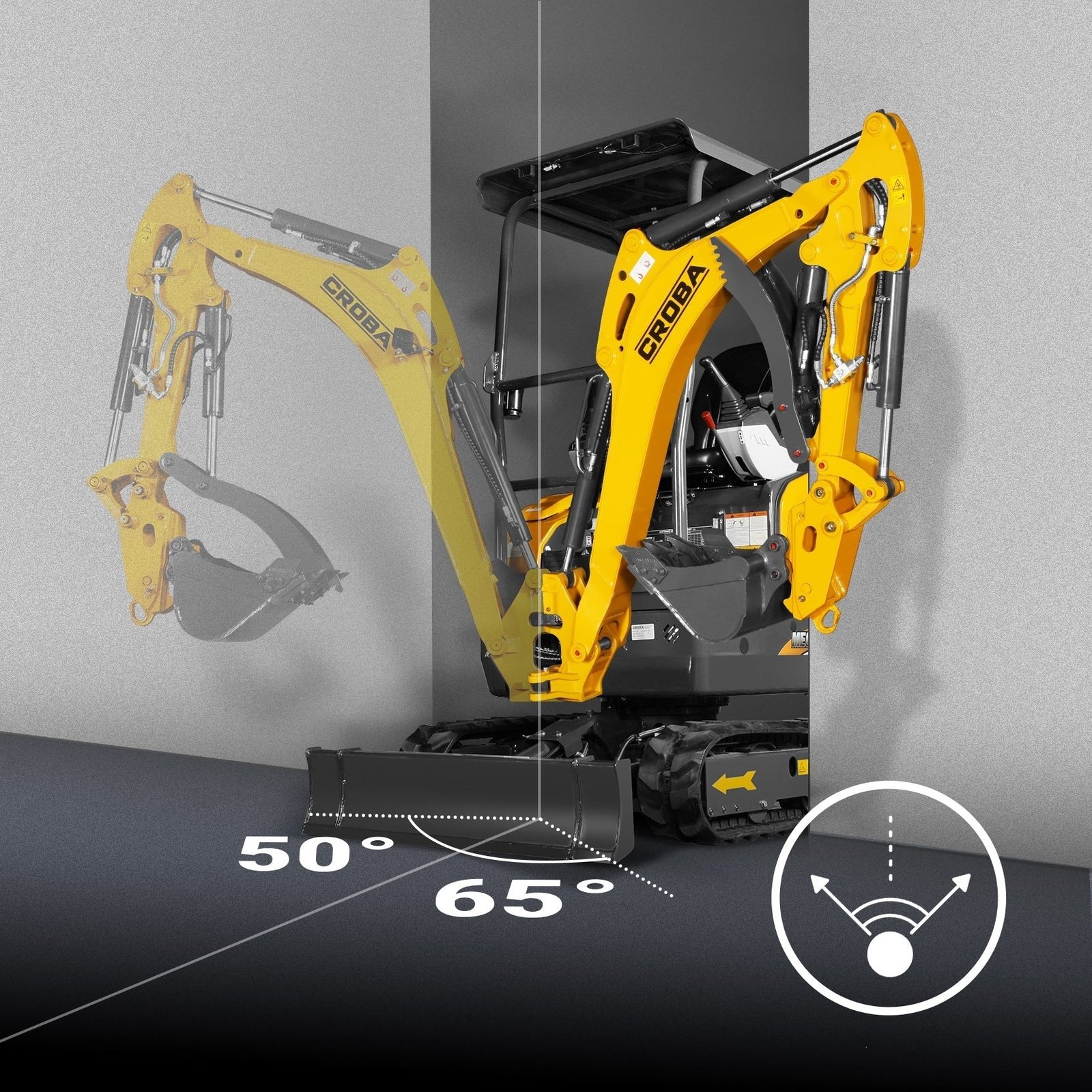

Boom Swing — 65° Left / 50° Right

Wide boom swing range lets you work along walls, fences, and tight jobsite edges without repositioning the machine. Dig in places a fixed boom simply can’t reach.

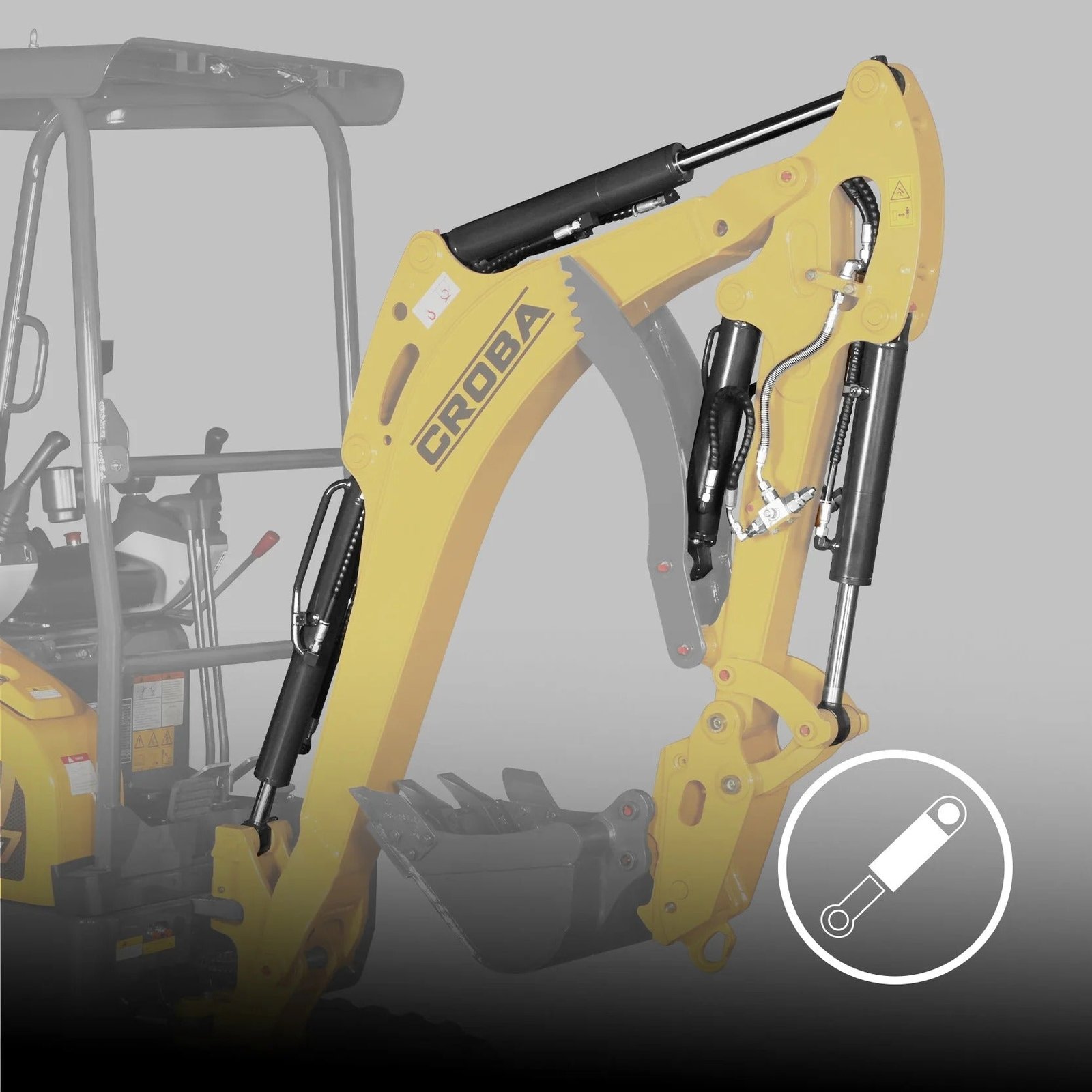

High-Flow Hydraulic System

17 GPM at 2,300 RPM with 9.1 GPM auxiliary circuit flow — supports high-flow attachments including augers, rippers, and mulchers. Gates hydraulic hoses throughout for exceptional durability and reliability.

Danfoss Swing Motor

SW2.5K Danfoss swing motor at 9.5 RPM — precise, smooth cab rotation with consistent torque. Danfoss is one of the most trusted names in hydraulic motor engineering.

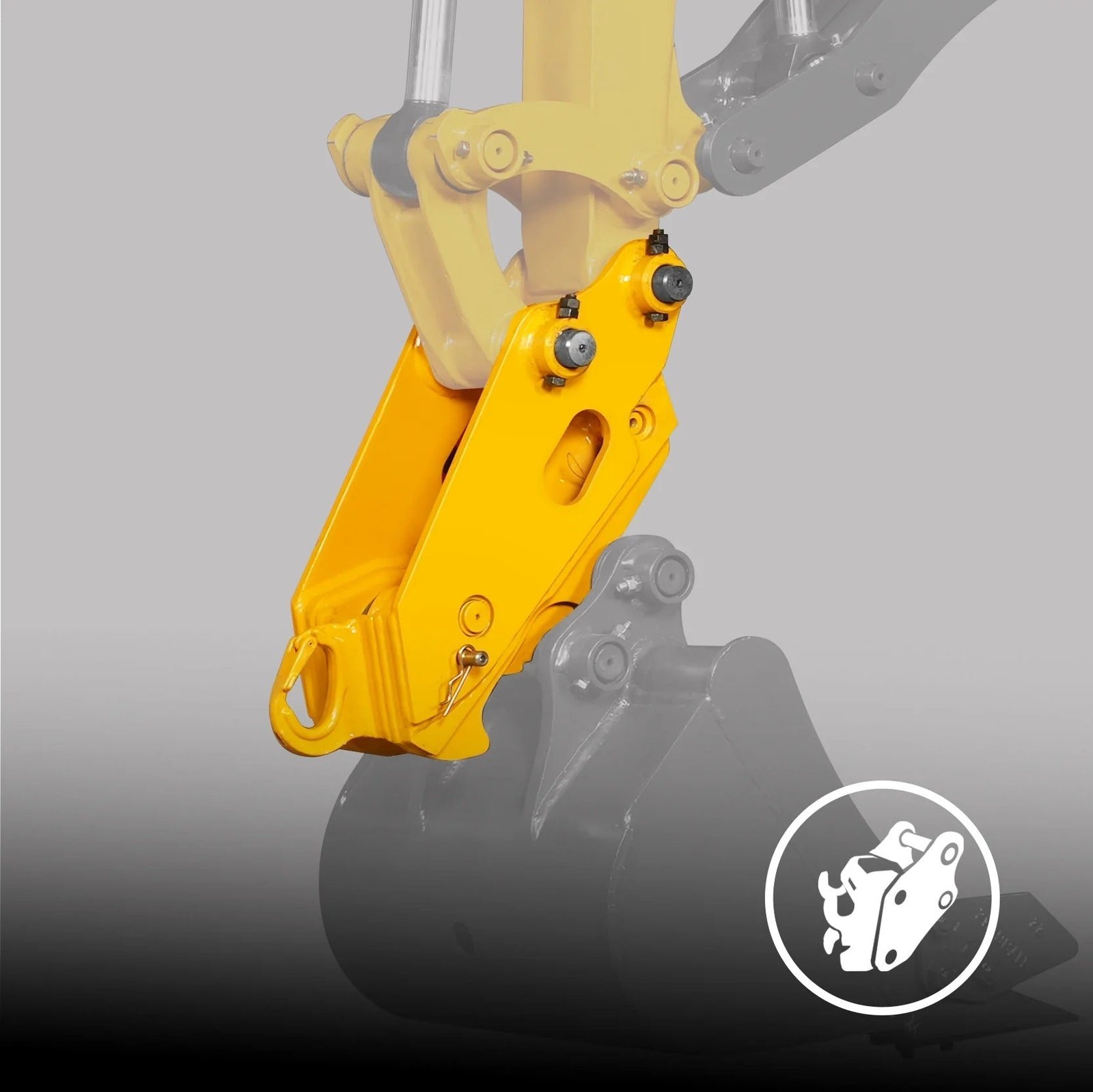

Semi-Automatic Quick Hitch

Heavy-duty steel quick hitch for fast, secure attachment changes. Easily connect and detach attachments to keep productivity high on busy jobsites.

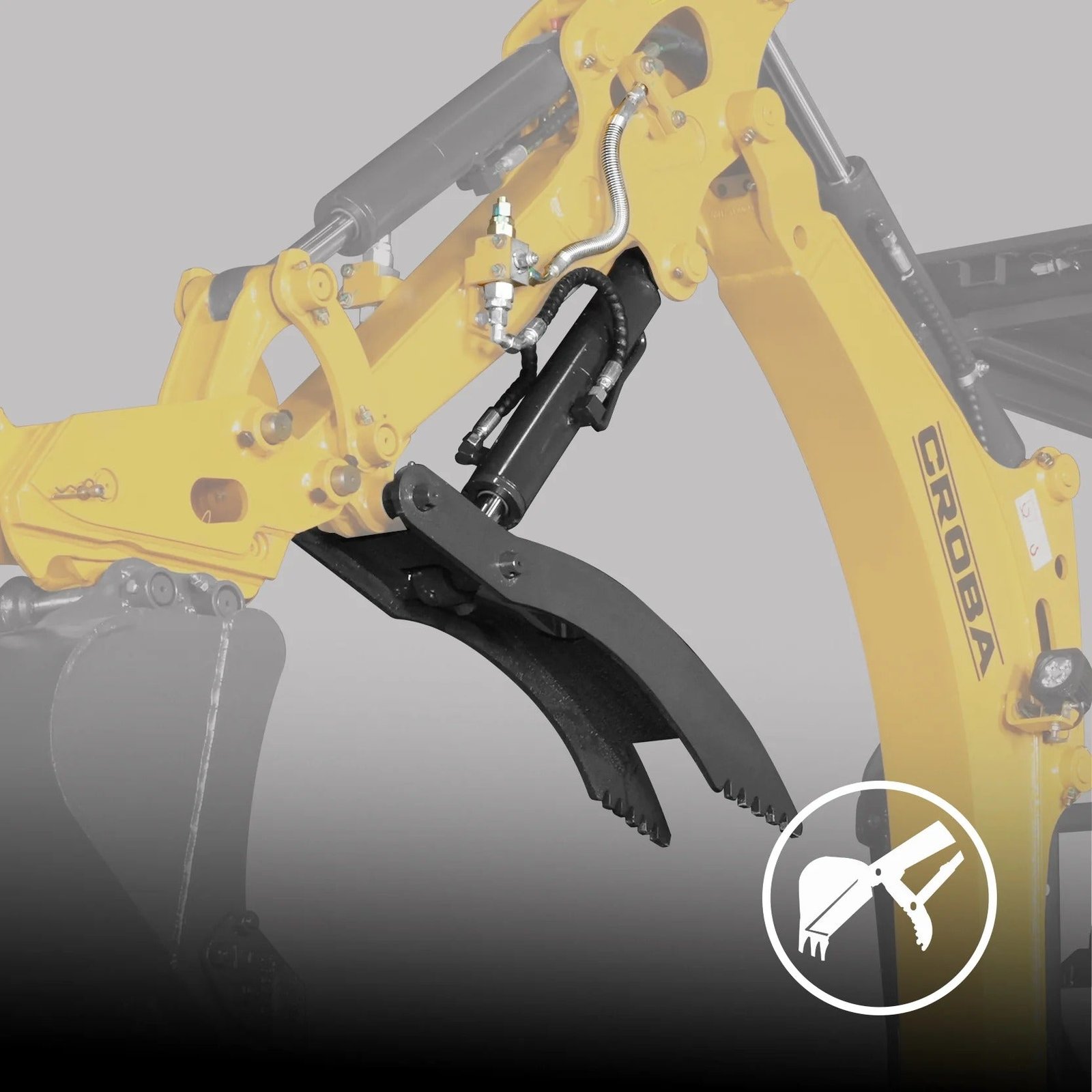

Hydraulic Thumb Included

Adjustable hydraulic thumb for picking up rocks, branches, and debris — position controlled from the operator seat. A standard feature on every MEC17.

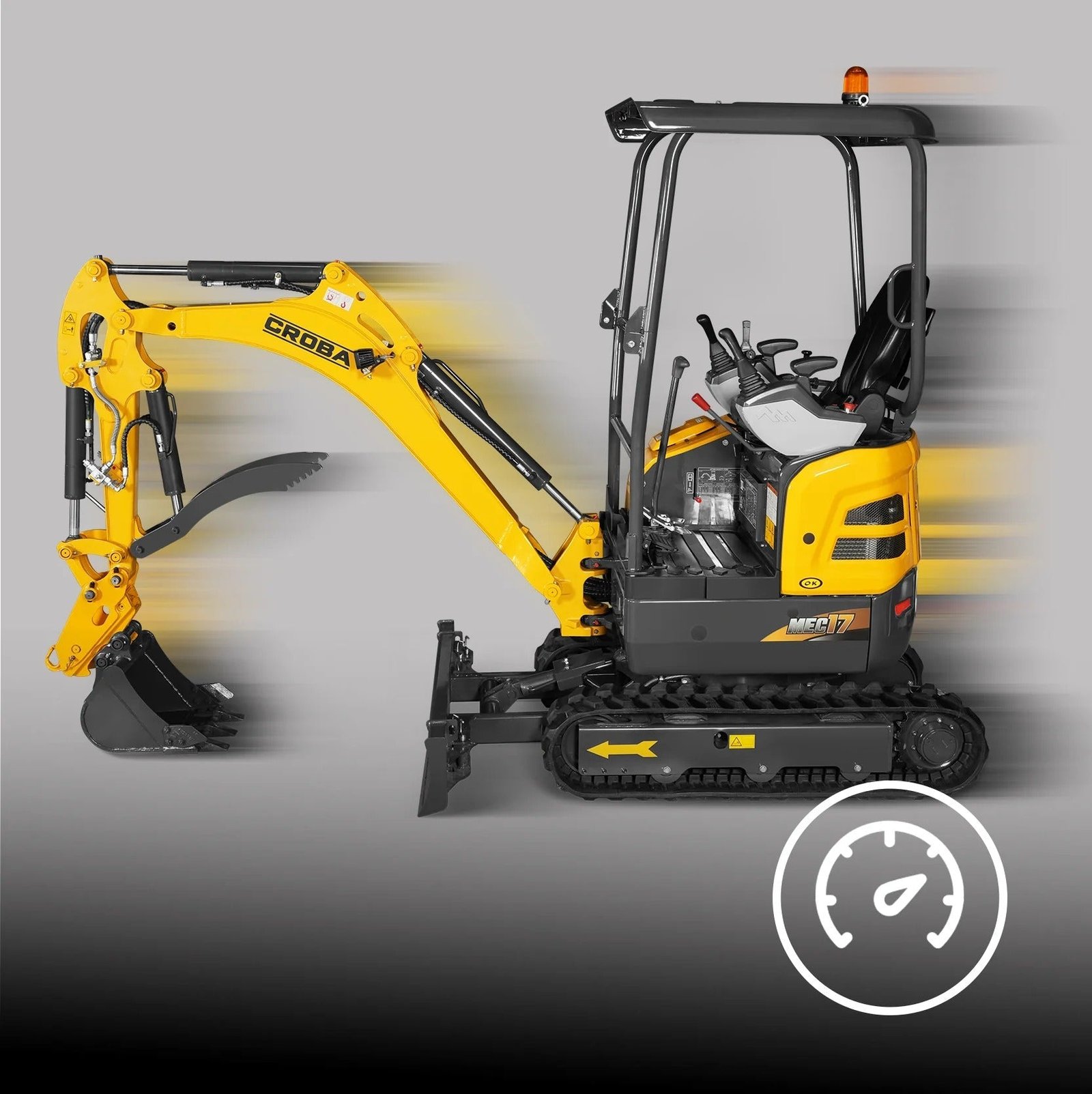

Two-Speed Travel

High speed: 2.67 mph for fast site travel. Low speed: 1.37 mph for precision control on grades and confined areas. Maximum traction force of 4,047 lbf in low speed.

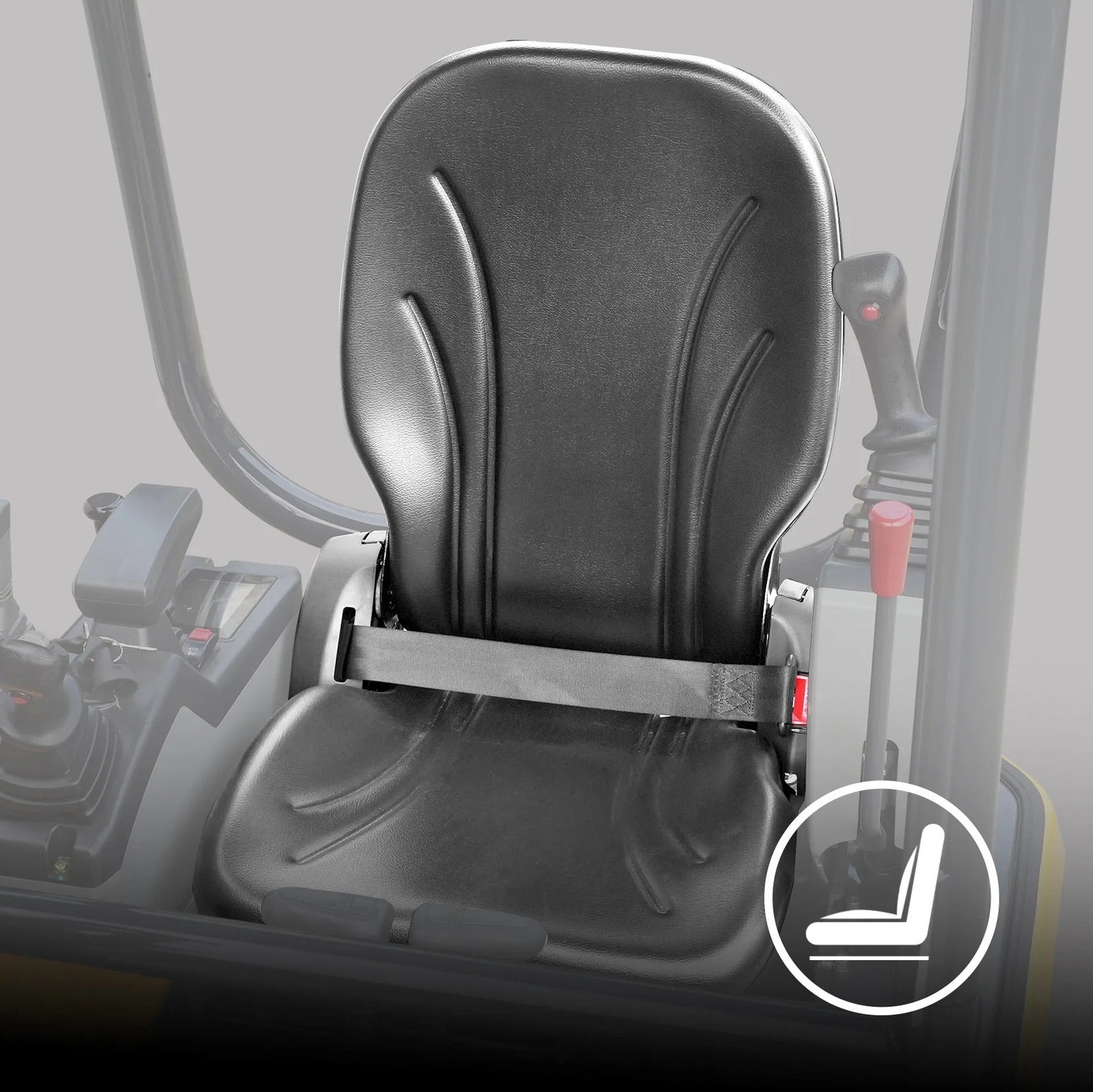

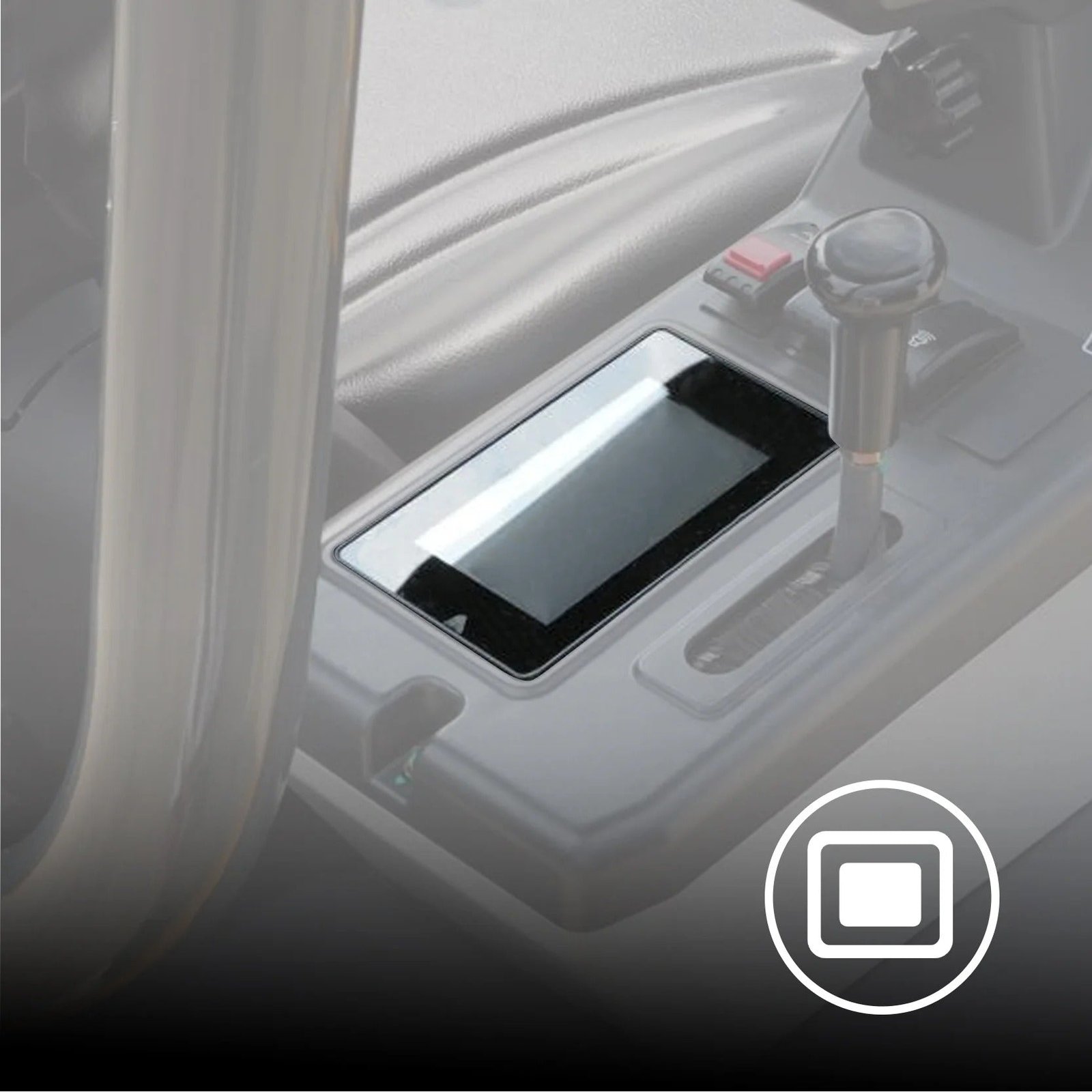

High-Back Seat & Smart LCD Display

High-back seat for support during long operating hours. Smart LCD display provides an intuitive interface for monitoring machine performance, fuel level, and operating conditions.

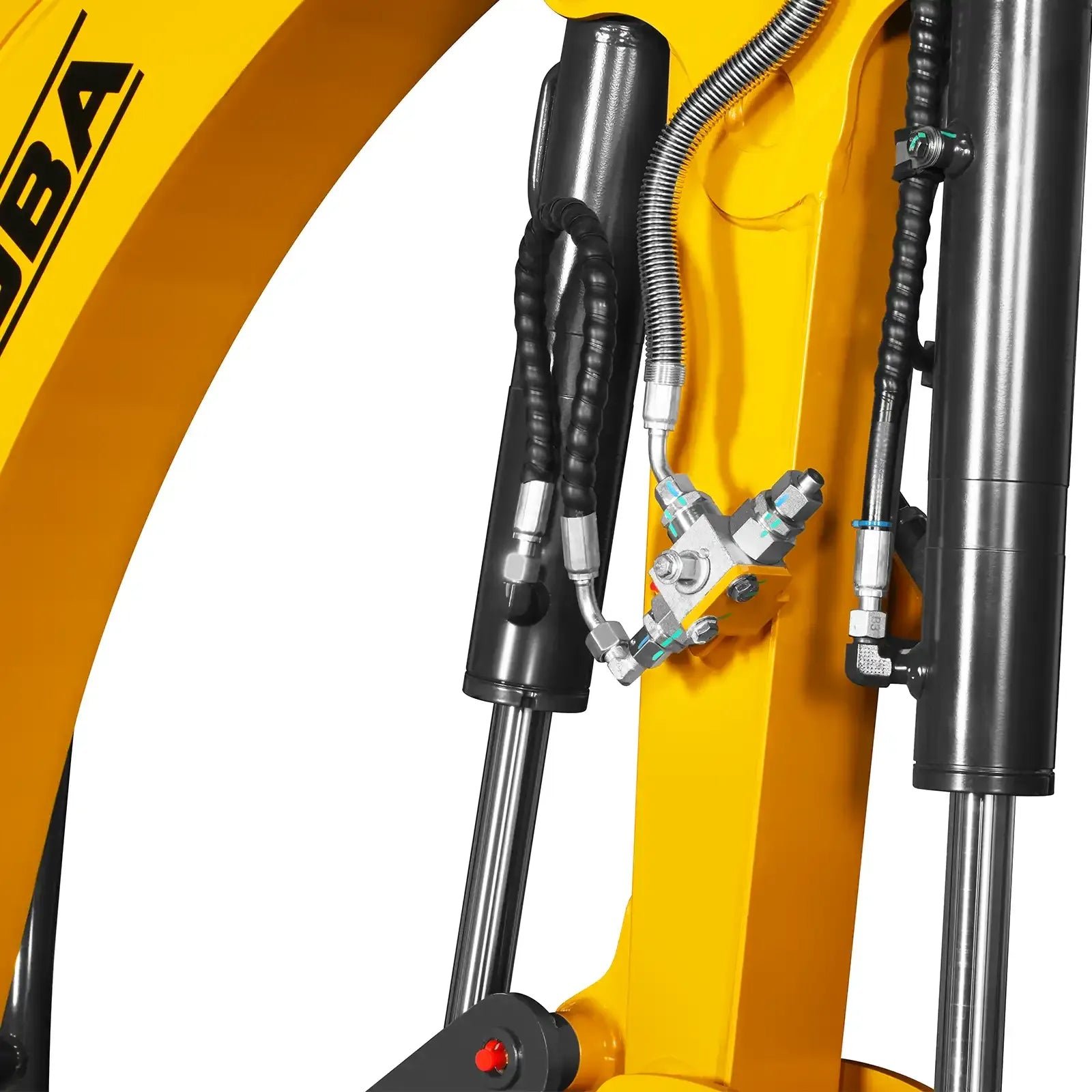

Protected Hydraulic Routing

Hydraulic hoses are safely enclosed within the machine structure to prevent damage during demanding work — using Gates hoses throughout for long-term reliability.

Full Specifications

Engine

Engine Model	Kubota D902-NT-EF03
Engine Output (Net)	15.8 HP
Engine Output (Gross)	18.5 HP
Rated Speed	3,600 RPM
Displacement	54.8 in³
No. of Cylinders	3
Bore	2.83 in
Stroke	2.9 in
Engine Warranty	2-Year or 2,000-Hour

Performance & Scope of Work

Operating Weight	4,145 lbs
Max Digging Depth	89 in
Max Vertical Digging Depth	75 in
Max Digging Height	141 in
Max Dumping Height	98 in

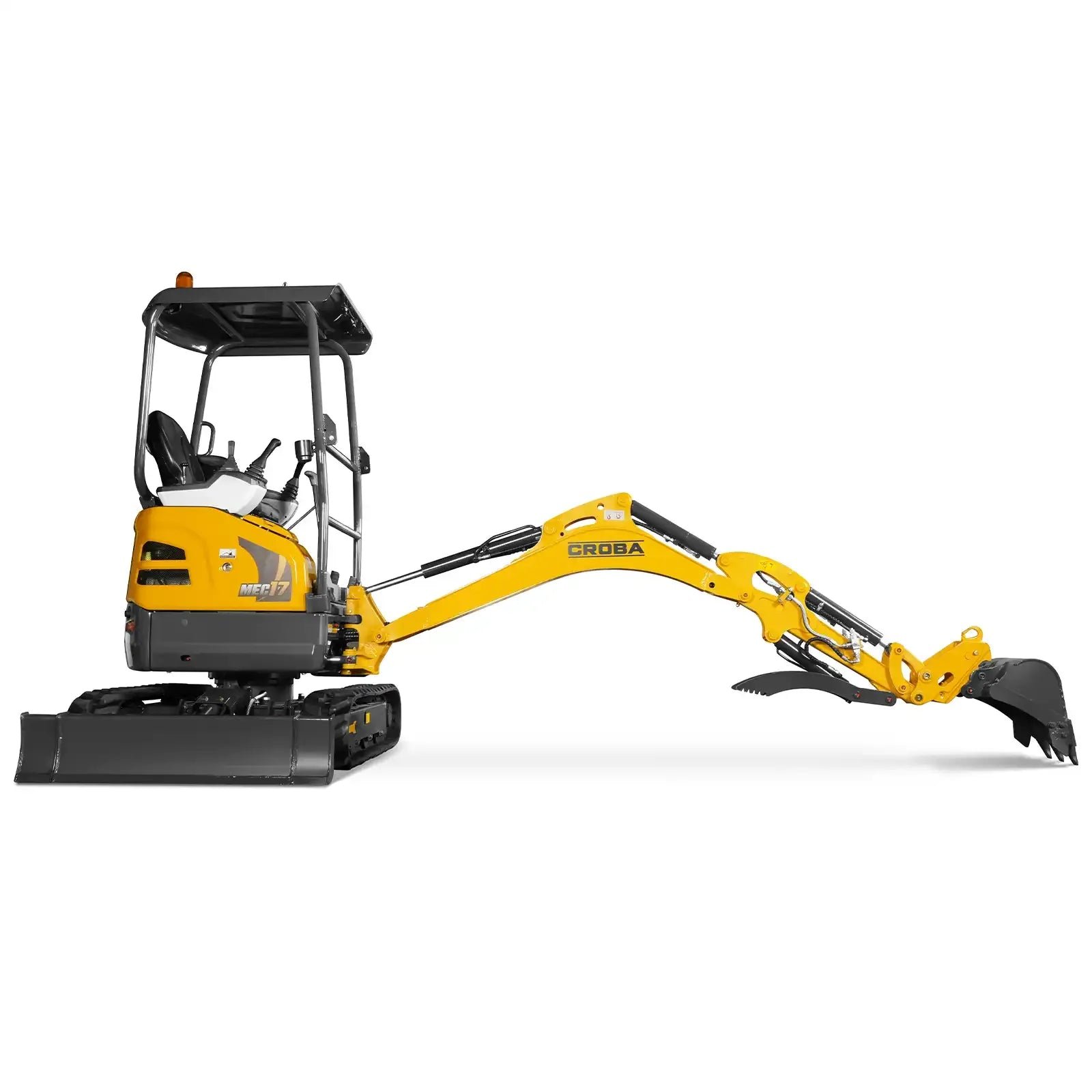

Max Digging Radius	154 in
Max Digging Radius at Ground Level	151 in
Max Lift Above Ground	11 in
Max Drop Below Ground	7.5 in
Min Turning Radius of Working Device	57 in
Boom Swing — Left	65°
Boom Swing — Right	50°
Rotation	360°
Tail Swing Radius	25.6 in

Travel System

Type of Tracks	Rubber
Track Roller Qty	6
Travel Speed — High	2.67 mph
Travel Speed — Low	1.37 mph
Max Traction Force — Low Speed	4,047 lbf
Ground Clearance	5.7 in
Ground Pressure	4.2 psi
Gradeability — Maximum	30°

Hydraulic System

Pump Flow at 2,300 RPM	17 GPM
Auxiliary Circuit — Primary Flow	9.1 GPM
Swing Motor	Danfoss SW2.5K
Swing Speed	9.5 RPM
Hydraulic Hoses	Gates

Digging Forces & Arm

Arm Length	37.4 in
Arm Digging Force	2,136 lbf

Bucket

Bucket Capacity	1.4 ft³
Bucket Width	17.7 in

Dimensions

Overall Width (Retracted / Expanded)	39 / 51 in
Track Width (Retracted / Expanded)	39 / 51 in
Track Gauge (Retracted / Expanded)	30 / 42 in
Overall Height (to Top of Cab)	94.7 in
Track Length	62.7 in
Shoe Width	9.1 in
Blade Width (Retracted / Expanded)	39 / 51 in
Counterweight Ground Clearance	18 in
Ground Clearance	5.7 in

Capacities

Fuel Tank	5 gal
Hydraulic Oil Tank	3.6 gal
Engine Oil	1 gal
System Capacity	5.7 gal

Shipping

Packing Size	112.6 × 43.7 × 99.2 in
Net / Gross Weight	3,968 / 4,508 lbs
Package Method	Wood Case
Warranty — Machine	1 Year

Everything Included

✓

Kubota D902-NT-EF03 Diesel Engine

✓

Zero Tail Swing Design

✓

Retractable Undercarriage (39″–51″)

✓

Danfoss SW2.5K Swing Motor

✓

High-Flow Hydraulic System

✓

Gates Hydraulic Hoses

✓

Protected Hydraulic Routing

✓

Pilot-Operated Controls

✓

Reversible Control Pattern

✓

Two-Speed Travel (High / Low)

✓

360° Rotation

✓

Boom Swing 65° Left / 50° Right

✓

Semi-Automatic Quick Hitch

✓

Hydraulic Thumb

✓

High-Back Seat

✓

Smart LCD Display

✓

Product Manual (PDF)

✓

Engine Manual (PDF)

✓

Operation Guide (PDF)

Included — By Category

Engine & Hydraulics

Kubota D902-NT-EF03 Diesel Engine

High-Flow Hydraulic System (17 GPM)

Danfoss SW2.5K Swing Motor

Gates Hydraulic Hoses

Protected Hydraulic Routing

Pilot-Operated Controls

Reversible Control Pattern

Cab & Operator

High-Back Seat

Smart LCD Display

Product Manual (PDF)

Engine Manual (PDF)

Operation Guide (PDF)

Undercarriage & Travel

Zero Tail Swing Design

Retractable Undercarriage (39″–51″)

Rubber Tracks

Two-Speed Travel

360° Rotation

Boom, Attachments & Warranty

Boom Swing 65° Left / 50° Right

Semi-Automatic Quick Hitch

Hydraulic Thumb

1-Year Machine Warranty

2-Year / 2,000-Hr Engine Warranty

Built For

Tight Access Sites

Backyards & Gardens

Narrow Lanes & Alleys

Trenching

Landscaping

Light Demolition

Utility Installation

Residential Construction

Property Maintenance
